CN214638494U - Clear portable cleaning machine in cigarette factory workshop top - Google Patents
Clear portable cleaning machine in cigarette factory workshop top Download PDFInfo
- Publication number
- CN214638494U CN214638494U CN202120655710.3U CN202120655710U CN214638494U CN 214638494 U CN214638494 U CN 214638494U CN 202120655710 U CN202120655710 U CN 202120655710U CN 214638494 U CN214638494 U CN 214638494U
- Authority
- CN
- China
- Prior art keywords
- cleaning
- shaft
- box
- cleaning mechanism
- water
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Cleaning In General (AREA)
Abstract
The utility model discloses a clear portable cleaning machine in cigarette factory workshop top, including flatbed, hydraulic telescoping rod, sanitizer case, wastewater collection box, layer board, cleaning mechanism and wiper mechanism, install hydraulic telescoping rod in the middle of the flatbed upper end, the flatbed upper end is located hydraulic telescoping rod both sides and installs sanitizer case and wastewater collection box respectively, hydraulic telescoping rod top fixed mounting layer board, and the installation of layer board upper end cleans mechanism and wiper mechanism. The utility model discloses the setting cleans mechanism and wiper mechanism, through adjusting hydraulic telescopic rod, clean the dust at workshop top and collect the deposition incasement, clean the back and start the wiper mechanism's on next door simultaneously motor, rotate the cleaning brush head and wash the workshop top, sewage is accepted to the water collector of lower extreme, whole cleaning process cleanup crew only needs to promote the flatbed, the cleaning machine can carry out deashing and abluent operation to the roof simultaneously, the cleaning process is convenient laborsaving, high work efficiency, personnel's personal safety is ensured.
Description
Technical Field
The utility model relates to a workshop cleaning device equipment field specifically is a clear portable cleaning machine in cigarette factory workshop top.
Background
The bamboo pole that a connection brush hair was connected at workshop top now commonly is sent up to go to it and cleans it, and the workshop top height generally is 5-8 meters, and the clearance in-process is comparatively hard inconvenient, and the workshop top washs the degree of difficulty bigger after the deashing, and cleaner and sewage drip on one's body of cleanup crew easily from the eminence, if drip carelessly in the eyes still can cause the damage to the eye, the cost of labor is high, work efficiency is poor and there is the personal danger.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a clear portable cleaning machine in cigarette factory workshop top to solve the inconvenience of comparatively hard of existing workshop top cleaning process, the cost of labor is high, work efficiency is poor and there is the problem of personal danger.
In order to achieve the purpose, the utility model is realized by the following technical scheme:
a portable cleaning machine for cleaning the top of a cigarette factory workshop comprises a flat car, a hydraulic telescopic rod, a cleaning agent box, a waste water collecting box, a supporting plate, a cleaning mechanism and a cleaning mechanism;
wheels are mounted below the flat car, the hydraulic telescopic rod, the detergent box and the wastewater collection box are mounted on the flat car, the supporting plate is mounted at the upper end of the hydraulic telescopic rod, and the cleaning mechanism are mounted on the supporting plate;
the cleaning agent box is connected with the cleaning mechanism through a water pump and a water inlet pipe, and the wastewater collecting box is connected with the cleaning mechanism through a water return pipe.
Furthermore, the cleaning mechanism comprises an ash accumulation box, a driving belt pulley, a driving shaft, a belt, a cleaning brush, a driven shaft, a driven belt pulley and a cleaning mechanism motor;
the upper end of the dust box is uncovered and fixed on the supporting plate, and the two sides of the dust box close to the left end are connected with the supporting plate through two symmetrical fixing plates;
a driving belt pulley is arranged in the dust accumulation box through a driving shaft, a driven belt pulley is arranged in the dust accumulation box through a driven shaft, and a belt is arranged on the driving belt pulley and the driven belt pulley;
the cleaning brushes are uniformly distributed on the belt, the motor of the cleaning mechanism is arranged outside the dust accumulation box, and the output shaft of the motor of the cleaning mechanism is connected with the driving shaft.
Furthermore, a dust blocking rod is arranged on the inner wall of the dust box below the belt, and a row of dust removing forks are fixedly arranged on the dust blocking rod.
Furthermore, an ash outlet is arranged at the lower part of the outer side of the ash deposition box, and a rubber sealing plug is arranged at the ash outlet.
Furthermore, the lower end surface of the dust box is an inclined surface.
Furthermore, the cleaning mechanism comprises a central water outlet shaft, a water pan supporting rod, a cleaning brush head, a cleaning cotton rod, a water nozzle and a water pan;
the central water outlet shaft is rotatably arranged on the supporting plate, the upper end of the central water outlet shaft is fixedly provided with a cleaning brush head, a water spray nozzle is arranged in the middle of the cleaning brush head and is communicated with the upper end of a water outlet hole of the central water outlet shaft, and the lower end of the water outlet hole of the central water outlet shaft is connected with a water inlet pipe;
cleaning cotton sticks are uniformly distributed around the cleaning brush head;
the water receiving tray is arranged on the supporting plate through a water receiving tray supporting rod, the central water outlet shaft penetrates through the water receiving tray, and a water outlet hole formed in the water receiving tray is connected with the water return pipe;
the central water outlet shaft is connected with a power system of the cleaning mechanism.
Furthermore, the power system of the cleaning mechanism comprises a motor of the cleaning mechanism, a transmission shaft and a gear set; the cleaning mechanism motor is fixed on the supporting plate, an output shaft of the cleaning mechanism motor is connected with the lower end of the transmission shaft, the upper end of the transmission shaft is connected with the input end of the gear set, and the output end of the gear set is connected with the central water outlet shaft;
the gear set comprises two gears which are respectively arranged on the transmission shaft and the central water outlet shaft.
Furthermore, one side of the flat car is welded with a fixed handrail.
Compared with the prior art, the beneficial effects of the utility model are that:
the cleaning device is provided with the cleaning mechanism and the cleaning mechanism, and the cleaning mechanism are contacted with the top of a workshop by adjusting the hydraulic telescopic rod, the cleaning mechanism is driven by the motor to operate, dust on the top of the workshop is cleaned and collected in the dust accumulation box, the motor of the cleaning mechanism beside the workshop is started after cleaning, the cleaning agent is delivered to the cleaning mechanism through the water pump and the water inlet hose, the cleaning agent is sprayed to the top of the workshop through the water spray nozzle, the cleaning brush head is rotated to clean the top of the workshop, the water receiving disc at the lower end receives sewage, in collecting sewage collecting box through going out the water hose with sewage, whole cleaning process cleanup crew only need promote flatbed slow moving can, the cleaning machine can carry out deashing and abluent operation to the roof simultaneously, and cleaner and sewage are in time collected, and the condition of drippage reduces, and the cleaning process is convenient laborsaving, and work efficiency is high, and personnel's personal safety obtains guaranteeing.
Drawings

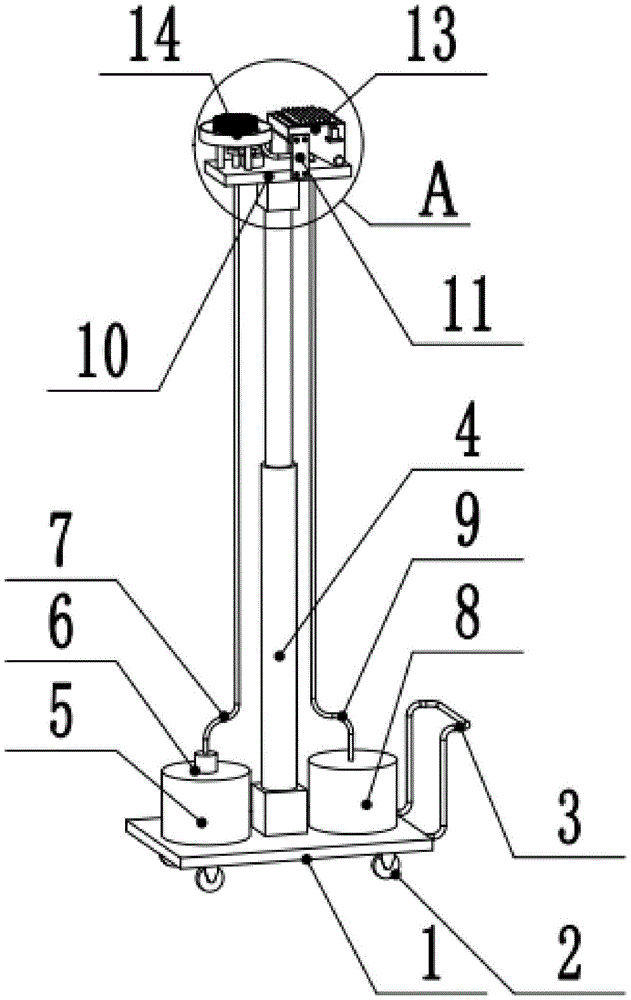

FIG. 1 is a schematic view of the main structure of the portable cleaning machine of the present invention;
FIG. 2 is an enlarged schematic view of the structure at A of FIG. 1 according to the present invention;
FIG. 3 is a schematic cross-sectional view of the cleaning mechanism and the rinsing mechanism of the present invention;
FIG. 4 is an enlarged schematic view of the structure of FIG. 3B according to the present invention;
fig. 5 is an enlarged schematic structural diagram of the present invention at C in fig. 3.
In the figure: 1. flatbed, 2, wheels, 3, handrails, 4, hydraulic telescopic rods, 5, a detergent box, 6, a water pump, 7, a water inlet pipe, 8, a wastewater collection box, 9, a water return pipe, 10, a supporting plate, 11, a fixing plate, 12, a cleaning mechanism motor, 13, a cleaning mechanism, 1301, an ash deposition box, 1302, a driving belt pulley, 1303, a driving shaft, 1304, a belt, 1305, a cleaning brush, 1306, an ash blocking rod, 1307, a driven shaft, 1308, a driven belt pulley, 1309, an ash removal fork, 1310, an ash outlet, 14, a cleaning mechanism, 1401, a central water outlet shaft, 1402, a water receiving tray supporting rod, 1403, a cleaning brush head, 1404, a cleaning cotton stick, 1405, a water spray nozzle, 1406, a water receiving tray, 15, a cleaning mechanism power system, 1501, a cleaning mechanism motor, 1502, a transmission shaft, 1503 and a gear set.
Detailed Description
The technical solutions of the present invention are described in detail below by way of examples, which are only exemplary and can be used only for explaining and explaining the technical solutions of the present invention, but should not be construed as limiting the technical solutions of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "front", "rear", "vertical", "horizontal", "inner", "outer", etc. indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed in a specific orientation, and be operated, and thus are not to be construed as limiting the present invention, and furthermore, the terms "first", "second", and "third" are only used for descriptive purposes and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
The technical solution of the present invention is further described in detail by the following specific embodiments with reference to the accompanying drawings.
Referring to fig. 1-5, the portable cleaning machine for cleaning the top of the cigarette factory workshop comprises a flat car 1, a hydraulic telescopic rod 4, a cleaning agent box 5, a waste water collecting box 8, a supporting plate 10, a cleaning mechanism 13 and a cleaning mechanism 14, wherein wheels 2 are mounted at the lower end of the flat car 1, the hydraulic telescopic rod 4 is mounted in the middle of the upper end of the flat car 1, the type of the hydraulic telescopic rod 4 is YQL300, 102, 22, 10 and 185N, the cleaning agent box 5 and the waste water collecting box 8 are respectively mounted at two sides of the hydraulic telescopic rod 4 at the upper end of the flat car 1, the supporting plate 10 is fixedly mounted at the top end of the hydraulic telescopic rod 4, and the cleaning mechanism 13 and the cleaning mechanism 14 are mounted at the upper end of the supporting plate 10.
The cleaning mechanism 13 comprises an ash accumulation box 1301, a driving belt pulley 1302, a driving shaft 1303, a belt 1304, a cleaning brush 1305, an ash blocking rod 1306, a driven shaft 1307, a driven belt pulley 1308, an ash cleaning fork 1309 and an ash outlet 1310, the upper end of the ash accumulation box 1301 is uncovered and is fixed at the position close to the right of the upper end of the supporting plate 10, so that dust falls into the ash accumulation box 1301 when cleaning, fixing plates 11 are symmetrically arranged at the left end and the right side of the ash accumulation box 1301, the fixing plates 11 are fixedly connected with the ash accumulation box 1301 and the supporting plate 10 through threads, the fixing plates 11 stably reinforce the connection between the ash accumulation box 1301 and the supporting plate 10, the driving shaft 1303 is rotatably arranged at the left side inside the ash accumulation box 1301, the driving belt pulley 1302 is fixedly arranged on the driving shaft 1303, the driven shaft 1307 is fixedly arranged at the right side inside the ash accumulation box 1301, the driven belt 1308 is rotatably arranged on the driven shaft 1307, the driving belt 1302 and the driven belt 1304 are rotatably arranged, a plurality of cleaning brushes 1305 are uniformly arranged on the belt 1304, the cleaning brush 1305 is higher than the upper surface of the dust box 1301 to facilitate cleaning the roof, a dust outlet 1310 is arranged at the lower part of the outer side of the dust box 1301, a cleaning mechanism motor 12 is fixedly installed at the outer side of the dust box 1301, and the cleaning mechanism motor 12 is connected with the driving shaft 1303.
The cleaning mechanism 14 comprises a central water outlet shaft 1401, a water receiving tray supporting rod 1402, a cleaning brush head 1403, a cleaning cotton stick 1404, a water spray nozzle 1405 and a water receiving tray 1406, the central water outlet shaft 1401 is rotatably installed in a hole close to the left of the supporting plate 10, the lower end of the hole close to the left of the supporting plate 10 is hermetically connected with a water inlet pipe 7, the lower end of the water inlet pipe 7 is connected with a water pump 6, the water pump 6 is installed on the detergent box 5, and the water pump 6 pumps the detergent in the detergent box 5 into the water inlet pipe 7.
Center goes out water shaft 1401 upper end fixed mounting and washs brush head 1403, wash brush head 1403 intermediate erection water spray nozzle 1405, the apopore intercommunication in the middle of water spray nozzle 1405 and the center axle 1401, the cleaner washes the roof after flowing into water spray nozzle 1405 through center axle 1401 from the hose 7 that intakes, wash brush head 1403 all around the circumference equipartition have the washing cotton stick 1404, three water collector bracing piece 1402 of water collector 1406 lower extreme installation, water collector bracing piece 1402 circumference equipartition is fixed on layer board 10, water collector 1406 is middle with center axle of going out water and rotate the connection and be provided with rubber seal at the department of rotating. The water receiving disc 1406 is fixed on the supporting plate 10 and is rotatably connected with the central water outlet shaft 1401, the lower end of the water receiving disc 1406 is communicated with a water return pipe 9, the lower end of the water return pipe 9 is connected with a waste water collecting box 8, sewage received in the water receiving disc 1406 flows into the waste water collecting box 8 from the water return pipe 9, and the central water outlet shaft 1401 is connected with a cleaning mechanism power system 15.
The cleaning mechanism power system 15 comprises a cleaning mechanism motor 1501, a transmission shaft 1502 and a gear set 1503, wherein the cleaning mechanism motor 1501 is fixed on the right side of a central water outlet shaft 1401 on the supporting plate 10, the upper end of the cleaning mechanism motor 1501 is connected with the transmission shaft 1502, the upper end of the transmission shaft 1502 is fixedly connected with the gear set 1503, the other end of the gear set 1503 is fixedly connected with the central water outlet shaft 1401, two gears are arranged in the gear set 1503 in an engaged manner, the two gears are respectively and fixedly arranged on the transmission shaft 1502 and the central water outlet shaft 1401, the cleaning mechanism motor 1501 drives the transmission shaft 1502 to rotate, the transmission shaft 1502 drives the gear set 1503 to rotate, and the gear set 1503 drives the central water outlet shaft 1401 to rotate.
One side of the flat car 1 is welded and fixed with the handrail 3, and the handrail 3 is convenient for pushing the flat car 1. The inner wall of the dust box 1301 is located below the belt 1304 and close to the left side to fixedly mount a dust blocking rod 1306, the cleaning brush 1305 falls off the adhered dust after colliding with the dust blocking rod 1306, a row of dust cleaning forks 1309 are fixedly mounted on the left side of the dust blocking rod 1306, and the adhered flocculent dust on the cleaning brush 1305 is scraped when passing through the dust cleaning forks 1309. The dust outlet 1310 is fitted with a rubber sealing plug. One side of the lower end of the dust box 1301 is inclined and narrowed, and dust slides to the lowest end of the dust box 1301, so that the dust box is convenient to collect and clean.
The utility model discloses a theory of operation does: promote flatbed 1 and reach needs abluent position, adjust hydraulic telescopic rod 4, drive layer board 10 and rise, will clean mechanism 13 and wiper mechanism 14 contact roof, start and clean mechanism motor 12, it rotates to drive belt 1304, the brush 1305 on belt 1304 is followed and is rotated and sweep the dust on roof and drop into deposition case 1301, after brush 1305 rotates deposition case 1301, during the ash blocking stick 1306 that sets up in deposition case 1301, the dust of brush 1305 adhesion shakes and falls into deposition case 1301, fixed deashing fork 1309 scrapes the flocculent dust of adhesion on the brush 1305 and falls into deposition case 1301. Simultaneously start the wiper mechanism motor 1501 on back, it rotates to drive the brush head 1403, start water pump 6 on flatbed 1 simultaneously and go into the brush head 1403 with the cleaner through inlet tube 7 pump in 5 from the cleaner case, water spout 1405 spouts the cleaner to the roof, the cotton stick 1404 of washing on the brush head 1403 of cleaning rotates the roof sanitization, the sewage that produces during the washing falls into water collector 1406, flow into wastewater collection box 8 from wet return 9 in, each motor is closed after the washing is accomplished, adjust hydraulic telescopic rod 4 descends, clearance deposition case 1301 and wastewater collection box 8, and supply cleaner case 5.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (8)
1. A portable cleaning machine for cleaning the top of a cigarette factory workshop is characterized by comprising a flat car, a hydraulic telescopic rod, a cleaning agent box, a waste water collecting box, a supporting plate, a cleaning mechanism and a cleaning mechanism;
wheels are mounted below the flat car, the hydraulic telescopic rod, the detergent box and the wastewater collection box are mounted on the flat car, the supporting plate is mounted at the upper end of the hydraulic telescopic rod, and the cleaning mechanism are mounted on the supporting plate;
the cleaning agent box is connected with the cleaning mechanism through a water pump and a water inlet pipe, and the wastewater collecting box is connected with the cleaning mechanism through a water return pipe.
2. The portable cleaning machine for cleaning the top of a cigarette factory workshop according to claim 1, wherein the cleaning mechanism comprises an ash accumulation box, a driving belt pulley, a driving shaft, a belt, a cleaning brush, a driven shaft, a driven belt pulley and a cleaning mechanism motor;
the upper end of the dust box is uncovered and fixed on the supporting plate, and the two sides of the dust box close to the left end are connected with the supporting plate through two symmetrical fixing plates;
a driving belt pulley is arranged in the dust accumulation box through a driving shaft, a driven belt pulley is arranged in the dust accumulation box through a driven shaft, and a belt is arranged on the driving belt pulley and the driven belt pulley;
the cleaning brushes are uniformly distributed on the belt, the motor of the cleaning mechanism is arranged outside the dust accumulation box, and the output shaft of the motor of the cleaning mechanism is connected with the driving shaft.
3. The portable cleaning machine for the top of the cigarette factory workshop as claimed in claim 2, wherein a dust blocking rod is installed on the inner wall of the dust box below the belt, and a row of dust removing forks are fixedly installed on the dust blocking rod.
4. The portable cigarette factory workshop top cleaning machine as claimed in claim 2, wherein an ash outlet is arranged at a position close to the lower position outside the ash deposit box, and a rubber sealing plug is arranged at the ash outlet.
5. The cigarette factory workshop roof cleaning portable cleaning machine according to any one of claims 2 to 4, wherein the dust box lower end face is an inclined face.
6. The portable cleaning machine for cleaning the top of a cigarette factory workshop according to claim 1, wherein the cleaning mechanism comprises a central water outlet shaft, a water pan supporting rod, a cleaning brush head, a cleaning cotton rod, a water spray nozzle and a water pan;
the central water outlet shaft is rotatably arranged on the supporting plate, the upper end of the central water outlet shaft is fixedly provided with a cleaning brush head, a water spray nozzle is arranged in the middle of the cleaning brush head and is communicated with the upper end of a water outlet hole of the central water outlet shaft, and the lower end of the water outlet hole of the central water outlet shaft is connected with a water inlet pipe;
cleaning cotton sticks are uniformly distributed around the cleaning brush head;
the water receiving tray is arranged on the supporting plate through a water receiving tray supporting rod, the central water outlet shaft penetrates through the water receiving tray, and a water outlet hole formed in the water receiving tray is connected with the water return pipe;
the central water outlet shaft is connected with a power system of the cleaning mechanism.
7. The portable cigarette factory workshop top cleaning machine of claim 6, wherein the cleaning mechanism power system comprises a cleaning mechanism motor, a transmission shaft and a gear set; the cleaning mechanism motor is fixed on the supporting plate, an output shaft of the cleaning mechanism motor is connected with the lower end of the transmission shaft, the upper end of the transmission shaft is connected with the input end of the gear set, and the output end of the gear set is connected with the central water outlet shaft;
the gear set comprises two gears which are respectively arranged on the transmission shaft and the central water outlet shaft.
8. The portable cigarette factory workshop roof cleaning machine according to claim 1, wherein a fixed handrail is welded to one side of the flat car.
