Abstract
A nursing bed for general surgery department, the utility model relates to the technical field of medical instruments, both sides are equipped with the fixed block around the nursing bed body, the upper side wall of fixed block has been seted up the spout, the bottom of spout flushes with the bottom of fixed block and sets up, slide bar is equipped with in the spout in the left and right sides cunning, the lower extreme of slide bar passes the spout setting, both sides wall all is equipped with the boss around the slide bar, boss and spout activity joint, the cover is equipped with positioner on the slide bar, positioner comprises support, screw rod and connecting plate, the support cover is located the slide bar lower extreme, screw rod is worn to be equipped with by screw thread around in the support, the inner of screw rod is connected with the connecting plate through the bearing, the connecting plate is contradicted with the activity of the lateral wall of fixed block and is set up, peg is inserted in the activity of slide bar; the device can make things convenient for medical personnel to hang the infusion bottle to conveniently adjust the position and the height of peg, satisfy different patients to the demand of infusion bottle position, the suitability is strong, simple structure, convenient operation.
Description
Technical Field
The utility model relates to the technical field of medical equipment, concretely relates to department of general surgery's nursing bed.
Background
The general surgery department is a clinical discipline for treating other diseases such as tumors and traumas of the liver, biliary tract, pancreas, gastrointestinal tract, anorectum, vascular diseases, thyroid gland and breast by taking an operation as a main method, is the largest special subject of a surgical system, has an important role in nursing beds in hospitals, most of common nursing beds for general surgery department have single function, generally only provide a rest place for patients, can not facilitate medical staff to hang infusion bottles, can not meet the requirements of different patients on the positions of the infusion bottles, has small application range, and can cause the patients to generate negative emotion.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to prior art's defect and not enough, provide a reasonable in design's department of general surgery nursing bed, the device can make things convenient for medical personnel to hang the infusion bottle to conveniently adjust the position and the height of peg, satisfy the demand of different patients to the infusion bottle position, the suitability is strong, simple structure, convenient operation.
In order to achieve the above purpose, the utility model adopts the following technical proposal: the nursing bed comprises a nursing bed body, a fixed block, a sliding rod, a boss, a positioning device, a hanging rod, a second fastening screw, a supporting leg, a base and universal wheels; fixed blocks are arranged on the front side and the rear side of the nursing bed body, sliding grooves are formed in the upper side walls of the fixed blocks, the bottoms of the sliding grooves are flush with the bottoms of the fixed blocks, sliding rods are arranged in the sliding grooves in a left-right sliding mode, the lower ends of the sliding rods penetrate through the sliding grooves, bosses are arranged on the front side walls and the rear side walls of the sliding rods and movably clamped with the sliding grooves, positioning devices are sleeved on the sliding rods and comprise supports, screw rods are arranged on the front side and the rear side of each support in a penetrating mode, the inner ends of the screw rods are connected with the connecting plates through bearings, the connecting plates are movably abutted to the outer side walls of the fixed blocks, hanging rods are movably inserted in the sliding rods and comprise first connecting rods, second connecting rods, first fastening screws, connecting blocks and hanging rings, the first connecting rods are movably inserted in the sliding rods, the second connecting rods are movably inserted in the upper ends of the first connecting rods, and the first fastening screws are arranged on the outer sides of the first connecting rods, after the inner screw thread of a fastening screw passed a connecting rod, contradict the setting with the lateral wall of No. two connecting rods, the upper end of No. two connecting rods is passed through the bearing and is connected with the connecting block, be equipped with the link on the lateral wall of connecting block, the right side of slide bar is equipped with No. two fastening screws, No. two fastening screws are located the downside of support, after the left end screw thread of No. two fastening screws passed the right side wall of slide bar, contradict the setting with the lateral wall of a connecting rod, the bottom of nursing bed body is equipped with the landing leg, the downside of nursing bed body is equipped with the base, the lower extreme of landing leg is fixed in on the base, the bottom of base is equipped with the universal wheel.
Further, the lateral wall of boss in inlay and be equipped with the gyro wheel, the lateral wall of gyro wheel and the inside wall activity of spout are contradicted the setting.
Furthermore, the bottom of the first connecting rod is provided with a limiting plate, and the limiting plate is movably clamped with the lower side wall of the sliding rod.
Further, the outside bilateral symmetry of fixed block be equipped with the recess, the activity is equipped with protector soon in the recess, protector comprises free bearing and guardrail, the free bearing is fixed in the recess, the outside of fixed block is equipped with the guardrail, the guardrail activity inlays and locates in the recess, the left free bearing utilizes the hinge to articulate with the left end of guardrail, the free bearing on right side utilizes the hinge to articulate with the right-hand member of guardrail.
After the structure is adopted, the beneficial effects of the utility model are that: the utility model provides a department of general surgery's nursing bed, the device can make things convenient for medical personnel to hang the infusion bottle to the position and the height of peg are conveniently adjusted, satisfy the demand of different patients to the infusion bottle position, and the suitability is strong, simple structure, convenient operation.
Description of the drawings:

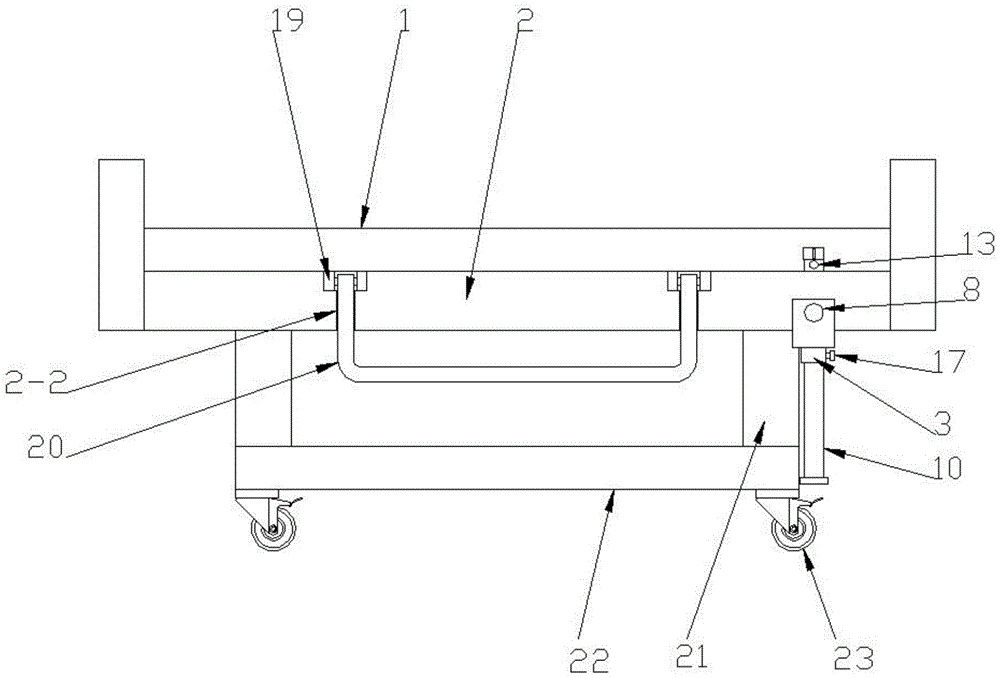

fig. 1 is a schematic structural diagram of the present invention.
Fig. 2 is a top view of fig. 1.
Fig. 3 is a right side view of fig. 1.
Fig. 4 is a schematic structural diagram of the middle sliding rod and the positioning device of the present invention.
Fig. 5 is a right side view of fig. 4.
Fig. 6 is a schematic structural view of the middle hanging rod of the present invention.
Description of reference numerals:
nursing bed body 1, fixed block 2, spout 2-1, recess 2-2, slide bar 3, boss 4, gyro wheel 5, positioner 6, support 7, screw rod 8, connecting plate 9, peg 10, connecting rod 11, No. two connecting rods 12, fastening screw 13, connecting block 14, link 15, limiting plate 16, No. two fastening screw 17, protector 18, free bearing 19, guardrail 20, landing leg 21, base 22, universal wheel 23.
The specific implementation mode is as follows:
the technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
As shown in fig. 1 to fig. 6, the following technical solutions are adopted in the present embodiment: the nursing bed comprises a nursing bed body 1, a fixed block 2, a sliding rod 3, a boss 4, a positioning device 6, a hanging rod 10, a second fastening screw 17, a supporting leg 21, a base 22 and a universal wheel 23; the nursing bed comprises a nursing bed body 1, wherein fixed blocks 2 are welded on the front side and the rear side of the nursing bed body 1, a sliding groove 2-1 is formed in the upper side wall of each fixed block 2, the bottom of each sliding groove 2-1 is flush with the bottom of each fixed block 2, a sliding rod 3 is arranged in each sliding groove 2-1 in a left-right sliding mode, the lower end of each sliding rod 3 penetrates through each sliding groove 2-1, bosses 4 are integrally formed on the front side wall and the rear side wall of each sliding rod 3, each boss 4 is movably clamped with the corresponding sliding groove 2-1, rollers 5 are embedded in the outer side walls of the bosses 4, the outer side walls of the rollers 5 are movably abutted to the inner side walls of the corresponding sliding grooves 2-1, a positioning device 6 is sleeved on each sliding rod 3 and consists of a support 7, a screw rod 8 and a connecting plate 9, the support 7 is sleeved at the lower end of each sliding rod 3, a screw rod 8 penetrates through front and rear threads in the support 7, the inner end of the screw rod 8 is connected with the connecting plate 9 through a bearing, and the outer side wall of the corresponding fixed blocks 2 are movably abutted to each connecting plate, a hanging rod 10 is movably inserted in the slide bar 3, the hanging rod 10 is composed of a first connecting rod 11, a second connecting rod 12, a first fastening screw 13, a connecting block 14 and a hanging ring 15, the first connecting rod 11 is movably inserted in the slide bar 3, the second connecting rod 12 is movably inserted at the upper end of the first connecting rod 11, the first fastening screw 13 is arranged at the outer side of the first connecting rod 11, the inner end thread of the first fastening screw 13 penetrates through the first connecting rod 11 and is abutted against the outer side wall of the second connecting rod 12, the upper end of the second connecting rod 12 is connected with the connecting block 14 through a bearing, the hanging ring 15 is welded on the outer side wall of the connecting block 14, a limiting plate 16 is welded at the bottom of the first connecting rod 11, the limiting plate 16 is movably clamped with the lower side wall of the slide bar 3, the second fastening screw 17 is arranged at the right side of the slide bar 3, the second fastening screw 17 is arranged at the lower side of the support 7, the left end thread of the second fastening screw 17 penetrates through the right side wall of the slide bar 3, the nursing bed comprises a first connecting rod 11, grooves 2-2 are symmetrically formed in the left side and the right side of the outer side of a fixing block 2, a protective device 18 is movably and rotatably arranged in each groove 2-2, each protective device 18 is composed of a hinged support 19 and a guardrail 20, the hinged supports 19 are welded in the grooves 2-2, the guardrails 20 are arranged on the outer side of the fixing block 2, the guardrails 20 are movably embedded in the grooves 2-2, the hinged supports 19 on the left side are hinged to the left ends of the guardrails 20 through hinges, the hinged supports 19 on the right side are hinged to the right ends of the guardrails 20 through hinges, supporting legs 21 are welded to the bottom of a nursing bed body 1, a base 22 is arranged on the lower side of the nursing bed body 1, the lower ends of the supporting legs 21 are welded to the base 22, and universal wheels 23 are welded to the bottom of the base 22.
The working principle of the specific embodiment is as follows: when using the device, can remove the device through universal wheel 23, when needs infuse, according to patient's demand, choose for use the peg 10 of one of them side, at first loosen screw rod 8, then utilize gyro wheel 5 with slide bar 3 to slide to suitable position in spout 2-1, then screw up screw rod 8, make connecting plate 9 contradict the setting with the outside of fixed block 2, then loosen fastening screw 13 and No. two fastening screw 17, adjust the length of connecting rod 11 and No. two connecting rods 12, thereby adjust the high position of peg 10, thereby make things convenient for the patient to infuse, when needing to use protector 18, upwards overturn 180 degrees along hinged-seat 19 with guardrail 20.
After adopting above-mentioned structure, this embodiment's beneficial effect is as follows:
1. the hanging rod 10 is arranged, so that the device can be convenient for medical staff to hang an infusion bottle, and is convenient for patients to infuse;
2. the sliding rod 3 and the positioning device 6 are arranged, so that the left and right positions and the height position of the hanging rod 10 can be conveniently adjusted, the position and the height of the hanging rod 10 can be conveniently adjusted, the requirements of different patients on the positions of infusion bottles can be met, and the application range is wide;
3. the protection device 18 is arranged to play a role of protection.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (4)
1. A department of general surgery nurses bed which characterized in that: the nursing bed comprises a nursing bed body (1), a fixed block (2), a sliding rod (3), a boss (4), a positioning device (6), a hanging rod (10), a second fastening screw (17), a supporting leg (21), a base (22) and a universal wheel (23); the nursing bed comprises a nursing bed body (1), wherein fixed blocks (2) are arranged on the front side and the rear side of the nursing bed body (1), sliding grooves (2-1) are formed in the upper side wall of each fixed block (2), the bottoms of the sliding grooves (2-1) are flush with the bottoms of the fixed blocks (2), sliding rods (3) are arranged in the sliding grooves (2-1) in a left-right sliding mode, the lower ends of the sliding rods (3) penetrate through the sliding grooves (2-1), bosses (4) are arranged on the front side wall and the rear side wall of each sliding rod (3), the bosses (4) are movably clamped with the sliding grooves (2-1), positioning devices (6) are sleeved on the sliding rods (3), each positioning device (6) comprises a support (7), a screw rod (8) and a connecting plate (9), the supports (7) are sleeved at the lower ends of the sliding rods (3), screw rods (8) are arranged in the front threads and the rear threads of the supports (7) in a penetrating mode, and the inner ends of the screw rods (8) are connected with the connecting plates (9) through bearings, the connecting plate (9) is movably abutted against the outer side wall of the fixed block (2), a hanging rod (10) is movably inserted in the sliding rod (3), the hanging rod (10) is composed of a first connecting rod (11), a second connecting rod (12), a first fastening screw (13), a connecting block (14) and a hanging ring (15), the first connecting rod (11) is movably inserted in the sliding rod (3), the second connecting rod (12) is movably inserted at the upper end of the first connecting rod (11), the first fastening screw (13) is arranged on the outer side of the first connecting rod (11), the inner end thread of the first fastening screw (13) penetrates through the first connecting rod (11) and is abutted against the outer side wall of the second connecting rod (12), the upper end of the second connecting rod (12) is connected with the connecting block (14) through a bearing, the hanging ring (15) is arranged on the outer side wall of the connecting block (14), the second fastening screw (17) is arranged on the right side of the sliding rod (3), no. two fastening screw (17) are located the downside of support (7), and after the left end screw thread of No. two fastening screw (17) passed the right side wall of slide bar (3), contradict the setting with the lateral wall of a connecting rod (11), the bottom of nursing bed body (1) is equipped with landing leg (21), and the downside of nursing bed body (1) is equipped with base (22), and on the lower extreme of landing leg (21) was fixed in base (22), the bottom of base (22) was equipped with universal wheel (23).
2. A general surgery care bed according to claim 1, wherein: the outer side wall of the boss (4) is embedded with a roller (5), and the outer side wall of the roller (5) is movably abutted to the inner side wall of the sliding groove (2-1).
3. A general surgery care bed according to claim 1, wherein: a limiting plate (16) is arranged at the bottom of the first connecting rod (11), and the limiting plate (16) is movably clamped with the lower side wall of the sliding rod (3).
4. A general surgery care bed according to claim 1, wherein: the novel guardrail comprises a fixed block (2), grooves (2-2) are symmetrically arranged on the left and right of the outer side of the fixed block (2), a protective device (18) is movably and rotatably arranged in the grooves (2-2), the protective device (18) is composed of a hinged support (19) and a guardrail (20), the hinged support (19) is fixed in the grooves (2-2), the guardrail (20) is arranged on the outer side of the fixed block (2), the guardrail (20) is movably embedded in the grooves (2-2), the hinged support (19) on the left side is hinged to the left end of the guardrail (20) through a hinge, and the hinged support (19) on the right side is hinged to the right end of the guardrail (20) through a hinge.
