本实用新型公开了一种砌筑灰缝控制仪，包括塞尺和立尺。本实用新型的有益效果是：塞尺截面为正方形，塞尺高度与灰缝宽度一致，塞尺有多个，能够高效控制二次结构砌筑灰缝的宽度或厚度，保障成品面的美观，相邻外插孔之间间距为5cm，外插孔和内插孔大小相同且一一对应，便于等距定位安插塞尺，塞尺在立尺侧面通过外插孔或内插孔呈可拆卸式卡槽连接，便于进行组装或拆卸，同时也方便更换不同高度塞尺，从而改变灰缝厚度或宽度，刻度线均匀分布，便于准确的进行测量及读数，限位块在安置槽内通过压缩弹簧呈可复位式伸缩连接，内尺在外尺内呈可收缩式滑动连接，便于调节立尺长度，同时也能够将内尺定位卡紧固定在外尺内。
The utility model discloses a masonry ash joint controller, which comprises a feeler gauge and a standing ruler. The beneficial effects of the utility model are as follows: the section of the feeler gauge is square, the height of the feeler gauge is consistent with the width of the ash joint, and there are multiple feeler gauges, which can efficiently control the width or thickness of the ash joint in the masonry of the secondary structure, and ensure the appearance of the finished surface. The distance between adjacent outer jacks is 5cm. The size of the outer jack and the inner jack are the same and correspond one by one, which is convenient for equidistant positioning of the plug gauge. The feeler gauge is detachable on the side of the ruler through the outer jack or the inner jack. It is easy to assemble or disassemble, and it is also convenient to replace feeler gauges of different heights, so as to change the thickness or width of the gray seam. The scale lines are evenly distributed, which is convenient for accurate measurement and reading. The limit block is compressed in the placement groove. The spring is a resettable telescopic connection, and the inner ruler is a retractable sliding connection inside the outer ruler, which is convenient for adjusting the length of the vertical ruler, and at the same time, the inner ruler can be positioned and fixed in the outer ruler.
Description
Technical Field
The utility model relates to a control appearance specifically is a build grey joint control appearance by laying bricks or stones belongs to and builds engineering technical field by laying bricks or stones.
Background
The masonry engineering refers to the engineering of masonry by using materials such as common clay bricks, load-bearing clay hollow bricks, autoclaved sand-lime bricks, fly ash bricks, various small and medium-sized building blocks, stone materials and the like in the building engineering, and comprises the contents of masonry bricks, stone, building blocks, light wall boards and the like.
The existing control instrument is simple in structure, one of the existing control instrument and the used feeler gauge is inconsistent with the width of an ash joint, the masonry ash joint is easy to be too large or too small, construction quality is seriously affected, the other two of the existing control instrument and the traditional control instrument are of an integral structure, the feeler gauge and the vertical gauge are not convenient to detach and replace although the feeler gauge and the vertical gauge are stable in structure, the thickness or the width of the ash joint cannot be adjusted, the third of the existing control instrument and the used vertical gauge are fixed in length, the length cannot be adjusted according to actual construction requirements, and more limitations exist.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a masonry mortar joint controller for solving the problems.
The utility model discloses a following technical scheme realizes above-mentioned purpose: a masonry mortar joint controller comprises a clearance gauge and a vertical gauge; the plug ruler is inserted into a mortar joint of the building block, a plug is arranged at the outer end of the plug ruler, the plug ruler is inserted into the side face of the vertical ruler through the plug, the vertical ruler is composed of an outer ruler and an inner ruler, and the inner ruler is arranged in a central groove of the outer ruler.
As a further aspect of the present invention: the feeler gauge cross-section is square, the height of feeler gauge is unanimous with the width of grey seam, and the feeler gauge is provided with a plurality ofly.
As a further aspect of the present invention: the inner side surface of the outer ruler is uniformly distributed with a plurality of outer inserting holes, the distance between every two adjacent outer inserting holes is 5cm, a plurality of inner inserting holes are formed in the same side of the inner ruler, and the outer inserting holes and the inner inserting holes are identical in size and are in one-to-one correspondence.
As a further aspect of the present invention: the plug is arranged in the outer insertion hole or the inner insertion hole, and the feeler gauge is connected with the side surface of the vertical gauge through the outer insertion hole or the inner insertion hole in a detachable clamping groove mode.
As a further aspect of the present invention: the outer ruler and the inner ruler are correspondingly provided with scale marks on the same side face, and the scale marks are uniformly distributed on the outer ruler and the inner ruler.
As a further aspect of the present invention: the outer ruler is characterized in that a plurality of limiting holes are formed in the outer side of the outer ruler, the limiting holes are in one-to-one correspondence with the outer inserting holes, a supporting plate is arranged at the outer end of the inner ruler, a placement groove is formed in the tail end of the side face of the inner ruler, a limiting block is clamped in the placement groove, a clamping seat is arranged at the inner end of the limiting block, the outer end of the limiting block penetrates through the limiting holes of the outer ruler, a compression spring is arranged between the limiting block and the placement groove, the limiting block is in resettable telescopic connection through the compression spring in the placement groove, and the inner ruler is in retractable sliding connection in the central groove of the outer ruler.
The utility model has the advantages that: the masonry mortar joint controller has reasonable design, the section of the filler gauge is square, the height of the filler gauge is consistent with the width of the mortar joint, the plurality of the filler gauges are arranged, the width or the thickness of the masonry mortar joint of the secondary structure can be efficiently controlled, the beauty of the masonry finished surface of the secondary structure is ensured, a plurality of outer inserting holes are uniformly distributed in the center of the inner side surface of the outer gauge, the distance between the adjacent outer inserting holes is 5cm, a plurality of inner inserting holes are formed in the same side of the inner gauge, the outer inserting holes and the inner inserting holes are same in size and correspond to each other one by one, the filler gauges are conveniently inserted at equal intervals, plugs are arranged in the outer inserting holes or the inner inserting holes, the filler gauges are detachably connected through the outer inserting holes or the inner inserting holes on the side surface of the vertical gauge, the assembling or the disassembling are convenient, the filler gauges with different heights can be conveniently replaced, the thickness or the width of the mortar joint is changed, the scale marks are correspondingly arranged on the same side surface of the outer gauge and the inner gauge, the convenient and accurate measurement and reading, the outer chi outside is opened there is the spacing hole of a plurality of, spacing hole and outer plug-in hole one-to-one set up, the inner chi outer end is equipped with supports the board, inner chi side tail end is opened there is the resettlement groove, the stopper has been put to the card of resettlement inslot, stopper inner is equipped with the cassette, the spacing hole of outer chi is passed to the stopper outer end, settle between stopper and the resettlement groove has compression spring, the stopper is resettable expansion joint through compression spring in the resettlement inslot, and the inner chi is collapsible formula sliding connection in the central trough of outer chi, be convenient for adjust upright chi length, also can fix the fastening of inner chi locator card in outer chi simultaneously.
Drawings

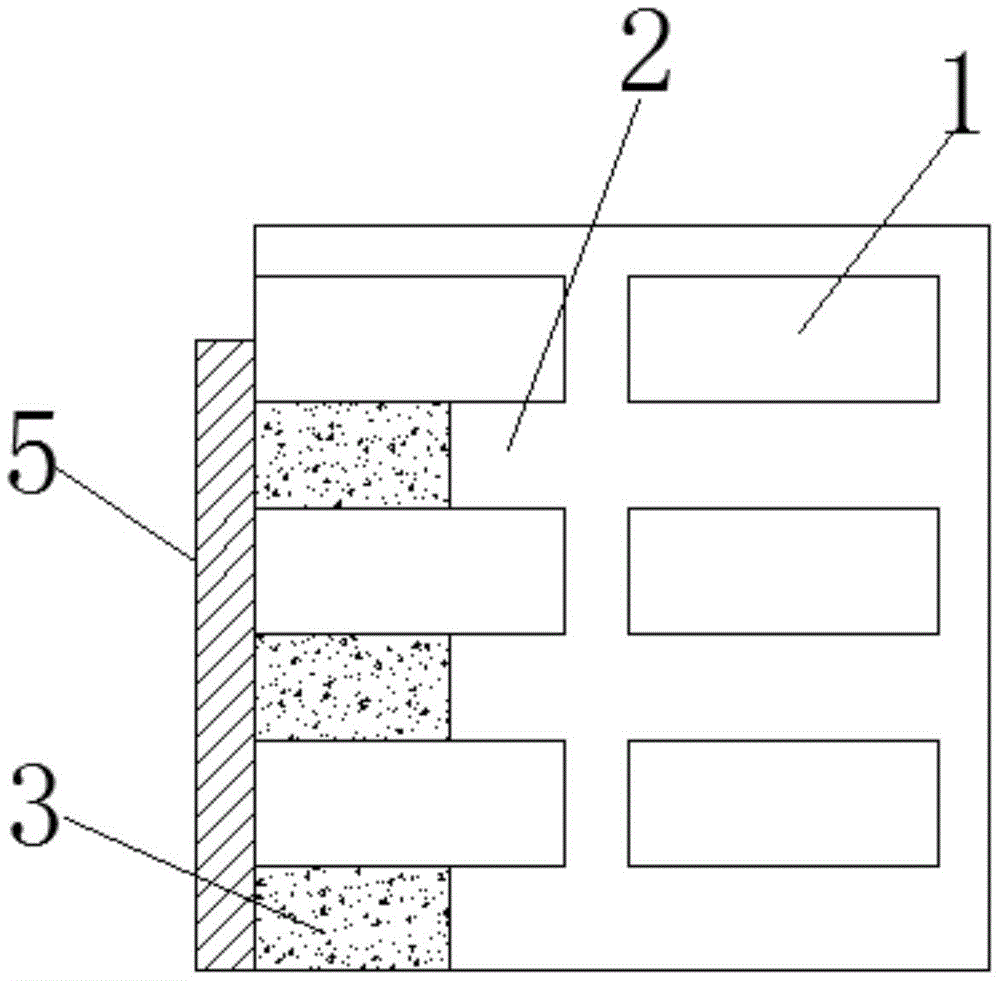

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the clearance gauge of the present invention;
FIG. 3 is a schematic view of the vertical ruler structure of the present invention;
fig. 4 is a sectional view of the vertical ruler of the present invention.
In the figure: 1. building blocks, 2, mortar joints, 3, filler gauges, 4, plugs, 5, vertical gauges, 6, outer gauges, 7, inner gauges, 8, outer insertion holes, 9, scale marks, 10, limiting holes, 11, inner insertion holes, 12, abutting plates, 13, placing grooves, 14, limiting blocks, 15 and compression springs.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example one
Referring to fig. 1 to 3, a masonry mortar joint controller includes a feeler 3 and a vertical ruler 5; the plug ruler 3 is inserted into the mortar joint 2 of the building block 1, a plug 4 is arranged at the outer end of the plug ruler 3, the plug ruler 3 is inserted into the side face of the vertical ruler 5 through the plug 4, the vertical ruler 5 is composed of an outer ruler 6 and an inner ruler 7, and the inner ruler 7 is arranged in a central groove of the outer ruler 6.
Further, in the embodiment of the utility model provides an in, 3 cross-sections of clearance gauge are the square, 3 height of clearance gauge is unanimous with the width of mortar joint 2, and clearance gauge 3 is provided with a plurality ofly, can the efficient control secondary structure build mortar joint 2's width or thickness, and the guarantee secondary structure builds the pleasing to the eye of finished face by laying bricks or stones.
Further, in the embodiment of the present invention, the plug 4 is disposed in the outer insertion hole 8 or the inner insertion hole 11, and the clearance gauge 3 is detachably connected to the side of the vertical ruler 5 through the outer insertion hole 8 or the inner insertion hole 11, so as to facilitate assembly or disassembly, and simultaneously facilitate replacement of the clearance gauge 3 with different heights, thereby changing the thickness or width of the mortar joint 2.
Further, in the embodiment of the utility model provides an in, outer chi 6 and interior chi 7 correspond with the side and are equipped with scale mark 9, and evenly distributed on outer chi 6 and interior chi 7 of scale mark 9, the accurate measurement and the reading of being convenient for.
Example two
Referring to fig. 1-4, a masonry mortar joint controller includes a feeler 3 and a vertical ruler 5; the plug ruler 3 is inserted into the mortar joint 2 of the building block 1, a plug 4 is arranged at the outer end of the plug ruler 3, the plug ruler 3 is inserted into the side face of the vertical ruler 5 through the plug 4, the vertical ruler 5 is composed of an outer ruler 6 and an inner ruler 7, and the inner ruler 7 is arranged in a central groove of the outer ruler 6.
Furthermore, in the embodiment of the present invention, a plurality of outer inserting holes 8 are uniformly distributed in the center of the inner side surface of the outer ruler 6, the distance between adjacent outer inserting holes 8 is 5cm, a plurality of inner inserting holes 11 are opened on the same side of the inner ruler 7, the outer inserting holes 8 and the inner inserting holes 11 have the same size and are in one-to-one correspondence, so as to facilitate the equidistant positioning of the inserting ruler 3.
Further, in the embodiment of the utility model provides an in, open in the 6 outsides of outer chi has the spacing hole of a plurality of 10, spacing hole 10 sets up with 8 one-to-one in outer plug, 7 outer ends of interior chi are equipped with and support board 12, 7 side tail ends of interior chi are opened there is reseting groove 13, stopper 14 has been put to the card in reseting groove 13, stopper 14 the inner is equipped with the cassette, stopper 14 outer end passes the spacing hole 10 of outer chi 6, settle between stopper 14 and the reseting groove 13 has compression spring 15, stopper 14 is resettable expansion joint through compression spring 15 in reseting groove 13, and interior chi 7 is collapsible formula sliding connection in the central inslot of outer chi 6, is convenient for adjust upright chi 5 length, also can fix interior chi 7 locator card fastening in outer chi 6 simultaneously.
The working principle is as follows: when the masonry mortar joint controller is used, firstly, the compression spring 15 is arranged in the arrangement groove 13, then the limit block 14 is clamped in the arrangement groove 13, the clamping seat at the inner end of the limit block 14 is abutted against the compression spring 15, then the inner ruler 7 is inserted into the central groove of the outer ruler 6, the inner ruler 7 is fixed through the corresponding limit hole 10 and the limit block 14, then the plug rulers 3 are equidistantly inserted into the outer insertion holes 8 or the inner insertion holes 11 of the vertical ruler 5 through the plugs 4, finally the plug ruler 3 with the vertical ruler 5 is arranged in the mortar joint 2 of the building block 1, during the period, the height of the used plug ruler 3 is consistent with the width of the mortar joint 2, and the plug rulers 3 are provided with a plurality of plugs, so that the width or the thickness of the secondary structure masonry mortar joint 2 can be efficiently controlled, the mortar joint 2 is prevented from being too large or too small, the attractiveness of the secondary structure masonry finished product surface is ensured, the outer insertion holes 8 and the inner insertion holes 11 are the same in size and are in one-to one correspondence, it inserts clearance gauge 3 to be convenient for equidistance location, clearance gauge 3 is detachable draw-in groove connection to founding 5 sides of chi simultaneously, be convenient for assemble or dismantle, also conveniently change clearance gauge 3 of co-altitude, thereby change the thickness or the width of mortar joint 2, interior chi 7 that uses is the locate mode shrink connection through stopper 14 and spacing hole 10 in chi 6 outside, be convenient for adjust the length of founding chi 5, and can be accurate through the scale mark 9 on the founding chi 5 measure and the reading, improve the standardization of construction, thereby the quality of guarantee construction.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Furthermore, it should be understood that although the present description refers to embodiments, not every embodiment may contain only a single embodiment, and such description is for clarity only, and those skilled in the art should integrate the description, and the embodiments may be combined as appropriate to form other embodiments understood by those skilled in the art.
Claims (6)
1. A masonry mortar joint controller comprises a clearance gauge (3) and a vertical gauge (5); the method is characterized in that: the plug ruler (3) is inserted into a mortar joint (2) of the building block (1), a plug (4) is arranged at the outer end of the plug ruler (3), the plug ruler (3) is inserted into the side face of the vertical ruler (5) through the plug (4), the vertical ruler (5) is composed of an outer ruler (6) and an inner ruler (7), and the inner ruler (7) is arranged in a central groove of the outer ruler (6).
2. A masonry mortar joint controller according to claim 1, characterized in that: the section of the clearance gauge (3) is square, the height of the clearance gauge (3) is consistent with the width of the mortar joint (2), and the clearance gauge (3) is provided with a plurality of clearance gauges.
3. A masonry mortar joint controller according to claim 1, characterized in that: a plurality of outer inserting holes (8) are uniformly distributed in the center of the inner side face of the outer ruler (6), the distance between every two adjacent outer inserting holes (8) is 5cm, a plurality of inner inserting holes (11) are formed in the same side of the inner ruler (7), and the outer inserting holes (8) and the inner inserting holes (11) are identical in size and correspond to each other one by one.
4. A masonry mortar joint controller according to claim 1, characterized in that: the plug (4) is arranged in the outer insertion hole (8) or the inner insertion hole (11), and the clearance gauge (3) is detachably connected with the side surface of the vertical gauge (5) through the outer insertion hole (8) or the inner insertion hole (11) in a clamping groove mode.
5. A masonry mortar joint controller according to claim 1, characterized in that: the outer ruler (6) and the inner ruler (7) are correspondingly provided with scale marks (9) on the same side surface, and the scale marks (9) are uniformly distributed on the outer ruler (6) and the inner ruler (7).
6. A masonry mortar joint controller according to claim 1, characterized in that: the outer ruler (6) outside is opened has a plurality of spacing hole (10), spacing hole (10) and outer plug-in hole (8) one-to-one set up, inner ruler (7) outer end is equipped with and supports board (12), inner ruler (7) side tail end is opened has resettlement groove (13), stopper (14) have been put to resettlement groove (13) inside callipers, stopper (14) inner is equipped with the cassette, stopper (14) outer end passes spacing hole (10) of outer ruler (6), settle between stopper (14) and resettlement groove (13) compression spring (15), stopper (14) are resettable expansion joint through compression spring (15) in resettlement groove (13), and inner ruler (7) are collapsible formula sliding connection in the central inslot of outer ruler (6).
