The utility model discloses an intelligent medical internal medicine department operation is with auxiliary stay device belongs to operation support technical field, and it includes fixed connection area, two auxiliary connection area of fixed connection area's upper surface difference fixedly connected with and two first hair side magic subsides, the surface of auxiliary connection area is provided with first hook face magic subsides, the opposite face that first hair side magic was pasted and first hook face magic subsides bonds, fixed connection area's front is provided with the second hook face magic subsides. This supplementary strutting arrangement is used in operation of intelligent medical internal medicine department through setting up second hair side magic subsides, second collude a magic subsides, fixed connection area, auxiliary connection area, fly leaf, control switch, first electric putter and second electric putter, can drive whole device and remove when the user removes for the user can use this device to support in other operation positions, and this device is comparatively simple and convenient when adjusting, makes the practicality higher.
Description
Technical Field
The utility model belongs to the technical field of the operation is supported, specifically be an intelligent medical internal medicine department operation is with supplementary strutting arrangement.
Background
In the process of performing surgical treatment on a patient by medical staff, the arm needs to be lifted up all the time, when the surgical time is long, because the arm and the wrist of the medical staff are fatigued, the precision of the surgery of the medical staff is reduced, the accuracy and the efficiency of the surgery of the medical staff are reduced, the Chinese utility model with the application number of CN201922358113.X discloses an otolaryngology clinical surgical device in the 04 th of 2020, although the device is convenient to install and disassemble during use, the height of the support can be adjusted to a certain extent, but in the process of performing the surgery by the medical staff, the hand does not have time to be lifted for height adjustment basically, and when the medical staff moves the surgical position, the support device is stopped at a fixed position, so that the arm of the medical staff cannot be continuously supported, the device is not convenient for the medical staff to use, and the practicability is low.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
In order to overcome the above-mentioned defect of prior art, the utility model provides an intelligence medical internal medicine is supplementary strutting arrangement for operation has solved ordinary arm bracket and has been difficult to adjust at the in-process of operation to when medical personnel removed the operation position, strutting arrangement still stops by fixed position, makes medical personnel's arm can not continue to be supported, and medical personnel of being not convenient for use makes the lower problem of practicality.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an intelligence medical internal medicine operation is with auxiliary stay device, includes fixed connection area, two auxiliary connection areas of fixed connection area's upper surface difference fixedly connected with and two first hair side magic subsides, the surface of auxiliary connection area is provided with first hook face magic subsides, the opposite face that first hair side magic was pasted and first hook face magic is pasted bonds, fixed connection area's front is provided with second hook face magic subsides, the back of fixed connection area inner wall is provided with second hair side magic subsides.
The left surface fixedly connected with connecting plate of fixed connection area, the right flank fixed connection of left surface through first electric putter and sliding connection mechanism of connecting plate, sliding connection mechanism includes the set casing, the slide rail has all been seted up to the lower surface of set casing inner wall and the left and right sides face of inner wall, sliding connection has four pulleys, twelve in the slide rail the pulley respectively with the fixed surface connection of two links, the through-hole has been seted up to the upper surface of set casing.
The link is located the through-hole, the upper surface of link passes through the lower fixed surface of second electric putter and universal shell and is connected, swing joint has universal ball in the universal shell, the last fixed surface of universal ball is connected with supports control mechanism, support control mechanism is including supporting the shell, the upper surface that supports the shell inner wall is provided with control switch, the upper surface that supports the shell inner wall is connected through the upper fixed surface of four springs and same fly leaf respectively.
As a further aspect of the present invention: the spring is sleeved with a telescopic rod, and two ends of the telescopic rod are fixedly connected with the upper surface of the inner wall of the supporting shell and the upper surface of the movable plate respectively.
As a further aspect of the present invention: the inner surface of the auxiliary connecting belt is fixedly connected with a first cushion.
As a further aspect of the present invention: the lower surface of support shell inner wall and the equal fixedly connected with second cushion of lower surface of fly leaf.
As a further aspect of the present invention: and mesh cloth is arranged on the front and the back of the fixed connecting belt.
As a further aspect of the present invention: the inner surface of the first soft cushion is fixedly connected with a plurality of anti-skidding blocks.
(III) advantageous effects
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. the auxiliary supporting device for the intelligent medical internal medicine operation is provided with the second hair side magic tape, the second hook side magic tape, the fixed connecting belt, the auxiliary connecting belt, the movable plate, the control switch, the first electric push rod and the second electric push rod, when the device needs to be used, the fixed connecting belt can be fixed at a proper position of the waist of a user through the second hair side magic tape and the second hook side magic tape, then the auxiliary connecting belt is placed on the shoulder of the user, the auxiliary connecting belt is connected through the first hair side magic tape and the first hook side magic tape, when the position of the supporting shell needs to be adjusted, the user can lift up the arm upwards, so that the arm upwards extrudes the movable plate, when the movable plate is contacted with the control switch, the first electric push rod and the second electric push rod can be started, so that the first electric push rod can adjust the position of the supporting shell, and second electric putter can be to the height of supporting the shell adjusting, can drive whole device when the user removes and remove for the user can use this device to support in other operation positions, and this device is comparatively simple and convenient when adjusting, makes the practicality higher.
2. This supplementary strutting arrangement is used in operation of intelligent medical internal medicine is through setting up universal shell and universal ball for when the user needs to change the angle of arm, can drive universal ball at universal shell internal rotation through supporting the shell, make the user can adjust the angle that supports the shell according to actual need, make the flexibility that this device supported better.
3. This supplementary strutting arrangement is used in operation of intelligent medical internal medicine is through setting up pulley, slide rail and link for when the user need adjust the position of arm, can drive the link back-and-forth movement through the support shell, and the design of three pulley can reduce the link when removing and the frictional force between the set casing, make the removal of user to the arm position convenient laborsaving more.
4. This supplementary strutting arrangement is used in operation of intelligent medical internal medicine department all is provided with the mesh cloth through the front at fixed connection area and the back for the air permeability of fixed connection area is good, makes user's sweat discharge, thereby has ensured to a certain extent that the user uses the travelling comfort that this device is right.
5. This supplementary strutting arrangement is used in operation of intelligent medical internal medicine through setting up first cushion and non slipping spur for when using this device, first cushion can be located user's shoulder, makes supplementary connecting band be difficult for causing the injury to user's shoulder, and the setting up of non slipping spur has increased the frictional force between first cushion and the user's shoulder, makes this device be difficult for taking place the displacement when using.
Drawings

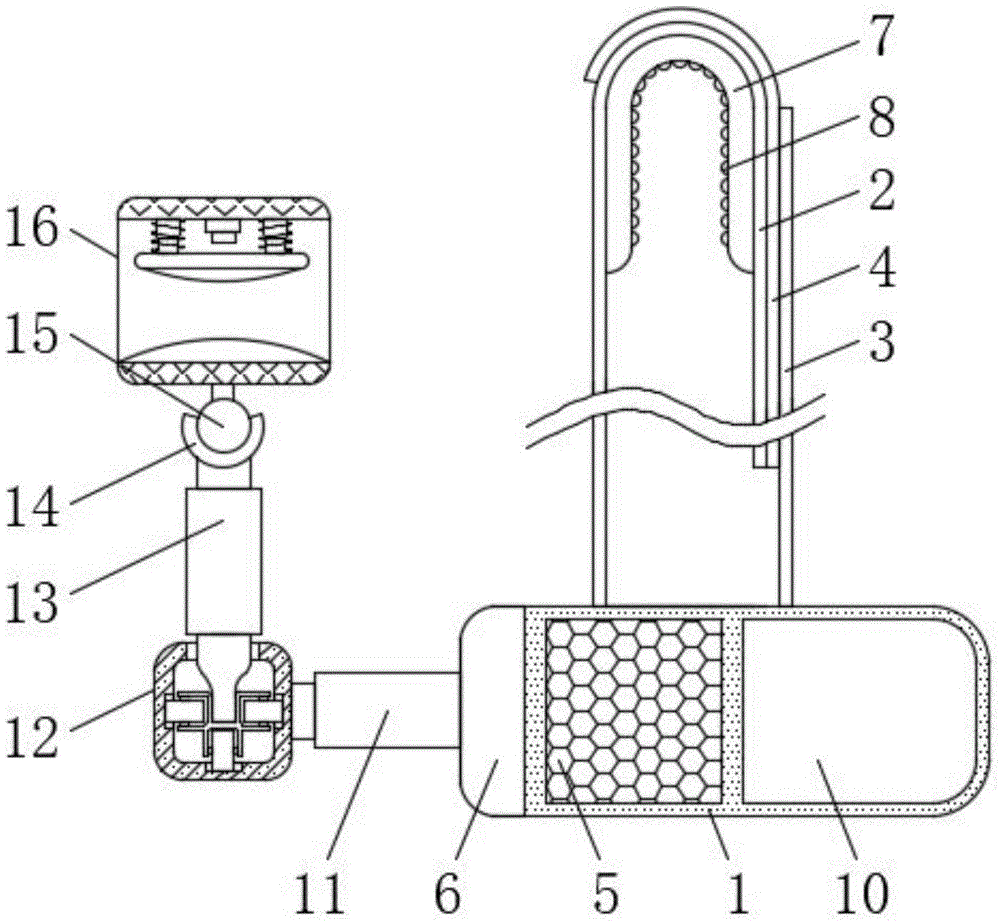

Fig. 1 is a schematic front view of a cross-sectional structure of the present invention;
fig. 2 is a schematic view of the top cross-sectional structure of the fixing connection band of the present invention;
FIG. 3 is a schematic view of a front view of the supporting control mechanism of the present invention;
fig. 4 is a schematic sectional view of the sliding connection mechanism of the present invention;
fig. 5 is a schematic sectional structure view of the sliding connection mechanism of the present invention viewed from the right;
in the figure: 1 fixed connection area, 2 auxiliary connection area, 3 first matte magic subsides, 4 first hook face magic subsides, 5 mesh cloth, 6 connecting plates, 7 first cushion, 8 non slipping spur, 9 second matte magic subsides, 10 second hook face magic subsides, 11 first electric putter, 12 sliding connection mechanism, 121 set casing, 122 slide rail, 123 pulley, 124 link, 125 through-holes, 13 second electric putter, 14 universal casing, 15 universal ball, 16 support control mechanism, 161 support casing, 162 fly leaf, 163 telescopic link, 164 spring, 165 control switch, 166 second cushions.
Detailed Description
The technical solution of the present patent will be described in further detail with reference to the following embodiments.
As shown in fig. 1-5, the utility model provides a technical solution: an auxiliary supporting device for an intelligent medical internal medicine operation comprises a fixed connecting belt 1, wherein the upper surface of the fixed connecting belt 1 is respectively and fixedly connected with two auxiliary connecting belts 2 and two first hair surface magic tapes 3, a user can fix the fixed connecting belt 1 at a proper position of the waist by arranging the fixed connecting belt 1 and the auxiliary connecting belts 2 and share the force which needs to be born by the waist through the auxiliary connecting belts 2, so that the device is more comfortable and stable when in use, the outer surface of the auxiliary connecting belt 2 is provided with a first hair surface magic tape 4, the opposite surfaces of the first hair surface magic tape 3 and the first hair surface magic tape 4 are bonded, the fixed length of the auxiliary connecting belt 2 can be adjusted by changing the bonding position of the first hair surface magic tape 3 and the first hair surface magic tape 4 by arranging the first hair surface magic tape 4 and the first hair surface magic tape 3, make this device can be applicable to not co-altitude user, fixed connection area 1's front is provided with second hook face magic subsides 10, the back of 1 inner wall of fixed connection area is provided with second hair face magic subsides 9, through setting up second hook face magic subsides 10 and second hair face magic subsides 9, make the user can adjust fixed connection area 1's use length through the position that changes second hair face magic subsides 9 and second hook face magic subsides 10 bonds, make this device can be applicable to different fat thin users.
The left side of the fixed connecting band 1 is fixedly connected with a connecting plate 6, the left side of the connecting plate 6 is fixedly connected with the right side of the sliding connection mechanism 12 through a first electric push rod 11, by arranging the first electric push rod 11, a user can control the first electric push rod 11 to stretch and retract to adjust the height of the supporting shell 161, the sliding connection mechanism 12 comprises a fixed shell 121, the lower surface of the inner wall of the fixed shell 121 and the left and right side surfaces of the inner wall are both provided with slide rails 122, the slide rails 122 are connected with four pulleys 123 in a sliding manner, twelve pulleys 123 are respectively fixedly connected with the outer surfaces of the two connecting frames 124, by arranging the pulleys 123, the slide rails 122 and the connecting frames 124, when the user needs to adjust the position of an arm, the connecting frames 124 can be driven to move back and forth through the supporting shell 161, and the design of the three pulleys 123 can reduce the friction force between the connecting frames 124 and the fixed shell 121 when the connecting frames 124 move, so that the user can move the position of the arm more conveniently and more easily, and the upper surface of the fixing case 121 is provided with a through hole 125.
The connecting frame 124 is located in the through hole 125, the upper surface of the connecting frame 124 is fixedly connected with the lower surface of the universal shell 14 through the second electric push rod 13, by arranging the second electric push rod 13, a user can adjust the position of the supporting shell 161 by controlling the extension or the shortening of the second electric push rod 13, the universal ball 15 is movably connected in the universal shell 14, by arranging the universal shell 14 and the universal ball 15, when the user needs to change the angle of the arm, the universal ball 15 can be driven to rotate in the universal shell 14 through the supporting shell 161, so that the user can adjust the angle of the supporting shell 161 according to the actual requirement, the flexibility of the supporting of the device is better, the supporting control mechanism 16 is fixedly connected on the upper surface of the universal ball 15, the supporting control mechanism 16 comprises the supporting shell 161, the control switch 165 is arranged on the upper surface of the inner wall of the supporting shell 161, and by arranging the control switch 165, the user can raise the arm upwards to enable the arm to drive the movable plate 162 to move upwards to start the control switch 165, so as to complete the control of the first electric push rod 11 and the second electric push rod 13, the upper surface of the inner wall of the supporting shell 161 is fixedly connected with the upper surface of the same movable plate 162 through four springs 164, and the springs 164 are arranged, so that when the user loosens the movable plate 162, the springs 164 can drive the movable plate 162 to move downwards and separate from the control switch 165 by using the elasticity of the springs 164, so that the movable plate 162 is reset.
Specifically, as shown in fig. 1, the inner surface of the auxiliary connecting belt 2 is fixedly connected with a first cushion 7, the inner surface of the first cushion 7 is fixedly connected with a plurality of anti-slip blocks 8, through the arrangement of the first cushion 7 and the anti-slip blocks 8, when the device is used, the first cushion 7 can be positioned on the shoulder of a user, the auxiliary connecting belt 2 is not easy to hurt the shoulder of the user, the arrangement of the anti-slip blocks 8 increases the friction force between the first cushion 7 and the shoulder of the user, and the device is not easy to displace when in use.
Specifically, as shown in fig. 2, the front and the back of the fixed connection belt 1 are provided with the mesh cloth 5, and the mesh cloth 5 is arranged on the front and the back of the fixed connection belt 1, so that the air permeability of the fixed connection belt 1 is good, sweat of a user can be discharged, and the comfort of the user in using the device is guaranteed to a certain extent.
Specifically, as shown in fig. 3, telescopic link 163 has been cup jointed in spring 164, the both ends of telescopic link 163 respectively with the upper surface that supports shell 161 inner wall and the upper surface fixed connection of fly leaf 162, through setting up telescopic link 163, make fly leaf 162 drive telescopic link 163 extension or shorten when reciprocating, make the removal of fly leaf 162 more stable, be difficult for taking place the skew, the lower surface that supports shell 161 inner wall and the equal fixedly connected with second cushion 166 of lower surface of fly leaf 162, through setting up second cushion 166, make the user all can contact with second cushion 166 earlier when supporting or extruding fly leaf 162 at the arm, make this device difficult when using cause the injury to the user.
The utility model discloses a theory of operation does:
s1, when the device needs to be used, the fixed connecting band 1 can be fixed at a proper position of the waist of a user through the second hair side magic tape 9 and the second hook side magic tape 10, then the auxiliary connecting band 2 is placed on the shoulder of the user, and the auxiliary connecting band 2 is connected through the first hair side magic tape 3 and the first hook side magic tape 4;
s2, when the position of the supporting shell 161 needs to be adjusted, the user can lift the arm upwards to make the arm press the movable plate 162 upwards, and when the movable plate 162 contacts the control switch 165, the first electric push rod 11 and the second electric push rod 13 can be activated, so that the first electric push rod 11 can adjust the position of the supporting shell 161, and the second electric push rod 13 can adjust the height of the supporting shell 161;
s3, when the user needs to change the angle of the arm, the supporting shell 161 can drive the universal ball 15 to rotate in the universal shell 14, so that the user can adjust the angle of the supporting shell 161 according to the actual requirement, and when the user needs to adjust the position of the arm, the supporting shell 161 can drive the connecting frame 124 to move back and forth.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood by those of ordinary skill in the art through specific situations.
Although the preferred embodiments of the present patent have been described in detail, the present patent is not limited to the above embodiments, and various changes can be made without departing from the spirit of the present patent within the knowledge of those skilled in the art.
Claims (6)
1. The utility model provides an intelligence medical treatment is auxiliary stay device for internal medicine operation, includes fixedly connected band (1), its characterized in that: the upper surface of the fixed connecting belt (1) is respectively and fixedly connected with two auxiliary connecting belts (2) and two first rough surface magic tapes (3), the outer surface of the auxiliary connecting belt (2) is provided with a first hook surface magic tape (4), opposite surfaces of the first rough surface magic tape (3) and the first hook surface magic tape (4) are bonded, the front surface of the fixed connecting belt (1) is provided with a second hook surface magic tape (10), and the back surface of the inner wall of the fixed connecting belt (1) is provided with a second rough surface magic tape (9);
the left side surface of the fixed connecting belt (1) is fixedly connected with a connecting plate (6), the left side surface of the connecting plate (6) is fixedly connected with the right side surface of a sliding connecting mechanism (12) through a first electric push rod (11), the sliding connecting mechanism (12) comprises a fixed shell (121), sliding rails (122) are arranged on the lower surface of the inner wall of the fixed shell (121) and the left and right side surfaces of the inner wall, four pulleys (123) are connected in the sliding rails (122) in a sliding mode, the twelve pulleys (123) are respectively fixedly connected with the outer surfaces of two connecting frames (124), and a through hole (125) is formed in the upper surface of the fixed shell (121);
the utility model discloses a universal ball bearing, including link (124), second electric putter (13), universal shell (14), swing joint has universal ball (15) in universal shell (14), the last fixed surface of link (124) is connected through the lower fixed surface of second electric putter (13) and universal shell (14), the last fixed surface of universal ball (15) is connected with supports control mechanism (16), support control mechanism (16) including supporting shell (161), the upper surface that supports shell (161) inner wall is provided with control switch (165), the upper surface that supports shell (161) inner wall is connected through the upper fixed surface of four springs (164) and same fly leaf (162) respectively.
2. The auxiliary supporting device for the intelligent medical internal medicine operation as claimed in claim 1, wherein: the spring (164) is internally sleeved with a telescopic rod (163), and two ends of the telescopic rod (163) are fixedly connected with the upper surface of the inner wall of the supporting shell (161) and the upper surface of the movable plate (162) respectively.
3. The auxiliary supporting device for the intelligent medical internal medicine operation as claimed in claim 1, wherein: the inner surface of the auxiliary connecting belt (2) is fixedly connected with a first soft cushion (7).
4. The auxiliary supporting device for the intelligent medical internal medicine operation as claimed in claim 1, wherein: the lower surface of the inner wall of the supporting shell (161) and the lower surface of the movable plate (162) are fixedly connected with a second cushion (166).
5. The auxiliary supporting device for the intelligent medical internal medicine operation as claimed in claim 1, wherein: the front and the back of the fixed connecting belt (1) are both provided with mesh cloth (5).
6. The auxiliary supporting device for the intelligent medical internal medicine operation as claimed in claim 3, wherein: the inner surface of the first soft cushion (7) is fixedly connected with a plurality of anti-skidding blocks (8).
