Abstract
The utility model discloses a fixable hoisting cable well cover type electric hoist, which comprises a base, wherein two groups of vertical steel pipes are arranged above the base, each group of vertical steel pipes comprises two vertical steel pipes, the two vertical steel pipes are installed in a way of being crossed near the top part, a buckle for locking is arranged above the base, each group of vertical steel pipes are fixedly connected through the buckle, a horizontal steel pipe is arranged above the base, the horizontal steel pipe is clamped in the crossed space at the upper part of the two groups of vertical steel pipes, the horizontal steel pipe is fixedly connected with each group of vertical steel pipes through the buckle, two groups of supporting plates are symmetrically arranged above the base, a control device of the electric hoist is arranged above the base, the control device is positioned on the supporting plates, the utility model is suitable for hoisting cable well covers, the cable well cover lifting device is fixed through simple connection of the steel pipes, and simultaneously, the adjustment of the distance between the two groups of hooks can be realized, so that the structure is suitable for cable well covers with different sizes, through controlling means's automatic lifting cable well lid, reduce the waste of human cost.
Description
Technical Field
The utility model belongs to the technical field of the cable, specifically a can fix hoist and mount cable shaft cover formula electric hoist.
Background
The cable is an electric energy or signal transmission device, usually consist of several or several groups of wire, each group of wire is insulated each other, and often turn round around a centre, the whole outside is wrapped with the high insulating cover layer, the cable has the characteristic of internal electrification, external insulation;
at present, the number of cables put into operation increases rapidly, cable well lid needs to be opened in cable delivery acceptance and later operation and maintenance, the general weight of cable well lid is not less than 300 jin, construction and operation and maintenance personnel open cable well lid still adopt the method that many people use the rope fastening to lift up, this method wastes time and energy, influences acceptance and operation and maintenance work progress, reduces work efficiency by a wide margin.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to overcome prior art's defect, provide one kind and can fix hoist and mount cable shaft cover formula electric hoist.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a well cover type electric hoist capable of fixedly hoisting cables comprises a base, wherein two groups of vertical steel pipes are arranged above the base, each group of vertical steel pipes comprises two vertical steel pipes, the two vertical steel pipes are installed in a cross mode near the top, a buckle used for locking is arranged above the base, each group of vertical steel pipes are fixedly connected through the buckle, a transverse steel pipe is arranged above the base, the transverse steel pipe is clamped in a cross space at the upper parts of the two groups of vertical steel pipes, and the transverse steel pipe is fixedly connected with each group of vertical steel pipes through the buckle;
the base top symmetry is provided with two sets of backup pads, the base top is provided with the controlling means of electric hoist, controlling means is located in the backup pad, backup pad one side is provided with logical groove, the controlling means below is provided with the couple, the couple passes through logical groove to backup pad below of backup pad one side.
Preferably, two groups of connecting blocks are arranged above the base, through holes are formed in the connecting blocks, the transverse steel pipe can be inserted into the through holes in the connecting blocks, and the upper surface of the supporting plate is fixed to the lower surface of the connecting blocks.
Preferably, the buckle includes two sets of sector rings, two sets of sector rings are connected through hinge rotation, the sector ring opposite side is provided with the spliced pole, be provided with the through-hole on the spliced pole, the sector ring outside is provided with the bolt, the bolt can insert and close in the through-hole on the spliced pole.
Preferably, a supporting telescopic rod is arranged between the two groups of connecting blocks.
Preferably, two groups of cylindrical blocks are uniformly arranged on the base, a groove is formed in the center of each cylindrical block, and the vertical steel pipe can be inserted into the groove in each cylindrical block.
Preferably, two groups of electric push rods are symmetrically arranged on the base, an arc-shaped block is fixed at the other end of each electric push rod, and a rubber cushion pad is arranged on the inner side of each arc-shaped block.
The utility model discloses in, through the simple connection of steel pipe, fix cable well lid lifting device, simple structure is with low costs, and the connecting block not only can bear the weight of controlling means simultaneously, can realize the adjustment of distance between two sets of couples simultaneously, makes this structure be applicable to the cable well lid of different sizes to can control the automation of cable well lid and lift up, reduce the waste of human cost;
the utility model discloses in, design the cylinder piece on the base, carry on spacingly to erecting the steel pipe, prevent that equipment from erecting the influence that the steel pipe slided and cause at the in-process of work, design arc piece on the base simultaneously, cushion the cable well lid of just lifting, prevent to rock accidents such as falling that cause too greatly.
Drawings

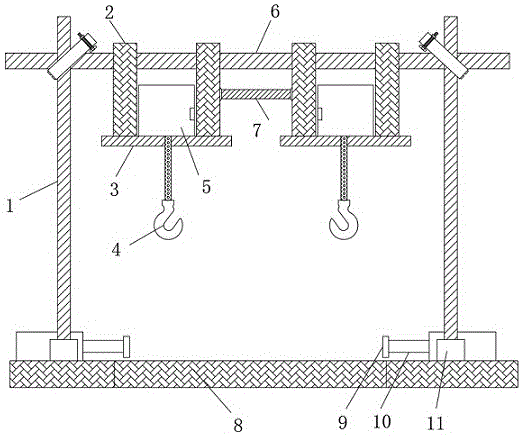

Fig. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic view of the connection structure of the middle vertical steel pipe of the present invention;
FIG. 3 is a schematic view of the middle buckle structure of the present invention;
FIG. 4 is a schematic view of the mounting structure of the connecting block of the present invention;
fig. 5 is a schematic view of the structure of the middle base of the present invention.
Reference numerals: 1. erecting a steel pipe; 2. connecting blocks; 3. a support plate; 4. hooking; 5. a control device; 6. a horizontal steel pipe; 7. supporting the telescopic rod; 8. a base; 9. an arc-shaped block; 10. an electric push rod; 11. a cylindrical block; 12. buckling; 121. a hinge; 122. a sector ring; 123. connecting columns; 124. and (4) bolts.
Detailed Description
The following description further describes a specific embodiment of the electric hoist with a fixed hoisting cable shaft cover according to the present invention with reference to fig. 1-5. The utility model relates to a can fix hoist and mount cable shaft cover formula electric hoist is not limited to the description of following embodiment.
Example 1:
the embodiment provides a concrete structure capable of fixedly hoisting a cable shaft cover type electric hoist, which comprises a base 8, wherein two groups of vertical steel pipes 1 are arranged above the base 8, each group of vertical steel pipes 1 comprises two vertical steel pipes, the two vertical steel pipes 1 are arranged near the top in a crossed manner, a buckle 12 for locking is arranged above the base 8, each group of vertical steel pipes 1 are fixedly connected through the buckle 12, a transverse steel pipe 6 is arranged above the base 8, the transverse steel pipe 6 is clamped in a crossed space at the upper part of the two groups of vertical steel pipes 1, and the transverse steel pipe 6 is fixedly connected with each group of vertical steel pipes 1 through the buckle 12;
8 top symmetries of base are provided with two sets of backup pads 3, and 8 tops of base are provided with the controlling means 5 of electric hoist, and controlling means 5 is located backup pad 3, and 3 one sides of backup pad are provided with logical groove, and controlling means 5 below is provided with couple 4, and couple 4 leads to the groove to 3 below of backup pad through backup pad 3 one side.
The buckle 12 comprises two groups of fan-shaped rings 122, the two groups of fan-shaped rings 122 are rotatably connected through a hinge 121, a connecting column 123 is arranged on the other side of each fan-shaped ring 122, a through hole is formed in each connecting column 123, a bolt 124 is arranged on the outer side of each fan-shaped ring 122, and the bolt 124 can be inserted into the through hole in each connecting column 123.
And a supporting telescopic rod 7 is arranged between the two groups of connecting blocks 2 and is used for supporting and adjusting the width.
By adopting the technical scheme: when cable well lid needs hoist and mount, at first, buckle 12 cross fixation is passed through to two sets of perpendicular steel pipes 1, then through the fixed buckle 12 of bolt 124, then place horizontal steel pipe 6 in two sets of perpendicular steel pipe 1 cross spaces, then through the round hole on connecting block 2, 2 blocks of connecting block are on horizontal steel pipe 6, it is fixed respectively horizontal steel pipe 6 and two sets of perpendicular steel pipes 1 equally with buckle 12 after that, place controlling means 5 to backup pad 3 on, 5 up-and-down motions of controlling means control couple 4, hoist cable well lid, above process, through simple mechanical mechanism, realize the automatic hoist and mount to cable well lid, reduce the waste of cost of labor, set up support telescopic link 7 simultaneously between two sets of connecting block 2, adjust the hoist and mount of width in order to be applicable to the cable well lid of more sizes.
Example 2:
the embodiment provides a concrete structure capable of fixing and hoisting a cable shaft cover type electric hoist, as shown in fig. 1 and 5, two groups of cylindrical blocks 11 are uniformly arranged on a base 8, a groove is formed in the center of each cylindrical block 11, a vertical steel pipe 1 can be inserted into the groove in each cylindrical block 11, and the middle of the base 8 is hollowed out.
Two groups of electric push rods 10 are symmetrically arranged on the base 8, an arc-shaped block 9 is fixed at the other end of each electric push rod 10, and a rubber cushion pad is arranged on the inner side of each arc-shaped block 9.
By adopting the technical scheme: two sets of 1 bottoms of perpendicular steel pipe are inserted respectively and are closed in cylinder piece 11, prevent to slide, when couple 4 lifts up cable well lid, electric putter 10 starts, 9 transverse motion of control arc piece, fix a position the cable well lid of lifting, above in-process, cable well lid is when just lifting, because the effect of inertia and power, can acutely rock even slope, through setting up arc piece 9, cushion the cable well lid of just lifting, reduce because of acutely rocking the falling or the damage that causes.
Working principle, refer to fig. 1-5, when cable well lid needs hoist and mount, at first, cross-fixing two sets of perpendicular steel pipes 1 through buckle 12, insert respectively in cylinder piece 11 bottom two sets of perpendicular steel pipes 1, then fix buckle 12 through bolt 124, then place horizontal steel pipe 6 in two sets of perpendicular steel pipe 1 cross space, then through the round hole on connecting block 2, connect block 2 block on horizontal steel pipe 6, it is fixed respectively with buckle 12 horizontal steel pipe 6 and two sets of perpendicular steel pipes 1 equally after that, place controlling means 5 to backup pad 3 on, controlling means 5 control couple 4 up-and-down motion, hoist cable well lid, when couple 4 hoists cable well lid, electric putter 10 starts, control arc 9 lateral motion, fix a position the cable well lid of lifting.
The foregoing is a more detailed description of the present invention, taken in conjunction with the specific preferred embodiments thereof, and it is not intended that the invention be limited to the specific embodiments shown and described. To the utility model belongs to the technical field of ordinary technical personnel, do not deviate from the utility model discloses under the prerequisite of design, can also make a plurality of simple deductions or replacement, all should regard as belonging to the utility model discloses a protection scope.
Claims (6)
1. The utility model provides a can fix hoist and mount cable shaft cover formula electric hoist, includes base (8), its characterized in that: two groups of vertical steel pipes (1) are arranged above the base (8), each group of vertical steel pipes (1) comprises two vertical steel pipes, the two vertical steel pipes (1) are installed at positions close to the tops of the two vertical steel pipes in a crossed mode, a buckle (12) used for locking is arranged above the base (8), each group of vertical steel pipes (1) is fixedly connected through the buckle (12), a transverse steel pipe (6) is arranged above the base (8), the transverse steel pipe (6) is clamped in a crossed space at the upper portions of the two groups of vertical steel pipes (1), and the transverse steel pipe (6) is fixedly connected with each group of vertical steel pipes (1) through the buckle (12);
base (8) top symmetry is provided with two sets of backup pads (3), base (8) top is provided with controlling means (5) of electric hoist, controlling means (5) are located on backup pad (3), backup pad (3) one side is provided with logical groove, controlling means (5) below is provided with couple (4), couple (4) are passed through logical groove to backup pad (3) below of backup pad (3) one side.
2. The well cover type electric hoist capable of fixedly hoisting cables as claimed in claim 1, wherein: the steel tube connecting device is characterized in that two groups of connecting blocks (2) are arranged above the base (8), through holes are formed in the connecting blocks (2), the transverse steel tubes (6) can be inserted into the through holes in the connecting blocks (2), and the upper surface of the supporting plate (3) is fixed on the lower surface of the connecting blocks (2).
3. The well cover type electric hoist capable of fixedly hoisting cables as claimed in claim 1, wherein: the buckle (12) comprises two groups of fan-shaped rings (122), the two groups of fan-shaped rings (122) are rotatably connected through a hinge (121), a connecting column (123) is arranged on the other side of each fan-shaped ring (122), a through hole is formed in each connecting column (123), a bolt (124) is arranged on the outer side of each fan-shaped ring (122), and the bolt (124) can be inserted into the through hole in each connecting column (123).
4. The well cover type electric hoist capable of fixedly hoisting cables as claimed in claim 2, wherein: and a supporting telescopic rod (7) is arranged between the two groups of connecting blocks (2).
5. The well cover type electric hoist capable of fixedly hoisting cables as claimed in claim 1, wherein: the steel tube support is characterized in that two groups of cylindrical blocks (11) are uniformly arranged on the base (8), grooves are formed in the centers of the cylindrical blocks (11), the vertical steel tubes (1) can be inserted into the grooves in the cylindrical blocks (11), and the middle of the base (8) is designed to be hollow.
6. The well cover type electric hoist capable of fixedly hoisting cables as claimed in claim 1, wherein: two groups of electric push rods (10) are symmetrically arranged on the base (8), an arc-shaped block (9) is fixed at the other end of each electric push rod (10), and a rubber cushion pad is arranged on the inner side of each arc-shaped block (9).
