The utility model provides a be used for abluent device of product inner packing bag surface. The device is equipped with feeding conveyer belt motor, feeding conveyer belt, feed table and pay-off swash plate in the frame, the other end of pay-off swash plate is linked together with the entry of cylinder, be equipped with fluted disc driving motor, speed reducer and fluted disc on the cylinder, the chain is equipped with on the fluted disc, one side of cylinder is equipped with No. one water pump and No. two water pumps respectively, No. one water pump and No. two water pumps are linked together with left shower and right shower respectively, the bottom of cylinder is equipped with the basin, the exit and the clean water basin of cylinder are linked together, the exit and the stoving mechanism of clean water basin are linked together, the exit and the product conveyer belt of stoving mechanism are linked together. The device is a full-automatic cleaning structure, and the control console controls the roller, the drying mechanism and each conveyor belt, so that the inner packaging bag of the product can complete the cleaning process in a flow line mode.

Description

Device for cleaning outer surface of product inner packaging bag
Technical Field
The utility model relates to machinery and mechatronic field, in particular to be used for abluent device of product inner packing bag surface.
Background
The general product packages of the enterprises producing the edible products at present are respectively provided with an inner packaging bag and an outer packaging belt, and in the production process, the inner packaging bag can be stained with oil stains or other pollutants. The existing method adopts manual cleaning in a cleaning pool or introduces compressed air into the cleaning pool to carry out bubble cleaning; some enterprises adopt mechanical cleaning, but the above operations all have the following defects: 1. when manual cleaning operation is carried out, more operators are used, the inner packaging bag is not cleaned cleanly due to the phenomena of overlapping and accumulation, and secondary pollution can be caused sometimes; 2. when mechanical cleaning operation is adopted, the cleaning degree is not easy to control, and the inner packaging bag of the product is damaged, so that the product quality is reduced, and the rejection rate is increased.
Disclosure of Invention
An object of the utility model is to provide a be used for abluent device of product inner packing bag surface. The utility model discloses the technical problem that needs to solve is: the cleaning of the inner packaging bag of the product is fully automated, the labor intensity of operators is reduced, and the rejection rate is reduced.
In order to achieve the above purpose, the technical scheme of the utility model is that:
a device for cleaning the outer surface of an inner packing bag of a product comprises a feeding table, a feeding conveyor belt, a frame, a feeding conveyor belt motor, a feeding inclined plate, a roller, a chain, a fluted disc, a speed reducer, a fluted disc driving motor, a clean water tank, a cleaning conveyor belt motor, a hot air fan, a drying mechanism, a drying conveyor belt motor, a product conveyor belt, a drying conveyor belt, a cleaning conveyor belt, a right spray pipe, a second water pump, a second water tank, a first water pump, a water tank, a left spray pipe and a control table, wherein the feeding conveyor belt motor is arranged on the frame, a transmission shaft of the feeding conveyor belt motor is connected with the feeding conveyor belt, the feeding table is arranged at one end of the feeding conveyor belt, the other end of the feeding conveyor belt is communicated with the feeding inclined plate, the fluted disc driving motor, the speed reducer and the fluted disc are arranged on the roller, and the fluted disc chain is arranged on the fluted disc, a first water pump and a second water pump are respectively installed on one side of the roller and are respectively communicated with the left spray pipe and the right spray pipe, the left spray pipe and the right spray pipe are respectively introduced into the roller, a water tank is installed at the bottom of the roller, an outlet of the roller is communicated with a clean water tank, an outlet of the clean water tank is communicated with a drying mechanism, and an outlet of the drying mechanism is communicated with a product conveying belt.
The lower part of a clean water tank in the device is provided with a cleaning conveyor belt, and the cleaning conveyor belt is connected with a cleaning conveyor belt motor.
The top of the drying mechanism in the device is provided with a hot air blower, the inside of the drying mechanism is provided with a drying conveyor belt, and the drying conveyor belt is connected with a drying conveyor belt motor.
A first water pump and a second water pump in the device are respectively communicated with a first water tank and a second water tank through pipelines, and a water tank is respectively communicated with the first water tank and the second water tank through pipelines.
A feeding conveyor belt motor, a fluted disc driving motor, a cleaning conveyor belt motor, a hot air blower, a drying conveyor belt motor, a first water pump and a second water pump in the device are respectively connected with an electric control unit in a control console by leads.
Compared with the prior art, the utility model discloses an actively the effect does:
1. the device is a full-automatic product inner packaging bag cleaning structure, and the roller, the drying mechanism and each conveyor belt are controlled by the control console, so that the product inner packaging bag can complete the cleaning process in a flow line mode;
2. the device can complete the cleaning work of the inner packaging bag of the product only by one operator, thereby reducing the labor intensity of the operator and reducing the rejection rate;
3. the device has high automation degree and simple and convenient operation.
Drawings

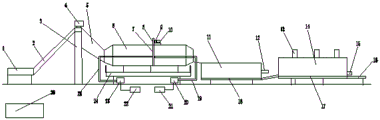

Fig. 1 is a schematic front view structural diagram of a cleaning device for the outer surface of a product inner packaging bag.
Wherein: 1. the automatic cleaning device comprises a feeding table, 2, a feeding conveyor belt, 3, a rack, 4, a feeding conveyor belt motor, 5, a feeding inclined plate, 6, a roller, 7, a chain, 8, a fluted disc, 9, a speed reducer, 10, a fluted disc driving motor, 11, a clean water tank, 12, a cleaning conveyor belt motor, 13, a hot air blower, 14, a drying mechanism, 15, a drying conveyor belt motor, 16, a product conveyor belt, 17, a drying conveyor belt, 18, a cleaning conveyor belt, 19, a right spray pipe, 20, a second water pump, 21, a second water tank, 22, a first water tank, 23, a first water pump, 24, a water tank, 25, a left spray pipe, 26 and a control table.
Detailed Description
The technical solution of the present invention will be further described clearly and completely with reference to the accompanying drawings.
Referring to the attached figure 1, the device is provided with a feeding conveyor belt motor 4 on a frame 3, a transmission shaft of the feeding conveyor belt motor 4 is connected with a feeding conveyor belt 2, one end of the feeding conveyor belt 2 is provided with a feeding table 1, the other end is communicated with a feeding inclined plate 5, the other end of the feeding inclined plate 5 is communicated with an inlet of a roller 6, the roller 6 is provided with a fluted disc driving motor 10, the automatic drying device comprises a speed reducer 9 and a fluted disc 10, wherein a chain 7 is arranged on the fluted disc 10, a first water pump 23 and a second water pump 20 are respectively arranged on one side of a roller 6, the first water pump 23 and the second water pump 20 are respectively communicated with a left spray pipe 25 and a right spray pipe 19, the left spray pipe 25 and the right spray pipe 19 are respectively introduced into the roller 6, a water tank 24 is arranged at the bottom of the roller 6, the outlet of the roller 6 is communicated with a clean water tank 11, the outlet of the clean water tank 11 is communicated with a drying mechanism 14, and the outlet of the drying mechanism 14 is communicated with a product conveying belt 16.
The lower part of the clean water tank 11 in the device is provided with a cleaning conveyor belt 18, and the cleaning conveyor belt 18 is connected with a cleaning conveyor belt motor 12.
The top of a drying mechanism 14 in the device is provided with a hot air blower 13, the interior of the drying mechanism is provided with a drying conveyor belt 17, and the drying conveyor belt 17 is connected with a drying conveyor belt motor 15.
A first water pump 23 and a second water pump 20 in the device are respectively communicated with a first water tank 22 and a second water tank 21 through pipelines, and a water tank 24 is respectively communicated with the first water tank 22 and the second water tank 21 through pipelines.
A feeding conveyor belt motor 4, a fluted disc driving motor 10, a cleaning conveyor belt motor 12, a hot air blower 13, a drying conveyor belt motor 15, a first water pump 23 and a second water pump 20 in the device are respectively connected with an electric control unit in a control console 26 by leads.
During the use, put product inner packing bag on feed table 1, operating personnel starts the feeding conveyer belt motor 4 drive feeding conveyer belt 2 of dress in frame 3 through control cabinet 26, send product inner packing bag into in the cylinder 6 through feeding swash plate 5 through feeding conveyer belt 2, start fluted disc driving motor 10 simultaneously, drive fluted disc 8 through speed reducer 9 after slowing down and rotate, fluted disc 8 drives cylinder 6 through chain 7 and rotates, the inner packing bag that gets into in the cylinder 6 rotates and gos forward along with cylinder 6 together, operating personnel starts No. one water pump 23 and No. two water pump 20 through control cabinet 26, No. one water pump 23 and No. two water pump 20 respectively from No. one water tank 22 and No. two water tanks 21, in washing water or washing liquid pump left shower 25 and right shower 19, spray the inner packing bag in the cylinder 6 and wash. The inner packing bag in the drum 6 is rinsed in the clean water tank 11 after being sprayed and cleaned, and is sent to the drying mechanism 14 by the cleaning conveyor belt 18 driven by the cleaning conveyor belt motor 12, and is dried by the hot air blower 13 while moving forward on the drying conveyor belt 17 driven by the drying conveyor belt motor 15 in the drying mechanism 14. Finally, the inner packaging bag enters the product conveyer belt 16 from the outlet of the drying mechanism 14, and is conveyed to the next process by the product conveyer belt 16.
And a water tank 24 arranged at the bottom of the roller 6 is used for recovering cleaning water or cleaning liquid overflowing from the roller 6 into the first water tank 22 and the second water tank 21 respectively and recycling the cleaning water or the cleaning liquid in the cleaning process.

Claims (5)

1. The utility model provides a be used for abluent device of product inner packing bag surface, including feed table (1), feeding conveyer belt (2), frame (3), feeding conveyer belt motor (4), pay-off swash plate (5), cylinder (6), chain (7), fluted disc (8), speed reducer (9), fluted disc driving motor (10), clean water basin (11), wash conveyer belt motor (12), air heater (13), drying mechanism (14), stoving conveyer belt motor (15), product conveyer belt (16), stoving conveyer belt (17), wash conveyer belt (18), right shower (19), No. two water pump (20), No. two water tank (21), a water tank (22), a water pump (23), basin (24), left shower (25) and control cabinet (26), its characterized in that: the device is characterized in that a feeding conveyor belt motor (4) is arranged on a rack (3), a transmission shaft of the feeding conveyor belt motor (4) is connected with a feeding conveyor belt (2), a feeding table (1) is arranged at one end of the feeding conveyor belt (2), the other end of the feeding conveyor belt motor is communicated with a feeding inclined plate (5), the other end of the feeding inclined plate (5) is communicated with an inlet of a roller (6), a fluted disc driving motor (10), a speed reducer (9) and a fluted disc (8) are arranged on the roller (6), a chain (7) is arranged on the fluted disc (8), a first water pump (23) and a second water pump (20) are respectively arranged on one side of the roller (6), the first water pump (23) and the second water pump (20) are respectively communicated with a left spray pipe (25) and a right spray pipe (19), the left spray pipe (25) and the right spray pipe (19) are respectively communicated with the inside of the roller (6), a water tank (24) is arranged at the bottom of the roller (6), the outlet of the roller (6) is communicated with a clean water tank (11), the outlet of the clean water tank (11) is communicated with a drying mechanism (14), and the outlet of the drying mechanism (14) is communicated with a product conveyer belt (16).
2. The apparatus for cleaning the exterior surface of a product inner bag according to claim 1 wherein: the lower part of a clean water tank (11) in the device is provided with a cleaning conveyor belt (18), and the cleaning conveyor belt (18) is connected with a cleaning conveyor belt motor (12).
3. The apparatus for cleaning the exterior surface of a product inner bag according to claim 1 wherein: a hot air fan (13) is arranged at the top of a drying mechanism (14) in the device, a drying conveyor belt (17) is arranged in the drying mechanism, and the drying conveyor belt (17) is connected with a drying conveyor belt motor (15).
4. The apparatus for cleaning the exterior surface of a product inner bag according to claim 1 wherein: a first water pump (23) and a second water pump (20) in the device are respectively communicated with a first water tank (22) and a second water tank (21) through pipelines, and a water tank (24) is respectively communicated with the first water tank (22) and the second water tank (21) through pipelines.
5. The apparatus for cleaning the exterior surface of a product inner bag according to claim 1 wherein: a feeding conveyor belt motor (4), a fluted disc driving motor (10), a cleaning conveyor belt motor (12), a hot air fan (13), a drying conveyor belt motor (15), a first water pump (23) and a second water pump (20) in the device are respectively connected with an electric control unit in a control console (26) by leads.
