Abstract
A welding material waste recovery device comprises a recovery vehicle, a screening room, a screening plate, a lifting block, a material placing room, a handle, an air storage tank, a starting valve, an air pipe, a material placing plate, an air outlet room, a roller, a first pulling block, a second pulling block, a fixed handrail, a telescopic baffle, a feed inlet, a baffle, a filter screen, a handle, a spray head, an air hole, a one-way valve, a pulley, a fixed shaft, a ball, a spring, a motor, a rotating shaft and a main bevel gear, wherein the welding material waste recovery device vibrates waste entering the recovery vehicle, the large waste is left in the screening room, the small waste falls in the material placing room below the screening vehicle, and the welding material waste is screened according to the size; compressed gas will retrieve the dust impurity on the welding material waste material in the car and blow off, simultaneously when sieving the board, drive the sieve board and fluctuate from top to bottom, play the effect of vibrations, and the motor drives the fan rotation, and the compressed air of cooperation below stays dust impurity in the filter screen, carries out the deashing to the welding material waste material and handles.
Description
Technical Field
The utility model relates to a welding utensil technical field, more specifically say, in particular to weld material waste recovery device's technical field.
Background
The welding rod is made up by using welding wire and welding rod through the processes of preparing coating material and welding core according to the design requirements of welding rod formula, coating the coating material on the welding core to make it obtain defined form and size, drying and forming into a welding rod, and its welding rod production process includes several procedures, including the following seven procedures: processing a welding core, preparing a raw material of a coating of the welding rod, preparing and blending water glass, preparing a coating of the welding rod, press-coating and forming the welding rod, drying and packaging the welding rod, and inspecting a finished product of the welding rod. A lot of waste materials are generated in the production process of welding materials, mainly welding metal waste materials such as welding rod heads, welding wire heads and the like, and therefore the waste materials are collected and intensively cleaned by adopting a recovery device.
In the prior art, waste materials are mixed and placed together, welding slag needs to be conveyed into a trolley and conveyed to a recovery device and poured into the recovery device after welding is finished, a worker needs to pick up welding rod heads in the welding slag in the process of pouring the welding slag, and different waste materials are separately recovered, so that the efficiency is low, and the worker needs to continuously dial off the waste slag, which is inconvenient; tiny impurities stained on the surface of the waste material can fall and are accumulated in the recovery device to be difficult to clean.
SUMMERY OF THE UTILITY MODEL
Problem (A)
In summary, the utility model provides a welding material waste recovery device, which is used for solving the problem of separate recovery of different waste materials, thus the efficiency is lower; the impurities fall and accumulate inside the recovery device and are difficult to clean.
(II) technical scheme
The utility model provides a welding material waste recovery device, which comprises a recovery vehicle, a screening room, a screening plate, a material placing room, a first pulling block and a second pulling block, wherein the top of the recovery vehicle is provided with a telescopic baffle, the lower part of the telescopic baffle is provided with the screening room, the recovery vehicle is internally provided with the screening room and the material placing room, the screening room is internally provided with the first pulling block, the material placing room is internally provided with the second pulling block, the bottom of the first pulling block is provided with the screening plate, the bottom of the second pulling block is provided with the material placing plate, the bottoms of two sides of the screening plate are provided with lifting blocks, the bottoms of the lifting blocks are provided with springs, the inner walls of the two sides of the recovery vehicle are provided with fixed shafts, the fixed shafts are respectively provided with pulleys, the right side of the recovery vehicle is provided with a gas storage tank, the right side of the recovery vehicle is provided with a hose, the bottom of the material placing plate is provided with gas holes, the bottom of the gas holes is provided with a spray head, the shower nozzle bottom is connected between giving vent to anger, left side coupling hose between giving vent to anger, the baffle both sides are equipped with the filter screen, the car inner wall is retrieved on the filter screen right side is equipped with the motor, the pivot that the motor top was equipped with is electric connection, the pivot top is equipped with main bevel gear, the other bevel gear of following that is equipped with of main bevel gear, it is connected with the fan from bevel gear.
Furthermore, the baffle plates arranged on two sides of the feed inlet are in an inward inclined shape.
Furthermore, the first pulling block and the second pulling block are provided with balls on the outer walls of the two sides of the recovery vehicle.
Furthermore, a starting valve is arranged on the hose.
Furthermore, the top of the air hole is provided with a one-way valve
Furthermore, the filter screens are connected in a zigzag mode.
(III) advantageous effects
Through setting up between the screening, on the screening board, lifting block, spring, the waste material that gets into the recovery car shakes, stays bulky waste material in between the screening, and in the material room is put to small waste material drop below, will weld the material waste material and sieve the processing according to the volume size.
Through setting up the gas bomb, the hose, give vent to anger between, the shower nozzle, put the thing board, the gas pocket, including a motor, an end cap, a controller, and a cover plate, the filter screen, shower nozzle spun compressed gas, from putting the gas pocket blowout in the thing board, compressed gas will retrieve the interior dust impurity that welds on the material waste material of car and blow off, simultaneously when sieving the board, drive sieve board fluctuation from top to bottom, play the effect of vibrations, the motor drives the fan rotation, the air in will retrieving the car is taken out, the compressed air of cooperation below, stay dust impurity in the filter screen, carry out the deashing to welding material waste material and handle.
Drawings

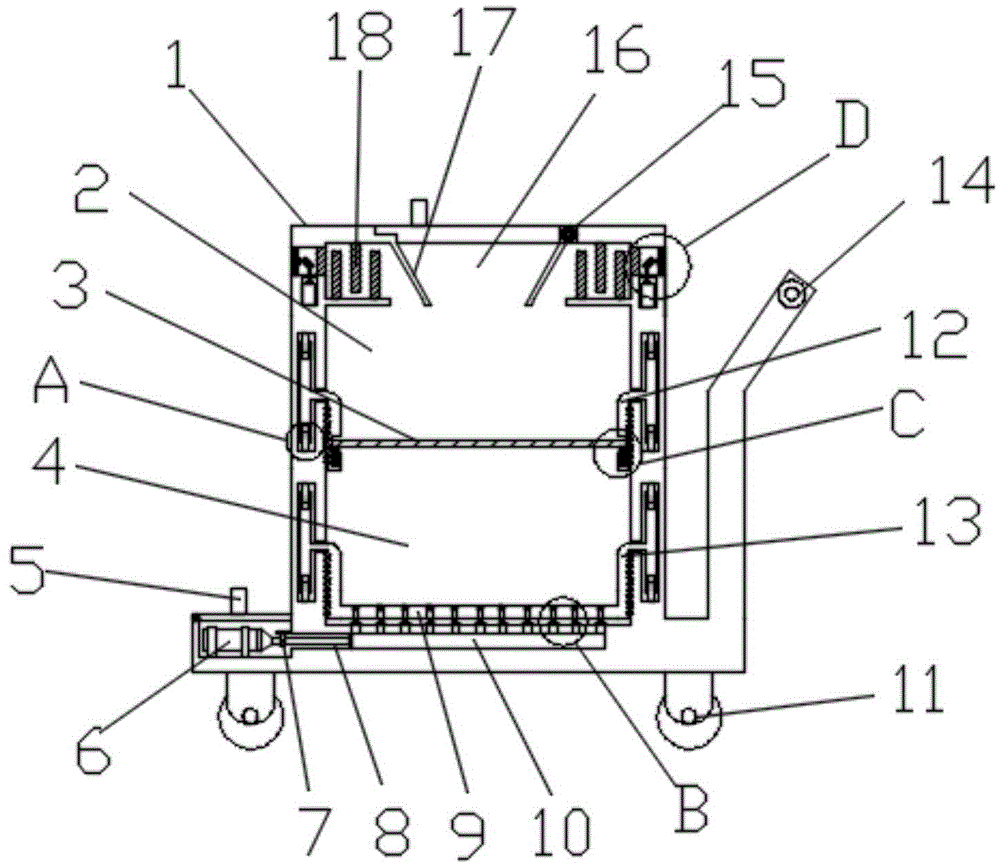

FIG. 1 is a schematic view of the overall structure of the recycling cart of the present invention;
FIG. 2 is a perspective view of the recycling cart of the present invention;
FIG. 3 is an enlarged view of FIG. 1A of the present invention;
FIG. 4 is an enlarged view of FIG. 1B of the present invention;
fig. 5 is an enlarged view of fig. 1C of the present invention;
fig. 6 is an enlarged view of fig. 1D of the present invention.
In fig. 1 to 6, the corresponding relationship between the part names or lines and the reference numbers is:
1-recovery vehicle, 2-screening room, 3-screening board, 301-lifting block, 4-material placing room, 5-handle, 6-gas storage tank, 7-starting valve, 8-gas pipe, 9-material placing board, 10-gas outlet room, 11-roller, 12-first pulling block, 13-second pulling block, 14-fixed handrail, 15-telescopic baffle, 16-feed inlet, 17-baffle, 18-filter screen, 19-handle, 20-spray head, 21-gas hole, 22-one-way valve, 23-pulley, 24-fixed shaft, 25-ball, 26-spring, 27-motor, 28-rotating shaft, 29-main bevel gear, 30-slave bevel gear and 31-fan.
Detailed Description
Please refer to fig. 1 to 6
A welding material waste recovery device, comprising: the recycling vehicle 1, the screening room 2, the screening plate 3, the material placing room 4, the first pulling block 12 and the second pulling block 13, the top of the recycling vehicle 1 is provided with a telescopic baffle 15, the screening room 2 is arranged below the telescopic baffle 15, the screening room 2 and the material placing room 4 are arranged in the recycling vehicle 1, the first pulling block 12 is arranged in the screening room 2, the second pulling block 13 is arranged in the material placing room 4, the screening plate 3 is arranged at the bottom of the first pulling block 12, the material placing plate 9 is arranged at the bottom of the second pulling block 13, the lifting blocks 301 are arranged at the bottoms of two sides of the screening plate 3, the springs 26 are arranged at the bottoms of the lifting blocks, the fixed shafts 24 are arranged on the inner walls of the two sides of the recycling vehicle 1 of the first pulling block 12 and the second pulling block 13, pulleys 23 are respectively arranged above and below the fixed shafts 24, the air storage tank 6 is arranged on the right side of the recycling vehicle 1, the hose 8 is arranged on the right side of the air tank 6, the air hole 21 is arranged at the bottom of the material placing plate 9, the air hole 21 is provided with a spray head 20, the bottom of the spray head 20 is connected with the air discharging room 10, the left side of the air outlet 10 is connected with the hose 8, the two sides of the baffle 17 are provided with the filter screens 18, the inner walls of the recovery vehicle 1 on the right sides of the filter screens 18 are provided with the motors 27, the rotating shafts 28 arranged above the motors 27 are electrically connected, the main bevel gears 29 are arranged above the rotating shafts 28, the auxiliary bevel gears 30 are arranged beside the main bevel gears 29, and the auxiliary bevel gears 30 are connected with the fans 31.
Preferably, the baffle plates 17 arranged on the two sides of the feed port 16 are inwards inclined, so that welding material waste can better enter the recovery vehicle 1 from the feed port 16.
Preferably, the first pulling block 12 and the second pulling block 13 are provided with balls 25 on the outer walls of the two sides of the recovery vehicle 1, so that the friction force between the first pulling block 12 and the second pulling block 13 and the recovery vehicle 1 is reduced, and the pulling can be better performed.
Preferably, the hose 8 is provided with a starting valve 7, and the flow of the compressed air of the air storage tank 6 is controlled by the starting valve 7.
Preferably, the top of the air hole 21 is provided with a one-way valve 22 to prevent the foreign dust on the object placing plate 9 from entering the lower part.
Preferably, the filter screens 18 are connected in a zigzag mode, so that the retention time of dust and impurities among the filter screens 18 is prolonged, and dust cleaning is better carried out.
(IV) working principle
The specific use mode and function of the embodiment are as follows: when the recovery vehicle 1 is used, firstly, the telescopic baffle 15 at the top of the recovery vehicle 1 is opened, welding material waste is poured into the recovery vehicle 1, the welding material waste falls on the screening plate 3 in the screening room 2, the screening plate 3 is pressed downwards under the influence of gravity to drive the lifting blocks 301 at two sides of the screening plate 3 to downwards extrude the springs 26, the springs 26 rebound under the influence of impact gravity of the welding material waste to drive the screening plate 3 to rebound up and down, the waste on the screening plate 3 is vibrated, the large-volume waste is remained in the screening room 2, the small-volume waste falls in the material placing room 4 below, at the moment, the starting valve 7 is opened, compressed gas in the gas storage bottle 6 enters the gas outlet room 10 at the right side through the hose, the gas flows into the spray head 20 from the gas outlet room 10, compressed gas sprayed from the spray head 20 is sprayed out from the gas holes 21 in the material placing plate 9, and the compressed gas blows out dust and impurities on the welding material waste in the recovery vehicle 1, simultaneously through screening board 3, drive screening board 3 and fluctuate from top to bottom, play the effect of vibrations, at starter motor 27, motor 27 drives main bevel gear 29 through pivot 28 and rotates, and main bevel gear 29 drives and rotates from bevel gear 30, and it is rotatory to drive fan 31 from bevel gear 30, takes out the air in the car 1 of will retrieving, and the compressed air of cooperation below is stayed dust impurity in filter screen 18, carries out the deashing to the welding material waste material and handles.
Claims (6)
1. The utility model provides a welding material waste recovery device, includes recovery car (1), sieves between (2), and screening board (3) are put between material (4), and first drawing piece (12), piece (13), its characterized in that are drawn to the second: the top of the recovery vehicle (1) is provided with a telescopic baffle (15), a screening chamber (2) is arranged below the telescopic baffle (15), the recovery vehicle (1) is internally provided with the screening chamber (2) and a material placing chamber (4), the screening chamber (2) is internally provided with a first pulling block (12), the material placing chamber (4) is internally provided with a second pulling block (13), the bottom of the first pulling block (12) is provided with a screening plate (3), the bottom of the second pulling block (13) is provided with a material placing plate (9), the bottoms of two sides of the screening plate (3) are provided with lifting blocks (301), the bottom of each lifting block is provided with a spring (26), the inner walls of the two sides of the recovery vehicle (1) are provided with fixed shafts (24) by the first pulling block (12) and the second pulling block (13), the fixed shafts (24) are respectively provided with pulleys (23), the right side of the recovery vehicle (1) is provided with a gas storage tank (6), and the right side of the gas storage tank (6) is provided with a hose (8), put thing board (9) bottom and be equipped with gas pocket (21), gas pocket (21) bottom is equipped with shower nozzle (20), between (10) are connected to shower nozzle (20) bottom, between (10) left side coupling hose (8) give vent to anger, baffle (17) both sides are equipped with filter screen (18), car (1) inner wall is retrieved on filter screen (18) right side is equipped with motor (27), pivot (28) that motor (27) top was equipped with are electric connection, pivot (28) top is equipped with main bevel gear (29), main bevel gear (29) other are equipped with from bevel gear (30), be connected with fan (31) from bevel gear (30).
2. The welding material scrap recycling device according to claim 1, wherein: the baffle plates (17) arranged at the two sides of the feed inlet (16) are inwards inclined.
3. The welding material waste recycling device as claimed in claim 1, wherein the first pulling block (12), the second pulling block (13) and the recycling cart (1) are provided with balls (25) on the outer walls of both sides.
4. The welding material scrap recycling device according to claim 1, wherein: the hose (8) is provided with a starting valve (7).
5. The welding material scrap recycling device according to claim 1, wherein: the top of the air hole (21) is provided with a one-way valve (22).
6. The welding material scrap recycling device according to claim 1, wherein: the filter screens (18) are connected in a zigzag mode.
