Abstract
The utility model relates to the technical field of purification equipment, in particular to a purification device with multiple purification ways, which comprises a fixed seat, wherein a filter cylinder is arranged on the upper surface of the fixed seat near the left end, an exhaust cylinder is arranged at the central position of the upper surface of the fixed seat, a motor is arranged at the middle position on the front end surface of the exhaust cylinder, an air vane wheel is coaxially connected with an output shaft, a spray cylinder is arranged on the upper surface of the fixed seat near the right end, a water storage tank is also arranged on the circumferential outer wall of the spray cylinder, a water pump is arranged above the water storage tank, and a drying box is embedded on the circumferential outer wall of the spray cylinder; this purifier with multiple purification approach, the air exhaust section of thick bamboo is convenient for last concentrated induction air, carries out the air purification who corresponds and uses, and cartridge filter and a spray section of thick bamboo cooperation install a plurality of filter pulp in the cartridge filter and tentatively filter particulate matter and dust in the adsorbed air, carry to spray section of thick bamboo in through the air exhaust section of thick bamboo, through spraying the water-soluble material in the adsorption and precipitation air, the air that purifies through the drying cabinet discharge at last.
Description
Technical Field
The utility model relates to a clarification plant technical field specifically is a purifier with multiple purification way.
Background
The purifying equipment is a product which can adsorb, decompose or convert various air pollution sources, air pollutants and indoor biological pollution, mainly comprises bacteria, fungi, mildew, viruses, dust mites, pollen, pet dander, organism organic components and the like, and effectively improves the air cleanliness, and is mainly household and industrial purifying equipment for removing indoor air pollution at present;
general purifier purifies the way singlely, can not more fully carry out filtration purification to micromolecule thing and particulate matter in the air, equips too big, is not convenient for remove the use, and area is big, can not the rational utilization space, carries out the purification of multiple pass to the air fast and uses.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a purifier with multiple purification way to solve the problem that proposes among the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a purification device with multiple purification ways comprises a fixed seat, wherein a filter cartridge is arranged on the upper surface of the fixed seat close to the left end, the interior of the filter cartridge is hollow, an air inlet pipe communicated with the interior is embedded on the left end surface of the filter cartridge close to the top, slots are symmetrically formed in the inner wall of the filter cartridge, frame plates are arranged in the slots, filter cotton is mounted in the frame plates, an exhaust duct is mounted at the central position of the upper surface of the fixed seat, the interior of the exhaust duct is hollow cylindrical, connecting pipes are symmetrically arranged on the outer wall of the exhaust duct, a motor is mounted at the middle position of the front end surface of the exhaust duct, an output shaft of the motor extends into the exhaust duct, the output shaft is coaxially connected with fan blades, a spray drum is arranged on the upper surface of the fixed seat close to the right end, a slag discharge pipe communicated with the interior is embedded on the outer wall of the circumference of the spray drum close to the bottom of the front end surface, the utility model discloses a drying box, including a spray cylinder circumference outer wall, a scum pipe, a spray cylinder, a filter screen, a water pump, a spray ring pipe, a plurality of shower heads, the last valve of installing of scum pipe, the storage water tank that still installs with inside intercommunication is close to rear end bottom position department on the spray cylinder circumference outer wall, the filter screen is still installed with the spray cylinder junction to the storage water tank, the water pump is installed to the storage water tank top, the inside intermediate position that is close to of spray cylinder installs the spray ring pipe, be equipped with a plurality of spray pipe on the spray ring pipe, still be equipped with a plurality of shower head on the spray ring pipe, be close to right-hand member top position on the spray cylinder circumference outer wall and inlay the drying cabinet that is equipped with inside intercommunication, the right-hand member face of drying cabinet is equipped with the exhaust pipe with inside intercommunication, install dry cotton in the drying cabinet.
Preferably, the lower surface of the fixing seat is provided with universal wheels close to the corners, and the universal wheels are fixedly connected with the fixing seat through bolts.
Preferably, the filter cartridge passes through bolt and fixing base fixed connection, the filter cartridge top is equipped with the cover, the exhaust section of thick bamboo passes through bolt and fixing base fixed connection, the spray cylinder top still is equipped with the cover.
Preferably, the connecting pipes are fixedly welded with the air exhaust cylinder, the air exhaust cylinder is communicated with the filter cylinder through one of the connecting pipes, and the air exhaust cylinder is communicated with the spray cylinder through the other connecting pipe.
Preferably, a filtering baffle is further arranged in one of the connecting pipes, the width of the filtering baffle is matched with that of the connecting pipe, the filtering baffle is fixedly connected with the connecting pipe through a bolt, the motor is fixedly connected with the exhaust cylinder through a bolt, the width of the wind wheel blade is matched with the inner diameter of the exhaust cylinder, and the output shaft of the motor is welded and fixed with the wind wheel blade.
Preferably, the deslagging pipe is fixed with the spraying barrel in a welded mode, the valve is fixedly connected with the deslagging pipe through bolts, the water storage tank is fixedly welded with the spraying barrel, the width of the filter screen is matched with the width of the inner wall of the water storage tank, the filter screen is fixedly connected with the water storage tank through bolts, the water pump is fixedly connected with the water storage tank through bolts, the water spraying pipes are distributed at equal intervals, the water spraying pipes and the spraying ring pipe are of an integrally formed structure, the spraying heads are fixed with the spraying ring pipe in a welded mode, the spraying heads are distributed at equal intervals, and the spraying ring pipe and the water pump are fixed through hose welding.
Preferably, the drying cabinet is welded and fixed with the spraying cylinder, the top of the drying cabinet is further provided with a cabinet cover, the width of the drying cotton is matched with the width inside the drying cabinet, and the exhaust pipe and the drying cabinet are of an integrally formed structure.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses under the cooperation of motor and wind wheel leaf in the exhaust section of thick bamboo, be convenient for last concentrated suction air, carry out the air purification use that corresponds, the cartridge filter cooperates with the spray cylinder, carries out multiple approach and purifies the use, installs a plurality of filter pulp in the cartridge filter and tentatively filters particulate matter and dust in the adsorbed air, in carrying to the spray cylinder through the exhaust section of thick bamboo, through spraying the water-soluble material in the adsorption and precipitation air, the air that purifies through the drying cabinet discharge at last.
2. The utility model discloses cooperate the universal wheel on the fixing base, the whole nimble removal of being convenient for is used, and the water in the cyclic utilization spray cylinder of being convenient for is added to the cooperation of storage water tank and filter screen, and dry cotton adds and establishes, is convenient for carry out drying process to the air that needs were got rid of, prevents that steam from discharging, increases the humidity of air on every side, and the cooperation of scum pipe and valve is convenient for manually open the inside sediment particulate matter of discharging.
Drawings
FIG. 1 is a schematic view of the overall structure of a purification apparatus with multiple purification approaches according to the present invention;

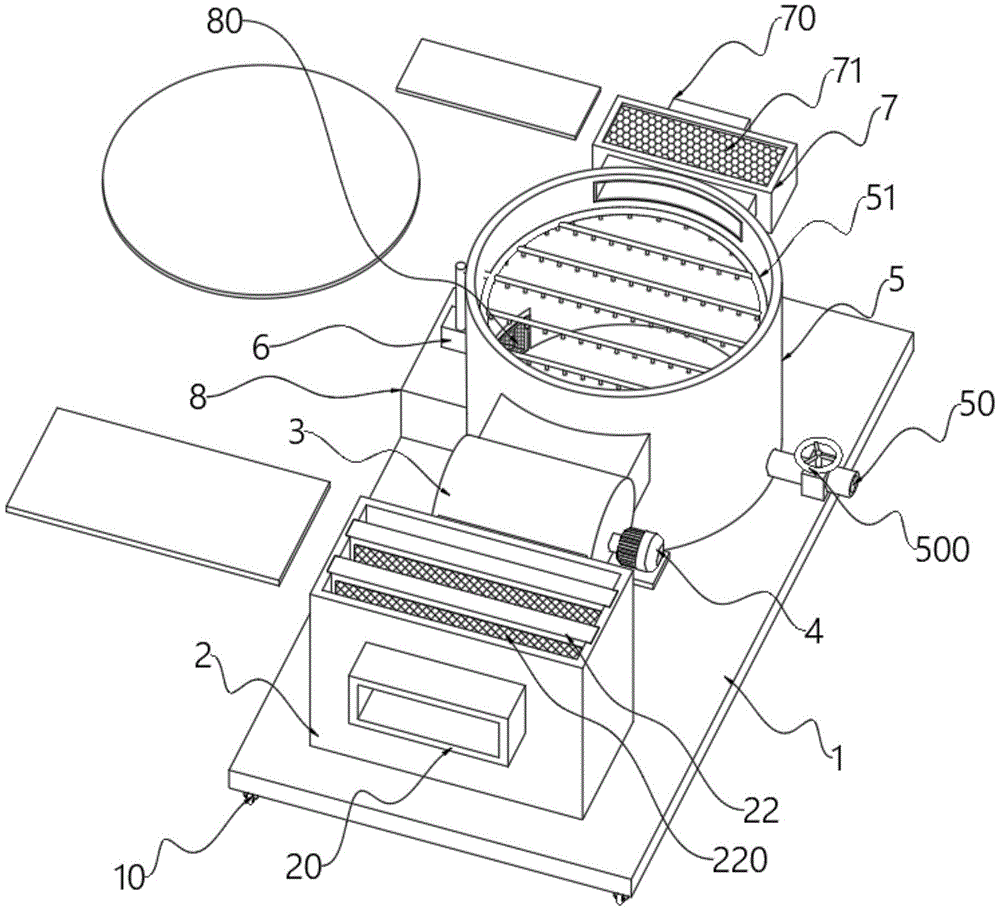

FIG. 2 is a schematic structural view of the purification device with multiple purification paths according to the present invention in an open state;
FIG. 3 is a schematic diagram of a partial structural framework of a purification device with multiple purification approaches according to the present invention;
FIG. 4 is a schematic view of the structure of the shower frame of the present invention;
fig. 5 is a schematic view of the combined structure of the exhaust funnel and the motor of the present invention.
The various reference numbers in the figures mean:
1. a fixed seat; 10. a universal wheel;
2. a filter cartridge; 20. an air inlet pipe; 21. a slot; 22. a frame plate; 220. filtering cotton;
3. an exhaust duct; 30. a connecting pipe; 31. a filtering baffle;
4. a motor; 40. a wind wheel blade;
5. a spray cylinder; 50. a slag discharge pipe; 500. a valve; 51. a spray ring pipe; 510. a water spray pipe; 511. a shower head;
6. a water pump;
7. a drying oven; 70. an exhaust duct; 71. drying the cotton;
8. a water storage tank; 80. and (4) a filter screen.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it is to be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", "clockwise", "counterclockwise", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and to simplify the description, but do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.
Referring to fig. 1-5, the present invention provides a technical solution:
a purification device with multiple purification approaches comprises a fixed seat 1, wherein a filter cylinder 2 is arranged on the upper surface of the fixed seat 1 near the left end, the interior of the filter cylinder 2 is hollow, an air inlet pipe 20 communicated with the interior is embedded on the left end surface of the filter cylinder 2 near the top, slots 21 are symmetrically arranged on the inner wall of the filter cylinder 2, frame plates 22 are arranged in the slots 21, filter cotton 220 is arranged in the frame plates 22, an exhaust fan drum 3 is arranged at the central position of the upper surface of the fixed seat 1, the interior of the exhaust fan drum 3 is hollow cylindrical, connecting pipes 30 are symmetrically arranged on the outer wall of the exhaust fan drum 3, a motor 4 is arranged at the middle position on the front end surface of the exhaust fan drum 3, an output shaft of the motor 4 extends to the interior of the exhaust fan drum 3, the output shaft is coaxially connected with an air fan blade 40, a spray drum 5 is arranged on the upper surface of the fixed seat 1 near the right end, a slag discharge pipe 50 communicated with the interior is embedded on the circumferential outer wall of the spray drum 5 near the bottom of the front end surface, install valve 500 on scum pipe 50, still install the storage water tank 8 with inside intercommunication near rear end bottom position department on 5 circumference outer walls of spray cylinder, storage water tank 8 still installs filter screen 80 with 5 junctions of spray cylinder, water pump 6 is installed to storage water tank 8 top, spray cylinder 5 is inside to be close to the intermediate position and to install spray ring pipe 51, be equipped with a plurality of spray pipe 510 on the spray ring pipe 51, still be equipped with a plurality of shower head 511 on the spray ring pipe 51, be close to right-hand member top position on 5 circumference outer walls of spray cylinder and inlay the drying cabinet 7 with inside intercommunication, drying cabinet 7 right-hand member face is equipped with the exhaust pipe 70 with inside intercommunication, install dry cotton 71 in the drying cabinet 7.
In this embodiment, 1 lower surface of fixing base is close to the corner and all is equipped with universal wheel 10, and universal wheel 10 passes through bolt and 1 fixed connection of fixing base, and the nimble removal of the whole device of being convenient for is installed to universal wheel 10.
Further, cartridge filter 2 passes through bolt and 1 fixed connection of fixing base, and 2 tops of cartridge filter are equipped with the cover, and exhaust section of thick bamboo 3 passes through bolt and 1 fixed connection of fixing base, and spray 5 passes through bolt and 1 fixed connection of fixing base, and 5 tops of spray can still are equipped with the cover, and the installation of cover is convenient for protect the use to inside, increases holistic stability.
Specifically, the connecting pipes 30 are fixedly welded to the exhaust air cylinder 3, the exhaust air cylinder 3 is communicated with the filter cartridge 2 through one of the connecting pipes 30, the exhaust air cylinder 3 is communicated with the spray cylinder 5 through the other connecting pipe 30, and the spray cylinder 5 and the filter cartridge 2 are connected with each other through the connecting pipes 30.
Further, still be equipped with filtering baffle 31 in one of them connecting pipe 30, filtering baffle 31's width and connecting pipe 30's width looks adaptation, filtering baffle 31 passes through bolt and connecting pipe 30 fixed connection, motor 4 passes through bolt and 3 fixed connection in the exhaust stack, the width and the 3 internal diameter looks adaptations in the exhaust stack of wind wheel leaf 40, motor 4's output shaft and wind wheel leaf 40 welded fastening, be convenient for continuously carry out convulsions purification under motor 4 and the cooperation of wind wheel leaf 40 and use, prevent that the air from not flowing, influence and purify the use.
It should be noted that, the slag discharging pipe 50 is fixed with the spraying cylinder 5 by welding, the valve 500 is fixedly connected with the slag discharging pipe 50 by bolts, the water storage tank 8 is fixed with the spraying cylinder 5 by welding, the width of the filter screen 80 is matched with the width of the inner wall of the water storage tank 8, the filter screen 80 is fixedly connected with the water storage tank 8 by bolts, the water pump 6 is fixedly connected with the water storage tank 8 by bolts, the water spraying pipes 510 are distributed at equal intervals, the water spraying pipes 510 and the spraying ring pipe 51 are of an integrated structure, the spraying heads 511 are fixed with the spraying ring pipe 51 by welding, the spraying ring pipe 51 is fixed with the water pump 6 by hose welding, the valve 500 is matched, which is convenient for the user to open manually, and is used for removing and cleaning the internal residue, the filter screen 80 is installed, and prevents the internal precipitate particles from being absorbed by the water pump 6, which affects the water spraying, the plurality of spraying heads 511 are matched, and help the inside to fully contact with the air, spraying for use.
Besides, the drying box 7 is welded and fixed with the spraying cylinder 5, the top of the drying box 7 is further provided with a box cover, the width of the dry cotton 71 is matched with the width inside the drying box 7, the exhaust pipe 70 and the drying box 7 are of an integrally formed structure, the box cover is additionally arranged to protect the inside of the drying box 7, the interference influence of the external environment is reduced, and the dry cotton 71 absorbs moisture in the gas to be discharged.
When the purification device with multiple purification approaches is used, a user manually installs the filter cartridge 2, the exhaust cylinder 3 and the spray cylinder 5 on the fixing plate 1, the frame plate 22 is installed in the slot 21, the cylinder cover is fixed with the filter cartridge 2 through bolts, the exhaust cylinder 3 sequentially connects the filter cartridge 2 and the spray cylinder 5 through the two connecting pipes 30, then the user connects the water pump 6 with an external power supply, the water pump 6 is connected with the spray ring pipe 51, the valve 500 is closed for corresponding spray adsorption use, then the motor 4 is connected with the external power supply, the output shaft rotates to drive the air vane 40 to rotate, gas to be purified and filtered is sucked from the air inlet pipe 20, is filtered by the filter cotton 220 and sprayed by the spray head 511, the purification and filtration are carried out for multiple times, preferably, the gas is discharged by the dry cotton 71, when the water in the spray cylinder 5 needs to be replaced, the valve 500 is manually opened for internal cleaning and replacement use, the user pushes the whole fixing base 1 manually according to the requirements of different positions, corresponding filtering and purifying are carried out, and finally, the gas is discharged from the exhaust pipe 70.
The foregoing shows and describes the general principles, essential features, and advantages of the invention. It should be understood by those skilled in the art that the present invention is not limited by the above embodiments, and the description in the above embodiments and the description is only preferred examples of the present invention, and is not intended to limit the present invention, and that the present invention can have various changes and modifications without departing from the spirit and scope of the present invention, and these changes and modifications all fall into the scope of the claimed invention. The scope of the invention is defined by the appended claims and equivalents thereof.
Claims (7)
1. A purifier with multiple purification way, includes fixing base (1), its characterized in that: the air filter is characterized in that a filter cartridge (2) is arranged on the upper surface of the fixing seat (1) close to the left end, the interior of the filter cartridge (2) is hollow, an air inlet pipe (20) communicated with the interior is embedded in the position, close to the top, of the left end surface of the filter cartridge (2), slots (21) are symmetrically formed in the inner wall of the filter cartridge (2), frame plates (22) are arranged in the slots (21), filter cotton (220) is mounted in the frame plates (22), an exhaust duct (3) is mounted in the center of the upper surface of the fixing seat (1), the interior of the exhaust duct (3) is hollow cylindrical, a connecting pipe (30) is symmetrically arranged on the outer wall of the exhaust duct (3), a motor (4) is mounted in the middle of the front end surface of the exhaust duct (3), an output shaft of the motor (4) extends into the exhaust duct (3), and the output shaft is connected with a fan wheel blade (40), the upper surface of the fixing seat (1) is provided with a spray cylinder (5) close to the right end, the circumferential outer wall of the spray cylinder (5) is embedded with a deslagging pipe (50) communicated with the inside close to the bottom of the front end face, the deslagging pipe (50) is provided with a valve (500), the circumferential outer wall of the spray cylinder (5) is further provided with a water storage tank (8) communicated with the inside close to the bottom of the rear end, the joint of the water storage tank (8) and the spray cylinder (5) is further provided with a filter screen (80), a water pump (6) is arranged above the water storage tank (8), the inside of the spray cylinder (5) is provided with a spray ring pipe (51) close to the middle position, the spray ring pipe (51) is provided with a plurality of spray pipes (510), the spray ring pipe (51) is further provided with a plurality of spray heads (511), the circumferential outer wall of the spray cylinder (5) is embedded with a drying box (7) communicated with the inside close to the top of the right end, the drying cabinet is characterized in that an exhaust pipe (70) communicated with the inside is arranged on the right end face of the drying cabinet (7), and drying cotton (71) is installed in the drying cabinet (7).
2. The purification apparatus having multiple purification pathways according to claim 1, wherein: the lower surface of the fixing seat (1) is close to corners and is provided with universal wheels (10), and the universal wheels (10) are fixedly connected with the fixing seat (1) through bolts.
3. The purification apparatus having multiple purification pathways according to claim 1, wherein: cartridge filter (2) are through bolt and fixing base (1) fixed connection, cartridge filter (2) top is equipped with the cover, exhaust section of thick bamboo (3) are through bolt and fixing base (1) fixed connection, a section of thick bamboo that sprays (5) top still is equipped with the cover.
4. The purification apparatus having multiple purification pathways according to claim 1, wherein: the connecting pipes (30) are fixedly welded with the air exhaust barrel (3), the air exhaust barrel (3) is communicated with the filter cartridge (2) through one of the connecting pipes (30), and the air exhaust barrel (3) is communicated with the spray barrel (5) through the other one of the connecting pipes (30).
5. The purification apparatus having multiple purification pathways according to claim 1, wherein: one of the connecting pipes (30) is also provided with a filtering baffle (31), the width of the filtering baffle (31) is matched with that of the connecting pipe (30), the filtering baffle (31) is fixedly connected with the connecting pipe (30) through a bolt, the motor (4) is fixedly connected with the exhaust barrel (3) through a bolt, the width of the wind wheel blade (40) is matched with the inner diameter of the exhaust barrel (3), and the output shaft of the motor (4) is welded and fixed with the wind wheel blade (40).
6. The purification apparatus having multiple purification pathways according to claim 1, wherein: the slag discharging pipe (50) is fixedly welded with the spray cylinder (5), the valve (500) is fixedly connected with the slag discharging pipe (50) through bolts, the water storage tank (8) is fixedly welded with the spray cylinder (5), the width of the filter screen (80) is matched with the width of the inner wall of the water storage tank (8), the filter screen (80) is fixedly connected with the water storage tank (8) through bolts, the water pump (6) is fixedly connected with the water storage tank (8) through bolts, the water spray pipes (510) are distributed at equal intervals, the water spray pipes (510) and the spray ring pipes (51) are of an integrated structure, the spray heads (511) are fixedly welded with the spray ring pipes (51), the spray heads (511) are distributed at equal intervals, and the spray ring pipes (51) are fixedly welded with the water pump (6) through hoses.
7. The purification apparatus having multiple purification pathways according to claim 1, wherein: drying cabinet (7) and a spray cylinder (5) welded fastening, drying cabinet (7) top still is equipped with the case lid, the width of dry cotton (71) and the inside width looks adaptation of drying cabinet (7), exhaust pipe (70) and drying cabinet (7) are integrated into one piece structure.
