CN214391299U

CN214391299U - Efficient chain slat type commercial food clearing machine

Info

Publication number: CN214391299U
Application number: CN202021724463.XU
Authority: CN
Inventors: 王大银
Original assignee: Jiangsu Shian Tianxia Purification Technology Co ltd
Current assignee: Jiangsu Shian Tianxia Purification Technology Co ltd
Priority date: 2020-08-18
Filing date: 2020-08-18
Publication date: 2021-10-15
Anticipated expiration: 2030-08-18

Abstract

The utility model discloses an efficient chain plate type commercial food purifier, which comprises a frame, a transmission system, a spraying system, a control system and a free radical generator; the vertical plate in the frame divides the frame into a cleaning tank with an open top and a closed power box, and the bottom of the cleaning tank is provided with a water outlet; one end of the conveying system is arranged in the cleaning tank, the other end of the conveying system is inclined upwards and extends to the outer side of the top of the rack, and the conveying system forms a closed loop between the inside of the cleaning tank and the outer side of the top of the rack; the power device of the spraying system is arranged in the power box, and the water outlets of the spraying system are respectively positioned at the front end and the rear end of the transmission system and the upper end and the lower end of the cleaning tank; the free radical generator is arranged at the bottom of the cleaning tank, and a cover plate is arranged above the free radical generator. The utility model provides high cleaning efficiency, and can clear away harmful substance such as pesticide residue, microorganism of food, wash more thoroughly, be applicable to places such as department institution and colleges dining room, catering industry kitchen, clean dish trade.

Description

Efficient chain slat type commercial food clearing machine

Technical Field

The utility model relates to a food purification technology field especially relates to an efficient chain slat type commercial food purification machine.

Background

It is necessary to use pesticides and antibiotics scientifically and reasonably in the vegetable planting and livestock breeding process to prevent the vegetable large-area yield reduction caused by plant diseases and insect pests and the livestock large-area death caused by pathogenic diseases. However, if the usage amount of pesticides and antibiotics exceeds the standard or people use the pesticide and the antibiotics without cleaning, the health of people can be affected.

In daily life, food is usually cleaned manually, but in places such as dining halls of institutions and institutions of customs, kitchens of catering industry, vegetable cleaning industry and the like, the manual cleaning is high in labor intensity, time-consuming, labor-consuming and water-consuming, and poor in cleaning effect, and people cannot reach the places by hand. In addition, in the prior art, the food purifier designed by technicians mostly adopts a mechanical stirring type in structural principle, the mechanical stirring type has large damage to food to be cleaned, more nutrition loss, large power consumption and water consumption, and can not effectively realize thorough cleaning.

In the food purification industry, people urgently need a food purification device, which not only can improve the cleaning efficiency, but also can remove harmful substances such as pesticide residues, worm eggs, microorganisms and the like of food so as to achieve the purpose of thorough cleaning.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an efficient chain slat type commercial food clearing machine, very big improvement the cleaning efficiency, and can clear away harmful substance such as pesticide residue, worm's ovum, microorganism of food, wash more thoroughly, be applicable to places such as department institution and colleges dining room, catering industry kitchen, clean dish trade to solve the problem that proposes in the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme:

a high-efficiency chain plate type commercial food purifier comprises a rack, a transmission system, a spraying system, a control system and a free radical generator;

the bottom of the rack is provided with support legs, the rack is divided into a cleaning tank with an open top and a closed power box by a vertical plate in the rack, the side part of the power box is provided with a tank door, and the bottom of the cleaning tank is provided with a water outlet;

one end of the conveying system is arranged in the cleaning tank, the other end of the conveying system inclines upwards and extends to the outer side of the top of the rack, the conveying system forms a closed loop between the inside of the cleaning tank and the outer side of the top of the rack, and the driving device is arranged at the top end of the conveying system;

the power device of the spraying system is arranged in the power box, and the water outlets of the spraying system are respectively positioned at the front end and the rear end of the transmission system and the upper end and the lower end of the cleaning tank;

the free radical generator is arranged at the bottom of the cleaning tank, a cover plate is arranged above the free radical generator, and a plurality of small holes are formed in the cover plate;

the control system is arranged at the top end of the conveying system, and the driving device, the power device and the free radical generator are electrically connected with the control system.

The utility model has the further improvement that the bottom end of the cleaning tank is of an inverted V-shaped structure with a high middle part and two low sides, and a ball valve is fixedly connected at the water outlet; a notch is formed in the side portion of the cleaning tank, a filter box communicated with the cleaning tank is arranged on the outer side of the notch, the top end of the filter box is open, a limiting block is arranged on the inner wall of the filter box, and a filter screen is vertically inserted into the limiting block to block the notch; the bottom of the cleaning tank is provided with a liquid level adjusting opening, and a liquid level adjusting pipe is arranged at the liquid level adjusting opening; the bottom of liquid level control pipe rotates to be connected with the liquid level control mouth, and the other end extends to the upper shed of washing tank, and the top of liquid level control pipe upwards is the obtuse angle and buckles.

The utility model discloses a further improvement scheme is, conveying system includes the riser of both sides, riser one end rigid coupling in the bottom of washing tank and with leave the clearance between the washing tank lateral wall, and be located the riser in the washing tank and be equipped with the water hole, the other end upwards inclines and extends the outside at frame top and the rigid coupling has the guide board that is used for the unloading, the inboard symmetry of riser is equipped with the slide, the link joint both ends rigid coupling that has the waterlogging caused by excessive rainfall hole has the roller chain, the roller chain is sliding connection in the slide, and is equipped with a plurality of baffles on the link joint; two ends of the vertical plate are rotatably connected with a driving shaft and a driven shaft, the driving shaft and the driven shaft are fixedly connected with chain wheels, and chain rolling strips are meshed with the chain wheels; the driving device comprises a cover cap, a first motor and a speed reducer, wherein the first motor and the speed reducer are fixedly connected to the outer side of the top end of the vertical plate, the speed reducer is fixedly connected to a power output end of the first motor, a driving shaft is fixedly connected to a power output end of the speed reducer, and the cover cap is fixedly connected to the outer side of the first motor and the outer side of the speed reducer.

The utility model has the further improvement scheme that the spraying system comprises a water injection pipe, a water suction pipe, a flow dividing pipe, a water supply pipe assembly and a spraying assembly; one end of the water injection pipe is positioned outside the rack, and the other end of the water injection pipe extends into the power box and bends to extend into the cleaning tank; the power device comprises a second motor and a water pump, and the water pump is fixedly connected to an output shaft of the second motor; one end of the water suction pipe is connected with the filter box, and the other end of the water suction pipe is connected with a water suction port of the water pump; the shunt tubes are fixedly connected to the water outlet of the water pump, the water supply pipe assembly comprises a pipe A, a pipe B and a pipe C, one ends of the pipe A, the pipe B and the pipe C are connected with the shunt tubes, and the other ends of the pipe A, the pipe B and the pipe C are connected with the spray assembly.

The utility model has the further improvement that the spraying component comprises a rear end spraying head, a top end spraying mechanism, a bottom end spraying mechanism and a front end spraying mechanism; one end of the pipe A is connected with the flow dividing pipe, the other end of the pipe A extends to the rear end of the cleaning tank along the upper opening of the cleaning tank and is bent, and the rear end spray header is fixedly connected to the bent part at the tail end of the pipe A; the top end spraying mechanism comprises a plurality of top end spraying pipes and a clamping type nozzle, one end of each top end spraying pipe is connected to the pipe A, the other end of each top end spraying pipe is closed, the outer wall of each top end spraying pipe is fixedly connected with a first clamping sleeve, the bottom of each first clamping sleeve is fixedly connected to the rack through a first supporting rod, top end spraying holes are formed in the bottom of each top end spraying pipe, and the clamping type nozzle is detachably connected to the top end spraying holes; one end of the pipe B is connected with the flow dividing pipe, and the other end of the pipe B is distributed along the bottom end of the cleaning tank; the bottom end spraying mechanism comprises a plurality of bottom end spraying pipes, one end of each bottom end spraying pipe is connected to the pipe B, the other end of each bottom end spraying pipe is closed, the outer wall of each bottom end spraying pipe is fixedly connected with a second jacket, the bottom of each second jacket is fixedly connected to the rack through a second supporting rod, and bottom end spraying holes are formed in the top ends of the bottom end spraying pipes; one end of the pipe C is connected with the shunt pipe, and the other end of the pipe C extends upwards to the top end of the conveying system; the front end spraying mechanism comprises a front end spraying pipe and a side pipe, the side pipe is fixedly connected above the vertical plate through a third supporting rod, two ends of the front end spraying pipe are connected with the side pipe in a penetrating mode, and the pipe C is connected to one side pipe.

The utility model has the further improvement that the free radical generator is fixedly connected to the bottom of the cleaning tank below the side wall of the vertical plate and the cleaning tank, and comprises a negative plate and an anode plate, the negative plate and the anode plate are arranged in a staggered way and provided with holes, and are in an integral structure through screw rod fixedly connected, the outer wall of the screw rod between the adjacent negative plate and the anode plate is provided with an insulating spacer sleeve, and the number of the anode plates is one less than that of the negative plate; a cathode connecting plate is fixedly connected above the cathode plate, a cathode binding post is fixedly connected on the cathode connecting plate, and a groove is formed in the top end of the cathode connecting plate; an anode connecting plate is fixedly connected above the anode plate at the groove, and an anode binding post is fixedly connected on the anode connecting plate; the base materials of the cathode plate and the anode plate are titanium plates, and the surface of the anode plate is coated with a platinum and iridium composite material coating.

The utility model has the further improvement that the control system comprises an electric cabinet, the electric cabinet is arranged on the frame, a controller and a power adapter are arranged in the electric cabinet, buttons are arranged on the surface of the electric cabinet, and a display screen is arranged at the top end of the electric cabinet; the first motor and the second motor are connected with the controller through cables, and the controller is connected with the anode binding post and the cathode binding post through cables.

The utility model discloses a further improvement scheme is, the conveying system still includes straining device; the two ends of the driven shaft are rotatably connected to the bearing seat, the locking bolts at the upper end and the lower end of the driven shaft and the bearing seat are located in the transverse long-waist-shaped adjusting groove, a supporting plate is fixedly connected to the outer side of the vertical plate close to the end of the driving shaft, the adjusting bolts are inserted into the adjusting holes of the supporting plate, locking nuts are arranged on the outer sides of the adjusting bolts on the two sides of the supporting plate, and one end of each adjusting bolt abuts against the outer wall of the bearing seat.

The utility model discloses a further improvement is, be connected with the baffle in the frame of riser rear end, leave the clearance between baffle and the link joint, and the elastic leak protection board of bottom rigid coupling of baffle.

The utility model discloses a further improvement is, the bottom rigid coupling of link joint front end has the water-collecting box, and the bottom of water-collecting box is equipped with the drain.

The utility model has the advantages that:

first, the utility model discloses an efficient chain slat type commercial food clearing machine to self-cleaning replaces traditional manual cleaning, labour saving and time saving, and the cleaning performance is good, very big improvement work efficiency.

Second, the utility model discloses an efficient chain slat type commercial food clearing machine installs the free radical generator in the washing tank, not only can carry out the rinse thoroughly to the food in the washing tank, and the harmful substance such as the pesticide residue of cleaing away food simultaneously, worm's ovum, microorganism, water schizolysis produces "water hydroxyl" functional group (& OH hydroxyl free radical) under the electrode effect, its oxidizing power is superstrong, can take place chain reaction with most chemical organic matters and bacterium fast, the indiscriminate harmful substance oxidation becomes CO2, HO2 or inorganic salt, no secondary pollution. The water hydroxyl functional group can quickly kill bacteria, viruses and other microorganisms on the surface of the fresh food material, efficiently degrade organic chemical residues such as pesticides, hormones, antibiotics and the like, and restore the original taste of the food.

Third, the utility model discloses a commercial food purification machine of efficient chain slat type, spraying system's delivery port is located transmission system's front and back both ends and the upper and lower both ends of washing tank respectively, can carry out multi-angle, omnidirectional washing to food, washs more thoroughly.

Fourth, the utility model discloses an efficient chain slat type commercial food purification machine, washing tank bottom are middle high, the low style of calligraphy of falling V structure in both sides, and the link joint can be avoided like this in the both sides of washing tank to impurity or the food piece of aquatic, and is more convenient during the clearance.

Fifth, the utility model discloses a rose box is connected to efficient chain slat type commercial food purification machine, the one end of the pipe that absorbs water, and the other end is connected in the water sucking mouth of water pump, can prevent that impurity or food piece in aquatic from getting into the water pump, has played the effect of protection water pump, has prolonged the life of water pump.

Sixth, the utility model discloses an efficient chain slat type commercial food purification machine, the liquid level height in the washing tank is passed through the liquid level control pipe and is realized, utilizes the linker principle to make and can keep the water level that needs in the washing tank.

Seventh, the utility model discloses a commercial food purification machine of efficient chain slat type, the top of liquid level control pipe upwards is the obtuse angle and buckles, guarantees at abluent in-process, even the surface of water rocks and also can not spill over from the top of liquid level control pipe easily.

Eighth, the utility model discloses an efficient chain slat type commercial food purification machine, the one end of water injection pipe are located the frame outside, and the other end stretches into in the headstock and buckle and stretch into to the washing tank, and the water injection pipe is when twice washing clearance is watered, and the water injection pipe has played the effect of heat dissipation cooling from the headstock process.

Ninth, the utility model discloses an efficient chain slat type commercial food purification machine, headstock are located the next door of washing tank, and under wasing food, the water in the basin is mobile state, effectually dispels the heat to the headstock, prolongs the life of second motor and water pump.

Tenth, the utility model discloses a commercial food purification machine of efficient link joint formula, conveying system still include straining device, can make the link joint keep the state of tightening, guarantee the stability of link joint work.

Eleventh, the utility model discloses an efficient chain slat type commercial food purification machine, the elastic leak protection board of bottom rigid coupling of baffle can prevent that food from spilling and causing the jam from the rear end, also can scrape down the surperficial impurity of link joint or piece simultaneously, guarantees the clean and tidy of link joint.

Twelfth, the utility model discloses a commercial food purification machine of efficient link joint formula, the bottom rigid coupling of link joint front end have the water-collecting box, guarantee that food when washing at last, the sparge water can not flow subaerially.

Drawings

Fig. 1 is a schematic view of the overall structure of the present invention.

Fig. 2 is a schematic view of the installation structure of the conveying system of the present invention.

Fig. 3 is a top view of the conveying system of the present invention.

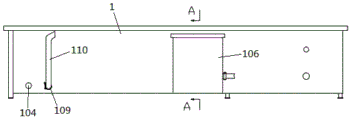

Fig. 4 is a schematic view of the frame structure of the present invention.

Fig. 5 is a cross-sectional view taken at a-a in fig. 4.

Fig. 6 is a front view of the spraying system of the present invention.

Fig. 7 is a top view of the spraying system of the present invention.

Fig. 8 is a partial enlarged view of fig. 2 at B.

Fig. 9 is a schematic structural diagram of the radical generator of the present invention.

Fig. 10 is a schematic view of the structure in the direction T in fig. 9.

In the figure: 1-frame, 101-support leg, 102-cleaning tank, 103-power box, 104-water outlet, 105-notch, 106-filter box, 107-limiting block, 108-filter screen, 109-liquid level regulating port, 110-liquid level regulating pipe, 2-conveying system, 201-vertical plate, 202-water through hole, 203-guide plate, 204-chain plate, 205-clapboard, 206-driven shaft, 207-cover cap, 208-bearing seat, 3-spraying system, 301-water injection pipe, 302-water suction pipe, 303-shunt pipe, 304-second motor, 305-water pump, 306-pipe A, 307-pipe B, 308-pipe C, 309-rear end spray header, 310-top end spray pipe, 311-clip type nozzle, 104-water outlet, 105-notch, 106-filter box, 107-limiting block, 108-filter screen, 109-liquid level regulating port, 110-liquid level regulating pipe, 2-conveying system, 201-vertical plate, 202-water through hole, 203-guide plate, 204-chain plate, 205-water pump, 306-pipe A, 307-pipe B, 308-pipe C, 309-rear end spray header, 310-top end spray header, 311-clip type nozzle, 104-clip type spray header, etc, 312-bottom spray pipe, 313-bottom spray hole, 314-first jacket, 315-second jacket, 316-front spray pipe, 317-lateral pipe, 4-control system, 401-electric cabinet, 402-button, 403-display screen, 5-free radical generator, 501-cover plate, 502-small hole, 503-cathode plate, 504-anode plate, 505-screw, 506-spacer, 507-groove, 508-cathode binding post, 509-anode binding post, 6-tensioning mechanism, 601-adjusting tank, 602-support plate, 603-adjusting bolt, 604-lock nut, 7-baffle, 8-leak-proof plate, 9-water collecting box, 901-water discharging opening.

Detailed Description

The invention will be further elucidated with reference to the drawings and the specific embodiments.

Example 1: as shown in fig. 1 to 10, a high-efficiency chain plate type commercial food purifier comprises a frame 1, a conveying system 2, a spraying system 3, a control system 4 and a free radical generator 5; the bottom of the frame 1 is provided with support legs 101, the frame 1 is internally divided into a cleaning tank 102 with an open top and a closed power box 103 by a vertical plate, the side of the power box 103 is provided with a tank door, and the bottom of the cleaning tank 102 is provided with a water outlet 104; one end of the conveying system 2 is arranged in the cleaning tank 102, the other end of the conveying system 2 inclines upwards and extends to the outer side of the top of the rack 1, the conveying system 2 forms a closed loop between the inside of the cleaning tank 102 and the outer side of the top of the rack 1, and the driving device is arranged at the top end of the conveying system 2; the power device of the spraying system 3 is arranged inside the power box 103, and the water outlets of the spraying system 3 are respectively positioned at the front end and the rear end of the transmission system and the upper end and the lower end of the cleaning tank 102; the free radical generator 5 is arranged at the bottom of the cleaning tank 102, a cover plate 501 is arranged above the free radical generator 5, and a plurality of small holes 502 are formed in the cover plate 501; the control system 4 is arranged at the top end of the conveying system 2, and the driving device, the power device and the free radical generator 5 are electrically connected with the control system 4.

The bottom end of the cleaning tank 102 is in an inverted V-shaped structure with a high middle part and low two sides, and a ball valve is fixedly connected at a water outlet 104; a notch 105 is formed in the side of the cleaning tank 102, a filter box 106 communicated with the cleaning tank 102 is arranged on the outer side of the notch 105, the top end of the filter box 106 is open, a limiting block 107 is arranged on the inner wall of the filter box 106, and a filter screen 108 is vertically inserted into the limiting block 107 to block the notch 105; a liquid level adjusting opening 109 is formed in the bottom of the cleaning tank 102, and a liquid level adjusting pipe 110 is arranged at the liquid level adjusting opening 109; the bottom end of the liquid level adjusting pipe 110 is rotatably connected with the liquid level adjusting port 109, the other end of the liquid level adjusting pipe extends towards the upper opening of the cleaning tank 102, and the top end of the liquid level adjusting pipe 110 is bent upwards in an obtuse angle; in this embodiment, the level adjustment tube 110 is connected to the level adjustment port 109 by a quick release clamp.

The conveying system 2 comprises vertical plates 201 on two sides, one end of each vertical plate 201 is welded or fixedly connected to the bottom end of the cleaning tank 102 through a bolt, a gap is reserved between each vertical plate 201 and the side wall of the cleaning tank 102, water through holes 202 are formed in the vertical plates 201 located in the cleaning tank 102, the other end of each vertical plate 201 inclines upwards and extends to the outer side of the top of the rack 1 and is fixedly connected with a guide plate 203 for blanking, slide ways are symmetrically arranged on the inner sides of the vertical plates 201, chain plates 204 with water draining holes are fixedly connected with roller chains at two ends, the roller chains are slidably connected in the slide ways, and a plurality of partition plates 205 are arranged on the chain plates 204; two ends of the vertical plate 201 are rotatably connected with a driving shaft and a driven shaft 206, the driving shaft and the driven shaft 206 are fixedly connected with chain wheels, and chain rolling strips are meshed with the chain wheels; the driving device comprises a cover 207, a first motor and a speed reducer, wherein the first motor and the speed reducer are fixedly connected to the outer side of the top end of the vertical plate 201, the speed reducer is fixedly connected to a power output end of the first motor, a driving shaft is fixedly connected to a power output end of the speed reducer, and the cover 207 is fixedly connected to the outer side of the first motor and the outer side of the speed reducer.

The spraying system 3 comprises a water injection pipe 301, a water suction pipe 302, a flow dividing pipe 303, a water delivery pipe assembly and a spraying assembly; one end of the water injection pipe 301 is positioned outside the rack 1, and the other end of the water injection pipe extends into the power box 103 and bends to extend into the cleaning tank 102; the power device comprises a second motor 304 and a water pump 305, wherein the water pump 305 is fixedly connected to an output shaft of the second motor 304; one end of the suction pipe 302 is connected with the filter tank 106, and the other end is connected with a suction port of the water pump 305; the shunt pipe 303 is fixedly connected with a water outlet of the water pump 305, the water delivery pipe assembly comprises a pipe A306, a pipe B307 and a pipe C308, one end of the pipe A306, one end of the pipe B307 and one end of the pipe C308 are connected with the shunt pipe 303, and the other end of the pipe A306, one end of the pipe B307 and one end of the pipe C308 are connected with the spray assembly.

The spray assembly comprises a rear spray head 309, a top spray mechanism, a bottom spray mechanism and a front spray mechanism; one end of the pipe A306 is connected with the shunt pipe 303, the other end of the pipe A extends to the rear end of the cleaning tank 102 along the upper opening of the cleaning tank 102 and is bent, and the rear end spray header 309 is fixedly connected to the bent part at the tail end of the pipe A306; the top end spraying mechanism comprises a plurality of top end spraying pipes 310 and a clamping type nozzle 311, one end of each top end spraying pipe 310 is connected to the pipe A306, the other end of each top end spraying pipe is closed, the outer wall of each top end spraying pipe 310 is fixedly connected with a first clamping sleeve 314, the bottom of each first clamping sleeve 314 is fixedly connected to the rack 1 through a first supporting rod, a top end spraying hole is formed in the bottom of each top end spraying pipe 310, and the clamping type nozzle 311 is detachably connected to the top end spraying hole; one end of the pipe B307 is connected with the shunt pipe 303, and the other end of the pipe B is distributed along the bottom end of the cleaning tank 102; the bottom end spraying mechanism comprises a plurality of bottom end spraying pipes 312, one end of each bottom end spraying pipe 312 is connected to the pipe B307, the other end of each bottom end spraying pipe 312 is closed, the outer wall of each bottom end spraying pipe 312 is fixedly connected with a second jacket 315, the bottom of each second jacket 315 is fixedly connected to the rack 1 through a second supporting rod, and the top end of each bottom end spraying pipe 312 is provided with a bottom end spraying hole 313; one end of the pipe C308 is connected with the shunt pipe 303, and the other end extends upwards to the top end of the delivery system 2; the front end spraying mechanism comprises a front end spraying pipe 316 and a side pipe 317, the side pipe 317 is fixedly connected above the vertical plate 201 through a third supporting rod, two ends of the front end spraying pipe 316 are connected to the side pipe 317 in a penetrating manner, and a pipe C308 is connected to one side pipe 317; in the present embodiment, there are three top showers 310, three bottom showers 312 and three front showers 316.

The free radical generator 5 is fixedly connected to the bottom of the cleaning tank 102 below the vertical plate 201 and the side wall of the cleaning tank 102, and comprises negative plates 503 and positive plates 504, the negative plates 503 and the positive plates 504 are arranged in a staggered mode at intervals and provided with holes, the negative plates 503 and the positive plates 504 are fixedly connected through screws 505 to form an integral structure, an insulating spacer 506 is arranged on the outer wall of each screw 505 between every two adjacent negative plates 503 and every two adjacent positive plates 504, and the number of the positive plates 504 is less than that of the negative plates 503; a cathode connecting plate is fixedly connected above the cathode plate 503, a cathode binding post 508 is fixedly connected on the cathode connecting plate, and a groove 507 is arranged at the top end of the cathode connecting plate; an anode connecting plate is fixedly connected above the anode plate 504 at the groove 507, and an anode terminal 509 is fixedly connected on the anode connecting plate; the base materials of the cathode plate 503 and the anode plate 504 are titanium plates, and the surface of the anode plate 504 is coated with a platinum and iridium composite material coating; in this embodiment, the cathode plates 503 are five, and the anode plates 504 are four.

The control system 4 comprises an electric cabinet 401, the electric cabinet 401 is arranged on the rack 1, a controller and a power adapter are arranged inside the electric cabinet 401, a button 402 is arranged on the surface of the electric cabinet 401, and a display screen 403 is arranged at the top end of the electric cabinet 401; the first and

second motors

304 and 304 are connected to a controller via cables, and the controller is connected to the anode terminal 509 and the cathode terminal 508 via cables.

The frame 1 at the rear end of the vertical plate 201 is connected with a baffle 7, a gap is reserved between the baffle 7 and the chain plate 204, and the bottom of the baffle 7 is fixedly connected with an elastic leakage-proof plate 8.

The bottom of the front end of the chain plate 204 is fixedly connected with a water collecting box 9, and the bottom of the water collecting box 9 is provided with a water outlet 901.

Example 2: the embodiment is a further improvement of embodiment 1, and the main improvement is that in the use of embodiment 1, the link plate 204 is easy to loosen, which may cause the upright plate 201 to wear, thereby causing the link plate 204 to have poor working stability; in the present embodiment, the above-mentioned defects can be avoided, specifically:

the conveyor system 2 further comprises a tensioning mechanism 6; two ends of the driven shaft 206 are rotatably connected to the bearing seat 208, locking bolts at the upper end and the lower end of the driven shaft 206 and the bearing seat 208 are located in the transverse long-waist-shaped adjusting groove 601, a supporting plate 602 is fixedly connected to the outer side of the vertical plate 201 close to the end of the driving shaft, an adjusting bolt 603 is inserted into an adjusting hole of the supporting plate 602, locking nuts 604 are arranged on the outer sides of the adjusting bolts 603 on two sides of the supporting plate 602, and one end of the adjusting bolt 603 abuts against the outer wall of the bearing seat 208; when the embodiment is used, the adjusting bolt 603 is screwed to keep the chain plate 204 in a tightened state, so that the working stability of the chain plate 204 is ensured.

Otherwise, this embodiment is identical to embodiment 1, and will not be described herein.

The utility model discloses a concrete theory of operation as follows:

when the liquid level adjusting device is used, food is poured into the cleaning tank 102, the water injection pipe 301 is connected with a water tap and injects water into the water tank, the quick-release clamp at the bottom end of the liquid level adjusting pipe 110 is loosened, and the liquid level adjusting pipe 110 is pulled according to the number and the types of the food, so that the purpose of adjusting the liquid level is achieved; activating the radical generator 5 and the second motor 304 by means of the button 402; the water is cracked under the action of the electrodes to generate 'water hydroxyl' functional groups (& OH hydroxyl free radicals), the oxidizing capability of the water is super strong, the water hydroxyl functional groups can quickly generate chain reaction with most chemical organic matters and bacteria, harmful substances are oxidized into CO2, HO2 or inorganic salt, the water hydroxyl functional groups can quickly kill bacteria, viruses and other microorganisms on the surfaces of fresh food materials, efficiently degrade organic chemical residues such as pesticides, hormones, antibiotics and the like, reduce the original taste of the food, and simultaneously, the water is sprayed out from the rear end, the top end and the top end of the cleaning tank 102, so that vortex is formed in the cleaning tank 102, and the food is cleaned in all directions; after cleaning, the first motor is started through the button 402, the food moves upwards along with the chain plate 204 and leaves the cleaning tank 102, when the food reaches the position below the front end spraying mechanism, the front end spraying pipe 316 sprays water to further clean the food, the cleaning water flows into the water collecting box 9, and can be introduced into the cleaning tank 102 from the water outlet 901 through a pipeline or directly discharged through the water outlet 901; after the washing, the food falls from the guide plate 203 to the material frame for standby.

The above embodiments are only for illustrating the technical concept and features of the present invention, and the purpose of the embodiments is to enable those skilled in the art to understand the contents of the present invention and to implement the present invention, which cannot limit the protection scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.

Claims

1. The utility model provides an efficient chain slat type commercial food clearing machine which characterized in that: comprises a frame (1), a transmission system (2), a spraying system (3), a control system (4) and a free radical generator (5);

the bottom of the rack (1) is provided with support legs (101), the rack (1) is divided into a cleaning tank (102) with an open top and a closed power box (103) by a vertical plate in the rack (1), a tank door is arranged at the side part of the power box (103), and a water outlet (104) is arranged at the bottom of the cleaning tank (102);

one end of the conveying system (2) is arranged in the cleaning tank (102), the other end of the conveying system is inclined upwards and extends to the outer side of the top of the rack (1), the conveying system (2) forms a closed loop between the interior of the cleaning tank (102) and the outer side of the top of the rack (1), and the driving device is arranged at the top end of the conveying system (2);

the power device of the spraying system (3) is arranged in the power box (103), and the water outlets of the spraying system (3) are respectively positioned at the front end and the rear end of the transmission system and the upper end and the lower end of the cleaning tank (102);

the free radical generator (5) is arranged at the bottom of the cleaning tank (102), a cover plate (501) is arranged above the free radical generator (5), and a plurality of small holes (502) are formed in the cover plate (501);

the control system (4) is arranged at the top end of the conveying system (2), and the driving device, the power device and the free radical generator (5) are electrically connected with the control system (4).

2. A high efficiency chain plate commercial food processor as defined in claim 1 wherein: the bottom end of the cleaning tank (102) is of an inverted V-shaped structure with a high middle part and low two sides, and a ball valve is fixedly connected at a water outlet (104); a notch (105) is formed in the side portion of the cleaning tank (102), a filtering box (106) communicated with the cleaning tank (102) is arranged on the outer side of the notch (105), the top end of the filtering box (106) is open, a limiting block (107) is arranged on the inner wall of the filtering box (106), and a filtering net (108) is vertically inserted into the limiting block (107) to block the notch (105); a liquid level adjusting opening (109) is formed in the bottom of the cleaning tank (102), and a liquid level adjusting pipe (110) is arranged at the liquid level adjusting opening (109); the bottom end of the liquid level adjusting pipe (110) is rotatably connected to the liquid level adjusting opening (109), the other end of the liquid level adjusting pipe extends towards the upper opening of the cleaning groove (102), and the top end of the liquid level adjusting pipe (110) is bent upwards in an obtuse angle.

3. A high efficiency chain plate commercial food processor as defined in claim 2 wherein: the conveying system (2) comprises vertical plates (201) on two sides, one end of each vertical plate (201) is fixedly connected to the bottom end of the cleaning tank (102) and a gap is reserved between the vertical plate (201) and the side wall of the cleaning tank (102), water through holes (202) are formed in the vertical plate (201) located in the cleaning tank (102), the other end of each vertical plate inclines upwards and extends to the outer side of the top of the rack (1) and is fixedly connected with a guide plate (203) used for blanking, slide ways are symmetrically arranged on the inner sides of the vertical plates (201), chain rolling chains are fixedly connected to two ends of each chain plate (204) with water draining holes and are slidably connected into the slide ways, and a plurality of partition plates (205) are arranged on the chain plates (204); two ends of the vertical plate (201) are rotatably connected with a driving shaft and a driven shaft (206), chain wheels are fixedly connected to the driving shaft and the driven shaft (206), and the chain wheels are engaged with the chain wheels through chain rolling; the driving device comprises a cover cap (207), a first motor and a speed reducer, wherein the first motor and the speed reducer are fixedly connected to the outer side of the top end of the vertical plate (201), the speed reducer is fixedly connected to a power output end of the first motor, a driving shaft is fixedly connected to a power output end of the speed reducer, and the cover cap (207) is fixedly connected to the outer side of the first motor and the outer side of the speed reducer.

4. A high efficiency chain plate commercial food processor as defined in claim 3 wherein: the spraying system (3) comprises a water injection pipe (301), a water suction pipe (302), a flow dividing pipe (303), a water supply pipe assembly and a spraying assembly; one end of the water injection pipe (301) is positioned outside the rack (1), and the other end of the water injection pipe extends into the power box (103) and bends to extend into the cleaning tank (102); the power device comprises a second motor (304) and a water pump (305), and the water pump (305) is fixedly connected to an output shaft of the second motor (304); one end of the water suction pipe (302) is connected with the filter tank (106), and the other end of the water suction pipe is connected with a water suction port of the water pump (305); the shunt tubes (303) are fixedly connected to a water outlet of the water pump (305), the water delivery pipe assembly comprises a pipe A (306), a pipe B (307) and a pipe C (308), one ends of the pipe A (306), the pipe B (307) and the pipe C (308) are connected with the shunt tubes (303), and the other ends of the pipe A (306), the pipe B (307) and the pipe C (308) are connected with the spray assembly.

5. A high efficiency chain plate commercial food processor as defined in claim 4 wherein: the spraying assembly comprises a rear end spraying head (309), a top end spraying mechanism, a bottom end spraying mechanism and a front end spraying mechanism; one end of the pipe A (306) is connected with the shunt pipe (303), the other end of the pipe A extends to the rear end of the cleaning tank (102) along the upper opening of the cleaning tank (102) and is bent, and a rear end spray header (309) is fixedly connected to the bent part at the tail end of the pipe A (306); the top end spraying mechanism comprises a plurality of top end spraying pipes (310) and a clamping type nozzle (311), one end of each top end spraying pipe (310) is connected to the pipe A (306), the other end of each top end spraying pipe is closed, the outer wall of each top end spraying pipe is fixedly connected with a first clamping sleeve (314), the bottom of each first clamping sleeve (314) is fixedly connected to the rack (1) through a first supporting rod, top end spraying holes are formed in the bottoms of the top end spraying pipes (310), and the clamping type nozzle (311) is detachably connected to the top end spraying holes; one end of the pipe B (307) is connected with the shunt pipe (303), and the other end of the pipe B is distributed along the bottom end of the cleaning tank (102); the bottom end spraying mechanism comprises a plurality of bottom end spraying pipes (312), one end of each bottom end spraying pipe (312) is connected to the pipe B (307), the other end of each bottom end spraying pipe is closed, the outer wall of each bottom end spraying pipe is fixedly connected with a second jacket (315), the bottom of each second jacket (315) is fixedly connected to the rack (1) through a second supporting rod, and bottom end spraying holes (313) are formed in the top ends of the bottom end spraying pipes (312); one end of the pipe C (308) is connected with the shunt pipe (303), and the other end of the pipe C extends upwards to the top end of the conveying system (2); the front end spraying mechanism comprises a front end spraying pipe (316) and a side pipe (317), the side pipe (317) is fixedly connected above the vertical plate (201) through a third supporting rod, two ends of the front end spraying pipe (316) are connected to the side pipe (317) in a penetrating mode, and the pipe C (308) is connected to one side pipe (317).

6. A high efficiency chain plate commercial food processor as defined in claim 5 wherein: the free radical generator (5) is fixedly connected to the bottom of the cleaning tank (102) below the space between the vertical plate (201) and the side wall of the cleaning tank (102), and comprises a negative plate (503) and an anode plate (504), the negative plate (503) and the anode plate (504) are arranged at intervals in a staggered mode and provided with holes, the negative plate and the anode plate are fixedly connected through a screw (505) to form an integral structure, an insulating spacer bush (506) is arranged on the outer wall of the screw (505) between the adjacent negative plate (503) and the anode plate (504), and the number of the anode plates (504) is one less than that of the negative plate (503); a cathode connecting plate is fixedly connected above the cathode plate (503), a cathode binding post (508) is fixedly connected on the cathode connecting plate, and a groove (507) is arranged at the top end of the cathode connecting plate; an anode connecting plate is fixedly connected above the anode plate (504) at the groove (507), and an anode binding post (509) is fixedly connected on the anode connecting plate; the base materials of the cathode plate (503) and the anode plate (504) are titanium plates.

7. A high efficiency chain plate commercial food processor as defined in claim 6 wherein: the control system (4) comprises an electric cabinet (401), the electric cabinet (401) is arranged on the rack (1), a controller and a power adapter are arranged inside the electric cabinet (401), a button (402) is arranged on the surface of the electric cabinet (401), and a display screen (403) is arranged at the top end of the electric cabinet (401); the first motor and the second motor (304) are connected with a controller through cables, and the controller is connected with an anode terminal (509) and a cathode terminal (508) through cables.

8. A high efficiency chain plate commercial food processor as defined in claim 3 wherein: the conveying system (2) further comprises a tensioning mechanism (6); the two ends of the driven shaft (206) are rotatably connected to the bearing seat (208), the locking bolts at the upper end and the lower end of the driven shaft (206) and the bearing seat (208) are located in the transverse long waist-shaped adjusting groove (601), a supporting plate (602) is fixedly connected to the outer side of the vertical plate (201) close to the end of the driving shaft, the adjusting bolts (603) are inserted into the adjusting holes of the supporting plate (602), the outer sides of the adjusting bolts (603) on the two sides of the supporting plate (602) are provided with locking nuts (604), and one end of each adjusting bolt (603) abuts against the outer wall of the bearing seat (208).

9. A high efficiency chain plate commercial food processor as defined in claim 3 wherein: the frame (1) at the rear end of the vertical plate (201) is connected with a baffle (7), a gap is reserved between the baffle (7) and the chain plate (204), and the bottom of the baffle (7) is fixedly connected with an elastic leakage-proof plate (8).

10. A high efficiency chain plate commercial food processor as defined in claim 3 wherein: the bottom of the front end of the chain plate (204) is fixedly connected with a water collecting box (9), and the bottom of the water collecting box (9) is provided with a water outlet (901).
