Abstract
本实用新型公开了一种道路用环保清洗车，属于道路清扫技术领域，包括清洗车底板、集灰罩和清洗车箱体，清洗车底板下方两侧均固定连接有集灰罩，清洗车底板上方配套设置有清洗车箱体，清洗车箱体内部分别设置有清扫机构、过滤机构、喷洒机构，清扫机构包括：安装罩、驱动电机、转动杆、清扫刷和吸尘器，其中，清洗车箱体内部固定安装有安装罩，安装罩内部固定安装有驱动电机。本实用新型设置过滤机构可以将道路清扫过程中产生的灰尘吸进清灰箱中通过细小分子过滤网双重过滤后再通过活性炭吸附板吸附后再排入空气中，能够方便清除路面的灰尘，并对灰尘进行集中处理，避免对路面清扫中产生的灰尘污染空气质量，有利于推广。
The utility model discloses an environmentally friendly cleaning vehicle for roads, belonging to the technical field of road cleaning, comprising a cleaning vehicle floor, an ash collecting cover and a cleaning vehicle box body. The upper part is equipped with a cleaning car box. The cleaning car box is provided with a cleaning mechanism, a filtering mechanism and a spraying mechanism. The cleaning mechanism includes: an installation cover, a driving motor, a rotating rod, a cleaning brush and a vacuum cleaner. Among them, the cleaning car box is An installation cover is fixedly installed inside, and a drive motor is fixedly installed inside the installation cover. The utility model is provided with a filter mechanism, which can suck the dust generated in the road cleaning process into the ash cleaning box, pass through the fine molecular filter screen for double filtration, and then be adsorbed by the activated carbon adsorption plate and then discharged into the air, which can easily remove the dust on the road surface. Centralized treatment of dust to avoid pollution of air quality by dust generated in road sweeping is beneficial to promotion.
Description
Technical Field
The utility model belongs to the technical field of the road cleans, specifically is a car is washd in environmental protection for road.
Background
Modern urban roads are the main components of urban general planning, which relate to the organic activities of the whole city, and in order to adapt to the smooth operation of the pedestrian flow and the traffic flow of the city, the urban roads are provided with: appropriate road width to accommodate heavy traffic; firm, durable, smooth and anti-skid road surface to facilitate the safe, comfortable and fast running of the vehicle; less dust and less noise, which is beneficial to environmental sanitation; convenient drainage facilities are used for draining rain and snow water in time; the full lighting facility is beneficial to the activities of residents at night and the running of vehicles; sufficiently wide sidewalks, green belts, ground poles and underground pipelines are required to be arranged on two sides of the road.
The cleaning area of the road surface is small in the using process of the existing road cleaning vehicle, dust is easily generated after cleaning, and certain pollution is caused to the environment, so that the road environment-friendly cleaning vehicle is required to be provided.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems that the cleaning area of the road surface is small in the using process of the existing road cleaning vehicle, dust is easily generated after cleaning, and certain pollution is caused to the environment, the road environment-friendly cleaning vehicle is provided.
The utility model adopts the technical scheme as follows: the utility model provides a road is with environmental protection washing car, includes cleaning vehicle bottom plate, collection ash cover and washing car box, the equal fixedly connected with collection ash cover in washing car bottom plate below both sides, the supporting cleaning vehicle box that is provided with in washing car bottom plate top, inside cleaning mechanism, filtering mechanism, the spraying mechanism of being provided with respectively of cleaning vehicle box.
Wherein, clean the mechanism and include: installation cover, driving motor, dwang, brush cleaner and dust catcher, wherein, the inside fixed mounting of cleaning vehicle box has the installation cover, the inside fixed mounting of installation cover has driving motor, the driving motor below rotates and is connected with the dwang below fixedly connected with brush cleaner, installation cover top fixed mounting has the dust catcher, and the supporting breathing pipe and the gas-supply pipe of being provided with in dust catcher both sides, and its breathing pipe extends to the inside top of collection ash cover, and the brush cleaner is horizontal setting, and the brush cleaner embolias to set up in the inside of collection ash cover, length and the internal diameter adaptation of collection ash cover, and the shape of collection ash cover is the infundibulate shape.
Wherein, the filtering mechanism includes: deashing case, tiny molecular filter screen, active carbon adsorption board and gas vent, wherein, the inside deashing case that is close to installation cover rear fixedly connected with of washing car box, the tiny molecular filter screen of the inside fixedly connected with of deashing incasement, the inside active carbon adsorption board that is close to tiny molecular filter screen below of deashing incasement, deashing case side embedding is provided with the gas vent, and the supporting gas-supply pipe that sets up in dust catcher side extends to the inside top of deashing incasement, and the tiny molecular filter screen that deashing incasement portion set up is provided with two sets ofly, and the inside exhaust fan that is provided with of gas vent.
Wherein, the spraying mechanism includes: storage water tank, spout, electric putter, main tributary fagging and accessory backing board, wherein, the inside deashing case rear fixedly connected with storage water tank that is close to of cleaning cart box, the equal embedding in cleaning cart bottom plate below both sides is provided with the spout, the inside equal fixed mounting of spout has electric putter, the equal fixedly connected with main tributary fagging of electric putter one end, main tributary fagging both sides all are provided with the accessory backing board through the pivot activity, and the inside fixed mounting of storage water tank has the suction pump, and its suction pump side is supporting to be provided with the raceway.
The main support plate is fixedly connected with the rotating shaft outside the auxiliary support plate, the rotating shaft is movably connected with the main support plate, the rotating shaft outside the main support plate is fixedly connected with a torsion spring, the bottom of the auxiliary support plate is fixedly connected with a spray head, and the spray head is connected with the water storage tank through a water delivery pipe.
The driving motor, the dust collector, the exhaust fan, the electric push rod and the water suction pump are all electrically connected with an external power supply through wires.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the utility model discloses in, through setting up filter mechanism can inhale the dust that the road cleaned the in-process and produced into in the deashing case through tiny molecule filter screen dual filtration back rethread active carbon adsorption board adsorption back reentrant air, can conveniently clear away the dust on road surface to carry out centralized processing to the dust, avoid cleaning the dust polluted air quality that produces in the road surface.
2. The utility model discloses in, through setting up spout, electric putter in the bottom plate below, main tributary fagging, accessory support board to the shower nozzle that is connected with the storage water tank in accessory support board top fixed connection, cleaning the brush clearance after, release the main tributary fagging through electric putter, make the embedding connect the torsional spring of setting up through the pivot outside with it pop out in the accessory support board of its both sides, then the shower nozzle can rotate to the road surface and spray water, can reduce the pollution of cleaning the back dust, protect the environment.
Drawings

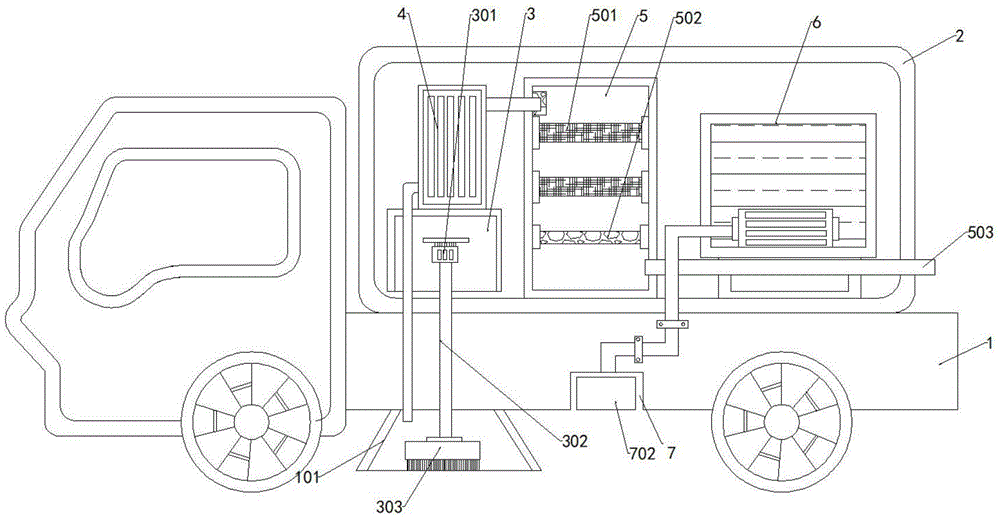

FIG. 1 is a schematic diagram of the overall side structure of the present invention;
FIG. 2 is a schematic diagram of the bottom plate of the middle cleaning vehicle of the present invention;
fig. 3 is a schematic diagram of the front structure of the tank body of the middle cleaning vehicle of the present invention.
The labels in the figure are: 1. cleaning a vehicle bottom plate; 101. a dust collecting cover; 2. cleaning the car box body; 3. mounting a cover; 301. a drive motor; 302. rotating the rod; 303. cleaning with a brush; 4. a vacuum cleaner; 5. a dust removal box; 501. a fine molecular filter screen; 502. an activated carbon adsorption plate; 503. an exhaust port; 6. a water storage tank; 7. a chute; 701. an electric push rod; 702. a main supporting plate; 703. and a secondary support plate.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses in:
referring to fig. 1-3, an environmental protection cleaning vehicle for road comprises a cleaning vehicle bottom plate 1, an ash collecting cover 101 and a cleaning vehicle box body 2, wherein the ash collecting cover 101 is fixedly connected to two sides below the cleaning vehicle bottom plate 1, the cleaning vehicle box body 2 is arranged above the cleaning vehicle bottom plate 1 in a matching manner, and a cleaning mechanism, a filtering mechanism and a spraying mechanism are respectively arranged inside the cleaning vehicle box body 2.
Further, the cleaning mechanism includes: a mounting cover 3, a driving motor 301, a rotating rod 302, a cleaning brush 303 and a dust collector 4, wherein, the inside of the cleaning vehicle box body 2 is fixedly provided with an installation cover 3, the inside of the installation cover 3 is fixedly provided with a driving motor 301, the lower part of the driving motor 301 is rotatably connected with a rotating rod 302, the lower part of the rotating rod 302 is fixedly connected with a cleaning brush 303, the upper part of the installation cover 3 is fixedly provided with a dust collector 4, and the two sides of the dust collector 4 are provided with an air suction pipe and an air delivery pipe in a matching way, the air suction pipe extends to the upper part of the inner part of the dust collecting cover 101, and the cleaning brush 303 is transversely arranged, the cleaning brush 303 is sleeved in the dust collecting cover 101, the length of the cleaning brush is matched with the inner diameter of the dust collecting cover 101, the dust collecting cover 101 is funnel-shaped, when the driving motor 301 drives the rotating rod 302 to rotate, the cleaning brush 303 starts cleaning work, the dust collection cover 101 can prevent dust from flowing into the air when the cleaning brush 303 cleans.
Further, the filter mechanism includes: the dust cleaning device comprises a dust cleaning box 5, a fine molecular filter screen 501, an active carbon adsorption plate 502 and an exhaust port 503, wherein the dust cleaning box 5 is fixedly connected inside a cleaning vehicle box body 2 close to the rear side of a mounting cover 3, the fine molecular filter screen 501 is fixedly connected inside the dust cleaning box 5, the active carbon adsorption plate 502 is fixedly connected inside the dust cleaning box 5 close to the lower side of the fine molecular filter screen 501, the exhaust port 503 is embedded into the side surface of the dust cleaning box 5, a gas pipe matched with the side surface of a dust collector 4 extends to the upper side inside the dust cleaning box 5, two groups of fine molecular filter screens 501 are arranged inside the dust cleaning box 5, an exhaust fan is arranged inside the exhaust port 503, dust generated in the road cleaning process can be sucked into the dust cleaning box 5, is subjected to double filtration through the fine molecular filter screen 501 and then is adsorbed by the active carbon adsorption plate 502 and then is exhausted into the air, the dust on the road surface can be conveniently cleaned, and the dust is intensively treated, the dust generated in the road surface cleaning process is prevented from polluting the air quality.
Further, the spraying mechanism includes: storage water tank 6, spout 7, electric putter 701, main tributary fagging 702 and accessory support board 703, wherein, wash 2 inside fixedly connected with storage water tank 6 near 5 rear of deashing case of car, it is provided with spout 7 all to wash 1 below both sides of car bottom plate, the inside equal fixed mounting of spout 7 has electric putter 701, the equal fixedly connected with main tributary fagging 702 of electric putter 701 one end, main tributary fagging 702 both sides all are provided with accessory support board 703 through the pivot activity, and 6 inside fixed mounting of storage water tank have the suction pump, the supporting raceway that is provided with in its suction pump side.
Furthermore, the torsion spring is fixedly connected to the outer portion of the rotating shaft, where the main support plate 702 is connected with the auxiliary support plate 703, the spray head is fixedly connected to the bottom of the auxiliary support plate movably connected with the rotating shaft and is connected with the water storage tank 6 through a water pipe, after the cleaning brush 303 is cleaned, the main support plate 702 is pushed out through the electric push rod 701, the auxiliary support plate 703 embedded and connected to the two sides of the main support plate is popped out through the torsion spring arranged outside the rotating shaft, then the spray head can rotate to spray water to the road surface, so that the pollution of dust after cleaning can be reduced, and the environment can be protected.
Furthermore, the driving motor 301, the dust collector 4, the exhaust fan, the electric push rod 701 and the water pump are electrically connected with an external power supply through wires.
The working principle is as follows: when the environment-friendly road cleaning vehicle provided by the utility model is used, firstly, the driving motor 301 is started, the rotating rod 302 is driven to rotate under the action of the driving motor 301, so that the cleaning brush 303 arranged below the rotating rod 302 cleans the dust on the road surface, in the cleaning process, the dust collected in the dust collection cover 101 is sucked into the dust cleaning box 5 by the suction pipe arranged on the side surface of the dust collector 4, after the dust enters the dust cleaning box 5, the dust is subjected to double filtration by the two groups of fine molecular filter screens 501 arranged in the dust cleaning box 5, the filtered dust is adsorbed by the activated carbon adsorption plate 502 and then is discharged into the air through the exhaust port 503, meanwhile, after the road surface is cleaned by the cleaning brush 303, the water suction pump arranged in the water storage tank 6 pumps water into the spray head through the air delivery pipe, then the main support plate 702 is pushed out through the electric push rod 701, so that the auxiliary support plates 703 embedded and connected on the two sides of the auxiliary support plates 703 are popped up through the torsion spring arranged outside the rotating shaft, then the spray head can rotate to spray water to the road surface, so that the pollution of dust after cleaning is reduced, and the operation of the device is finished.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
Claims (6)
1. The utility model provides a road is with environmental protection cleaning cart, includes cleaning cart bottom plate (1), collection ash cover (101) and cleaning cart box (2), the equal fixedly connected with collection ash cover (101) in cleaning cart bottom plate (1) below both sides, the supporting cleaning cart box (2), its characterized in that are provided with in cleaning cart bottom plate (1) top: the cleaning vehicle is characterized in that a cleaning mechanism, a filtering mechanism and a spraying mechanism are respectively arranged in the cleaning vehicle box body (2).
2. An environmentally friendly road cleaning vehicle as claimed in claim 1, wherein: the sweeping mechanism comprises: a mounting cover (3), a driving motor (301), a rotating rod (302), a cleaning brush (303) and a dust collector (4), wherein, the cleaning vehicle box body (2) is internally and fixedly provided with an installation cover (3), a driving motor (301) is fixedly arranged in the mounting cover (3), a rotating rod (302) is rotatably connected below the driving motor (301), a cleaning brush (303) is fixedly connected below the rotating rod (302), a dust collector (4) is fixedly arranged above the mounting cover (3), and an air suction pipe and an air delivery pipe are arranged on the two sides of the dust collector (4) in a matching way, the air suction pipe extends to the upper part of the inner part of the dust collecting cover (101), and the cleaning brush (303) is transversely arranged, the cleaning brush (303) is sleeved in the dust collection cover (101), the length of the cleaning brush is matched with the inner diameter of the dust collection cover (101), and the dust collection cover (101) is funnel-shaped.
3. An environmentally friendly road cleaning vehicle as claimed in claim 1, wherein: the filter mechanism includes: deashing case (5), tiny molecule filter screen (501), activated carbon adsorption board (502) and gas vent (503), wherein, wash inside installation cover (3) rear fixedly connected with deashing case (5) of being close to of car box (2), the inside tiny molecule filter screen (501) of deashing case (5), inside the tiny molecule filter screen (501) below fixedly connected with activated carbon adsorption board (502) of being close to of deashing case (5), the embedding of deashing case (5) side is provided with gas vent (503), and the supporting gas-supply pipe that sets up in dust catcher (4) side extends to the inside top of deashing case (5), and tiny molecule filter screen (501) that deashing case (5) inside set up are provided with two sets ofly, and gas vent (503) inside exhaust fan that is provided with.
4. An environmentally friendly road cleaning vehicle as claimed in claim 1, wherein: the spraying mechanism includes: storage water tank (6), spout (7), electric putter (701), main tributary fagging (702) and accessory shoe board (703), wherein, the inside deashing case (5) rear fixedly connected with storage water tank (6) of being close to of cleaning vehicle box (2), cleaning vehicle bottom plate (1) below both sides all imbeds and are provided with spout (7), the inside equal fixed mounting of spout (7) has electric putter (701), the equal fixedly connected with main tributary fagging (702) of electric putter (701) one end, main tributary fagging (702) both sides all are provided with accessory shoe board (703) through the pivot activity, and storage water tank (6) inside fixed mounting has the suction pump, and its suction pump side is supporting to be provided with the raceway.
5. An environmentally friendly road cleaning vehicle as claimed in claim 4, wherein: the outer part of the rotating shaft, which is connected with the main supporting plate (702) and the auxiliary supporting plate (703), is fixedly connected with a torsion spring, the bottom of the auxiliary supporting plate (703) which is movably connected with the rotating shaft is fixedly connected with a spray head, and the spray head is connected with a water storage tank (6) through a water delivery pipe.
6. An environmentally friendly road cleaning vehicle as claimed in claim 2, wherein: the driving motor (301), the dust collector (4), the exhaust fan, the electric push rod (701) and the water suction pump are all electrically connected with an external power supply through leads.
