Abstract

A carton is used for solving the technical problem of material waste caused by maintaining the arc shape of the carton in the traditional carton processing technology. The storage box is fixed in the inner box, and the inner box is fixed in the outer shell; the utility model discloses a box in the receiver, including the box, the box lateral wall is used for the shape of box in the receiver, the cavity is left to the side of receiver and with leave the cavity between the interior box, be provided with in the cavity and be used for supporting the bearing structure of interior box lateral wall, bearing structure sets up the centre of this side of receiver, bearing structure is rectangular shape cardboard, is different from the material filling's that traditional carton adopted in order to maintain the shape of box in the mode, the utility model discloses a set up bearing structure between interior box and receiver, can save material when guaranteeing to maintain the shape of box in, reduce the manufacturing cost of carton, the utility model discloses simple structure mainly used the processing of carton.

Description

Paper box
Technical Field
The utility model relates to a carton processing technology field, concretely relates to carton.
Background
The carton is often used in daily life for accomodate the storage to article. Along with the further maturity of carton processing technology, the pleasing to the eye function also need be compromise to the carton when satisfying the function of accomodating, the event can produce the carton of shape difference in actual production, the appearance of a current carton is the shape of books, and set up the arc at the side, curved angle makes holistic carton more pleasing to the eye, nevertheless prop the arc shape in order to maintain curved shape often through filling material's mode in actual production, this kind of production mode material of wasting relatively, the processing cost of carton has been improved, the requirement that does not accord with the environmental protection at today of advocating the environmental protection simultaneously.
SUMMERY OF THE UTILITY MODEL
The utility model discloses the purpose is not enough to prior art, releases a carton, has solved the arc shape for maintaining the carton and has caused the extravagant technical problem of material.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a paper box comprises a storage box, an inner box and an outer shell, wherein the storage box is fixed in the inner box, and the inner box is fixed in the outer shell; the storage box comprises an inner box and a storage box body, wherein a cavity is reserved between one side of the storage box body and the inner box body, a supporting structure used for supporting the side wall of the inner box body to keep the shape of the side wall of the inner box body is arranged in the cavity, the supporting structure is arranged in the middle of the side of the storage box body, and the supporting structure is a long-strip-shaped paperboard.
Further, interior box with the receiver is one end has open-ended cube type structure, the shell includes packing shell and apron, the packing shell cladding the lateral surface of interior box, the apron is located packing shell one side and can be relative this the packing shell upset, and then will the opening lid of interior box and receiver closes.
Further, interior box includes the bottom plate, locates bottom plate both sides and relative first long curb plate and the long curb plate of second, locates the other both sides of bottom plate and relative third short curb plate and fourth short curb plate, first long curb plate with the long curb plate of second is the arc, bearing structure sets up first long curb plate with between the receiver.
Further, bottom plate, third short side board and fourth short side board all with the receiver is hugged closely and is connected.
Furthermore, a plurality of crease lines are uniformly distributed on the first long side plate and the second long side plate.
Furthermore, a plurality of clamping grooves are formed in the upper end of the second long side plate, magnets are fixed in the clamping grooves, magnets are arranged on the cover plate, and the cover plate is overturned to cover the box, and the magnets in the clamping grooves are adsorbed behind the storage box.
Furthermore, a packaging edge is further arranged on the second long side plate, the packaging edge and the second long side plate are integrally formed, a mounting groove is formed in the packaging edge, the mounting groove corresponds to the clamping groove to form a mounting cavity, and the magnet is placed in the mounting cavity.
Further, the inner box and the storage box are corrugated paper.
The utility model has the advantages that:
the utility model discloses set up bearing structure in the middle of receiver and interior box, bearing structure is rectangular shape board, only need fix rectangular shape in the receiver box can maintain the ARC shape of interior box well, is different from the mode of the filling processing that the tradition passes through and makes the arc propped up, the utility model discloses a this kind of bearing structure is simpler, save material more.
Drawings
Fig. 1 is a top view of an embodiment of the present invention;

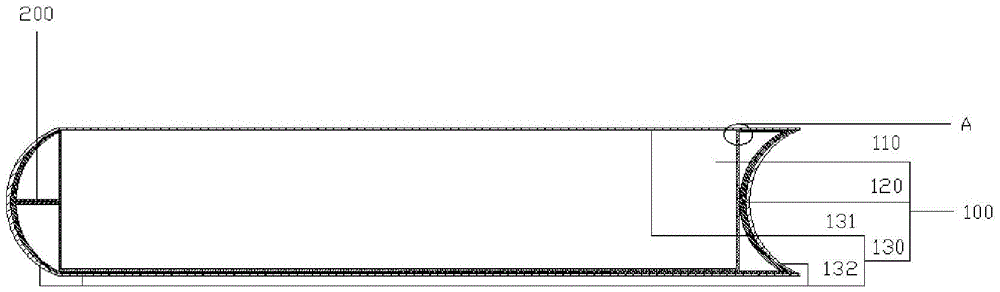

FIG. 2 is a schematic structural view of section 1-1 of FIG. 1;
FIG. 3 is a schematic view of the inner case when it is unfolded;
FIG. 4 is an enlarged view of portion A of FIG. 2;
FIG. 5 is a perspective view of the embodiment of the present invention with the package shell torn open and the cover panel opened;
fig. 6 is an enlarged view of a portion B in fig. 5.
Description of reference numerals: 100. a carton; 110. a storage box; 111. a clamping groove; 120. an inner case; 121. a first long side plate; 122. a base plate; 123. a second long side plate; 124. a third short side plate; 125. a fourth short side plate; 126. packaging edges; 127. mounting grooves; 128. pressing a crease line; 130. a housing; 131. a cover plate; 132. packaging the shell; 200. a support structure; 300. And a magnet.
Detailed Description
The technical solution of the present invention will be further explained with reference to the accompanying drawings and embodiments
As shown in fig. 1 and 2, in a paper box, the paper box 100 includes a storage box 110, an inner box 120 and an outer shell 130, the storage box 110 is fixed in the inner box 120 by glue, the inner box 120 is fixed in the outer shell 130 by glue, and the storage box 110 and the inner box 120 are both box bodies with an opening at one end.
The outer casing 130 includes a packaging shell 132 and a cover plate 131, the packaging shell 132 and the cover plate 131 are made of paper, the packaging shell 132 and the cover plate 131 are covered by a whole film to form a whole, the packaging shell 132 is fixed on the side of the inner box 120, and the cover plate 131 covers the opening of the inner box 120.
The storage box 110 is a cube, and the storage box 110 is made of corrugated paper.
As shown in fig. 2 and 3, the inner box 120 includes a first long side plate 121, a bottom plate 122, a second long side plate 123, a third short side plate 124 and a fourth short side plate 125, the bottom plate 122, the third short side plate 124 and the fourth short side plate 125 are all attached to the side of the storage box 110 and fixed in a glue fixing mode, a cavity is reserved between the first long side plate 121 and the storage box 110, a support structure 200 is arranged in the cavity, the support structure 200 is a strip-shaped paperboard, and the paperboard is glued to the middle of the side of the storage box 110.
As shown in fig. 4-6, a packaging edge 126 is integrally formed on the first long side plate 121, a plurality of mounting grooves 127 are formed on the packaging edge 126, a plurality of clamping grooves 111 are formed at the upper end of the side surface of the storage box 110 corresponding to the first long side plate 121, the length of each clamping groove 111 is equal to that of each mounting groove 127, the magnets 300 are fixed in the clamping grooves 111 through glue, the magnets 300 penetrate through the mounting grooves 127, and the upper end surfaces of the magnets 300 are just flush with the surface where the packaging edge 126 is located.
The first long side plate 121 and the second long side plate 123 are provided with the indentation line 128 pressed out by the indentation machine, and the first long side plate 121 and the second long side plate 123 are both arc-shaped plates, so that the stress of the arc-shaped plates is more uniform by the indentation, and the shape of the arc is better maintained.
As shown in fig. 5, the magnet 300 is also provided on the cover 131 at a position corresponding to the magnet 300 on the storage case 110, so as to fix the cover 131 to the inner case 120.
The working principle is as follows: when the carton is put into use, the cover plate 131 is lifted; different from traditional carton shape in order to maintain, adopt the mode of filling the material between box 120 and receiver 110, the utility model discloses set up bearing structure 200 between first long curb plate 121 and interior box 120, can save material when guaranteeing to maintain the shape of box 120, reduce the manufacturing cost of carton.
Finally, although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that the present invention can be modified or replaced by other means without departing from the spirit and scope of the present invention, which should be construed as limited only by the appended claims.

Claims (8)

1. A paper box is characterized by comprising a storage box, an inner box and an outer shell, wherein the storage box is fixed in the inner box, and the inner box is fixed in the outer shell; the storage box comprises an inner box and a storage box body, wherein a cavity is reserved between one side of the storage box body and the inner box body, a supporting structure used for supporting the side wall of the inner box body to keep the shape of the side wall of the inner box body is arranged in the cavity, the supporting structure is arranged in the middle of the side of the storage box body, and the supporting structure is a long-strip-shaped paperboard.
2. A carton as claimed in claim 1, wherein the inner container and the receiving container are each of a cubic structure having an opening at one end thereof, the outer shell includes a wrapper covering an outer side of the inner container and a cover plate provided at one side of the wrapper and being capable of being turned over with respect to the wrapper so as to close the openings of the inner container and the receiving container.
3. A carton according to claim 2 wherein the inner box comprises a base panel, first and second opposing long side panels disposed on opposite sides of the base panel, and third and fourth opposing short side panels disposed on opposite sides of the base panel, the first and second long side panels being both arcuate panels, the support structure being disposed between the first long side panel and the receiving box.
4. A carton as claimed in claim 3, wherein the base panel, third short side panel and fourth short side panel are all snugly connected to the storage box.
5. A carton as claimed in claim 4, wherein a plurality of score lines are provided on each of said first and second long side panels.
6. A carton as claimed in claim 3, wherein a plurality of retaining grooves are formed in the upper ends of the second long side plates, magnets are fixed in the retaining grooves, magnets are arranged on the cover plate, and the cover plate is turned over to absorb the magnets in the retaining grooves after the storage box is placed in the box.
7. A carton as claimed in claim 6, wherein the second long side panel is further provided with a packaging edge, the packaging edge is integrally formed with the second long side panel, the packaging edge is provided with a mounting groove, the mounting groove and the clamping groove correspond to form a mounting cavity, and the magnet is placed in the mounting cavity.
8. A carton as claimed in claim 7, wherein the inner and receiving boxes are corrugated paper.
