The utility model relates to a cleaning device technical field just discloses a cleaning device for road construction convenient to use, the power distribution box comprises a box body, the equal fixedly connected with universal brake wheel in four corners of box lower surface, the left side fixedly connected with biax motor of bottom half inner wall, biax motor output end fixedly connected with dwang, the left front side and the left rear side of bottom half inner wall all rotate and are connected with first axis of rotation. This cleaning device is used in road construction convenient to use uses through brush, cleaning roller, suction hood, communicating pipe, collection box and recovery box cooperation for the rubbish debris on the brush to the road cleans, and rubbish debris finally fall into inside the recovery box, thereby has further improved the device to the clean effect of road, and make the device can accomplish cleaning and the collection work of road rubbish in step, has further made things convenient for the recovery of user to rubbish debris.
Description
Technical Field
The utility model relates to a cleaning device technical field specifically is a cleaning device is used in road construction convenient to use.
Background
The cleaning device is a device for removing sundries, and comprises a road cleaning device, a household cleaning device, an implement cleaning device and the like, wherein the cleaning device for road construction is a device for cleaning the road surface of a construction road, but the general cleaning device for road construction is large in size, inconvenient for constructors to use and incapable of effectively cleaning corners of the road surface, so that the sundries on the road surface cannot be effectively cleaned, and the road construction cannot be carried out due to the fact that the sundries cannot be effectively cleaned, and the progress of engineering is influenced.
For example, chinese patent application nos.: 201820582516.5, the cleaning device for road construction being substantially described as: including outer container and inner box, the inner box is located the inner chamber of outer container, the bottom of inner box and the bottom contact of outer container inner chamber, first spout has all been seted up to the bottom of outer container inner chamber both sides, second spout and perpendicular hole have been seted up respectively to the top on outer container inner chamber left side and right side. The utility model discloses a first slide bar, first diaphragm, including a motor, an end cap, a controller, and a cover plate, first gear, the second gear, the montant, the cleaning head, first branch, the small handcart, the extension board, electric telescopic handle, the second diaphragm, cooperate of second slide bar and limiting plate, cleaning device's small and convenient to use's target has been realized for the road construction, make cleaning device for the road construction clean each corner on construction road surface easily, the debris that make each corner can both be cleared up by cleaning device for the road construction, the problem of the great and awkward of volume of cleaning device for the road construction has been solved, but the device only cleans subaerial debris, do not carry out the collecting process to rubbish debris, clean effect is relatively poor.
Accordingly, the inventor of the present invention has developed and improved the existing structure and defects with experience of design development and actual manufacturing which are abundant in the related industry for many years, and provides a road construction cleaning device which is convenient to use.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a cleaning device is used in road construction convenient to use has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above object, the utility model provides a following technical scheme: a cleaning device convenient to use for road construction comprises a box body, universal brake wheels are fixedly connected with four corners of the lower surface of the box body, a double-shaft motor is fixedly connected with the left side of the inner wall of the bottom of the box body, a rotating rod is fixedly connected with the output end of the double-shaft motor, a first rotating shaft is rotatably connected with the left front side and the left rear side of the inner wall of the bottom of the box body, a driving bevel gear is sleeved at the middle part of the outer surface of the rotating rod, a driven bevel gear is fixedly connected with the top end of the first rotating shaft, the driving bevel gear is meshed with the driven bevel gear, a brush is fixedly connected with the bottom end of the first rotating shaft, a avoiding groove is formed in the front side of the lower surface of the box body, supporting plates are fixedly connected with the front side and the rear side of the middle part of the lower surface of the box body, a second rotating shaft is rotatably connected with the inner side of the supporting plates, and a cleaning roller is sleeved on the outer surface of the second rotating shaft, the front end of the outer surface of the second rotating shaft is sleeved with a driven wheel, the front side of the outer surface of the rotating rod positioned at the front side is sleeved with a driving wheel, the driving wheel is in transmission connection with the driven wheel through a transmission belt, the middle part of the lower surface of the box body is provided with a dust collection through groove, the middle part of the lower surface of the box body is fixedly connected with a dust hood, the middle part of the upper surface of the box body is communicated with a communicating pipe, the right side of the front surface of the box body is provided with a recovery box, the lower surface of the recovery box is fixedly connected with the inner wall of the bottom of the box body, the right end of the communicating pipe is communicated with the left side surface of the box body, the bottom of the front surface of the recovery box is inserted with the recovery box, the right side of the inner wall of the recovery box is fixedly connected with a filter screen, the middle part of the front side of the recovery box is fixedly connected with a handle, the collection box right flank is provided with the multiunit exhaust fan, the top fixedly connected with push rod of collection box right flank.
Preferably, the outer surface of the handle is provided with an anti-skid layer, and the outer surface of the anti-skid layer is provided with friction anti-skid grains.
Preferably, the outer side of the outer surface of the rotating rod is sleeved with a rotating support plate, and the lower surface of the rotating support plate is fixedly connected with the inner wall of the bottom of the box body.
Preferably, the left side and the right side of the lower surface of the recovery box are fixedly connected with T-shaped slide rails, and the inner wall of the bottom of the recovery box is provided with T-shaped slide grooves matched with the T-shaped slide rails.
Preferably, the surface of push rod is provided with the parcel layer, and the thickness of parcel layer is three millimeters, and the material of parcel layer is the foaming sponge.
Preferably, the inner wall of the top of the recovery box is fixedly connected with an inclined plate, and the inclination angle of the inclined plate is one hundred thirty five degrees.
(III) advantageous effects
Compared with the prior art, the utility model provides a cleaning device is used in road construction convenient to use possesses following beneficial effect:
1. this cleaning device is used in road construction convenient to use uses through brush, cleaning roller, suction hood, communicating pipe, collection box and recovery box cooperation for the rubbish debris on the brush to the road cleans, and rubbish debris finally fall into inside the recovery box, thereby has further improved the device to the clean effect of road, and make the device can accomplish cleaning and the collection work of road rubbish in step, has further made things convenient for the recovery of user to rubbish debris.
2. This cleaning device is used in road construction convenient to use uses through box, universal brake wheel and push rod cooperation for the device can clean each corner on the road surface of being under construction, thereby has further improved the use of the device and has made things convenient for the user to use for the flexibility.
Drawings

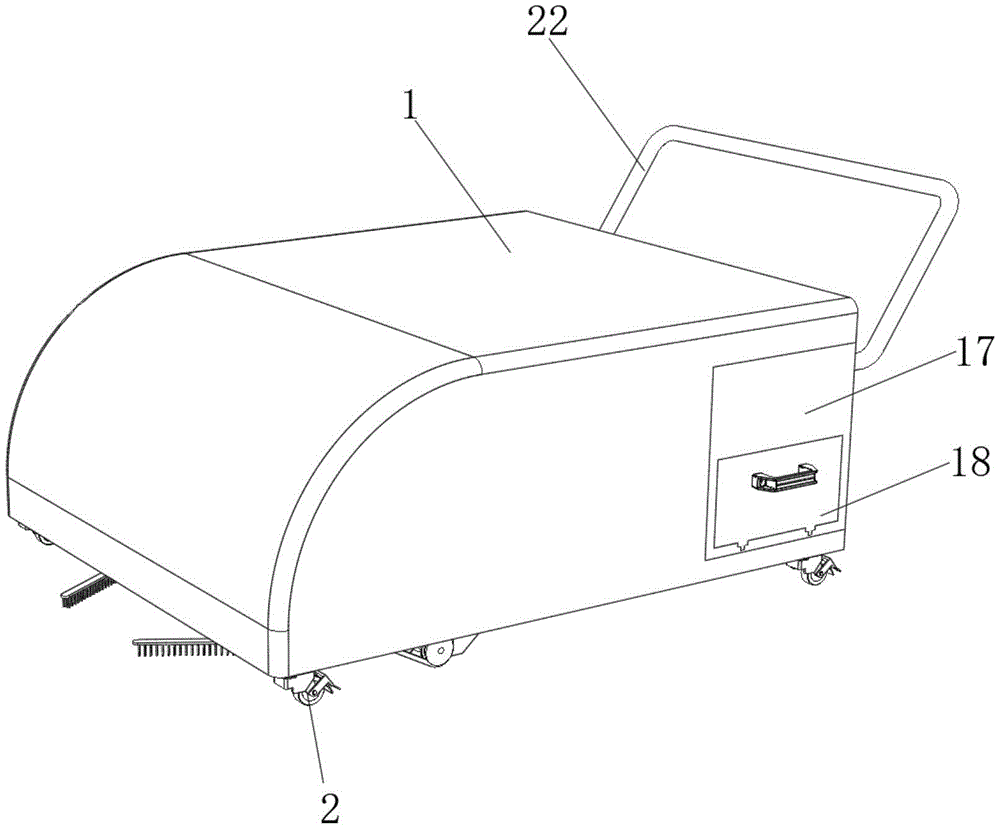

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic bottom structure of the present invention;
fig. 3 and 4 are schematic sectional structural diagrams of the present invention;
fig. 5 is an enlarged schematic view of the structure at a position a of the present invention.
In the figure: 1. a box body; 101. an avoidance groove; 102. a dust collection through groove; 2. a universal brake wheel; 3. a double-shaft motor; 4. rotating the rod; 5. a first rotating shaft; 6. a drive bevel gear; 7. a driven bevel gear; 8. a brush; 9. a support plate; 10. a second rotating shaft; 11. a cleaning roller; 12. a driven wheel; 13. a driving wheel; 14. a transmission belt; 15. a dust hood; 16. a communicating pipe; 17. a recycling bin; 18. a recovery box; 19. a filter screen; 20. a handle; 21. an exhaust fan; 22. a push rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a cleaning device convenient to use for road construction comprises a box body 1, universal brake wheels 2 are fixedly connected to four corners of the lower surface of the box body 1, a double-shaft motor 3 is fixedly connected to the left side of the inner wall of the bottom of the box body 1, the model of the double-shaft motor 3 is HYX-4237D12, a rotating rod 4 is fixedly connected to the output end of the double-shaft motor 3, a first rotating shaft 5 is rotatably connected to the left front side and the left rear side of the inner wall of the bottom of the box body 1, a driving bevel gear 6 is sleeved in the middle of the outer surface of the rotating rod 4, a driven bevel gear 7 is fixedly connected to the top end of the first rotating shaft 5, the driving bevel gear 6 is meshed with the driven bevel gear 7, a brush 8 is fixedly connected to the bottom end of the first rotating shaft 5, an avoiding groove 101 is formed in the front side of the lower surface of the box body 1, supporting plates 9 are fixedly connected to the front side and the back side of the middle of the lower surface of the box body 1, a second rotating shaft 10 is rotatably connected to the inner side of the supporting plates 9, the outer surface of the second rotating shaft 10 is sleeved with a cleaning roller 11, the front end of the outer surface of the second rotating shaft 10 is sleeved with a driven wheel 12, the front side of the outer surface of a rotating rod 4 positioned at the front side is sleeved with a driving wheel 13, the driving wheel 13 is in transmission connection with the driven wheel 12 through a transmission belt 14, the middle part of the lower surface of the box body 1 is provided with a dust absorption through groove 102, the middle part of the lower surface of the box body 1 is fixedly connected with a dust absorption cover 15, the middle part of the upper surface of the box body 1 is communicated with a communicating pipe 16, the right side of the front surface of the box body 1 is provided with a recovery box 17, the lower surface of the recovery box 17 is fixedly connected with the inner wall at the bottom of the box body 1, the right end of the communicating pipe 16 is communicated with the left side of the box body 1, the bottom of the front surface of the recovery box 17 is inserted with a recovery box 18, the right side of the inner wall of the recovery box 18 is fixedly connected with a filter screen 19, the middle part of the front surface of the recovery box 18 is fixedly connected with a handle 20, and the right side of the recovery box 17 is provided with a plurality of exhaust fans 21, the model of exhaust fan 21 is HF-100S, the top fixedly connected with push rod 22 of collection box 17 right flank, through brush 8, cleaning roller 11, suction hood 15, communicating pipe 16, collection box 17 and recovery box 18 cooperation are used, make brush 8 clean the rubbish debris on the road, rubbish debris finally fall into inside the recovery box 18, thereby the cleaning effect of the device to the road has further been improved, and make the device can accomplish sweeping and the collection work of road rubbish in step, further made things convenient for the user to the recovery of rubbish debris, through box 1, universal brake wheel 2 and push rod 22 cooperation are used, make the device can clean each corner on construction road surface, thereby further improved the use of the device and be the flexibility, made things convenient for the user to use.
The utility model discloses in, use the device for further person of facilitating the use, consequently be provided with the skid resistant course at the surface of handle 20, the surface of skid resistant course is provided with friction anti-skidding line to increased the frictional force between palm and the handle 20, further made things convenient for the user to use the device.
The utility model discloses in, for further reinforcing dwang 4's rotational stability, consequently cup jointed the rotation backup pad in the outside of dwang 4 surface, the lower surface and the 1 bottom inner wall fixed connection of box of rotation backup pad for the rotation backup pad has played the effect of stabilizing the support to the surface outside of dwang 4, thereby has further strengthened dwang 4's rotational stability.
The utility model discloses in, in order to further improve the motion stability who retrieves box 18, consequently at the equal fixedly connected with T shape slide rail in the left and right sides of retrieving the 18 lower surfaces of box, 17 bottom inner walls of collection box set up with the T shape spout of T shape slide rail looks adaptation, through T shape slide rail and the cooperation of T shape spout to the motion stability who retrieves box 18 has further been strengthened.
The utility model discloses in, in order to further improve the travelling comfort when the device uses, consequently be provided with the parcel layer at the surface of push rod 22, the thickness on parcel layer is three millimeters, and the material on parcel layer is the foaming sponge, through setting up the parcel layer to the travelling comfort when further having improved the device and using.
The utility model discloses in, inside in order to make falling into of rubbish and debris can be accurate retrieve box 18, consequently at 17 top inner wall fixedly connected with hang plates of collection box, the inclination of hang plate is one hundred thirty-five degrees for the hang plate has played the guide effect to rubbish and debris, thereby makes that rubbish and debris can be accurate fall into inside retrieving box 18.
The electrical components presented in the document are all electrically connected with an external master controller and 220V mains, and the master controller can be a conventional known device controlled by a computer or the like.
When in use, the box body 1 is pushed by the push rod 22 to move leftwards, the double-shaft motor 3 is started, the output end of the double-shaft motor 3 drives the rotating rod 4 to rotate, the rotating rod 4 drives the driving bevel gear 6 to rotate, the driving bevel gear 6 drives the driven bevel gear 7 to rotate, the driven bevel gear 7 drives the two groups of first rotating shafts 5 to rotate, the two groups of first rotating shafts 5 rotate in opposite directions, the first rotating shafts 5 drive the brushes 8 to rotate, the brushes 8 clean sundries on the ground, the sundries move backwards, the rotating rod 4 drives the driving wheel 13 to rotate, the driving wheel 13 drives the driven wheel 12 to rotate through the transmission belt 14, the driven wheel 12 drives the second rotating shaft 10 to rotate, the second rotating shaft 10 drives the cleaning roller 11 to rotate, the cleaning roller 11 rotates anticlockwise, the cleaning roller 11 cleans the sundries into the dust hood 15, the exhaust fan 21 is started, negative pressure is generated inside the recovery box 17, and the sundries are sucked into the recovery box 17 through the communication pipe 16, the sundry garbage falls into the recovery box 18, the filter screen 19 filters the sundry garbage, and the recovery box 18 is pulled out through the handle 20, so that the garbage in the recovery box 18 is recovered.
In conclusion, this cleaning device for road construction convenient to use through brush 8, cleaning roller 11, suction hood 15, communicating pipe 16, collection box 17 and recovery box 18 cooperation use for brush 8 cleans rubbish debris on the road, and rubbish debris finally falls into inside the recovery box 18, thereby has further improved the device and to the clean effect of road, and makes the device can accomplish road rubbish in step and clean and collect the work, has further made things convenient for the user to the recovery of rubbish debris.
This cleaning device is used in road construction convenient to use uses through box 1, universal brake wheel 2 and push rod 22 cooperation for the device can clean each corner on construction road surface, thereby has further improved the use of the device and has made things convenient for the user to use for the flexibility.
