Abstract
本实用新型提供了一种铜杆清洗装置，包括外壳，外壳顶部两侧均设有储液箱，两储液箱内装有清洗液并分别通过管路连接液泵的进口，液泵的出口通过管路连接若干设于外壳内的喷头；外壳外顶部设有上夹持装置、内底部设有下夹持装置，上夹持装置包括上传送带、支架、电机、上限位爪，支架固定在上传送带外表面，电机固定在支架内侧，上限位爪设于支架外侧并与电机输出轴相连；下夹持装置包括下传送带、轴承、下限位爪，轴承一侧固定在下传送带外表面，下限位爪固定在轴承另一侧。本实用新型利用上夹持装置和下夹持装置将铜杆固定并送入外壳内，铜杆在受喷头喷淋的同时转动，使铜杆表面得到充分清洗，铜杆安装方便、表面无磨损、清洗效率高。
The utility model provides a copper rod cleaning device, which comprises a casing. Liquid storage tanks are provided on both sides of the top of the casing. The two liquid storage tanks are equipped with cleaning liquid and are respectively connected to the inlet of a liquid pump through a pipeline, and the outlet of the liquid pump passes through The pipeline is connected to several nozzles arranged in the shell; the outer top of the shell is provided with an upper clamping device, and the inner bottom is provided with a lower clamping device. The upper clamping device includes an upper conveyor belt, a bracket, a motor, and an upper limit claw, and the bracket is fixed on the upper On the outer surface of the conveyor belt, the motor is fixed on the inner side of the bracket, and the upper limit claw is arranged on the outer side of the bracket and connected with the output shaft of the motor; the lower clamping device includes the lower conveyor belt, the bearing, and the lower limit claw. One side of the bearing is fixed on the outer surface of the lower conveyor belt, and the lower limit claw fixed on the other side of the bearing. The utility model uses the upper clamping device and the lower clamping device to fix the copper rod and send it into the casing, the copper rod rotates while being sprayed by the spray head, so that the surface of the copper rod can be fully cleaned, the copper rod is easy to install, and the surface has no wear , High cleaning efficiency.
Description
Technical Field
The utility model belongs to the technical field of copper pole production and specifically relates to indicate a copper pole belt cleaning device.
Background
Copper pole need cool off the washing in order to do benefit to follow-up operation to the copper pole that makes in the data send process after rolling, generally adopts at present to soak and washs or roll and wash, and it is poor, the washing liquid is extravagant big wherein to soak the cleaning performance, and roll and wash and can make the copper pole at steel axle rolling friction, lead to copper pole surface wear, reduce the copper pole quality.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
An object of the utility model is to provide a copper pole belt cleaning device has the function of solution (existence problem). In order to achieve the above purpose, the utility model adopts the following technical scheme:
(II) technical scheme
A copper rod cleaning device comprises a shell, wherein liquid storage tanks are arranged on two sides of the top of the shell, cleaning liquid is filled in the two liquid storage tanks and is respectively connected with an inlet of a liquid pump through a pipeline, and outlets of the two liquid pumps are respectively connected with a plurality of spray heads arranged in the shell through pipelines; the outer top of the shell is provided with an upper clamping device, the inner bottom of the shell is provided with a lower clamping device, the upper clamping device comprises an upper conveying belt, a support, a motor and an upper limiting claw, the support is fixed on the outer surface of the upper conveying belt, the motor is fixed on the inner side of the support, and the upper limiting claw is arranged on the outer side of the support and connected with an output shaft of the motor; the lower clamping device comprises a lower conveying belt, a bearing and a lower limiting claw, wherein one side of the bearing is fixed on the outer surface of the lower conveying belt, and the lower limiting claw is fixed on the other side of the bearing.
Further, clamping device still includes fixed sleeve, activity sleeve, spring down, fixed sleeve is fixed on the bearing, activity sleeve activity cover is established in fixed sleeve and is broken away from by the stopper restriction, the spring is arranged in between fixed sleeve and the activity sleeve and be compression state.
Further, a guide plate is arranged below the lower clamping device, and the bottom of the guide plate is connected with the liquid collecting tank.
Furthermore, a filter screen is arranged above the guide plate.
Furthermore, the upper limiting claw and the lower limiting claw are made of rubber materials.
Furthermore, the upper limiting claw and the lower limiting claw are in a hollow circular truncated cone shape, and the inner diameter of the opening of the upper limiting claw and the inner diameter of the opening of the lower limiting claw are smaller than that of the bottom of the upper limiting claw and the bottom of the lower limiting claw.
(III) advantageous effects
Compared with the prior art, the utility model have obvious advantage and beneficial effect, particularly, utilize clamping device and lower clamping device fixed copper pole and send into the shell in, the copper pole rotates when receiving the shower nozzle to spray, makes the copper pole surface fully wash, copper pole simple to operate, surperficial non-wearing and tearing, the conveyer belt washs can constantly wash new copper pole, and the cleaning efficiency is high.
Drawings
The invention will be further described with reference to the following examples with reference to the accompanying drawings.

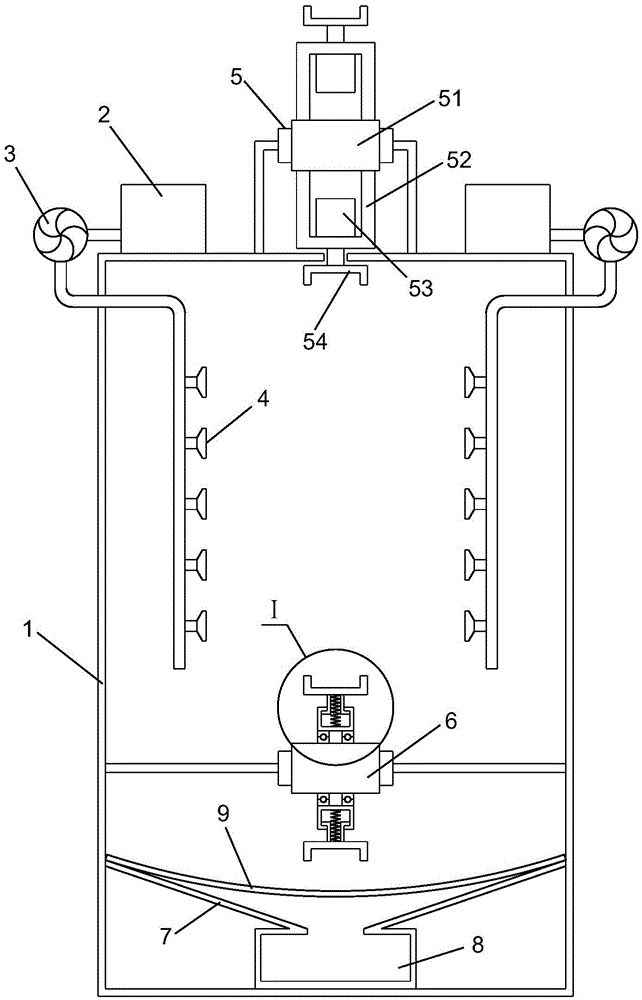

FIG. 1 is a schematic view of the overall structure of the present invention;
FIG. 2 is a schematic enlarged view of a portion of FIG. 1 at I;
fig. 3 is a schematic view of the cleaning state of the present invention.
The reference numbers illustrate:
| 1. a housing; | 2. a liquid storage tank; |
| 3. a liquid pump; | 4. a spray head; |
| 5. an upper clamping device; | 51. uploading a conveyor belt; |
| 52. a support; | 53. a motor; |
| 54. an upper limiting claw; | 6. a lower clamping device; |
| 61. a lower conveyor belt; | 62. a bearing; |
| 63. fixing the sleeve; | 64. a movable sleeve; |
| 65. a spring; | 66. a lower limiting claw; |
| 7. a baffle; | 8. a liquid collection tank; |
| 9. filtering with a screen; | 10. a copper rod. |
Detailed Description
Reference will now be made in detail to embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar elements or elements having the same or similar function throughout. The embodiments described below with reference to the drawings are exemplary and intended to be used for explaining the present invention, and should not be construed as limiting the present invention.
In the description of the present invention, it is to be understood that the terms "length", "width", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are merely for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and thus, should not be construed as limiting the present invention.
Furthermore, the terms "first", "second" and "first" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include one or more of that feature. In the description of the present invention, "a plurality" means two or more unless specifically limited otherwise.
In the present invention, unless otherwise expressly stated or limited, the terms "mounted," "connected," and "fixed" are to be construed broadly and may, for example, be fixedly connected, detachably connected, or integrally formed; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.
The present invention will be further described with reference to the accompanying drawings and the detailed description.
Referring to fig. 1 to 3, a copper rod cleaning device includes a housing 1, wherein two sides of the top of the housing 1 are respectively provided with a liquid storage tank 2, two liquid storage tanks 2 are filled with cleaning liquid and are respectively connected with an inlet of a liquid pump 3 through a pipeline, and outlets of the two liquid pumps 3 are respectively connected with a plurality of spray heads 4 arranged in the housing 1 through pipelines;
an upper clamping device 5 is arranged at the outer top of the shell 1, the upper clamping device 5 comprises an upper conveying belt 51, a bracket 52, a motor 53 and an upper limiting claw 54, the bracket 52 is fixed on the outer surface of the upper conveying belt 51, the motor 53 is fixed on the inner side of the bracket 52, and the upper limiting claw 54 is arranged on the outer side of the bracket 52 and connected with an output shaft of the motor 53;
the bottom in the shell 1 is provided with a lower clamping device 6, the lower clamping device 6 comprises a lower conveyor belt 61, a bearing 62 and a lower limiting claw 66, one side of the bearing 62 is fixed on the outer surface of the lower conveyor belt 61, and the lower limiting claw 66 is fixed on the other side of the bearing 62.
Since the distance between the upper and lower restricting claws 54 and 66 increases at both ends of the conveyor belt, the copper rod 10 can be fixed by being put therein at both ends of the conveyor belt.
In order to better put the copper rod 10 in and fix the copper rod between the upper limiting claw 54 and the lower limiting claw 66, as shown in fig. 2, the lower clamping device 6 further comprises a fixed sleeve 63, a movable sleeve 64 and a spring 65, wherein the fixed sleeve 63 is fixed on the bearing 62, the movable sleeve 64 is movably sleeved in the fixed sleeve 63 and is limited by the limiting block to be separated, and the spring 65 is arranged between the fixed sleeve 63 and the movable sleeve 64 and is in a compressed state; when the copper rod 10 is installed, only one end of the copper rod 10 needs to be placed into the lower limiting claw 66, then the spring 65 is further compressed by applying force, meanwhile, the other end of the copper rod 10 is clamped into the upper limiting claw 54, and the copper rod 10 is fixed between the upper limiting claw 54 and the lower limiting claw 66 through the elastic force of the spring 65.
In order to prevent the waste liquid produced by cleaning from flowing disorderly, a guide plate 7 is arranged below the lower clamping device 6, the bottom of the guide plate 7 is connected with a liquid collecting box 8, and the waste liquid is collected for subsequent treatment.
The guide plate 7 top is equipped with filter screen 9, can filter the ejection of compact, convenient processing with large granule impurity in the waste liquid.
In order to fix the copper rod 10 more firmly, the upper limiting claw 54 and the lower limiting claw 66 are both made of rubber, and the copper rod 10 is clamped by elastic deformation of the rubber so as to be rotated under the control of the motor 53.
Further, the upper limiting claw 54 and the lower limiting claw 66 are in a hollow truncated cone shape, and the inner diameter of the opening of the upper limiting claw and the lower limiting claw is smaller than the inner diameter of the bottom and the outer diameter of the copper rod 10, so that the upper limiting claw 54 and the lower limiting claw 66 can clamp the copper rod 10.
The principle of the utility model is that: two sides of the shell 1 are provided with baffles, two ends of the shell are of an open structure, and the upper conveying belt 51 and the lower conveying belt 61 both extend out of the shell 1 so as to load and unload the copper rods 10; the upper conveyor belt 51 and the lower conveyor belt 61 run synchronously under the action of the motor, and the upper limiting claws 54 and the lower limiting claws 66 are kept in one-to-one correspondence. During cleaning, the copper rod 10 is firstly arranged between the upper limiting claw 54 and the lower limiting claw 66 outside the shell 1, then the motor 53 and the liquid pump 3 are started, the motor 53 drives the upper limiting claw 54 to rotate, the lower limiting claw 66 can freely rotate on the bearing 62, so the copper rod 10 can rotate along with the upper limiting claw 54, meanwhile, the copper rod 10 is conveyed into the shell 1 by the upper conveying belt 51 and the lower conveying belt 61, cleaning liquid is sprayed out of the spray head 4, the surface of the copper rod 10 is fully cleaned, and waste liquid generated by cleaning flows into the liquid collecting box 8, so that subsequent treatment is facilitated.
The utility model discloses a design point lies in utilizing last clamping device and in clamping device fixes the copper pole and sends into the shell down, the copper pole rotates when receiving the shower nozzle to spray, makes the copper pole surface obtain abundant washing, copper pole simple to operate, cleaning efficiency height.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the technical scope of the present invention, so that any slight modifications, equivalent changes and modifications made by the technical spirit of the present invention to the above embodiments are all within the scope of the technical solution of the present invention.
Claims (6)
