本实用新型公开了一种减震性能好的钢材加工基座，属于钢材加工技术领域，包括底座与支撑块，底座的上端表面通过螺母固定设置有支撑块，支撑块的上端表面固定安装有固定板，固定板的一侧通过空心块契合设置有限位杆，限位杆的上端表面固定连接有二组支撑块，支撑块的上端表面靠近固定板的一侧配套设置有减震弹簧，二组支撑块的上端表面固定安装有支撑板，支撑板的上端表面通过螺母固定设置有连接板A。本实用新型当方形钢放置在支撑板的表面后，方形钢会带来冲击时使支撑板下端的二组支撑块向下进行移动，带动减震弹簧进行收缩，同时限位杆也向下移动，对方形钢带来的冲击力进行吸收，从而进行减震。
The utility model discloses a steel processing base with good shock absorption performance, which belongs to the technical field of steel processing. One side of the fixed plate is fitted with a limit rod through a hollow block, the upper end surface of the limit rod is fixedly connected with two sets of support blocks, and the side of the upper end surface of the support block close to the fixed plate is equipped with a shock-absorbing spring. A support plate is fixedly installed on the upper end surface of the support block, and a connecting plate A is fixedly installed on the upper end surface of the support plate through a nut. In the utility model, after the square steel is placed on the surface of the support plate, when the square steel brings an impact, the two groups of support blocks at the lower end of the support plate move downward, drive the shock absorbing spring to shrink, and at the same time the limit rod also moves downward. , to absorb the impact force brought by the square steel, thereby shock absorption.
Description
Technical Field
The utility model belongs to the technical field of steel processing, specifically be a steel processing base that shock attenuation performance is good.
Background
The steel products are important materials essential for national construction and realization of quartification, are widely applied and have various varieties, and are generally divided into four categories, namely section bars, plates, pipes and metal products according to different section shapes, and also divided into categories, such as heavy rails, light rails, large-sized section bars, medium-sized section bars, small-sized section bars, steel cold-formed section bars, high-quality section bars, wire rods, medium-sized steel plates, thin steel plates, silicon steel sheets for electrical engineering, strip steel, seamless steel pipe steel products, welded steel pipes, metal products and the like.
When the square steel is cut off riveting processing, the existing base shock absorption effect is not good enough, the shaking amplitude is large, the rectangular square steel needs to be continuously pulled out when the square steel is processed, the existing device is used for processing the square steel, and workers are more labor-consuming when drawing the square steel, so that the processing efficiency is greatly reduced.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems that the damping performance of the existing device is not good enough and the processing is not flexible enough, a steel processing base with good damping performance is provided.
The utility model adopts the technical scheme as follows: a steel processing base with good shock absorption performance comprises a base and supporting blocks, wherein the supporting blocks are fixedly arranged on the upper end surface of the base through nuts, a fixed plate is fixedly arranged on the upper end surface of each supporting block, one side of the fixed plate is provided with a limiting rod in a fit mode through a hollow block, and two groups of supporting blocks are fixedly connected to the upper end surface of the limiting rod;
the damping device comprises two groups of supporting blocks, wherein a damping spring is arranged on one side, close to a fixed plate, of the upper end surface of each supporting block in a matched manner, a supporting plate is fixedly arranged on the upper end surface of each supporting block, a connecting plate A is fixedly arranged on the upper end surface of each supporting plate through a nut, a sliding rod is fixedly connected to one side of each connecting plate A through a fixed block, a spring is arranged on the surface of each sliding rod in a nested manner, a sliding block is arranged on the lower end of each spring in a matched manner, and a connecting rod is rotatably connected to one side of each sliding block through a rotating shaft;
the opposite side of connecting rod has the limiting plate through pivot swing joint, fixed block fixedly connected with connecting plate B is passed through to connecting plate A's upper end, the supporting electric telescopic frame that is provided with of connecting plate B's lower extreme, the supporting clamp plate that is provided with of electric telescopic frame's lower extreme, connecting plate B's inside embedding is provided with the battery, square steel has been placed near one side of limiting plate to the upper end of backup pad.
The pulley is embedded into one side surface of each limiting plate and the front surface of each supporting plate, the two groups of limiting plates are arranged, and the two groups of limiting plates are symmetrically arranged.
The damping springs are provided with a plurality of groups, and the groups of damping springs are arranged in parallel.
The surface of the slide rod is provided with two groups of springs, and the two groups of springs are symmetrically arranged.
Wherein, the surface of the slide rod is provided with a slide block in a nested manner.
The electric telescopic frame is electrically connected with the storage battery, and the control switch is arranged on the electric telescopic frame in a matched mode.
To sum up, owing to adopted above-mentioned technical scheme, the beneficial effects of the utility model are that:
1. the utility model discloses in, place behind the surface of backup pad when the square steel, the square steel can bring two groups supporting shoes that make the backup pad lower extreme when assaulting and move downwards, drives damping spring and contracts, and the gag lever post also moves downwards simultaneously, and the impact force that the square steel brought is absorbed to carry out the shock attenuation.
2. The utility model discloses in, the in-process square steel of work can take place to rock, promotes the limiting plate and removes, then the limiting plate promotes the connecting rod through the pivot, and the connecting rod drives the slider and slides from top to bottom, and the spring contracts, then the spring rebounds the normal position with the slider to can control the square steel spacing, and the cooperation can the pulley and can the extruded electronic expansion bracket, can carry out nimble, laborsaving removal to the square steel.
Drawings

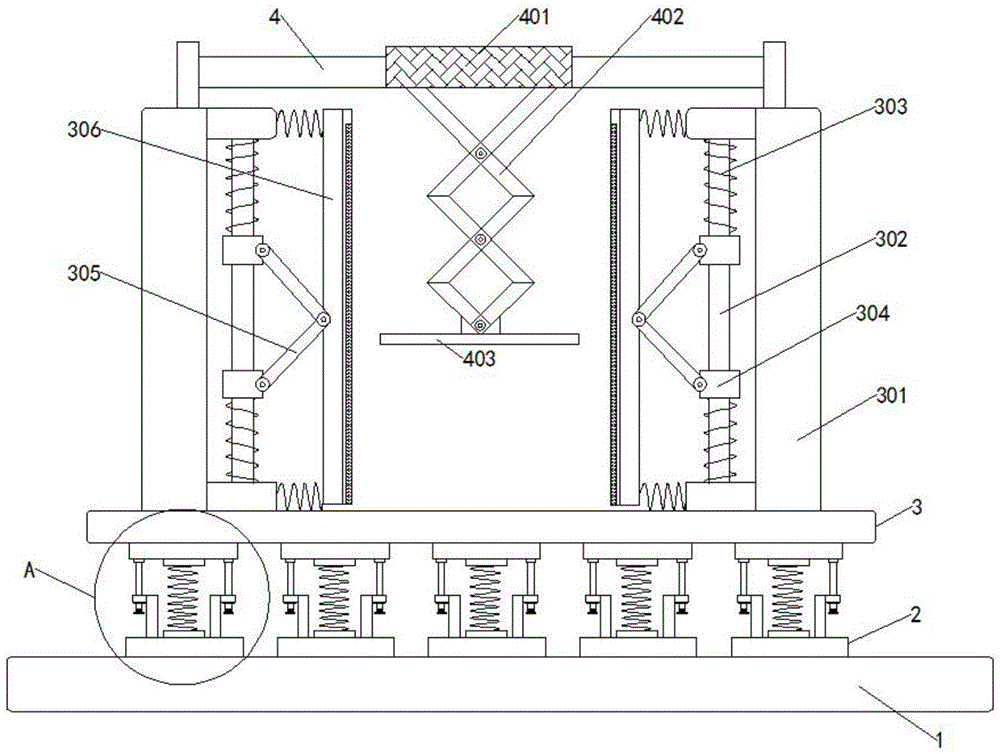

FIG. 1 is a schematic diagram of the overall structure of the present invention;
FIG. 2 is a schematic diagram of the overall working state structure of the present invention;
fig. 3 is an enlarged schematic diagram of a portion a of fig. 1 according to the present invention.
The labels in the figure are: 1. a base; 2. a support block; 201. a fixing plate; 202. a damping spring; 203. two sets of support blocks; 204. a limiting rod; 3. a support plate; 301. a connecting plate A; 302. a slide rod; 303. a spring; 304. A slider; 305. a connecting rod; 306. a limiting plate; 4. a connecting plate B; 401. a storage battery; 402. an electric telescopic frame; 403. pressing a plate; 5. square steel.
Detailed Description
In order to make the objects, technical solutions and advantages of the present invention more clearly understood, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are for purposes of illustration only and are not intended to limit the invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance; furthermore, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "connected" are to be construed broadly, as they may be fixedly connected, detachably connected, or integrally connected, for example; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses in:
referring to fig. 1-3, a steel processing base with good shock absorption performance comprises a base 1 and supporting blocks 2, wherein the supporting blocks 2 are fixedly arranged on the upper end surface of the base 1 through nuts, a fixing plate 201 is fixedly arranged on the upper end surface of the supporting blocks 2, a limiting rod 204 is arranged on one side of the fixing plate 201 in a matching mode through a hollow block, and two groups of supporting blocks 203 are fixedly connected to the upper end surface of the limiting rod 204;
the damping springs 202 are arranged on one side, close to the fixing plate 201, of the upper end surfaces of the supporting blocks 2 in a matched mode, the supporting plates 3 are fixedly installed on the upper end surfaces of the two groups of supporting blocks 203, the connecting plate A301 is fixedly arranged on the upper end surfaces of the supporting plates 3 through nuts, one side of the connecting plate A301 is fixedly connected with a sliding rod 302 through a fixing block, a spring 303 is arranged on the surface of the sliding rod 302 in a nested mode, a sliding block 304 is arranged on the lower end of the spring 303 in a matched mode, and one side of the sliding block 304 is rotatably connected with a connecting rod 305 through a rotating shaft;
the opposite side of connecting rod 305 has limiting plate 306 through pivot swing joint, and fixed block fixedly connected with connecting plate B4 is passed through to the upper end of connecting plate A301, and the lower extreme of connecting plate B4 is supporting to be provided with electric telescopic frame 402, and the lower extreme of electric telescopic frame 402 is supporting to be provided with clamp plate 403, and the inside embedding of connecting plate B4 is provided with battery 401, and square steel 5 has been placed to the one side that the upper end of backup pad 3 is close to limiting plate 306.
Referring to fig. 1, 2, furtherly, a side surface and the 3 positive all imbeds of backup pad of limiting plate 306 are provided with the pulley, and limiting plate 306 is provided with two sets ofly, and is the symmetry setting between two sets of limiting plates 306, square steel 5 from the device put into back between two sets of limiting plates 306, when the staff carries out the pull to square steel 5, the pulley of limiting plate 306 one side is to rotating, it is lighter to become during the pull of square steel 5, and can follow up tightly with square steel 5 clamp.
Referring to fig. 1-3, further, damping spring 202 is provided with a plurality of groups, and is parallel to each other between a plurality of groups of damping spring 202, places square steel 5 behind the surface of backup pad 3 when the staff, square steel 5 can bring two groups of supporting shoe 203 of backup pad 3 lower extreme and move downwards when assaulting, drives damping spring 202 and contracts, and gag lever post 204 also moves downwards simultaneously, absorbs the impact force that square steel 5 brought to carry out the shock attenuation.
Referring to fig. 1 and 2, further, the surface of slide bar 302 is provided with two sets of springs 303, and two sets of springs 303 are symmetrical, and square steel 5 may take place to rock at the in-process of work, promotes limiting plate 306 and removes, then limiting plate 306 promotes connecting rod 305 through the pivot, and connecting rod 305 drives slider 304 and slides from top to bottom, and spring 303 contracts, then spring 303 rebounds normal position with slider 304 to can control spacingly square steel 5.
Referring to fig. 1 and 2, further, a sliding block 304 is nested on the surface of the slide rod 302, and the spring 303 and the sliding block 304 are matched with each other during operation, so that limit can be performed.
Referring to fig. 1 and 2, further, the electric telescopic frame 402 is electrically connected to the battery 401, and the electric telescopic frame 402 is provided with a control switch.
The working principle is as follows: firstly, when an operator processes the square steel 5, the two groups of limiting plates 306 are pushed, the space between the two groups of limiting plates 306 is pushed to be capable of being placed into the square steel 5, after the square steel 5 is placed between the two groups of limiting plates 306 from one side of the device, when the operator pulls the square steel 5, the pulley pair on one side of the limiting plates 306 rotates, so that the square steel 5 is pulled more easily and the square steel 5 can be clamped tightly, when the operator places the square steel 5 on the surface of the supporting plate 3, the square steel 5 brings impact, two groups of supporting blocks 203 at the lower end of the supporting plate 3 move downwards to drive the damping spring 202 to contract, meanwhile, the limiting rod 204 also moves downwards to absorb the impact force brought by the square steel 5 so as to damp, and then the square steel 5 is placed between the two groups of limiting plates 306 from one side of the device, two sets of limiting plates 306 carry on spacingly to square steel 5, square steel 5 may take place to rock at the in-process of work, promote limiting plate 306 and remove, then limiting plate 306 promotes connecting rod 305 through the pivot, connecting rod 305 drives slider 304 and slides from top to bottom, spring 303 contracts, then spring 303 rebounds the normal position with slider 304, thereby can control spacing square steel 5, at last staff stretches out and draws back electronic expansion bracket 402, clamp plate 403 that stretches out and draws back to electronic expansion bracket 402 lower extreme presses at square steel 5's upper end surface, it is spacing from top to bottom to square steel 5, thereby can process square steel 5.
The above description is only exemplary of the present invention and should not be taken as limiting the scope of the present invention, as any modifications, equivalents, improvements and the like made within the spirit and principles of the present invention are intended to be included within the scope of the present invention.
