The utility model provides a hoisting tool for a wall panel, which comprises a hoisting clamp and a corner protector; the hoisting clamp is used for clamping the top of a wallboard to be hoisted, and comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove used for clamping the wallboard to be hoisted is formed in the clamping main body; the corner protector is used for being installed in the bottom edge of the wallboard to be hoisted, and the corner protector is provided with a second clamping groove which is clamped with the bottom edge of the wallboard to be hoisted. The utility model discloses a lifting device has alleviateed the burden of hoist, and the effectual hoist and mount efficiency that promotes the shingle nail saves the time limit for a project, controls the roughness of each shingle nail bottom, improves construction quality.

Description

Wall panel's lifting device

Technical Field

The utility model relates to a factory building engineering construction technical field especially relates to a wainscot's lifting device.

Background

The existing wall panel hoisting is that an overlong composite vertical plate is hoisted, in order to prevent the composite plate from being broken in the hoisting process, a steel hoisting frame is usually arranged to hoist the wall composite plate, and although the steel hoisting frame can well protect the composite plate in the hoisting process, the hoisting efficiency is too low due to the fact that the hoisting frame is too heavy, the requirement on a crane is high, and the construction period is often long. The basement point of shingle nail sets up on the wall is led to the wall at the bottom of the wall, and before hoist and mount shingle nail is under construction, need to be under construction to the wall and lead the wall in advance, but often receive the guide wall influence and can't control elevation roughness scheduling problem well.

However, for the wall panel project of the Tesla super factory project, the total area of the wall surface exceeds 30000 square meters, and the absolute construction period of the total construction is 30 days, while the construction period is far greater than the requirement of the construction period by adopting the traditional lifting frame hoisting method.

Therefore, the invention needs to invent a hoisting tool for a wall panel, so as to solve the defects of low work efficiency, long construction period and the like caused by the dependence of a pulling frame and a wall bottom guide wall in the hoisting process of the existing composite wall surface vertical plate.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a lifting device of shingle nail to the reliance that exists among the solution prior art is played and is pulled frame and wall end and lead the wall and be under construction, requires shortcoming and shingle nail construction quality such as high, the work efficiency is low, the period is long to the hoist and flatness scheduling problem that each shingle nail bottom is low, difficult to control.

In order to solve the technical problem, the utility model provides a wall panel hoisting tool, which comprises a hoisting clamp and a corner protector;

the hoisting clamp is used for clamping the top of a wallboard to be hoisted, and comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove used for clamping the wallboard to be hoisted is formed in the clamping main body;

the corner protector is used for being installed in the bottom edge of the wallboard to be hoisted, and the corner protector is provided with a second clamping groove which is clamped with the bottom edge of the wallboard to be hoisted.

Optionally, a buckle used for clamping the wall panel to be hoisted is arranged in the second clamping groove.

Optionally, a plurality of first mounting holes are formed in the groove wall on one side of the first clamping groove, and a plurality of second mounting holes corresponding to the first mounting holes are formed in the groove wall on the other side of the first clamping groove.

Optionally, the hoisting tool further comprises a verticality control device for controlling the verticality of the wall panel to be hoisted, and the verticality control device is connected with a purline fixed on the wall surface.

Optionally, the verticality control device comprises a first base, a third clamping groove used for clamping the first purline is formed in the first base, a wide plate is arranged on one side, away from the wall surface, of the first base, and a fourth clamping groove used for clamping the wall panel to be hoisted is formed among the wide plate, the first base and the purline.

Optionally, the hoisting tool further comprises an elevation adjusting device for adjusting the height of the bottom of the wall panel to be hoisted, and the elevation adjusting device is connected with a purline fixed on the wall surface.

Optionally, elevation adjusting device includes the second base, be equipped with on the second base and be used for the joint the fifth draw-in groove of purlin, the bottom of second base even has and is used for fixing the mounting of the bottom of treating hoist and mount shingle nail, the top of second base is equipped with a plurality of regulating parts, the second base can for the regulating part reciprocates.

Optionally, the fixing member includes a horizontal portion and a vertical portion connected to each other, the top of the vertical portion is connected to the bottom of the second base, and the vertical portion is provided with a first reinforcing plate.

Optionally, a second reinforcing plate is arranged on the second base, and the second reinforcing plate surrounds the second base.

Compared with the prior art, the utility model provides a wainscot's lifting device has following advantage:

(1) the utility model provides a hoisting tool of a wall panel, which comprises a hoisting clamp and a corner protector; the hoisting clamp comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove for clamping the wall panel to be hoisted is formed in the clamping main body; and the corner protector is provided with a second clamping groove which is clamped with the bottom corner of the wall panel to be hoisted. Therefore, the hoisting clamp is arranged at the top of the wall panel through the first clamping groove, the corner protector is arranged at the corner of the bottom of the wall panel to be hoisted through the second clamping groove, and the hoisting ring is connected with the crane, so that the crane can hoist the top of the wall panel at first, and the burden of the crane is reduced. The hoisting clamp and the corner protector are arranged on the wall panel conveniently through the arrangement of the first clamping groove and the second clamping groove. In the hoisting process, the corner protector can effectively protect the corner at the bottom of the wall panel, and the construction quality is improved. Through the stone tongs with the corner protector cooperatees for the hoist and mount implementation process of shingle nail is simple and easy, has promoted the hoist and mount efficiency of shingle nail, has effectually saved the time limit for a project, simultaneously the lifting device simple structure has practiced thrift the cost.

(2) The utility model provides a lifting device of shingle nail passes through be equipped with in the second draw-in groove and be used for the joint treat the buckle of hoist and mount shingle nail. From this, the buckle with the long limit both sides edge of shingle nail matches, can enough joint and live the shingle nail, can avoid again the bottom of second draw-in groove directly with the edge direct contact of shingle nail to be favorable to protecting the edge structure of shingle nail.

(3) The utility model provides a wainscot's lifting device passes through be equipped with a plurality of first mounting holes on the cell wall of one side of first draw-in groove, be equipped with on the cell wall of opposite side a plurality of with first mounting hole corresponds the second mounting hole that sets up. Therefore, after the hoisting clamp is installed at the top of the wall panel, holes are formed in the wall panel at the positions opposite to the first installation holes and the second installation holes, the hoisting clamp is conveniently fixed on the wall panel through pin shaft screws, and the hoisting clamp is more reliable to install.

(4) The utility model provides a lifting device is still including being used for control treat the straightness's that hangs down of hoist and mount shingle nail straightness controlling means that hangs down, the straightness controlling means that hangs down links to each other with the purlin of fixing on the wall. From this, through straightness controlling means that hangs down is favorable to guaranteeing that the shingle nail can vertically install on the wall, straightness controlling means that hangs down fixes in advance on the purlin of wall to with alignment instruments such as theodolite alignment instrument, thereby reach the mesh of control shingle nail straightness that hangs down. The verticality control device comprises a first base, wherein a third clamping groove used for clamping the first purline is formed in the first base, and therefore the verticality control device can be effectively fixed on the purline of the wall surface through the third clamping groove. Through keep away from first base one side of wall is equipped with the wide slab, the wide slab first base with form between the purlin and be used for the joint treat the fourth draw-in groove of hoist and mount shingle nail, from this, through alignment instruments such as theodolite will the wide slab is transferred to vertical, thereby works as when shingle nail pushes the fourth draw-in groove, can guarantee that shingle nail is vertical, has controlled the straightness that hangs down of shingle nail.

(5) The utility model provides a lifting device is still including being used for adjusting treat the elevation adjusting device of the height that the bottom of hoist and mount shingle nail located, elevation adjusting device links to each other with the purlin of fixing on the wall. From this, be favorable to controlling the roughness of each shingle nail bottom through setting up elevation adjusting device, improve the quality of construction. The elevation adjusting device comprises a second base, wherein a fifth clamping groove used for clamping the purlins is formed in the second base, and therefore the elevation adjusting device can be effectively fixed to the purlins on the wall surface through the fifth clamping groove, and the elevation adjusting device can conveniently control the height of the bottom of each wall panel through up and down movement. In addition, because the bottom of second base is connected with and is used for fixing the mounting of the bottom of waiting to hoist shingle nail, the top of second base is equipped with a plurality of regulating parts, the second base can for the regulating part reciprocates. Therefore, the fixing piece can support the wall panel lifted by the crane, and the height of the bottom of the wall panel is adjusted by moving the adjusting piece up and down, so that the purposes of adjusting the height of the bottom of the wall panel and controlling the flatness of the bottom of each wall panel are achieved. In addition, through setting up elevation adjusting device for the wall panel hoist and mount can be in advance of the wall construction of leading of wall bottom, avoid leading the influence of wall to the wall panel construction.

(6) The fixing piece comprises a horizontal part and a vertical part which are connected, and the top of the vertical part is connected with the bottom of the second base, so that the horizontal part can effectively support the wall panel, the vertical part can play a role in connecting the second base with the horizontal part, and the vertical part enables a proper height difference to be reserved between the bottom of the wall panel and a purline at the bottom of a wall surface to be installed, and is more beneficial to controlling the height of the bottom of the wall panel, and the bottoms of all the wall panels are flush with each other. Through be equipped with first reinforcing plate on the perpendicular portion be equipped with the second reinforcing plate on the second base, the second reinforcing plate centers on the second base sets up, from this, first reinforcing plate with the second reinforcing plate can be strengthened effectively the mounting with the rigidity of second base avoids the mounting with the second base breaks, has improved elevation adjusting device's reliability.

Drawings

Fig. 1 is a schematic structural view of a hoisting clamp of a hoisting tool for a shingle according to an embodiment of the present invention;

fig. 2 is a schematic structural view of a corner protector of a hoisting tool for a wall panel according to an embodiment of the present invention;

fig. 3 is a schematic structural view of another corner protector of the hoisting tool for a wall panel according to an embodiment of the present invention;

fig. 4 is a schematic structural view of a verticality control device of a wall panel hoisting tool according to an embodiment of the present invention;

fig. 5 is a schematic structural view of an elevation adjustment device of a hoisting tool for a shingle according to an embodiment of the present invention;

fig. 6 is a schematic view of a hoisting process of the hoisting tool for a shingle according to an embodiment of the present invention;

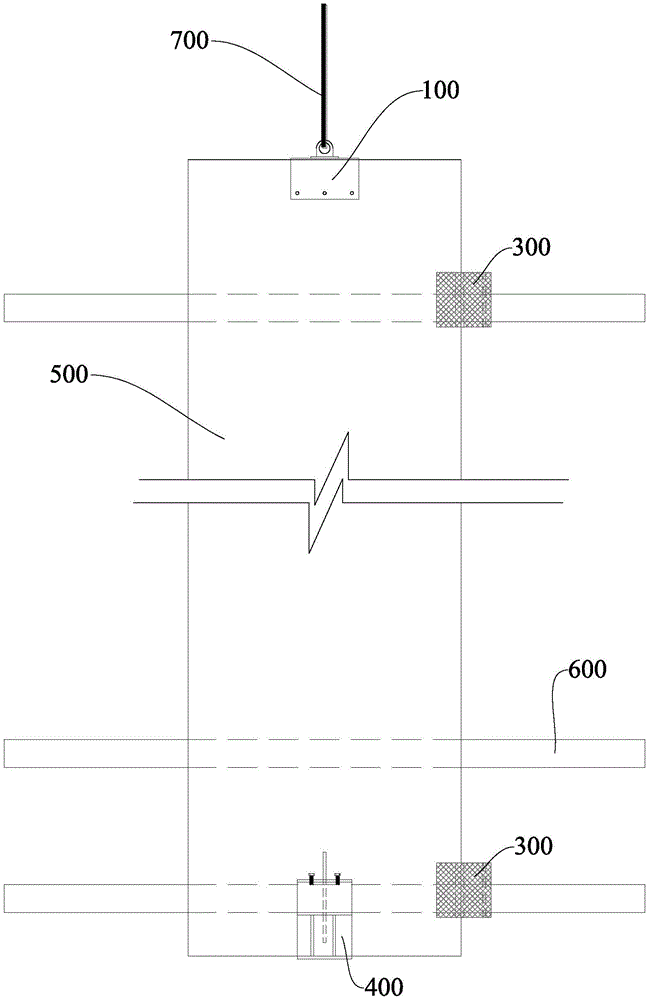

fig. 7 is a schematic front structural view of a wall panel straightening process of a wall panel hoisting tool according to an embodiment of the present invention;

fig. 8 is a schematic side view of the structure of the wall panel straightening process of the hoisting tool for the wall panel according to an embodiment of the present invention.

Wherein the reference numbers are as follows:

100-lifting clamp, 110-clamping body, 111-first clamping groove, 112-first mounting hole, 113-second mounting hole, 120-lifting ring, 200-corner protector, 210-second clamping groove, 220-buckle, 221-filler, 230-binding band, 300-verticality control device, 310-first base, 311-third clamping groove, 320-wide plate, 400-elevation adjusting device, 410-second base, 411-fifth clamping groove, 412-adjusting piece, 413-second reinforcing plate, 430-fixing piece, 431-vertical part, 432-horizontal part, 433-first reinforcing plate, 500-wall panel, 600-purlin and 700-lifting rope.

Detailed Description

To make the objects, advantages and features of the present invention clearer, the hoisting tool of the wall panel of the present invention is further described in detail with reference to fig. 1 to 8. It should be noted that the drawings are simplified and have non-precise ratios, and are only used for convenience and clarity to assist in describing the embodiments of the present invention, and are not used for limiting the implementation of the present invention, so that the present invention has no technical essential significance, and any structural modification, ratio relationship change or size adjustment should still fall within the scope that the technical content disclosed by the present invention can cover without affecting the function and the achievable purpose of the present invention.

It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus. Without further limitation, an element defined by the phrase "comprising an … …" does not exclude the presence of other identical elements in a process, method, article, or apparatus that comprises the element.

In the description of the present invention, unless expressly stated or limited otherwise, the terms "mounted," "connected," and "fixed" are to be construed broadly, e.g., as meaning either a fixed connection, a removable connection, or an integral part; can be mechanically or electrically connected; either directly or indirectly through intervening media, either internally or in any other relationship. The specific meaning of the above terms in the present invention can be understood as appropriate by those of ordinary skill in the art.

The core idea of the utility model is to provide a hoisting tool for the wall panel, so as to realize the hoisting of the vertical wall panel by using the hoisting tool, thereby improving the hoisting efficiency of the wall panel and effectively saving the construction period; the hoisting of the wall panel can be performed before the construction of the guide wall at the bottom of the panel, so that the influence of the guide wall on the construction of the wall panel is avoided, the elevation flatness is controlled, and the construction quality is improved.

In order to realize the thought, the utility model provides a hoisting tool of a wall panel, which comprises a hoisting clamp and a corner protector; the hoisting clamp is used for clamping the top of a wallboard to be hoisted, and comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove used for clamping the wallboard to be hoisted is formed in the clamping main body; the corner protector is used for being installed in the bottom edge of the wallboard to be hoisted, and the corner protector is provided with a second clamping groove which is clamped with the bottom edge of the wallboard to be hoisted.

It should be noted that the shape of the hoisting clamp, the installation position on the wall panel and the shape and size of the corner protector can be set according to the size of the wall panel to be hoisted, and the utility model is not particularly limited; the utility model provides a hoisting tool's construction object includes but not limited to the counterfort, also can be other plate-shaped building materials, like some are distinguished from the hoisting construction of the compound plank of the wallboard concrete material also in the protection scope of the utility model; the lifting ring at the top of the clamping main body is connected with a lifting rope of a crane, and the wall panel is lifted by the crane; the widths of the first clamping groove and the second clamping groove are set according to the size of a wall panel to be hoisted, and the first clamping groove and the second clamping groove are required to be ensured to be clamped into the wall panel to be hoisted; after the wall panel is installed, the bottom guide wall can be constructed, so that the bottom of the wall panel is stressed on the guide wall.

Referring to fig. 1 to 8, fig. 1 schematically illustrates a structure of a lifting clamp of a lifting tool for a wall panel according to an embodiment of the present invention; fig. 2 is a schematic view of a corner protector of a hoisting tool for a wall panel according to an embodiment of the present invention; fig. 3 schematically shows another corner protector of the hoisting tool for a wall panel according to an embodiment of the present invention; fig. 4 schematically shows a structural diagram of a verticality control device of a hoisting tool for a wall panel according to an embodiment of the present invention; fig. 5 is a schematic structural view of an elevation adjustment device of a hoisting tool for a shingle according to an embodiment of the present invention; fig. 6 schematically illustrates a hoisting process of the hoisting tool for a shingle according to an embodiment of the present invention; fig. 7 is a schematic structural diagram of a front side of a wall panel straightening process of a wall panel hoisting tool according to an embodiment of the present invention; fig. 8 schematically shows a schematic side view of the structure of the wall panel straightening process of the hoisting tool for the wall panel according to an embodiment of the present invention.

As shown in fig. 1 to 8, the lifting tool of the wall panel 500 provided in this embodiment includes a lifting clamp 100 and a corner protector 200; the hoisting clamp 100 is used for clamping the top of a shingle 500 to be hoisted, the hoisting clamp 100 comprises a clamping main body 110 and a hoisting ring 120 arranged at the top of the clamping main body 110, and a first clamping groove 111 for clamping the shingle 500 to be hoisted is arranged on the clamping main body 110; the corner protector 200 is used for being installed at the bottom corner of the wall panel 500 to be hoisted, and the corner protector 200 is provided with a second clamping groove 210 which is clamped with the bottom corner of the wall panel 500 to be hoisted. Therefore, the hoisting clamp 100 is installed at the top of the wall panel 500 through the first clamping groove 111, the corner protector 200 is installed at the bottom corner of the wall panel 500 to be hoisted through the second clamping groove 210, and the hoisting ring 120 is connected with the hoisting rope 700 of the crane, so that the wall panel 500 can be hoisted by the crane from the top first, and the corner protector 200 is used as a supporting point, thereby reducing the burden of the crane. The installation of the lifting clamp 100 and the corner protector 200 on the wall panel 500 is facilitated by the provision of the first and second clamping grooves 111 and 210. In the hoisting process, the corner protector 200 can effectively protect the bottom corners of the wall panel 500, and the construction quality is improved. Through the lifting clamp 100 with the corner protector 200 is matched with each other, the lifting implementation process of the wall panel 500 is simple and easy to implement, the lifting efficiency of the wall panel 500 is improved, the construction period is effectively shortened, and meanwhile, the lifting tool is simple in structure and saves the cost.

Preferably, a buckle 220 for clamping the wall panel 500 to be hoisted is arranged in the second clamping groove 210. From this, buckle 220 with the long limit both sides edge of shingle nail 500 matches, can enough block shingle nail 500, can avoid again the bottom of second draw-in groove 210 directly with shingle nail 500's edge direct contact to be favorable to protecting shingle nail 500's marginal structure. It should be noted that the external structure of the second engaging groove 210, that is, the external shape and structure of the corner protector 200, is not specifically limited by the present invention; the concrete structure and the shape of buckle 220 can set up according to the shingle nail 500 both sides edge structure of treating hoist and mount, the utility model discloses it is right buckle 220's concrete structure does not do the injecion.

Preferably, two different buckles 220 are arranged inside the pair of corner protectors 200 provided by this embodiment, the two different buckles 220 are respectively matched with the edge structures on the two sides of the long side of the wall panel 500 to be hoisted, a filler 221 is arranged between the buckle 220 and the groove bottom of the second clamping groove 210, and the filler 221 is preferably made of a flexible material, so that the edge structure of the wall panel 500 can be more effectively buffered. It should be noted that the wall panels 500 are assembled with each other, so the buckles 220 inside the corner protector 200 are divided into male buckles and female buckles to correspond to the assembled structure of the two sides of the wall panels 500.

Preferably, a plurality of first mounting holes 112 are formed in a wall of one side of the first slot 111, and a plurality of first mounting holes 113 corresponding to the first mounting holes 112 are formed in a wall of the other side of the first slot. Therefore, after the lifting clamp 100 is installed on the top of the wall panel 500, holes are formed in the wall panel 500 at positions opposite to the first installation holes 112 and the first installation holes 113, so that the lifting clamp 100 can be conveniently fixed on the wall panel 500 through pin screws, and the installation of the lifting clamp 100 is more reliable.

Preferably, the hoisting tool further comprises a verticality control device 300 for controlling the verticality of the wall panel 500 to be hoisted, and the verticality control device 300 is connected with a purline 600 fixed on the wall surface. From this, through straightness controlling means 300 that hangs down is favorable to guaranteeing that shingle nail 500 can vertically be installed on the wall, straightness controlling means 300 that hangs down fixes on the purlin 600 of wall in advance to alignment instruments such as theodolite carry out the alignment, when installing shingle nail 500's the head plate, push shingle nail 500 into straightness controlling means 300 that hangs down to reach the mesh of control shingle nail 500 straightness that hangs down.

It should be noted that, in this embodiment, often be when starting the head plate, in advance fix on the purlin 600 hang down straightness controlling means 300, later carry out the shingle nail 500 of hoist and mount and generally accomplish the control of straightness that hangs down through the mutual amalgamation of one side with the shingle nail 500 of a preceding hoist and mount, nevertheless hang down straightness's use mode and mounted position, the utility model discloses do not specifically limit, all adopt when hoisting every shingle nail 500 hang down straightness controlling means 300, be in equally the utility model discloses an within the protection scope.

Preferably, the verticality control device 300 includes a first base 310, a third clamping groove 311 for clamping the first purline 600 is formed in the first base 310, a wide plate 320 is arranged on one side, away from the wall surface, of the first base 310, and a fourth clamping groove for clamping the wall panel 500 to be hoisted is formed among the wide plate 320, the first base 310 and the purline 600. From this, through the third draw-in groove 311 can be effectively with the straightness controlling means 300 that hangs down fixes on the purlin 600 of wall, adjusts each straightness controlling means's that hangs down wide board 320 through the theodolite to be on a vertical line, thereby when shingle nail 500 pushes into the fourth draw-in groove, can guarantee that shingle nail 500 is vertical, has controlled the straightness that hangs down of shingle nail 500.

More preferably, in this embodiment the straightness controlling means 300 that hangs down is hollow structure, is formed by connecting four connecting plates, including the long slab of two parallels and with two long slab mutually perpendicular and locate the wide board 320 of long slab one end with locate the short slab of the long slab other end, two all be equipped with a bayonet socket on the long slab, two long slabs combine and pass through the bayonet socket forms third draw-in groove 311. Therefore, the structure of the verticality control device 300 can effectively save materials, and meanwhile, the rigidity of the verticality control device 300 can be guaranteed to meet requirements. It should be noted that, since the main function of the verticality control apparatus 300 is to control the vertical direction of the wall panel 500, and not to fix the wall panel 500 on the wall surface, the rigidity requirement of the verticality control apparatus 300 is not strict, and the structure of the verticality control apparatus 300 can completely meet the requirement; when the wall panel is used, the verticality control device 300 is respectively installed on two purlines 600 of the wall surface in advance, so that the verticality of the wall panel 500 can be effectively controlled.

Preferably, the lifting tool further comprises an elevation adjusting device 400 for adjusting the height of the bottom of the shingle 500 to be lifted, and the elevation adjusting device 400 is connected with a purline 600 fixed on the wall surface. From this, be favorable to controlling the roughness of each shingle 500 bottom through setting up elevation adjusting device 400, improve the quality of construction. In use, the elevation adjustment apparatus 400 is adjusted based on the bottom height of the previous wall panel 500 or a construction line, or is adjusted by using a straightening instrument such as a theodolite.

Preferably, the elevation adjusting device 400 includes a second base 410, the second base 410 is provided with a fifth clamping groove 411 for clamping the purlin 600, the bottom of the second base 410 is connected with a fixing member 430 for fixing the bottom of the shingle 500 to be hoisted, the top of the second base 410 is provided with a plurality of adjusting members 412, and the second base 410 can move up and down relative to the adjusting members 412. Therefore, the elevation adjusting device 400 can be effectively fixed on the purline 600 on the wall surface through the fifth clamping groove 411, and the height of the bottom of each wall panel 500 can be conveniently controlled by moving the elevation adjusting device 400 up and down. Accordingly, the wall panel 500 lifted by the crane is supported by the fixing member 430, and the elevation adjusting means 400 is moved up and down by the adjusting member 412, thereby achieving the purpose of adjusting the height of the bottom of the wall panel 500 and controlling the flatness of the bottom of each wall panel 500. In addition, through setting up elevation adjusting device 400, can also make shingle nail 500 hoist and mount can be prior to the wall construction of leading of wall bottom, avoid leading the influence of wall to shingle nail 500 construction.

Preferably, the elevation adjusting device is fixed on a purline closest to a guide wall to be constructed, so that the construction height of the guide wall and a house body can be conveniently controlled.

Preferably, the fixing member 430 includes a horizontal portion 432 and a vertical portion 431 connected to each other, a top of the vertical portion 431 is connected to a bottom of the second base 410, and a first reinforcing plate 433 is provided on the vertical portion 431. Thus, the horizontal portion 432 can effectively support the wall panel 500, the vertical portion 431 can connect the second base 410 and the horizontal portion 432, and the vertical portion 431 can allow a proper height difference between the bottom of the wall panel 500 and the purlin 600 at the bottom of the wall surface, which is more beneficial for controlling the height of the bottom of the wall panel 500, so that the bottoms of the wall panels 500 are flush with each other.

Preferably, the horizontal portion 432 is a horizontally disposed support plate, the vertical portion 431 is a vertically disposed connection plate, one end of the horizontal portion 432 is vertically connected to one end of the vertical portion 431, and the first reinforcement plate 433 is vertically connected to both the horizontal portion 432 and the vertical portion 431, so that the connection between the horizontal portion 432 and the vertical portion 431 can be enhanced, the rigidity of the fixing member 430 can be effectively enhanced, the fixing member 430 is prevented from being broken, and the reliability of the elevation adjustment apparatus 400 is improved.

It should be noted that any fixing member 430 structure capable of supporting the wall panel 500 and maintaining a certain height is within the protection scope of the present invention; the first reinforcing plate 433 is provided only to enhance the connection between the horizontal portion 432 and the vertical portion 431 and to reinforce the rigidity of the fixing member 430, and it is within the protection scope of the present invention to provide no first reinforcing plate 433 or provide other structures to increase the rigidity of the fixing member 430.

Preferably, a second reinforcing plate 413 is disposed on the second base 410, and the second reinforcing plate 413 is disposed around the second base 410. Accordingly, the first reinforcing plate 433 and the second reinforcing plate 413 can effectively reinforce the rigidity of the vertical portion 431 and the second base 410, prevent the vertical portion 431 and the second base 410 from being broken, and improve the reliability of the altitude adjusting apparatus 400.

Preferably, the second reinforcing plate 413 surrounds each groove wall outside of the fifth clamping groove 411, the second reinforcing plate 413 is perpendicular to each groove wall outside of the fifth clamping groove 411 and is located at a center line position outside each groove wall of the fifth clamping groove 411, and therefore, the second reinforcing plate 413 can effectively reinforce the rigidity of the second base 410, avoid the second base 410 or the groove wall of the second clamping groove 210 from being broken, and improve the reliability of the elevation adjusting device 400.

It should be noted that the second reinforcing plate 413 is only provided to reinforce the rigidity of the second base 410, and it is within the scope of the present invention to provide no second reinforcing plate 413 or provide other structures to increase the rigidity of the second base 410.

Preferably, when the corner protector 200 is installed at the corner of the wall panel 500 to be hoisted, the corner protector 200 protrudes a part of the bottom of the wall panel 500, as shown in fig. 6, so that the corner protector 200 can be partially left, and the bottom corner of the wall panel 500 is effectively prevented from contacting with the bottom surface, so as to protect the bottom corner of the wall panel 500.

Preferably, the corner protector 200 is fixed at the bottom of the wall panel 500 to be hoisted by a binding band 230, as shown in fig. 6, so that the corner protector 200 is fixed by the binding band 230, the operation is simple and easy, the tightness of the binding band 230 is adjustable, the corner protector 200 is more convenient to disassemble, and the tensioned binding band 230 ensures the reliability of the installation of the corner protector 200. It should be noted that any mounting method capable of mounting the corner protector 200 on the wall panel 500 is within the scope of the present invention.

To sum up, compare with prior art, the utility model provides a wainscot's lifting device has following advantage:

(1) the utility model provides a hoisting tool of a wall panel, which comprises a hoisting clamp and a corner protector; the hoisting clamp comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove for clamping the wall panel to be hoisted is formed in the clamping main body; and the corner protector is provided with a second clamping groove which is clamped with the bottom corner of the wall panel to be hoisted. Therefore, the hoisting clamp is arranged at the top of the wall panel through the first clamping groove, the corner protector is arranged at the corner of the bottom of the wall panel to be hoisted through the second clamping groove, and the hoisting ring is connected with the crane, so that the crane can hoist the top of the wall panel at first, and the burden of the crane is reduced. Through the setting of first draw-in groove and second draw-in groove be convenient for with stone tongs and angle bead ware are installed on the shingle nail, more are favorable to the hoist and mount process of shingle nail. In the hoisting process, the corner protector can effectively protect the corner at the bottom of the wall panel, and the construction quality is improved. Through the stone tongs with the corner protector cooperatees for the hoist and mount implementation process of shingle nail is simple and easy, has promoted the hoist and mount efficiency of shingle nail, has effectually saved the time limit for a project, simultaneously the lifting device simple structure has practiced thrift the cost.

(2) The utility model provides a lifting device of shingle nail passes through be equipped with in the second draw-in groove and be used for the joint treat the buckle of hoist and mount shingle nail. From this, the buckle with the long limit both sides edge of shingle nail matches, can enough joint and live the shingle nail, can avoid again the bottom of second draw-in groove directly with the edge direct contact of shingle nail to be favorable to protecting the edge structure of shingle nail.

(3) The utility model provides a wainscot's lifting device passes through be equipped with a plurality of first mounting holes on the cell wall of one side of first draw-in groove, be equipped with on the cell wall of opposite side a plurality of with first mounting hole corresponds the second mounting hole that sets up. Therefore, after the hoisting clamp is installed at the top of the wall panel, holes are formed in the wall panel at the positions opposite to the first installation holes and the second installation holes, the hoisting clamp is conveniently fixed on the wall panel through pin shaft screws, and the hoisting clamp is more reliable to install.

(4) The utility model provides a lifting device is still including being used for control treat the straightness's that hangs down of hoist and mount shingle nail straightness controlling means that hangs down, the straightness controlling means that hangs down links to each other with the purlin of fixing on the wall. From this, through straightness controlling means that hangs down is favorable to guaranteeing that the shingle nail can vertically install on the wall, straightness controlling means that hangs down fixes in advance on the purlin of wall to with alignment instruments such as theodolite alignment instrument, thereby reach the mesh of control shingle nail straightness that hangs down. The verticality control device comprises a first base, wherein a third clamping groove used for clamping the first purline is formed in the first base, and therefore the verticality control device can be effectively fixed on the purline of the wall surface through the third clamping groove. Through keep away from first base one side of wall is equipped with the wide slab, the wide slab first base with form between the purlin and be used for the joint treat the fourth draw-in groove of hoist and mount shingle nail, from this, through alignment instruments such as theodolite will the wide slab is transferred to vertical, thereby works as when shingle nail pushes the fourth draw-in groove, can guarantee that shingle nail is vertical, has controlled the straightness that hangs down of shingle nail.

(5) The utility model provides a lifting device is still including being used for adjusting treat the elevation adjusting device of the height that the bottom of hoist and mount shingle nail located, elevation adjusting device links to each other with the purlin of fixing on the wall. From this, be favorable to controlling the roughness of each shingle nail bottom through setting up elevation adjusting device, improve the quality of construction. The elevation adjusting device comprises a second base, wherein a fifth clamping groove used for clamping the purlins is formed in the second base, and therefore the elevation adjusting device can be effectively fixed to the purlins on the wall surface through the fifth clamping groove, and the elevation adjusting device can conveniently control the height of the bottom of each wall panel through up and down movement. In addition, because the bottom of second base is connected with and is used for fixing the mounting of the bottom of waiting to hoist shingle nail, the top of second base is equipped with a plurality of regulating parts, the second base can for the regulating part reciprocates. Therefore, the fixing piece can support the wall panel lifted by the crane, and the height of the bottom of the wall panel is adjusted by moving the adjusting piece up and down, so that the purposes of adjusting the height of the bottom of the wall panel and controlling the flatness of the bottom of each wall panel are achieved. In addition, through setting up elevation adjusting device for the wall panel hoist and mount can be in advance of the wall construction of leading of wall bottom, avoid leading the influence of wall to the wall panel construction.

(6) The fixing piece comprises a horizontal part and a vertical part which are connected, and the top of the vertical part is connected with the bottom of the second base, so that the horizontal part can effectively support the wall panel, the vertical part can play a role in connecting the second base with the horizontal part, and the vertical part enables a proper height difference to be reserved between the bottom of the wall panel and a purline at the bottom of a wall surface to be installed, and is more beneficial to controlling the height of the bottom of the wall panel, and the bottoms of all the wall panels are flush with each other. Through be equipped with first reinforcing plate in the perpendicular portion be equipped with the second reinforcing plate on the second base, the second reinforcing plate centers on the second base sets up, from this, first reinforcing plate with the second reinforcing plate can be strengthened effectively the perpendicular portion with the rigidity of second base avoids the perpendicular portion with the second base breaks, has improved elevation adjusting device's reliability.

Finally, it should be noted that the above embodiments are only used for illustrating the technical solutions of the present invention and not for limiting, and although the present invention has been described in detail with reference to the preferred embodiments, it should be understood by those skilled in the art that the technical solutions of the present invention can be modified or replaced with equivalents without departing from the spirit and scope of the technical solutions of the present invention.

Claims (9)

1. A hoisting tool for a wall panel is characterized by comprising a hoisting clamp and a corner protector;

the hoisting clamp is used for clamping the top of a wallboard to be hoisted, and comprises a clamping main body and a hoisting ring arranged at the top of the clamping main body, and a first clamping groove used for clamping the wallboard to be hoisted is formed in the clamping main body;

the corner protector is used for being installed in the bottom edge of the wallboard to be hoisted, and the corner protector is provided with a second clamping groove which is clamped with the bottom edge of the wallboard to be hoisted.

2. The wall panel hoisting tool of claim 1, wherein a fastener for clamping the wall panel to be hoisted is arranged in the second clamping groove.

3. The wall panel lifting device according to claim 1, wherein a plurality of first mounting holes are formed in a wall of one side of the first engaging groove, and a plurality of second mounting holes corresponding to the first mounting holes are formed in a wall of the other side of the first engaging groove.

4. The wall panel hoisting tool of claim 1, further comprising a verticality control device for controlling the verticality of the wall panel to be hoisted, wherein the verticality control device is connected with a purline fixed on the wall surface.

5. The wall panel hoisting tool of claim 4, wherein the verticality control device comprises a first base, a third clamping groove for clamping the purlin is formed in the first base, a wide plate is arranged on one side, away from the wall surface, of the first base, and a fourth clamping groove for clamping the wall panel to be hoisted is formed among the wide plate, the first base and the purlin.

6. The wall panel lifting device of claim 1, further comprising an elevation adjusting device for adjusting the height of the bottom of the wall panel to be lifted, wherein the elevation adjusting device is connected with a purline fixed on the wall surface.

7. The wall panel hoisting tool of claim 6, wherein the elevation adjusting device comprises a second base, a fifth clamping groove for clamping the purline is formed in the second base, a fixing piece for fixing the bottom of the wall panel to be hoisted is connected to the bottom of the second base, a plurality of adjusting pieces are arranged at the top of the second base, and the second base can move up and down relative to the adjusting pieces.

8. A wall panel lifting apparatus according to claim 7, wherein the fixing member includes a horizontal portion and a vertical portion connected to each other, a top portion of the vertical portion being connected to a bottom portion of the second base, and the vertical portion being provided with a first reinforcing plate.

9. A wall panel lifting apparatus according to claim 7, wherein a second reinforcing plate is provided on the second base, the second reinforcing plate being provided around the second base.
