Abstract
本实用新型公开的一种金属制品的陈列架，包括支撑架、双向丝杠、旋转电机、连接块、正面陈列架和侧面陈列架，支撑架呈侧面开口中空腔体设置，双向丝杠设于支撑架内部上壁与内部下壁之间，旋转电机设于支撑架上壁中心处，连接块对称设于双向丝杠上，正面陈列架设于连接块侧壁，侧面陈列架设于支撑架外侧壁，正面陈列架包括上放置台、下放置台、转动放置盘、支撑柱和陈列挂钩。本实用新型属于陈列架设备技术领域，具体是一种陈列方式多样，充分展示金属制品，且采用双向丝杠自动调整金属制品之间的展示距离，结构新颖多样，能够满足多种金属制品的陈列展示，且有固定孔将陈列架牢牢固定在展示的墙壁上，以免发生侧翻的金属制品的陈列架。
The utility model discloses a display rack for metal products, comprising a support rack, a bidirectional lead screw, a rotating motor, a connecting block, a front display rack and a side display rack. Between the inner upper wall and the inner lower wall of the support frame, the rotating motor is arranged at the center of the upper wall of the support frame, the connecting block is symmetrically arranged on the two-way screw, the front display is erected on the side wall of the connecting block, and the side display is erected on the outer side wall of the support frame. , The front display rack includes an upper placing table, a lower placing table, a rotating placing plate, a supporting column and a display hook. The utility model belongs to the technical field of display rack equipment, in particular to a variety of display modes, fully displaying metal products, and using a bidirectional screw to automatically adjust the display distance between the metal products, the structure is novel and diverse, and can meet the display of various metal products. Display, and there are fixing holes to firmly fix the display rack on the display wall, so as to prevent the display rack of metal products from rolling over.
Description
Technical Field
The utility model belongs to the technical field of the display rack equipment, especially, relate to a metal product's display rack.
Background
The display rack is commonly used in a physical store or a hall of a metal product company, is commonly used for placing commodities, has good propaganda effect and storage function, is also commonly made of wood or plastic, has single display mode, cannot flexibly adjust the inclination height of the wall-mounted display rack, has relatively heavy quality for the metal products, is difficult to take down when needing to take down, is easy to drop the commodities, causes certain economic loss, and is easy to skew when taking out the commodities on the display rack, so that the commodities are easy to drop.
Disclosure of Invention
To the above situation, for overcoming prior art's defect, the utility model provides a metal product's display rack, the display mode is various, fully demonstrates metal product, and adopts the show distance between the two-way lead screw automatic adjustment metal product, and novel structure is various, can satisfy multiple metal product's display show, and has the fixed orifices to firmly fix the display rack on the wall of show to avoid taking place to turn on one's side.
The utility model adopts the technical scheme as follows: a display rack for metal products comprises a support frame, a bidirectional screw rod, a rotary motor, a connecting block, a front display rack and a side display rack, wherein the support frame is arranged in a cavity with an opening on the side surface, the bidirectional screw rod is arranged between the upper wall and the lower wall in the support frame, the rotary motor is arranged at the center of the upper wall of the support frame, the connecting block is symmetrically arranged on the bidirectional screw rod, the front display rack is arranged on the side wall of the connecting block, the side display rack is arranged on the outer side wall of the support frame, the front display rack comprises an upper placing table, a lower placing table, a rotary placing disc, a supporting column and display hooks, the upper placing table is arranged on the upper part of the side wall of the connecting block, the lower placing table is arranged on the lower part of the side wall of the connecting block, the supporting columns are symmetrically arranged between the upper placing table and the lower placing table in pairs, one end of the rotary placing table is in an oval shape, and a rotary through hole is arranged on one side of the other end of the rotary placing table, the display rack comprises a rotating placing table, a display sliding groove, a slope supporting plate and a display sliding groove, wherein the rotating placing table is symmetrically arranged between the upper placing table and the lower placing table, the rotating placing table is connected with the upper placing table and the lower placing table through supporting columns, two pairs of display hooks are symmetrically arranged at the lower part of the lower placing table, the side display rack comprises the display sliding block, the slope supporting plate and the display sliding groove, one side of the display sliding groove is provided with the opening in a cross shape, the display sliding groove is arranged on the outer side wall of a supporting frame, the display sliding block is arranged in the cross shape, the display sliding block is arranged in the display sliding groove, and the slope supporting plate is arranged on the display sliding block.
Furthermore, the upper end of the bidirectional screw penetrates through the upper wall of the support frame to be connected with the rotating motor, and the lower end of the bidirectional screw is connected with the support frame through a bearing, so that the rotation of the bidirectional screw is conveniently controlled.
Further, on place bench wall and be equipped with standing groove one, equidistant magnet strip that is equipped with in the standing groove one, be equipped with the foam-rubber cushion between the magnet strip in the standing groove one, prevent that metal product from placing the bench and dropping, can adsorb in the standing groove one to iron product, prevent to drop.
Further, a second placing groove is formed in the upper wall of the rotary placing disc, a spongy cushion is arranged in the second placing groove, and the metal product falls off from the upper placing table.
Furthermore, a motor switch is arranged on the upper wall of the support frame and close to the rotating motor, so that the forward and reverse rotation of the rotating motor can be conveniently controlled.
Furthermore, the outer side wall of one side, away from the opening, of the support frame is provided with fixing mounting holes in a pairwise symmetry mode, the display frame is fixed on the wall surface, and the display frame is placed to turn on one side.
After the structure is adopted, the utility model discloses beneficial effect as follows: the utility model relates to a metal product's show shelf, place metal product at standing groove one, standing groove two and tilt support board, the display couple of lower standing table lower part, the metal product that can hang, can satisfy the display of placing of different kind of metal product, if the metal product of magnetic material can place on standing groove one, the rotating electrical machines rotates, drive connecting block reciprocating motion on two-way lead screw, this device is two-way lead screw, the screw thread opposite direction of first half and latter half lead screw, positive show shelf places two upper and lower parts at two-way lead screw respectively, two positive show shelves are reciprocating motion opposite in direction on the lead screw, can adjust the distance between two positive show shelves with this, it can rotate round the support column to rotate to place the dish, the metal product of show, side show shelf is including the display slider, The inclined supporting plates and the display sliding grooves are arranged, the display sliding blocks drive the inclined supporting plates to slide in the display sliding grooves, the distance between the two inclined supporting plates is adjusted, the placement of metal products with different sizes is met, the mounting and fixing holes are formed in the back of the display rack, the display rack can be fixed, and the display rack is prevented from being turned on one side.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

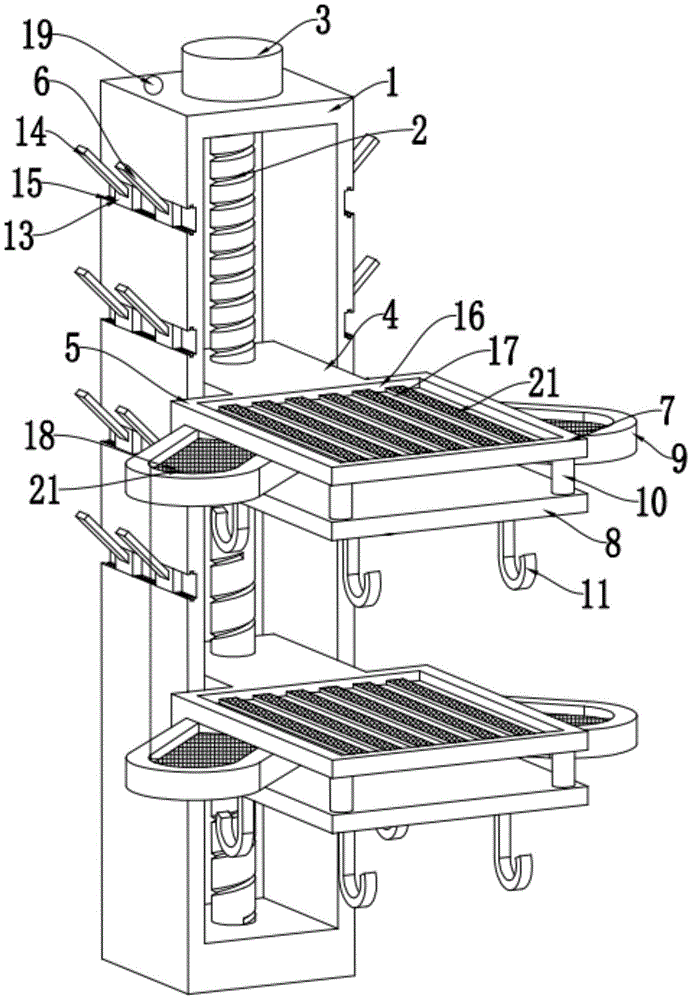

FIG. 1 is a schematic view of the overall structure of a display rack for metal products according to the present invention;
fig. 2 is a front view of a display rack for metal products according to the present invention.
In the drawings: 1. the display device comprises a support frame, 2, a bidirectional screw rod, 3, a rotating motor, 4, a connecting block, 5, a front display rack, 6, a side display rack, 7, an upper placing table, 8, a lower placing table, 9, a rotating placing disc, 10, a support column, 11, a display hook, 12, a rotating through hole, 13, a display sliding block, 14, an inclined support plate, 15, a display sliding groove, 16, a first placing groove, 17, a magnet strip, 18, a second placing groove, 19, a motor switch, 20, a fixed mounting hole, 21 and a sponge mat.
Detailed Description
The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
It is noted that, herein, relational terms such as first and second, and the like may be used solely to distinguish one entity or action from another entity or action without necessarily requiring or implying any actual such relationship or order between such entities or actions. Also, the terms "comprises," "comprising," or any other variation thereof, are intended to cover a non-exclusive inclusion, such that a process, method, article, or apparatus that comprises a list of elements does not include only those elements but may include other elements not expressly listed or inherent to such process, method, article, or apparatus.
As shown in fig. 1-2, a display rack for metal products comprises a support frame 1, a bidirectional screw 2, a rotary motor 3, a connecting block 4, a front display rack 5 and a side display rack 6, wherein the support frame 1 is arranged in a cavity with an opening on the side, the bidirectional screw 2 is arranged between the upper wall and the lower wall inside the support frame 1, the rotary motor 3 is arranged at the center of the upper wall of the support frame 1, the connecting block 4 is symmetrically arranged on the bidirectional screw 2, the front display rack 5 is arranged on the side wall of the connecting block 4, the side display rack 6 is arranged on the outer side wall of the support frame 1, the front display rack 5 comprises an upper placing platform 7, a lower placing platform 8, a rotary placing disk 9, a support column 10 and a display hook 11, the upper placing platform 7 is arranged on the upper part of the side wall of the connecting block 4, the lower placing platform 8 is arranged on the lower part of the side wall of the connecting block 4, the support columns 10 are arranged between the upper placing platform 7 and the lower placing platform 8 in a pairwise symmetry manner, the display rack is characterized in that one end of the rotary placing table is in an oval shape, a rotary through hole 12 is formed in one side of the other end of the rotary placing table, the rotary placing table is symmetrically arranged between the upper placing table 7 and the lower placing table 8, the rotary placing table is connected with the upper placing table 7 and the lower placing table 8 through supporting columns 10, two pairs of display hooks 11 are symmetrically arranged on the lower portion of the lower placing table 8, the side display rack 6 comprises display sliders 13, inclined supporting plates 14 and display sliding grooves 15, one side of each display sliding groove 15 is provided with an opening in a cross shape, the display sliding grooves 15 are formed in the outer side wall of the supporting frame 1, the display sliders 13 are arranged in the cross shape, the display sliders 13 are arranged in the display sliding grooves 15, and the inclined supporting plates 14 are arranged on the display sliders 13.
Wherein, the upper end of the bidirectional screw 2 penetrates through the upper wall of the support frame 1 to be connected with the rotating motor 3, the lower end of the bidirectional screw 2 is connected with the support frame 1 through a bearing, the rotation of the bidirectional screw 2 is convenient to control, the upper wall of the upper placing table 7 is provided with a placing groove I16, magnet strips 17 are arranged in the placing groove I at equal intervals, sponge pads 21 are arranged between the magnet strips 17 in the placing groove I to prevent metal products from falling off the upper placing table 7, the iron products can be adsorbed in the placing groove I16 to prevent the metal products from falling off, the upper wall of the rotary placing disc 9 is provided with a placing groove II 18, the sponge pads 21 are arranged in the placing groove II 18, the metal products fall off the upper placing table 7, the upper wall of the support frame 1 is provided with a motor switch 19 near the rotating motor 3 to facilitate the control of the positive and negative rotation of the rotating motor 3, the outer side wall of the support frame 1, which is far away from the opening, is provided with fixing mounting holes 20 in pairwise symmetry, the display rack is fixed on the wall surface, and the display rack is placed to turn on one side.
When the device is used, the display shelves are placed on corresponding positions, the display shelves are fixed on the wall surface through the fixed mounting holes 20, metal products are placed on the first placing groove 16, the second placing groove 18 and the inclined support plate 14, if the metal products made of magnetic materials can be placed on the first placing groove 16, the motor switch 19 is turned on, the rotating motor 3 rotates to drive the connecting block 4 to reciprocate on the bidirectional screw rod 2, the device is the bidirectional screw rod 2, the thread directions of the upper half part and the lower half part of the screw rod are opposite, the front display shelves 5 are respectively placed on the upper part and the lower part of the bidirectional screw rod 2, the two front display shelves 5 do reciprocating motions on the screw rod in opposite directions, the distance between the two front display shelves 5 can be adjusted, the display hooks 11 at the lower part of the lower placing table 8 can be used for hanging the metal products, the placing disc 9 can rotate around the support columns 10, the rotary placing plate 9 can be rotated out to display the displayed metal products, the side display rack 6 drives the inclined support plates 14 for the display sliding blocks 13 to slide in the display sliding grooves 15, and the distance between the two inclined support plates 14 is adjusted, so that the metal products with different sizes can be placed.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents. In summary, those skilled in the art should understand that they should not be limited to the embodiments described above, and that they can design the similar structure and embodiments without departing from the spirit of the invention.
