Abstract
The utility model discloses an efficient mortar mixer, including stirring the storehouse, stirring storehouse top one side-mounting oblique feed inlet, vertical feed inlet has been installed to the opposite side, stirring storehouse top middle section top has set up the motor storehouse, fixed mounting has indulged agitator motor in the motor storehouse, the (mixing) shaft has been installed to the output of indulging agitator motor, the oblique stirring rod has been installed to the both sides of (mixing) shaft, fixed mounting has indulged the stirring structure on the (mixing) shaft, the stirring leaf has been installed to the bottom of indulging the (mixing) shaft, the bottom in stirring storehouse has set up the discharge gate, and the discharge gate is located the below of stirring leaf, discharge gate and both sides stirring storehouse lower wall fixed connection, stirring storehouse outside has set up three base. The (mixing) shaft, stirring rod, stirring leaf combine to one side, and the stirring rod helps supplementary raw materials feeding and can carry out certain stirring from taking spiral stirring leaf to one side, and the epaxial vertical stirring structure of stirring mixes the secondary stirring to the raw materials, and the stirring leaf that has the bottom at last stirs, stirs more evenly abundant like this to the system is more stable.
Description
Technical Field
The utility model relates to a mixer technical field specifically is an efficient mortar mixer.
Background
A stirrer is a construction engineering machine and is mainly used for stirring building materials such as cement, sand and stone, various dry-mixed mortar and the like. This is a machine in which a shaft with blades rotates in a cylinder or tank to mix and stir a plurality of materials into a mixture or a suitable consistency. The stirring machines are divided into various types, such as a forced stirring machine, a single horizontal shaft stirring machine, a double horizontal shaft stirring machine and the like.
The existing mortar stirrer for decoration sites generally adopts a single group of blades for stirring, has a simple structure, adopts a single feeding mode for direct mixing, and is easy to cause uneven mixing and hardening of the mixed materials.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide an efficient mortar mixer to solve among the above-mentioned background art and repair the mortar mixer of on-the-spot usefulness and generally stir with singly organizing the blade, simple structure, the direct compounding of feeding mode unitary very easily causes the compounding uneven, the problem that the compounding hardens.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides an efficient mortar stirrer, includes the stirring storehouse, stirring storehouse top oblique feed inlet of a side-mounting, vertical feed inlet has been installed to the opposite side, stirring storehouse top middle section top set up the motor storehouse, motor storehouse internal fixation has indulged agitator motor, the output of indulging agitator motor install the (mixing) shaft, the oblique stirring rod has been installed to the both sides of (mixing) shaft, the (mixing) shaft on fixed mounting indulge the stirring structure, the stirring leaf has been installed to the bottom of (mixing) shaft, the bottom in stirring storehouse set up the discharge gate to the discharge gate is located the below of stirring leaf, discharge gate and both sides stirring storehouse lower wall fixed connection, the stirring storehouse outside has set up three base.
Preferably, the top end of the oblique stirring rod is connected with the output end of an oblique stirring motor, an oblique stirring motor bin is arranged in the stirring bin, the oblique stirring motor is fixed in the oblique stirring motor bin, and a spiral stirring blade is arranged on the oblique stirring rod.
Preferably, the longitudinal stirring structures are fixed on the stirring shaft, four groups of longitudinal stirring structures are provided, each group of longitudinal stirring structures is provided with six stirring rods, and the stirring rods are fixedly arranged on the stirring shaft.
Preferably, the stirring bin outside bulkhead on fixedly mounted control panel, the observation window has been installed to control panel's below, the observation window is embedded in on the stirring bin bulkhead.
Preferably, the base is triangular, the base and the outer wall of the stirring bin are fixed through a bolt structure, and a rubber pad is sleeved at the bottom of the base.
Preferably, a plurality of groups of springs are arranged in the discharge port, one end of each group of springs is fixed on the inner wall of the stirring bin, and the other side of each group of springs is connected with an auxiliary discharge plate on the inner side of the discharge port.
Compared with the prior art, the beneficial effects of the utility model are that: this efficient mortar mixer has adopted oblique feed inlet and vertical feed inlet simultaneous feed, and the effect of buffering can be played to the relatively great raw materials of oblique feed inlet feeding density, and vertical feed inlet advances the less raw materials of density, helps raising the efficiency. Adopt the (mixing) shaft, the stirring rod to one side, the stirring leaf combines, the stirring rod to one side helps supplementary raw materials feeding and can carry out certain stirring from taking spiral stirring leaf, the epaxial stirring structure of indulging mixes the secondary stirring to the raw materials, there is the stirring leaf of bottom to stir at last, stir more evenly abundant like this, and the system is more stable, the discharge gate sets up the size that multiunit spring helps adjusting the discharge gate, assist the ejection of compact, the device simple structure, high work efficiency, effectively reduce manufacturing cost.
Drawings

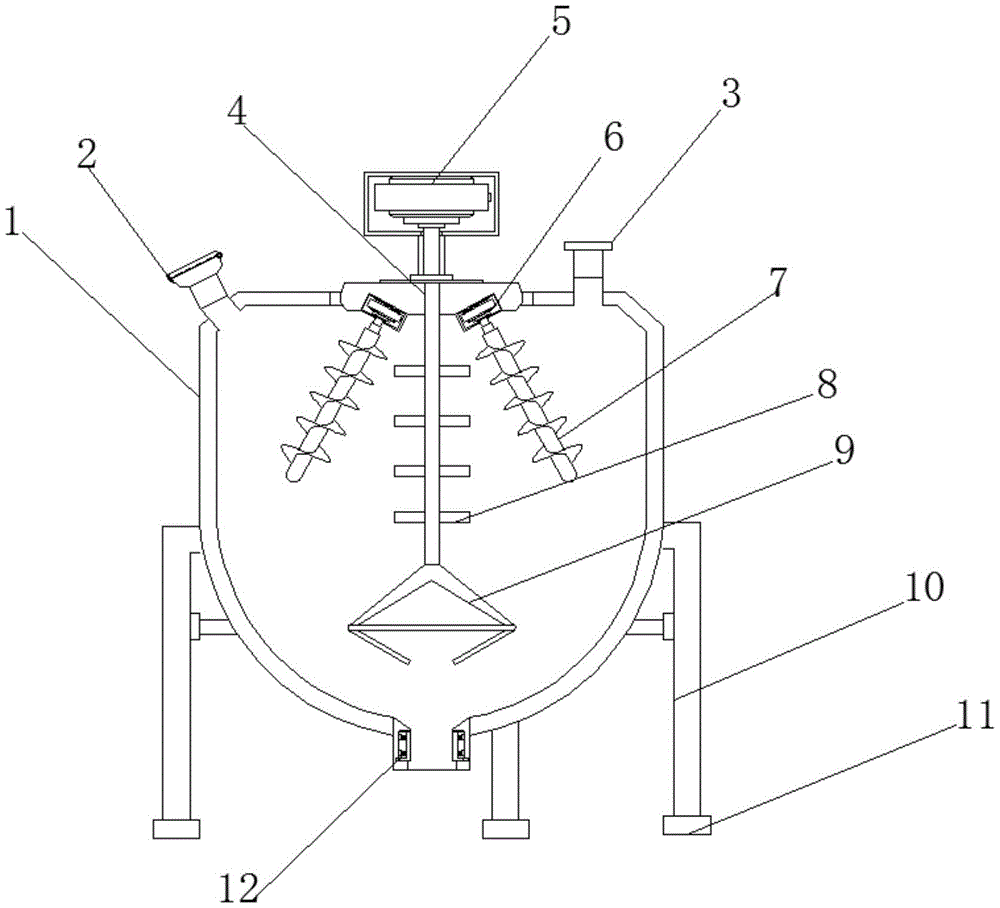

FIG. 1 is a schematic front sectional view of the present invention;
FIG. 2 is a schematic view of the overall structure of the present invention;
fig. 3 is a schematic view of the longitudinal stirring structure of the present invention.
In the figure: 1. a stirring bin; 2. an inclined feed inlet; 3. a vertical feed inlet; 4. a stirring shaft; 5. a longitudinal stirring motor; 6. an inclined stirring motor; 7. an inclined stirring rod; 8. a longitudinal stirring structure; 9. stirring blades; 10. a base; 11. a rubber pad; 12. a discharge port; 13. a motor compartment; 14. an observation window; 15. a control panel; 16; a stirring rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, the present invention provides a technical solution: the utility model provides an efficient mortar mixer, including stirring storehouse 1, 1 top side-mounting in stirring storehouse feeds inlet 2 to one side, vertical feed inlet 3 has been installed to the opposite side, 1 top middle section top in stirring storehouse has set up motor storehouse 13, agitator motor 5 has been indulged to fixed mounting in motor storehouse 13, (mixing) shaft 4 has been installed to the output of indulging agitator motor 5, oblique stirring rod 7 has been installed to the both sides of (mixing) shaft 4, fixed mounting has indulged stirring structure 8 on the (mixing) shaft 4, stirring leaf 9 has been installed to the bottom of (mixing) shaft 4, the bottom in stirring storehouse 1 has set up discharge gate 12, and discharge gate 12 is located stirring leaf 9's below and 1 lower wall fixed connection in both sides stirring storehouse, stirring storehouse 1 outside has set up three base 10.
The output of stirring motor 6 to one side has been connected on 7 tops of stirring rod to one side, has set up the stirring motor storehouse to one side in stirring storehouse 1, and stirring motor 6 is fixed in the stirring motor storehouse to one side, is provided with spiral stirring leaf on 7 stirring rods to one side. The spiral stirring blades on the inclined stirring rod 7 help to assist feeding, and the raw materials are initially stirred, so that the time for subsequent stirring is reduced.
The longitudinal stirring structures 8 are fixed on the stirring shaft 4, four groups of longitudinal stirring structures 8 are provided, each group of longitudinal stirring structures 8 is provided with six stirring rods 16, and the stirring rods 16 are fixedly arranged on the stirring shaft 4. The vertical stirring structure 8 is provided with a plurality of stirring rods 16 which are helpful for more complete stirring and more uniform mixing.
The stirring bin 1 is fixedly provided with a control panel 15 on the outer bin wall, an observation window 14 is arranged below the control panel 15, and the observation window 14 is embedded in the bin wall of the stirring bin 1. The observation window 14 is used for observing the condition in the bin 14 in real time, and the control panel 15 is connected with all the electric elements, so that the operation and the control are convenient.
A plurality of groups of springs are arranged in the discharge port 12, one end of each group of springs is fixed on the inner wall of the stirring bin 1, and the other side of each group of springs is connected with an auxiliary discharge plate on the inner side of the discharge port 12. Place the size that helps adjusting the discharge gate in the spring, can accelerate discharging efficiency when the load is big, improve production work efficiency.
The working principle is as follows: according to the drawings of fig. 1 and fig. 2, when the high-efficiency mortar mixer is used, a power supply is turned on, a longitudinal stirring motor 5 and an oblique stirring motor 6 inside a stirring bin 1 are started through a control panel 15, the oblique stirring rod 6 and a stirring shaft 4 work, then, an oblique feeding hole 2 and a vertical feeding hole 3 are opened, raw materials with high density enter from the oblique feeding hole 2, raw materials with low density enter from the vertical feeding hole 3, the oblique stirring rod 7 is transported and stirred, then, a longitudinal stirring structure 8 on the stirring shaft 4 can stir the raw materials for the second time, and finally, the raw materials reach a bottom stirring blade 9 to stir the raw materials, the stirring condition can be observed from an observation window 14 in the stirring process, real-time adjustment is facilitated, and finally, unloading processing is performed from a discharging hole 12.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. An efficient mortar mixer, includes stirring storehouse (1), its characterized in that: stirring storehouse (1) top one side-mounting oblique feed inlet (2), vertical feed inlet (3) have been installed to the opposite side, stirring storehouse (1) top middle section top set up motor storehouse (13), motor storehouse (13) internal fixation has indulged agitator motor (5), the output of indulging agitator motor (5) install (mixing) shaft (4), oblique stirring rod (7) have been installed to the both sides of (mixing) shaft (4), (mixing) shaft (4) on fixed mounting indulge stirring structure (8), stirring leaf (9) have been installed to the bottom of (mixing) shaft (4), the bottom in stirring storehouse (1) set up discharge gate (12) to discharge gate (12) are located the below of stirring leaf (9), discharge gate (12) and both sides stirring storehouse (1) lower wall fixed connection, stirring storehouse (1) outside has set up three base (10).
2. A high efficiency mortar mixer according to claim 1 wherein: the output of stirring motor (6) has been connected to one side stirring rod (7) top, set up the stirring motor storehouse to one side in stirring storehouse (1), in stirring motor (6) are fixed in the stirring motor storehouse to one side, be provided with spiral stirring leaf on stirring rod (7) to one side.
3. A high efficiency mortar mixer according to claim 1 wherein: indulge stirring structure (8) fix on (mixing) shaft (4), four groups total indulge stirring structure (8) to every group indulges stirring structure (8) and is equipped with six puddlers (16), puddler (16) fixed mounting is on (mixing) shaft (4).
4. A high efficiency mortar mixer according to claim 1 wherein: stirring storehouse (1) outside bulkhead on fixed mounting control panel (15), observation window (14) have been installed to the below of control panel (15), observation window (14) are embedded on stirring storehouse (1) bulkhead.
5. A high efficiency mortar mixer according to claim 1 wherein: base (10) present triangle-shaped, base (10) pass through bolted construction with stirring storehouse (1) outer wall and fix, base (10) bottom cover has rubber pad (11).
6. A high efficiency mortar mixer according to claim 1 wherein: the discharge port (12) is internally provided with a plurality of groups of springs, one end of each group of springs is fixed on the inner wall of the stirring bin (1), and the other side of each group of springs is connected with an auxiliary discharge plate on the inner side of the discharge port (12).
