Abstract
The utility model discloses a support is inhaled to portable magnetism, including first backing sheet and second backing sheet, first backing sheet with the upper end of second backing sheet is connected with a connecting piece, the second backing sheet is being connected with a third backing sheet near the middle part position of lower extreme, first backing sheet is equipped with round interval distribution's draw-in groove near the position of upper end, the draw-in groove inside callipers is equipped with magnet, the outside of second backing sheet is equipped with the card bag, first backing sheet with the second backing sheet can be followed the rotatory V-arrangement that expandes of connecting sheet, this moment, the expansion end of third backing sheet support in the inboard of first backing sheet. The utility model discloses a support is inhaled to portable magnetism has horizontal or vertical support cell-phone concurrently and carries the card function, and is small, and the adsorbability is carried on the cell-phone, also is convenient for install and dismantle.
Description
Technical Field
The utility model discloses a support is inhaled to portable magnetism belongs to the cell phone stand field.
Background
With the continuous progress of human science and technology, mobile phones are becoming essential tools in people's life, and have a plurality of functions such as communication, payment and entertainment. With the popularization of mobile phones, more and more mobile phone derivatives are demanded by the market, for example, a mobile phone holder is one of the mobile phone derivatives. Cell phone holders are commonly used for the purpose of supporting the cell phone while the user is watching video using the cell phone. The mobile phone support in the current market has single function and cannot meet the requirements of portability, handheld function and upright business office at the same time; in addition, most of the existing mobile phone supports are large in size and inconvenient to carry when people go out daily.
SUMMERY OF THE UTILITY MODEL
The utility model provides a support is inhaled to portable magnetism has horizontal or vertical support cell-phone concurrently and carries the card function, and is small, and the adsorbability is carried on the cell-phone, also is convenient for install and dismantle.
An aspect of the utility model relates to a support is inhaled to portable magnetism, including first backing sheet and second backing sheet, first backing sheet with the upper end of second backing sheet is connected with a connecting piece, the second backing sheet is being connected with a third backing sheet near the middle part position of lower extreme, first backing sheet is equipped with round interval distribution's draw-in groove near the position of upper end, the draw-in groove inside callipers is equipped with magnet, the outside of second backing sheet is equipped with the card bag, first backing sheet with the second backing sheet can be followed the rotatory V-arrangement that expandes of connecting sheet, this moment, the expansion end of third backing sheet support in the inboard of first backing sheet.
Furthermore, flanges are arranged on two sides of the inner side of the first supporting sheet and extend to corners of the lower end of the first supporting sheet, and when the second supporting sheet is folded with the first supporting sheet, the outer side of the second supporting sheet is clamped on the inner side of the flange.
Further, the flange forms a circular arc corner at the lower end of the first support sheet, and the corner at the lower end of the second support sheet is set to be a circular arc corner matched with the circular arc corner.
Furthermore, a waist-shaped groove is formed in the ring of the clamping groove on the first supporting sheet.
Further, a notch is formed in the lower side of the card bag.
Furthermore, the bag opening of the card bag is concave at two ends and convex at the middle bag edge.
The utility model has the advantages as follows:
the portable magnetic attraction support of the utility model can support the mobile phone when the first support sheet and the second support sheet are unfolded, and can be used for upright business office work or transverse film watching; the card bag arranged on the second support sheet can be used for packaging and carrying cards, and only the first support sheet and the second support sheet need to be folded when the cards are stored. Consequently the utility model discloses a support has horizontal or vertical support cell-phone concurrently and carries the card function, and is small, and the adsorbability carries on the cell-phone, also is convenient for install and dismantle.
Drawings
Fig. 1 is a left side view of the portable magnetic attraction bracket of the utility model;

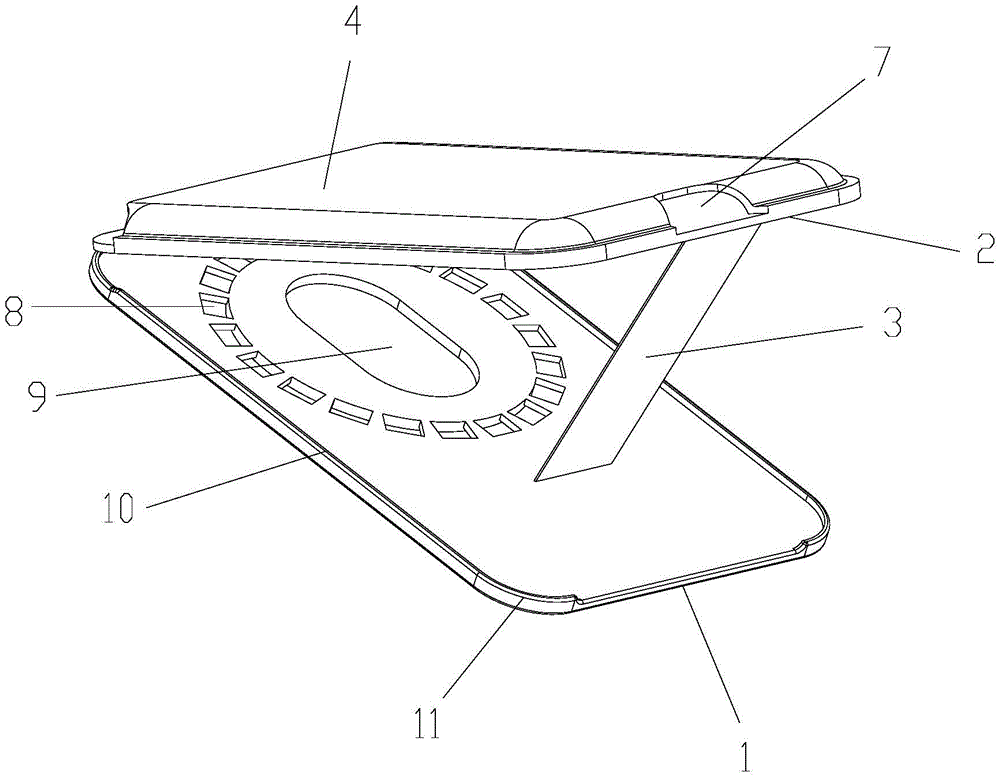

FIG. 2 is a perspective view of a portable magnetic attraction bracket according to the present invention;
fig. 3 is a perspective view of another position of the portable magnetic attraction bracket of the present invention;
FIG. 4 is a diagram illustrating a state of the portable magnetic attraction bracket according to the present invention;
fig. 5 is another usage status diagram of the portable magnetic attraction bracket of the present invention.
Names and designations of parts
1-a first support sheet;
2-a second support sheet;
3-a third support sheet;
4-card bag;
5-connecting the sheet;
6-bag mouth of the card bag;
7-notch;
8-a clamping groove;
9-waist-shaped groove;
10-a flange;
11-arc corners;
100-a scaffold;
200-mobile phone.
Detailed Description
In order to better understand the technical solution, the technical solution will be described in detail with reference to the drawings and the specific embodiments.
Referring to fig. 1-5, an embodiment of the present invention discloses a portable magnetic support, including a first support sheet 1 and a second support sheet 2, the upper end of the first support sheet 1 and the second support sheet 2 is connected with a connection sheet 5, the second support sheet 2 is connected with a third support sheet 3 at the middle position near the lower end, the first support sheet 1 is provided with a slot 8 with a circle of interval distribution at the position near the upper end, the slot 8 is internally provided with a magnet, the outer side of the second support sheet 2 is provided with a card pocket 4, the first support sheet 1 and the second support sheet 2 can follow the connection sheet 5 to be rotated and unfolded into an inverted V shape, at this time, the movable end of the third support sheet 3 is supported at the inner side of the first support sheet 1. When the mobile phone support is used daily, the first support sheet 1 and the second support sheet 2 are folded and adsorbed on the mobile phone to be carried integrally with the mobile phone, the card bag 4 is used for packaging cards, such as bank cards, subway cards and the like, when the mobile phone support is needed to be used as the mobile phone support, the first support sheet 1 and the second support sheet 2 are unfolded, then the third support sheet 3 is supported on the inner side of the first support sheet 1, the first support sheet 1 and the second support sheet 2 are enabled to keep fixed support shapes through the jacking effect of the third support sheet 3, the angle of the third support sheet 3 can be adjusted, so that the included angle between the first support sheet 1 and the second support sheet 2 is adjusted, and the purpose of adjusting the angle of the support mobile phone is achieved.
As shown in fig. 4 and 5, the mobile phone 200 may be supported on the support 100 horizontally or supported on the support 100 vertically, and the vertical direction or the horizontal direction may be changed arbitrarily according to actual requirements, so as to facilitate watching movies or browsing content on apps such as WeChat and tremble, and free the hands of the user. In addition, a waist-shaped groove 9 is formed in the ring of the clamping groove 8 on the first supporting piece 1, when the mobile phone is required to be separated from the support, fingers can penetrate through the waist-shaped groove 9 to jack up the mobile phone outwards, and therefore the mobile phone can be separated from the support, and the situation that the mobile phone is inconvenient to separate when magnetic attraction is too strong can be met.
A notch 7 is arranged at the lower side of the card bag 4. The purpose of the notch 7 is to facilitate the removal of the card from the card pocket 4 when the user pushes the card upwards with a finger from the position of the notch 7.
The bag mouth 6 of the card bag is designed into a shape with two concave ends and a convex middle bag edge. The pocket mouth 6 of the card pocket designed in this shape can facilitate a user to insert fingers from the concave positions at the two ends to grasp the card, thereby facilitating the card taking from the card pocket 4.
To sum up, the portable magnetic attraction support of the utility model can support the mobile phone when the first support sheet 1 and the second support sheet 2 are unfolded, and can be used for upright business office work or transverse film watching; the card bag 4 arranged on the second support sheet 2 can be used for packaging and carrying cards, and only the first support sheet 1 and the second support sheet 2 need to be folded when the cards are stored, and the first support sheet 1 and the second support sheet 2 have the thickness when the cards are folded, and the first support sheet 1 and the second support sheet 2 are designed to be very thin, so that the cards can be directly adsorbed on a mobile phone to be combined with the mobile phone into a whole, and the portable and handheld functions are met. Therefore the utility model discloses a support has concurrently supports the cell-phone and carries the card function, and is small, and the adsorbability carries on the cell-phone, also is convenient for install and dismantle.
While the preferred embodiments of the present invention have been described, additional variations and modifications in those embodiments may occur to those skilled in the art once they learn of the basic inventive concepts. It is therefore intended that the appended claims be interpreted as including the preferred embodiment and all such alterations and modifications as fall within the scope of the invention. It will be apparent to those skilled in the art that various changes and modifications may be made without departing from the spirit and scope of the invention. Thus, if such modifications and variations of the present invention fall within the scope of the claims and their equivalents, the present invention is also intended to include such modifications and variations.
Claims (6)
1. The utility model provides a support is inhaled to portable magnetism, its characterized in that includes first backing sheet and second backing sheet, first backing sheet with the upper end of second backing sheet is connected with a connecting piece, the second backing sheet is being connected with a third backing sheet near the middle part position of lower extreme, first backing sheet is equipped with round interval distribution's draw-in groove near the position of upper end, the draw-in groove inside callipers is equipped with magnet, the outside of second backing sheet is equipped with the card bag, first backing sheet with the second backing sheet can be followed the rotatory V-arrangement that expandes into of connecting sheet, at this moment, the expansion end of third backing sheet support in the inboard of first backing sheet.
2. The portable magnetic attraction bracket as claimed in claim 1, wherein the first support piece has flanges on both sides of the inner side thereof, the flanges extending to the corners of the lower end of the first support piece, and the second support piece is clamped on the inner side of the flanges when the second support piece is folded with the first support piece.
3. The portable magnetic attraction support frame as claimed in claim 2, wherein the flange forms a circular arc corner at a corner of the lower end of the first support piece, and the corner of the lower end of the second support piece is set to be a circular arc corner adapted to the circular arc corner.
4. The portable magnetic attraction mount of claim 1 wherein the first support piece defines a waist-shaped slot within the loop of the slot.
5. The portable magnetic attraction support of claim 1, wherein the card pocket has a notch in an underside thereof.
6. The portable magnetic attraction support frame as claimed in claim 1, wherein the mouth of the card bag is concave at both ends and convex at the middle bag edge.
