Abstract
The utility model provides a multi-functional measuring apparatu of side slope, the on-line screen storage device comprises a base, be fixed with the reference bar that sets up perpendicularly with the base on the base, still be equipped with the movable rod on the base, the bottom of movable rod is close to reference bar bottom end department with the upper surface of base and articulates, one side of vertical pole is equipped with the crooked chi that is the arc structure, the one end of crooked chi is connected with the middle part of movable rod, be equipped with the arc spout on the crooked chi, one side of keeping away from the crooked chi on the movable rod is equipped with a plurality ofly and the perpendicular setting of movable rod looks and telescopic measuring stick along its length direction. The utility model is provided with the base, the base is provided with the reference rod and the rotatable movable rod which are vertically arranged, the inclination of the side slope is measured through the movable rod, and the inclination is read through the bending ruler, so that the use mode is fast and convenient; a telescopic measuring rod is arranged on the movable rod to measure the flatness of the side slope, so that multifunctional application is realized; simple structure and low cost.
Description
Technical Field
The utility model belongs to the technical field of measuring equipment, a multi-functional measuring apparatu of side slope is related to.
Background
During construction building, the slope of construction face often needs to be measured to ensure that the construction face reaches the construction requirement, slope measurement adopts the slope measuring apparatu of bubble tube formula when general, hugs closely with its main scale and surveyed construction face and leans on mutually, adjusts the bubble test tube on the scale plate, adjusts the middle part of test tube with the bubble in the test tube, reads out the scale on the scale plate and can obtain the slope value.
However, the size of the slope measuring instrument commonly used in the prior art is thin, the contact area between the bottom surface of the slope measuring instrument and the slope surface is small, the situation that the slope measuring instrument cannot be completely perpendicular to the slope surface is easy to occur in the using process, if the slope surface is not flat, the situation can be more serious, the angle error of the measured slope surface can be large, the measuring accuracy is seriously influenced, in addition, the slope surface evenness is often required to be measured when the slope is measured, the existing measuring device is single in function, other instruments can not be replaced when the slope surface evenness and the slope repairing thickness are measured simultaneously.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a multi-functional measuring apparatu of side slope to the problem that prior art exists.
Therefore, the utility model adopts the following technical scheme:
the utility model provides a multi-functional measuring apparatu of side slope, includes the base, be fixed with the benchmark pole that sets up perpendicularly with the base on the base, still be equipped with the movable rod on the base, the bottom of movable rod is close to benchmark pole bottom end department with the upper surface of base and articulates, the middle part of benchmark pole is equipped with the screw, install the screw in the screw, one side of benchmark pole is equipped with the crooked chi that is the arc structure, the one end of crooked chi is connected with the middle part of movable rod, be equipped with the arc spout on the crooked chi, the screw passes from the spout, and the screw can remove for the draw groove position, one side of keeping away from the crooked chi on the movable rod is equipped with a plurality ofly and the perpendicular setting of movable rod looks and telescopic measuring stick along its length direction.
Furthermore, a plurality of transparent sleeves with hollow structures inside are arranged on the movable rod, a through hole is formed in one end of each transparent sleeve, the measuring rod is located in each transparent sleeve, the outer end of each measuring rod extends out of the through hole, a baffle is fixed to the inner end of each measuring rod, a spring is connected to each baffle, the other end of each spring is connected with the inner end of each transparent sleeve, an elastic sheet is arranged on the side wall of each measuring rod, a clamping head is arranged at one end, far away from the measuring rod, of each elastic sheet, and clamping holes matched with the clamping heads are formed in the side wall of each transparent sleeve.
Furthermore, scales are arranged on the transparent sleeve.
Furthermore, a level gauge is arranged on the base.
Furthermore, the bending ruler comprises a ruler sleeve in an arc structure, a ruler core in the arc structure is arranged in the ruler sleeve, and the ruler core can move in the ruler sleeve.
Further, the lower surface of base is equipped with a plurality of stay bolts that are used for adjusting the base.
The beneficial effects of the utility model reside in that: the base is arranged, the reference rod and the rotatable movable rod which are vertically arranged are arranged on the base, the inclination of the side slope is measured through the movable rod, the inclination is read through the bending ruler, and the use mode is fast and convenient; a telescopic measuring rod is arranged on the movable rod to measure the flatness of the side slope, so that multifunctional application is realized; simple structure and low cost.
Drawings

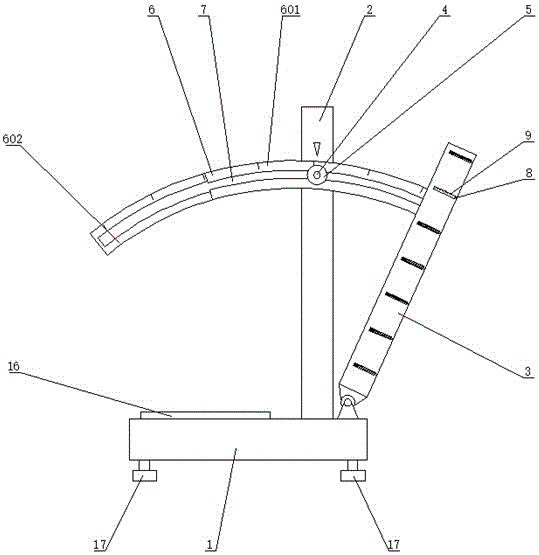

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the measuring rod of the present invention;
in the figure, 1-base, 2-reference rod, 3-movable rod, 4-screw hole, 5-screw, 6-bending ruler, 601-ruler sleeve, 602-ruler core, 7-chute, 8-measuring rod, 9-transparent sleeve, 10-through hole, 11-baffle, 12-spring, 13-elastic sheet, 14-chuck, 15-clamping hole, 16-level gauge and 17-supporting bolt.
Detailed Description
The invention is described in detail below with reference to the accompanying drawings:
as shown in fig. 1 and 2, a multifunctional side slope measuring instrument comprises a base 1, a reference rod 2 vertically arranged with the base 1 is fixed on the base 1, a movable rod 3 is further arranged on the base 1, the bottom end of the movable rod 3 is hinged with the upper surface of the base 1 near the bottom end of the reference rod 2, a screw hole 4 is arranged in the middle of the reference rod 2, a screw 5 is arranged in the screw hole 4, a curved ruler 6 with an arc structure is arranged on one side of the reference rod 2, an angle is carved on the curved ruler 6, specifically, the length of the curved ruler 6 is adjustable, the arrangement can increase the range of the curved ruler 6, the curved ruler 6 comprises a ruler sleeve 601 with an arc structure, a ruler core 602 with an arc structure is arranged in the ruler sleeve 601, the ruler core 602 can move in the ruler sleeve 601, one end of the curved ruler 6 is connected with the middle of the movable rod 3, the movable rod 3 can drive the curved ruler 6 to move, an arc chute 7 is arranged on the curved ruler 6, the screw 5 passes through the sliding groove 7, the screw 5 can move relative to the sliding groove 7, and a plurality of telescopic measuring rods 8 which are perpendicular to the movable rod 3 are arranged on one side of the movable rod 3, far away from the bending ruler, along the length direction of the movable rod.
Specifically, a plurality of transparent sleeves 9 with hollow structures are arranged on the movable rod 3, scales are arranged on the transparent sleeves 9, one end of each transparent sleeve 9 is provided with a through hole 10, the measuring rod 8 is positioned in the transparent sleeve 9, the outer end of the measuring rod 8 extends out of the through hole 10, a baffle plate 11 is fixed at the inner end of the measuring rod 8, a spring 12 is connected onto the baffle plate 11, the other end of the spring 12 is connected with the inner end of the transparent sleeve 9, the baffle plate 11 can prevent the measuring rod 8 from popping out of the transparent sleeve 9 under the action of the elastic force of the spring 12, an elastic sheet 13 is arranged on the side wall of the measuring rod 8, a clamping head 14 is arranged at one end of the elastic sheet 13, which is far away from the measuring rod 8, a clamping hole 15 matched with the clamping head is arranged on the side wall of the transparent sleeve 9, when the clip 14 is located in the fastening hole 15, the measuring rod 8 can be fixed inside the transparent sleeve 9, and when the clip 14 is pressed to be located outside the fastening hole 15, the measuring rod 8 can extend outwards under the action of the elastic force of the spring 12.
In addition, a level gauge 15 is arranged on the base 1, a plurality of supporting bolts 16 for adjusting the base 1 are arranged on the lower surface of the base 1, and the base 1 can be adjusted to be in a horizontal state through the supporting bolts 16.
The utility model discloses a use as follows:
when using this measuring apparatu to carry out the degree measurement to side slope, press measuring stick 8, make it get into transparent sleeve 9 in, and make dop 14 be located the card and block downthehole 11, make measuring stick 8 be fixed in transparent sleeve 9, then place 1 base in side slope toe department, adjust movable rod 3 and make it near the side slope, then screw up screw 5 with crooked chi 6 and 3 rigidity of movable rod, compare crooked chi 6 with benchmark pole 2 this moment, can read the number of degrees on the crooked chi 6, measure the side slope degree.
When the measuring instrument is used for measuring the slope flatness, the clamping head 14 is pressed to enable the measuring rod 8 to be popped out from the transparent sleeve 9 under the paralyzed effect, the measuring rod 8 is made to be in a telescopic state, the base 1 is placed at the slope toe of the slope, then the movable rod 3 is adjusted to enable the movable rod and the slope to be in a parallel state, the measuring rod 8 is pressed, the slope flatness is judged according to the values read from all the measuring rods 8, for example, if the values on all the measuring rods 8 have small differences, the slope flatness is high, and if the values on all the measuring rods 8 have large differences, the slope flatness is low.
