The utility model relates to a weaving equipment technical field specifically is a weaving workshop wadding collection device that flies, including the collection device main part, intake pipe and connecting pipe are installed to the collection device main part, and the aspiration pump is connected to the connecting pipe, and the connecting pipe is equipped with the filter screen, is equipped with in the collection device main part and removes wadding mechanism, removes wadding mechanism and includes the pivot, and on the installation of pivot collection device main part inner wall, collection device main part in-connection limiting plate, the pivot is installed on the limiting plate, and the pivot is connected with the hand wheel, and the pivot is equipped with a plurality of scraper blades in the collection device main part. The utility model discloses a what be equipped with in the inside of collection device main part removes wadding mechanism, rotates the hand wheel and drives the scraper blade that removes on the wadding mechanism and rotate, has realized scraping off that the wadding that flies that covers filter screen department goes on, and the effectual present batting that flies of having solved collection device filter screen department that flies can not strike off, influences the problem of the filter effect of filter screen, simple structure, and easily operation has improved the work efficiency that flies the wadding collection device, has practiced thrift the cost that flies the wadding and collect.
Description
Technical Field
The utility model relates to a weaving equipment technical field specifically is a workshop flying cotton fibre collection device weaves.
Background
Textile industry is the traditional trade in china, textile machinery also develops along with textile industry, when the cloth is woven to the yarn, can produce a large amount of flying cotton fibre dust in the weaving workshop, thereby lead to flying cotton fibre dust densely covered in the whole weaving workshop, influence the clean degree in workshop, simultaneously staff is in long-time work in such environment, can cause certain influence to staff's health, and very easily cause the incident, to these circumstances, the method that uses at present generally extracts the air that contains flying cotton fibre dust in to the workshop with the aspiration pump, then install the filter screen collection dirt in outlet duct department, although efficiency is higher, but flying cotton fibre at filter screen department if not handling it all the time, can influence the effect of filtering flying cotton fibre, and then influence the device's whole effect.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a flying wadding collection device in weaving workshop to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme: the utility model provides a weaving workshop flying cotton collection device, includes the collection device main part, intake pipe and connecting pipe are installed to the upper end symmetry of collection device main part, the connecting pipe forms for pipe and rectangular pipe coaxial coupling, the input at the aspiration pump is connected to the output of connecting pipe, the input of connecting pipe is equipped with the filter screen, the inside of collection device main part is equipped with removes wadding mechanism, it includes the pivot to remove wadding mechanism, the one end of pivot is rotated and is installed on one side inner wall that the collection device main part is close to the filter screen, the inside fixedly connected with limiting plate of collection device main part, the other end of pivot is rotated and is installed on the limiting plate, the pivot is connected with the hand wheel in the outer one end of collection device main part, the fixed a plurality of scraper blades that are equipped with of pivot on the one end outer wall in the collection device main part.
Optionally, the jack has been seted up to the outer wall of connecting pipe, the activated carbon filter screen has been installed to the jack interpolation of connecting pipe outer wall, the jack is close to the upper and lower both sides outer wall of activated carbon filter screen and installs the sealing strip, one side outer wall fixedly connected with mounting panel of activated carbon filter screen, the outer wall of mounting panel is equipped with the handle.
Optionally, a dust collecting cover is installed on the air inlet pipe, an exhaust pipe is connected to the output end of the air pump, and an exhaust hopper is arranged at the top of the exhaust pipe.
Optionally, the bottom of the collecting device main body is connected with a bottom plate, the bottom of the bottom plate is provided with a plurality of supporting legs, and the bottom of each supporting leg is provided with a movable wheel.
Optionally, the outer wall cover of pivot is equipped with two sealing washers, two the sealing washer is all laminated on the inner wall and the outer wall of collection device main part.
Optionally, the top fixed mounting of limiting plate has the triangle-shaped board, the lower part cartridge of collection device main part has the collection box, the outer wall fixedly connected with handle of collection box.
Compared with the prior art, the utility model provides a flying wadding collection device in weaving workshop possesses following beneficial effect:
1. the utility model discloses a remove the wadding mechanism through being equipped with in the inside of collection device main part, rotate the hand wheel and drive the scraper blade rotation on removing the wadding mechanism, realized scraping off the flying cotton that the filter screen department covered, the effectual flying cotton that has solved present flying cotton collection device filter screen department can not strike off, influences the problem of the filter effect of filter screen, simple structure, and easy to operate has improved flying cotton collection device's work efficiency, has practiced thrift the cost of flying cotton collection;
2. the utility model discloses a be equipped with the active carbon filter screen in connecting pipe department, when collecting flying wadding, can filter the air peculiar smell in weaving workshop, more be favorable to guaranteeing that workshop staff's is healthy.
Drawings

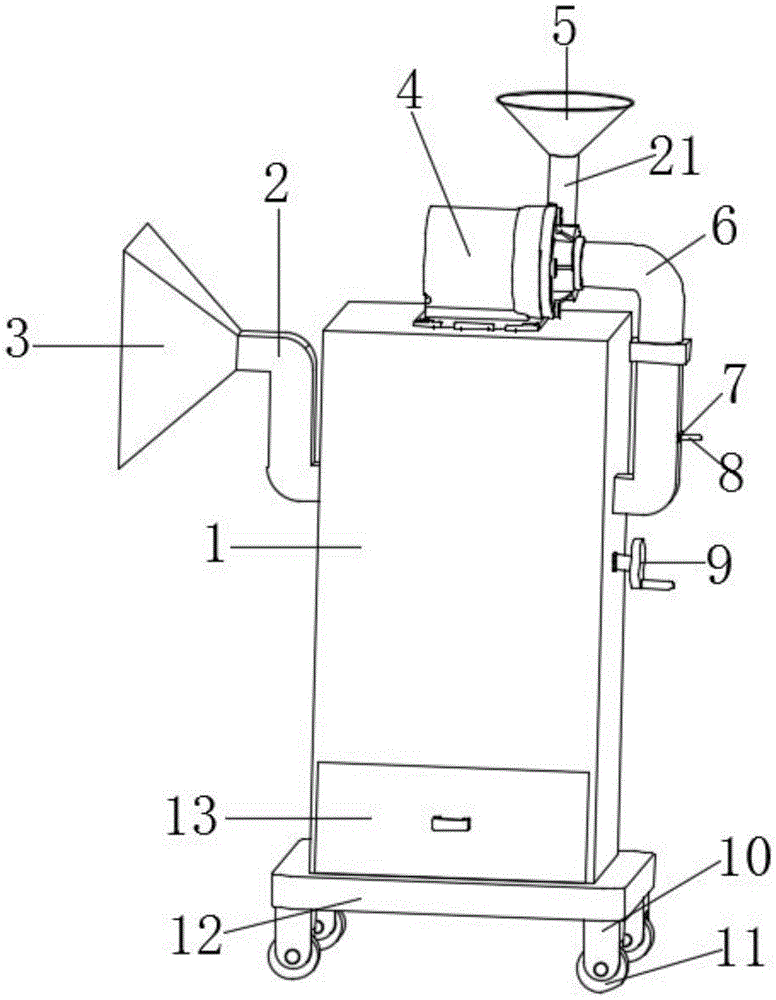

Fig. 1 is a schematic overall structure diagram of the present invention;
FIG. 2 is a cross-sectional view of the overall structure of FIG. 1;
FIG. 3 is an enlarged view of part A of FIG. 2;
fig. 4 is an enlarged schematic view of part B in fig. 2.
In the figure: 1. a collection device body; 2. an air inlet pipe; 3. a dust collection cover; 4. an air pump; 5. an exhaust hopper; 6. a connecting pipe; 7. mounting a plate; 8. a handle; 9. a hand wheel; 10. a support leg; 11. a moving wheel; 12. a base plate; 13. a collection box; 14. a squeegee; 15. filtering with a screen; 16. a rotating shaft; 17. a triangular plate; 18. a limiting plate; 19. a sealing strip; 20. an active carbon filter screen; 21. an exhaust pipe; 22. and (5) sealing rings.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Example (b): referring to fig. 1-3, the utility model provides a flying cotton wadding collecting device for textile workshop, which comprises a collecting device main body 1, an air inlet pipe 2 and a connecting pipe 6 are symmetrically installed at the upper end of the collecting device main body 1, a dust collecting cover 3 is installed on the air inlet pipe 2, the connecting pipe 6 is formed by coaxially connecting a round pipe and a rectangular pipe, the output end of the connecting pipe 6 is connected with the input end of an air pump 4, the output end of the air pump 4 is connected with an exhaust pipe 21, the top of the exhaust pipe 21 is provided with an exhaust hopper 5, the input end of the connecting pipe 6 is provided with a filter screen 15, the flying cotton wadding is filtered and exhausted, a cotton wadding removing mechanism is arranged inside the collecting device main body 1 and comprises a rotating shaft 16, one end of the rotating shaft 16 is rotatably installed on the inner wall of the collecting device main body 1 near the filter screen 15, the inside of the collecting device main body 1 is fixedly connected with a limiting plate 18, the other end of the rotating shaft 16 is rotatably installed on the limiting plate 18, the hand wheel 9 is connected with the one end of pivot 16 outside collection device main part 1, and pivot 16 is fixed on the one end outer wall in collection device main part 1 and is equipped with a plurality of scrapers 14, rotates hand wheel 9, drives scraper 14 through pivot 16 and rotates, scrapes off the flying cotton fibre that covers on the filter screen 15.
Referring to fig. 2-4, the outer wall of the connecting pipe 6 is provided with a jack, an activated carbon filter screen 20 is inserted into the jack on the outer wall of the connecting pipe 6 to filter the air sucked in to filter the peculiar smell of the air and keep the air fresh in the workshop, sealing strips 19 are arranged on the outer walls of the upper side and the lower side of the jack close to the activated carbon filter screen 20 to ensure the sealing performance of the connecting pipe 6, the outer wall of one side of the activated carbon filter screen 20 is fixedly connected with a mounting plate 7, the outer wall of the mounting plate 7 is provided with a handle 8 to facilitate the replacement of the activated carbon filter screen 20, the bottom of the collecting device body 1 is connected with a bottom plate 12, the bottom of the bottom plate 12 is provided with a plurality of supporting legs 10, the bottoms of the supporting legs 10 are respectively provided with a moving wheel 11 to facilitate the moving device, the outer wall of the rotating shaft 16 is sleeved with two sealing rings 22, and the two sealing rings 22 are both attached to the inner wall and the outer wall of the collecting device body 1, guarantee the seal of junction, the top fixed mounting of limiting plate 18 has 17, prevents that the flying cotton fibre from piling up on limiting plate 18, and the lower part cartridge of collection device main part 1 has collection box 13, and collection box 13's outer wall fixedly connected with handle collects box 13, and collection box 13 is used for collecting the dust, takes out after the convenient collection.
The working principle is as follows: the utility model discloses when using, open aspiration pump 4, the air that contains flying cotton fibre in the weaving workshop is carried to the inside of collection device main part 1 through intake pipe 2 from dust cage 3, filter screen 15 will fly the cotton fibre and filter down, fall into collection box 13 of collection device body 1 lower part naturally, then the air after the filtration filters through active carbon filter screen 20, adsorb the peculiar smell, discharge from exhaust hopper 5 of 4 output of aspiration pump, after having used up collection device body 1, artifical rotation hand wheel 9, drive scraper blade 14 through pivot 16 and rotate, fly the cotton fibre to cover on filter screen 15 strikes off, fly the cotton fibre to fall in the collection box 13, the pulling is collected the handle of box 13 outer wall and will be collected box 13 and take out, it can to pour out the flying cotton fibre of collection in the collection box 13.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a weaving workshop flying wadding collection device which characterized in that: comprises a collecting device body (1), wherein an air inlet pipe (2) and a connecting pipe (6) are symmetrically installed at the upper end of the collecting device body (1), the connecting pipe (6) is formed by coaxially connecting a round pipe and a rectangular pipe, the output end of the connecting pipe (6) is connected with the input end of an air suction pump (4), the input end of the connecting pipe (6) is provided with a filter screen (15), a wadding removing mechanism is arranged inside the collecting device body (1) and comprises a rotating shaft (16), one end of the rotating shaft (16) is rotatably installed on the inner wall of one side, close to the filter screen (15), of the collecting device body (1), a limiting plate (18) is fixedly connected inside the collecting device body (1), the other end of the rotating shaft (16) is rotatably installed on the limiting plate (18), and a hand wheel (9) is connected at one end of the rotating shaft (16) outside the collecting device body (1), and a plurality of scrapers (14) are fixedly arranged on the outer wall of one end of the rotating shaft (16) in the collecting device main body (1).
2. The flying wadding collecting device for the textile workshop according to claim 1, wherein: the jack has been seted up to the outer wall of connecting pipe (6), activated carbon filter screen (20) are equipped with in the jack interpolation of connecting pipe (6) outer wall, sealing strip (19) are installed to the upper and lower both sides outer wall that the jack is close to activated carbon filter screen (20), one side outer wall fixedly connected with mounting panel (7) of activated carbon filter screen (20), the outer wall of mounting panel (7) is equipped with handle (8).
3. The flying wadding collecting device for the textile workshop according to claim 1, wherein: the dust collection cover (3) is installed on the air inlet pipe (2), the output end of the air suction pump (4) is connected with an exhaust pipe (21), and an exhaust hopper (5) is arranged at the top of the exhaust pipe (21).
4. The flying wadding collecting device for the textile workshop according to claim 1, wherein: the bottom of collection device main part (1) is connected with bottom plate (12), the bottom of bottom plate (12) is equipped with a plurality of landing legs (10), removal wheel (11) are all installed to the bottom of landing leg (10).
5. The flying wadding collecting device for the textile workshop according to claim 1, wherein: the outer wall cover of pivot (16) is equipped with two sealing washer (22), two sealing washer (22) all laminate on the inner wall and the outer wall of collection device main part (1).
6. The flying wadding collecting device for the textile workshop according to claim 1, wherein: the top fixed mounting of limiting plate (18) has triangle-shaped board (17), the lower part cartridge of collection device main part (1) has collection box (13), the outer wall fixedly connected with handle of collection box (13).
