Abstract
The utility model relates to a motor casing makes technical field, specifically is an automatic edge rolling discharging device for motor casing, including main part, pusher and unloader, the main part includes the workstation, the one end fixed mounting of main part has the workstation, the top fixed mounting of workstation has pusher, the one end fixed mounting of workstation has unloader, pusher includes the mount, the top fixed mounting of workstation has the mount, the spacing groove has been seted up to inner wall one side of mount, the inner wall one end of mount is rotated and is connected with the threaded rod. The utility model discloses, through setting up the device, the casing that the messenger that can be quick rolled up breaks away from equipment to effectual having reduced operating personnel and having used hand direct contact equipment, the effectual security that has increased operating personnel has also reduced operating personnel's working strength simultaneously, has increased operating personnel's work efficiency.
Description
Technical Field
The utility model relates to a motor casing makes technical field, especially relates to an automatic edge rolling discharging device for motor casing.
Background
With the development of society, motors are not only applied to modern industrial production equipment, but also applied to various fields in life, such as roller shutters, lawn mowers and the like, and as the demand of the motors increases, the motor housing needs to be rolled up in the manufacturing process of the motors.
Traditional motor casing needs operating personnel to carry out manual unloading after carrying out the edge rolling for operating personnel probably can be injured by equipment mistake at the unloading in-process, thereby has reduced staff's security, has also increased operating personnel's working strength simultaneously, has reduced operating personnel's work efficiency.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing an automatic edge rolling discharging device for a motor shell.
In order to achieve the above purpose, the utility model adopts the following technical scheme: the utility model provides a motor casing is with automatic edge rolling discharging device, includes main part, pusher and unloader, the main part includes the workstation, the one end fixed mounting of main part has the workstation, the top fixed mounting of workstation has pusher, the one end fixed mounting of workstation has unloader.
Pusher includes the mount, the top fixed mounting of workstation has the mount, the spacing groove has been seted up to inner wall one side of mount, the inner wall one end of mount is rotated and is connected with the threaded rod, the one end of threaded rod is rotated and is connected with the driving gear, the one end fixed mounting of mount has the fixed plate, the top fixed mounting of fixed plate has the motor, the output cover of motor is equipped with the gear, the inner wall sliding connection of spacing groove has the push pedal.
Preferably, the top fixed mounting of workstation has the edge rolling machine, the one end of edge rolling machine is rotated and is connected with the reel, the one end that the workstation is close to the mount is rotated and is installed the support frame, the top of support frame is rotated and is connected with the cylinder.
Preferably, the unloader is including placing the board, the one end fixed mounting that the workstation is close to the support frame has the board of placing, the one end of placing the board is rotated and is connected with down the flitch, the top of flitch is rotated and is connected with the pulley down, the spout has been seted up to the bottom of flitch down, the workstation is close to the one end fixed mounting who places the board and has the rectangular block, the inner wall bottom fixed mounting of rectangular block has the spring, the inner wall sliding connection of rectangular block has the bracing piece, the one end that the rectangular block was kept away from to the bracing piece is rotated and is connected with the gyro wheel.
Preferably, the threaded rod penetrates through the fixing frame and extends to the outside of the fixing frame, and the outer surface of the threaded rod is rotatably connected with the push plate.
Preferably, the inner wall of the sliding groove is connected with a roller in a sliding mode, and one end, far away from the rectangular block, of the spring is fixedly provided with a supporting rod.
Preferably, the threaded rod is meshed with the push plate, the gear is meshed with the transmission gear, and the outer wall of the push plate is matched with the inner wall of the limiting groove in shape and size.
Compared with the prior art, the utility model has the advantages and positive effects that,
in the utility model, by arranging the pushing device, when the rolled casing needs to be taken down, the motor is started to drive the gear to rotate, the gear drives the transmission gear to rotate due to the mutual meshing between the gear and the transmission gear, the transmission gear drives the threaded rod to rotate, so that the threaded rod drives the push plate to slide forwards on the inner wall of the limiting groove, when the threaded rod slides to a corresponding position, the push plate pushes the casing to enable the casing to move forwards under the thrust of the push plate, the casing is separated from the winding drum when the casing moves to the corresponding position, thereby the motor is closed, when the pressing is finished, the motor is reversed to drive the gear to rotate reversely, the gear drives the transmission gear to rotate reversely, the transmission gear drives the threaded rod to rotate reversely, so that the threaded rod drives the push plate to slide backwards on the inner wall of the limiting groove, when the threaded rod slides to the corresponding position, the motor is closed, make the push pedal slide to the normal position, through setting up the device, the casing that the messenger that can be quick rolled up breaks away from equipment to effectual operating personnel that has reduced uses hand direct contact equipment, the effectual security that has increased operating personnel has also reduced operating personnel's working strength simultaneously, has increased operating personnel's work efficiency.
The utility model discloses in, through setting up unloader, when needs carry out the unloading, the casing of rolling up is by the propelling movement to placing on the board, make the casing roll off down the flitch, down the flitch receives gravity to influence the downstream, make lower flitch extrusion gyro wheel, make the gyro wheel slide at chute inner wall, gyro wheel extrusion bracing piece, make bracing piece extrusion spring slide to the rectangular block inner wall, make the casing on the lower flitch slide down on the pulley, thereby take out the casing, when the casing is taken out the back, the bracing piece loses the influence resilience that pressure received the spring resilience and rebounds, thereby make the bracing piece drive gyro wheel upward movement, make the gyro wheel slide at chute inner wall, thereby jack up down the flitch, through setting up the device, can carry out quick unloading to the casing that has processed, thereby effectual operating personnel's working strength has been reduced.
Drawings

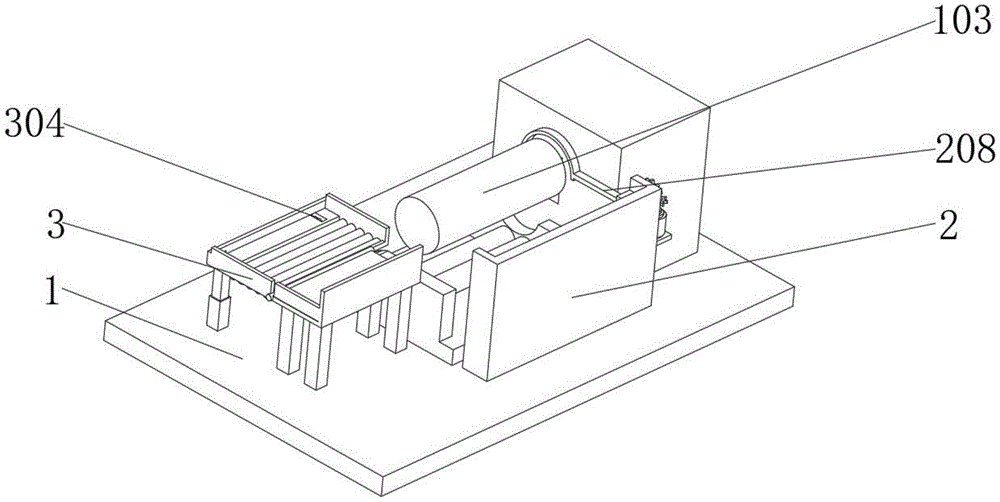

Fig. 1 is a schematic view of a main structure of an automatic rolling and discharging device for a motor casing according to the present invention;
FIG. 2 is a schematic side view of the automatic rolling and discharging device for the motor housing according to the present invention;
fig. 3 is a schematic view of a top view structure of the automatic rolling and discharging device for the motor housing according to the present invention;
fig. 4 is a schematic structural diagram of a point a in fig. 2 according to the present invention.
Illustration of the drawings:
1. a main body; 101. a work table; 102. a rolling machine; 103. a reel; 104. a support frame; 105. a drum; 2. a pushing device; 201. a fixed mount; 202. a limiting groove; 203. a threaded rod; 204. a transmission gear; 205. a fixing plate; 206. a motor; 207. a gear; 208. pushing the plate; 3. a blanking device; 301. placing the plate; 302. a blanking plate; 303. a pulley; 304. a chute; 305. a rectangular block; 306. a spring; 307. A support bar; 308. and a roller.
Detailed Description
In order to make the above objects, features and advantages of the present invention more clearly understood, the present invention will be further described with reference to the accompanying drawings and examples. It should be noted that the embodiments and features of the embodiments of the present application may be combined with each other without conflict.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, however, the present invention may be practiced in other ways than those specifically described herein, and therefore the present invention is not limited to the limitations of the specific embodiments of the present disclosure.
As shown in fig. 1-4, the utility model provides an automatic edge rolling discharging device for motor casing, including main part 1, pusher 2 and unloader 3, main part 1 includes workstation 101, the one end fixed mounting of main part 1 has workstation 101, the top fixed mounting of workstation 101 has pusher 2, the one end fixed mounting of workstation 101 has unloader 3, the top fixed mounting of workstation 101 has edge rolling machine 102, edge rolling machine 102's one end is rotated and is connected with reel 103, the one end that workstation 101 is close to mount 201 is rotated and is installed support frame 104, the top of support frame 104 is rotated and is connected with cylinder 105.
The specific arrangement and function of the pushing device 2 and the blanking device 3 will be described in detail below.
As shown in fig. 2 and fig. 3, the pushing device 2 includes a fixing frame 201, the fixing frame 201 is fixedly installed on the top of the working table 101, a limit groove 202 is formed on one side of the inner wall of the fixing frame 201, one end of the inner wall of the fixing frame 201 is rotatably connected with a threaded rod 203, one end of the threaded rod 203 is rotatably connected with a transmission gear 204, when the rolled casing needs to be taken down, a motor 206 is started, the motor 206 drives a gear 207 to rotate, due to mutual engagement between the gear 207 and the transmission gear 204, the gear 207 drives the transmission gear 204 to rotate, the transmission gear 204 drives the threaded rod 203 to rotate, the threaded rod 203 drives a push plate 208 to slide forward on the inner wall of the limit groove 202, a fixing plate 205 is fixedly installed on one end of the fixing frame 201, the motor 206 is fixedly installed on the top of the fixing plate 205, the output end of the motor 206 is sleeved with the gear 207, the push plate 208 is slidably connected to the inner wall of the limit groove 202, and when sliding to a corresponding position, push pedal 208 promotes the casing, make the casing forward motion under push pedal 208's thrust, the casing breaks away from reel 103 when moving relevant position, thereby close motor 206, threaded rod 203 runs through mount 201 and extends to mount 201's outside, the surface of threaded rod 203 rotates and is connected with push pedal 208, intermeshing between threaded rod 203 and the push pedal 208, intermeshing between gear 207 and the driving tooth 204, the outer wall shape size of push pedal 208 and the inner wall shape size looks adaptation of spacing groove 202, through setting up the device, the casing that the messenger that can be quick rolled up breaks away from equipment, thereby the effectual operating personnel with the hand direct contact equipment that has reduced, the effectual security that has increased operating personnel, operating personnel's working strength has also been reduced simultaneously, operating personnel's work efficiency has been increased.
The whole pushing device 2 achieves the effects that by arranging the pushing device 2, when a rolled casing needs to be taken down, the motor 206 is started, the motor 206 drives the gear 207 to rotate, the gear 207 drives the transmission gear 204 to rotate due to the mutual meshing between the gear 207 and the transmission gear 204, the transmission gear 204 drives the threaded rod 203 to rotate, the threaded rod 203 drives the push plate 208 to slide forwards on the inner wall of the limiting groove 202, when the threaded rod slides to a corresponding position, the push plate 208 pushes the casing, the casing moves forwards under the thrust of the push plate 208, the casing is separated from the winding drum 103 when the casing moves to the corresponding position, the motor 206 is closed, when the pressing is finished, the motor 206 is reversed, the gear 207 is driven to reversely rotate by the motor 206, the gear 207 is meshed with the transmission gear 204, the gear 207 drives the transmission gear 204 to reversely rotate, and the transmission gear 204 drives the threaded rod 203 to reversely rotate, make threaded rod 203 drive push pedal 208 slide backward at spacing groove 202 inner wall, when sliding relevant position, close motor 206 for push pedal 208 slides the normal position, through setting up the device, the casing that the messenger that can be quick rolled up breaks away from equipment, thereby effectual reduced operating personnel with hand direct contact equipment, the effectual security that has increased operating personnel, also reduced operating personnel's working strength simultaneously, increased operating personnel's work efficiency.
As shown in fig. 2 and 4, the blanking device 3 includes a placing plate 301, one end of the workbench 101 close to the supporting frame 104 is fixedly provided with the placing plate 301, one end of the placing plate 301 is rotatably connected with a blanking plate 302, the top of the blanking plate 302 is rotatably connected with a pulley 303, when blanking is required, the rolled casing is pushed onto the placing plate 301, so that the casing rolls off towards the blanking plate 302, the blanking plate 302 moves downwards under the influence of gravity, so that the blanking plate 302 presses the roller 308, so that the roller 308 slides on the inner wall of the sliding groove 304, the bottom of the blanking plate 302 is provided with the sliding groove 304, one end of the workbench 101 close to the placing plate 301 is fixedly provided with a rectangular block 305, the bottom of the inner wall of the rectangular block 305 is fixedly provided with a spring 306, the inner wall of the rectangular block 305 is slidably connected with a supporting rod 307, one end of the supporting rod 307 far away from the rectangular block 305 is rotatably connected with the roller 308, the roller 308 presses the supporting rod 307, make bracing piece 307 extrusion spring 306 to the slide of rectangular block 305 inner wall for the casing on flitch 302 slides down on pulley 303, thereby take out the casing, the inner wall sliding connection of spout 304 has gyro wheel 308, and the one end fixed mounting that rectangular block 305 was kept away from to spring 306 has bracing piece 307, through setting up the device, can carry out quick unloading to the casing that has processed, thereby the effectual working strength that has reduced operating personnel.
The whole blanking device 3 achieves the effect that by arranging the blanking device 3, when blanking is needed, the rolled shell is pushed to the placing plate 301, so that the casing rolls off the blanking plate 302, the blanking plate 302 moves downward under the influence of gravity, so that the blanking plate 302 presses the roller 308, so that the roller 308 slides on the inner wall of the sliding chute 304, the roller 308 presses the supporting rod 307, so that the support bar 307 presses the spring 306 to slide towards the inner wall of the rectangular block 305, so that the housing on the blanking plate 302 slides downwards on the pulley 303, thereby taking out the casing, when the casing is taken out, the support rod 307 loses pressure and rebounds under the influence of the resilience force of the spring 306, so that the support bar 307 drives the roller 308 to move upward, so that the roller 308 slides on the inner wall of the sliding slot 304, thereby ejecting flitch 302 down, through setting up the device, can carry out quick unloading to the casing that processes to effectual operating personnel's working strength that has reduced.
The above description is only a preferred embodiment of the present invention, and is not intended to limit the present invention in other forms, and any person skilled in the art may use the above-mentioned technical contents to change or modify the equivalent embodiments into equivalent variations to apply to other fields, but all those persons do not depart from the technical contents of the present invention, and any simple modification, equivalent variation and modification made to the above embodiments according to the technical matters of the present invention still belong to the protection scope of the technical solution of the present invention.
Claims (6)
1. The utility model provides a motor casing is with automatic edge rolling discharging device, includes main part (1), pusher (2) and unloader (3), its characterized in that: the feeding device comprises a main body (1) and a feeding device, wherein the main body (1) comprises a workbench (101), the workbench (101) is fixedly installed at one end of the main body (1), a pushing device (2) is fixedly installed at the top of the workbench (101), and a blanking device (3) is fixedly installed at one end of the workbench (101);
pusher (2) are including mount (201), the top fixed mounting of workstation (101) has mount (201), spacing groove (202) have been seted up to inner wall one side of mount (201), the inner wall one end of mount (201) is rotated and is connected with threaded rod (203), the one end of threaded rod (203) is rotated and is connected with driving gear (204), the one end fixed mounting of mount (201) has fixed plate (205), the top fixed mounting of fixed plate (205) has motor (206), the output pot head of motor (206) is equipped with gear (207), the inner wall sliding connection of spacing groove (202) has push pedal (208).
2. The automatic rolling and discharging device for the motor shell as claimed in claim 1, wherein: the top fixed mounting of workstation (101) has edge rolling machine (102), the one end of edge rolling machine (102) is rotated and is connected with reel (103), the one end that workstation (101) is close to mount (201) is rotated and is installed support frame (104), the top of support frame (104) is rotated and is connected with cylinder (105).
3. The automatic rolling and discharging device for the motor shell as claimed in claim 1, wherein: unloader (3) are including placing board (301), one end fixed mounting that workstation (101) are close to support frame (104) places board (301), the one end of placing board (301) is rotated and is connected with down flitch (302), the top of down flitch (302) is rotated and is connected with pulley (303), spout (304) have been seted up to the bottom of down flitch (302), workstation (101) are close to the one end fixed mounting who places board (301) have rectangular block (305), the inner wall bottom fixed mounting of rectangular block (305) has spring (306), the inner wall sliding connection of rectangular block (305) has bracing piece (307), the one end that rectangular block (305) was kept away from in bracing piece (307) is rotated and is connected with gyro wheel (308).
4. The automatic rolling and discharging device for the motor shell as claimed in claim 1, wherein: the threaded rod (203) penetrates through the fixing frame (201) and extends to the outside of the fixing frame (201), and the outer surface of the threaded rod (203) is rotatably connected with the push plate (208).
5. The automatic rolling and discharging device for the motor shell as claimed in claim 3, wherein the automatic rolling and discharging device comprises: the inner wall of the sliding groove (304) is connected with a roller (308) in a sliding mode, and one end, far away from the rectangular block (305), of the spring (306) is fixedly provided with a supporting rod (307).
6. The automatic rolling and discharging device for the motor shell as claimed in claim 1, wherein: the threaded rod (203) is meshed with the push plate (208), the gear (207) is meshed with the transmission gear (204), and the shape and the size of the outer wall of the push plate (208) are matched with the shape and the size of the inner wall of the limiting groove (202).
