本实用新型属于装饰墙板领域，尤其是一种组合式装饰墙板，针对现有的装饰墙板在使用过程中，传统的装饰墙板往往是一体式使用，无法能够根据不同的使用需求对墙板进行组合使用，降低了装饰墙板使用的灵活性的问题，现提出如下方案，其包括第一板体和第二板体，第一板体靠近第二板体的一侧侧壁开设有放置槽，放置槽的内部固定有连接板，连接板靠近第二板体的一侧侧壁开设有第一凹槽，第一凹槽的一侧侧壁开设有第二凹槽，第二凹槽的两侧侧壁之间滑动连接有移动板；本实用新型能够根据不同的使用需求对装饰墙板进行快速组合使用，确保针对不同的装饰面积对装饰墙板的面积进行调整，确保了装饰墙板使用的灵活性，提高了实用性。
The utility model belongs to the field of decorative wall panels, in particular to a combined decorative wall panel. In the process of using the existing decorative wall panels, the traditional decorative wall panels are often used in one piece, and cannot be adjusted according to different use requirements. The combined use of the wall panels reduces the flexibility of the decorative wall panels. The following solution is now proposed, which includes a first panel body and a second panel body. There is a placing slot, a connecting plate is fixed inside the placing slot, a first groove is opened on the side wall of the connecting plate close to the second plate body, a second groove is opened on one side wall of the first groove, and the second groove is formed on the side wall of the connecting plate. The movable panels are slidably connected between the side walls of the grooves; the utility model can quickly combine and use the decorative wall panels according to different use requirements, ensure that the area of the decorative wall panels can be adjusted for different decorative areas, and ensure the The flexibility of the use of decorative wall panels improves practicality.
Description
Technical Field
The utility model relates to a decorate wallboard technical field, especially relate to a modular decoration wallboard.
Background
Wallboard, ancient times, Ming and Qing name of furniture parts. The boards which are positioned at the left side and the right side of the furniture and are vertical planes are collectively called as side boards or wall boards. Now a building material. Is a house structure of a bearing system consisting of walls and floor slabs. The load-bearing wall of the wallboard structure may be made of bricks, blocks, prefabricated or cast-in-place concrete. The structure can be divided into a mixed structure, an assembled large plate structure and a cast-in-place wallboard structure according to different materials and construction methods.
The wallboard is often used to traditional decoration wallboard formula in the use, can't make up the use to the wallboard according to the user demand of difference, has reduced the flexibility that decorates the wallboard and use, and for this reason, we have provided a modular decoration wallboard.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving current decoration wallboard and often being the integral type use in the use, traditional decoration wallboard, can't make up the use to the wallboard according to the user demand of difference, reduced the shortcoming of the flexibility that the decoration wallboard used, and a modular decoration wallboard that proposes.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a combined decorative wallboard comprises a first board body and a second board body, wherein a placing groove is formed in one side wall, close to the second board body, of the first board body, a connecting board is fixed inside the placing groove, a first groove is formed in one side wall, close to the second board body, of the connecting board, a second groove is formed in one side wall of the first groove, a moving board is connected between two side walls of the second groove in a sliding mode, a limiting board which is vertically arranged is fixed on one side wall of the moving board, one end, far away from the moving board, of the limiting board extends into the first groove, an adjusting board is fixed on one side wall, far away from the limiting board, of the moving board, a third groove is formed in the outer wall of one side of the connecting board, a first connecting shaft is rotatably connected to one side wall of the second groove, and a rotating board is fixed inside the third groove at the other end of the first connecting shaft, the rotating plate and the first connecting shaft are vertically arranged, the gear is sleeved on the outer side wall of the first connecting shaft in a tight fit mode, the side wall, close to the first connecting shaft, of the adjusting plate is provided with a rack along the length direction, and the rack is in meshing transmission connection with the gear.
Preferably, a fixing plate is fixed on the side wall of one side of the third groove, a first channel is formed in the fixing plate, a limiting rod is sleeved inside the first channel in a sliding mode, and the limiting rod and the fixing plate are vertically arranged.
Preferably, one end of the limiting rod extends to the first channel, a pulling plate is fixed on the outer portion of the first channel, the pulling plate and the limiting rod are perpendicularly arranged, and an extrusion spring is sleeved on the outer side wall of the limiting rod in a tight fit mode.
Preferably, one end of the extrusion spring is fixed with the side wall of the pulling plate, and the other end of the extrusion spring is fixed with the side wall of the fixing plate.
Preferably, the outer side wall of the first connecting shaft is provided with a plurality of limiting grooves which are symmetrically arranged along the circumferential direction, and the limiting grooves and the limiting rods are clamped and connected.
Preferably, one side lateral wall that the second plate body is close to first plate body is fixed with the screens board, and sets up perpendicularly between screens board and the second plate body, the screens groove has been seted up to one side lateral wall of screens board, and the joint sets up between screens groove and the limiting plate.
Compared with the prior art, the beneficial effects of the utility model are that:
a placing groove is formed in one side wall of a first plate body, which is close to a second plate body, a connecting plate is fixed in the placing groove, a first groove is formed in one side wall of the connecting plate, which is close to the second plate body, a second groove is formed in one side wall of the first groove, a moving plate is connected between the two side walls of the second groove in a sliding manner, a limiting plate which is vertically arranged is fixed on one side wall of the moving plate, one end, away from the moving plate, of the limiting plate extends into the first groove, an adjusting plate is fixed on one side wall, away from the limiting plate, of the moving plate, the adjusting plate is vertically arranged between the adjusting plate and the moving plate, a third groove is formed in the outer wall of one side of the connecting plate, a first connecting shaft is rotatably connected with one side wall of the second groove, a rotating plate is fixed in the third groove, the rotating plate is fixed at the other end of the first connecting shaft, the rotating plate is vertically arranged between the first connecting shaft, and a gear is sleeved on the outer side wall of the first connecting shaft in a tight fit manner, the rack has been seted up along its length direction to the lateral wall of one side that the regulating plate is close to first connecting axle, and the meshing transmission is connected between rack and the gear, can carry out the high-speed joint to decorating the wallboard and use according to the user demand of difference, ensures to the decorative area of difference to the area of decorating the wallboard and adjusts, has ensured the flexibility that the wallboard used of decorating, has improved the practicality.
Drawings

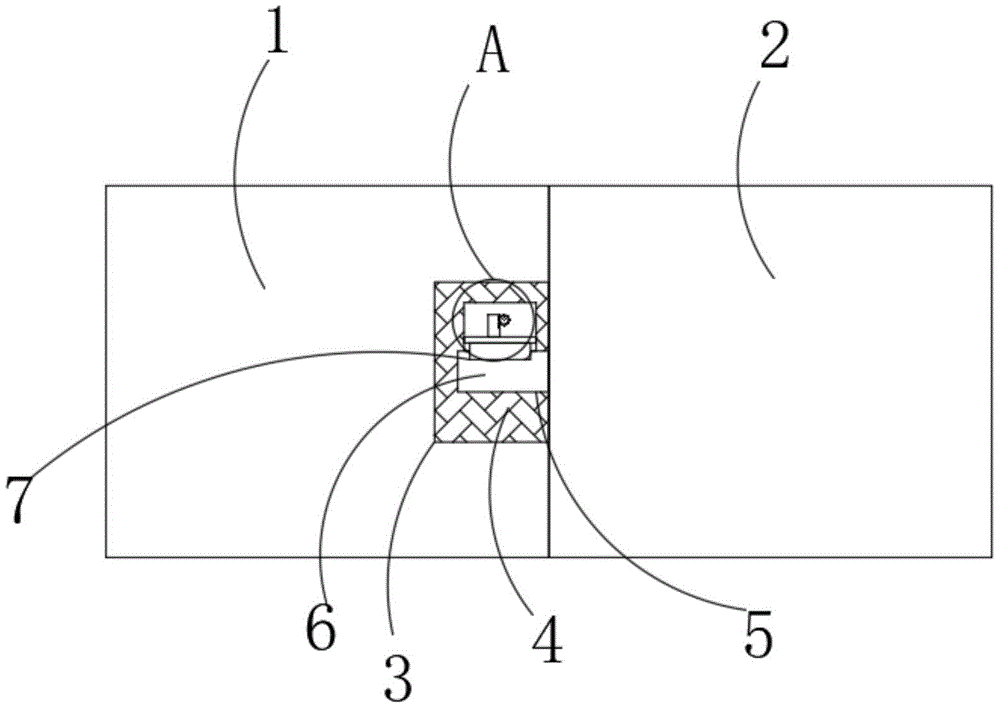

Fig. 1 is a main sectional view of the structure of a combined decorative wall panel provided by the utility model.
Fig. 2 is an enlarged schematic view of a part a of the combined decorative wall panel provided by the present invention.
Fig. 3 is a side sectional view of the first plate structure of the combined decorative wall plate.
Fig. 4 is an enlarged schematic structural view of part B of a combined decorative wall panel provided by the present invention.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-4, a combined decorative wall panel comprises a first panel body 1 and a second panel body 2, a placing groove 3 is formed in a side wall of the first panel body 1 close to the second panel body 2, a connecting plate 4 is fixed in the placing groove 3, a first groove 5 is formed in a side wall of the connecting plate 4 close to the second panel body 2, a second groove 8 is formed in a side wall of the first groove 5, a moving plate 9 is slidably connected between side walls of the second groove 8, a vertically arranged limiting plate 11 is fixed on a side wall of the moving plate 9, one end of the limiting plate 11 far away from the moving plate 9 extends into the first groove 5, an adjusting plate 10 is fixed on a side wall of the moving plate 9 far away from the limiting plate 11, the adjusting plate 10 is vertically arranged between the adjusting plate 9 and the connecting plate 4, a third moving plate 21 is formed on an outer wall of one side of the connecting plate 4, and a first connecting shaft 12 is rotatably connected with a side wall of the second groove 8, the other end of the first connecting shaft 12 extends to the inside of the third groove 21 and is fixed with a rotating plate 15, the rotating plate 15 and the first connecting shaft 12 are vertically arranged, the gear 13 is sleeved on the outer side wall of the first connecting shaft 12 in a tight fit manner, a rack 14 is arranged on the side wall of one side of the adjusting plate 10 close to the first connecting shaft 12 along the length direction of the adjusting plate, and the rack 14 is in meshing transmission connection with the gear 13.
One side lateral wall of third recess 21 is fixed with fixed plate 16, first passageway has been seted up on fixed plate 16, the inside slip cover of first passageway is equipped with gag lever post 17, set up perpendicularly between gag lever post 17 and the fixed plate 16, the one end of gag lever post 17 extends to first passageway external fixation and has arm-tie 18, and set up perpendicularly between arm-tie 18 and the gag lever post 17, extrusion spring 19 has been cup jointed in gag lever post 17's lateral wall tight fit, extrusion spring 19's one end and arm-tie 18 lateral wall are fixed, extrusion spring 19's the other end and fixed plate 16 lateral wall are fixed.
Limiting grooves 20 which are symmetrically arranged are formed in the outer side wall of the first connecting shaft 12 in the circumferential direction, the limiting grooves 20 and the limiting rods 17 are connected in a clamped mode, a clamping plate 6 is fixed to one side wall, close to the first plate body 1, of the second plate body 2, the clamping plate 6 and the second plate body 2 are perpendicularly arranged, a clamping groove 7 is formed in one side wall of the clamping plate 6, and the clamping groove 7 and the limiting plates 11 are connected in a clamped mode.
The working principle is as follows: when the first plate body 1 and the second plate body 2 are combined, only the pulling plate 18 needs to be pulled, the pulling plate 18 drives the limiting rod 17 to move, the limiting rod 17 is separated from the limiting groove 20, then the rotating plate 15 is rotated, the rotating plate 15 drives the first connecting shaft 12 to rotate, the first connecting shaft 12 drives the gear 13 to rotate, the gear 13 and the rack 14 are in meshing transmission to drive the adjusting plate 10 to move, the adjusting plate 10 drives the moving plate 9 to move, the moving plate 9 drives the limiting plate 11 to enter the second groove 8, then the second plate body 2 is moved, the second plate body 2 drives the clamping plate 6 to move, the clamping plate 6 enters the first groove 5, then the rotating plate 15 is reversed, the rotating plate 15 drives the first connecting shaft 12 to rotate, the first connecting shaft 12 drives the gear 13 to rotate, the gear 13 and the rack 14 are in meshing transmission to drive the adjusting plate 10 to move, the adjusting plate 10 drives the moving plate 9 to move, the moving plate 9 drives the limiting plate 11 to enter the first groove 5 to be clamped with the clamping groove 7 formed in the side wall of the clamping plate 6, finally the pulling plate 18 is loosened, under the elastic action of the reset spring 19, the limiting rod 17 and the corresponding limiting groove 20 are clamped, the position fixing of the first connecting shaft 12 is completed, and finally the position fixing of the first plate body 1 and the second plate body 2 is completed.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A combined decorative wallboard comprises a first board body (1) and a second board body (2), and is characterized in that a placing groove (3) is formed in one side wall, close to the second board body (2), of the first board body (1), a connecting plate (4) is fixed inside the placing groove (3), a first groove (5) is formed in one side wall, close to the second board body (2), of the connecting plate (4), a second groove (8) is formed in one side wall of the first groove (5), a moving plate (9) is connected between the two side walls of the second groove (8) in a sliding mode, a limiting plate (11) which is vertically arranged is fixed on one side wall of the moving plate (9), one end, far away from the moving plate (9), of the limiting plate (11) extends into the first groove (5), an adjusting plate (10) is fixed on one side wall, far away from the limiting plate (11), of the moving plate (9), and an adjusting plate (10) and the moving plate, third recess (21) have been seted up to one side outer wall of connecting plate (4), one side lateral wall of second recess (8) rotates and is connected with first connecting axle (12), and the other end of first connecting axle (12) extends to third recess (21) inside and is fixed with swivel plate (15), and sets up perpendicularly between swivel plate (15) and first connecting axle (12), gear (13) have been cup jointed in the lateral wall tight fit of first connecting axle (12), rack (14) have been seted up along its length direction to one side lateral wall that regulating plate (10) are close to first connecting axle (12), and the meshing transmission is connected between rack (14) and gear (13).
2. The combined decorative wallboard according to claim 1, wherein a fixing plate (16) is fixed on a side wall of the third groove (21), a first channel is formed on the fixing plate (16), a limiting rod (17) is slidably sleeved inside the first channel, and the limiting rod (17) and the fixing plate (16) are vertically arranged.
3. The combined decorative wallboard according to claim 2, wherein one end of the limiting rod (17) extends to the outside of the first channel and is fixed with a pulling plate (18), the pulling plate (18) and the limiting rod (17) are vertically arranged, and an extrusion spring (19) is sleeved on the outer side wall of the limiting rod (17) in a tight fit manner.
4. A combined decorative wall panel according to claim 3, characterised in that one end of the compression spring (19) is fixed to the side wall of the pulling plate (18) and the other end of the compression spring (19) is fixed to the side wall of the fixing plate (16).
5. The combined decorative wallboard according to claim 4, wherein the outer side wall of the first connecting shaft (12) is provided with a plurality of symmetrically arranged limiting grooves (20) along the circumferential direction, and the limiting grooves (20) and the limiting rods (17) are clamped.
6. The combined decorative wallboard of claim 5, wherein a clamping plate (6) is fixed on one side wall of the second board body (2) close to the first board body (1), the clamping plate (6) and the second board body (2) are vertically arranged, a clamping groove (7) is formed in one side wall of the clamping plate (6), and the clamping groove (7) and the limiting plate (11) are clamped.
