Abstract

The utility model belongs to petrochemical construction field specifically is a be used for large-scale oil tank floating roof to take out special bed-jig of pillar. In order to reduce the construction time and cost, the construction safety risk is reduced. Including setting up a plurality of shoring pillars on the tank bottoms board, shoring pillar top is installed and is floated the top, floats and install the door style of calligraphy bed-jig that can follow its top walking on the top, door style of calligraphy bed-jig including setting up respectively at the lower half stand and the support of both sides, lower half stand and support bottom install the brake universal wheel, be connected with the level between the lower half stand of both sides and the support and draw the support, lower half stand and support top are fixed through screw lead screw and first stand, are connected with horizontal support beam between the first stand of both sides, and the horizontal support beam middle part is provided with electric block. The utility model discloses a door style of calligraphy bed-jig can used repeatedly many times, uses manpower sparingly and improves labor efficiency to and the waste of cost has been reduced.

Description

Special jig frame for large oil tank floating roof extraction support

Technical Field

The utility model belongs to petrochemical construction field specifically is a be used for large-scale oil tank floating roof to take out special bed-jig of pillar.

Background

At present, in the construction of the oil tank, because the average height of a single support is 2200mm and the weight is relatively heavy, if the support is pulled out by manpower, 7-8 persons are needed, the efficiency is low, and time and labor are wasted; in the field construction, 5-6 persons are needed for lifting and extracting the support column by using the tripod support, 4-5 persons are needed for lifting and extracting the support column by using the portal jig frame, and the support column is heavy and inconvenient to move in the moving process. Under the condition, whether a better construction method can be adopted or not is particularly important, the construction task can be simply, conveniently, smoothly and quickly completed, the construction method is simple and convenient, the construction quality is guaranteed, the construction risk is reduced, the construction cost is reduced, and the like.

Disclosure of Invention

The utility model discloses a reduce engineering time and expense, reduce construction safety risk, provide one kind and be used for large-scale oil tank floating roof to take out special bed-jig of pillar.

The utility model adopts the following technical proposal: the utility model provides a be used for large-scale oil tank to float top and take out special bed-jig of pillar, is including setting up a plurality of showy top pillars on the tank bottom plate, floats top pillar top and installs and float the top, floats and install the door style of calligraphy bed-jig that can follow its top walking on the top, door style of calligraphy bed-jig including setting up respectively at the lower half stand and the support of both sides, lower half stand and support the bottom and install the brake universal wheel, be connected with the level between the lower half stand of both sides and the support and draw the support, lower half stand and support the top and pass through screw lead screw and fixed with first stand, be connected with horizontal supporting beam between the first stand of both sides, the horizontal supporting beam middle part is provided with electric block.

Further, lower half stand and support include the base channel-section steel, and base channel-section steel upper portion is fixed with lower half steel pipe stand, is provided with the base bracing between lower half steel pipe stand and the base channel-section steel, and lower half steel pipe stand middle part is fixed with the horizontal support connecting plate that is used for installing horizontal drawing support.

Furthermore, the horizontal support beam comprises a horizontal beam steel pipe, steel pipes capable of being inserted into the upper half upright post are welded at two ends of the horizontal beam steel pipe, and two groups of inclined strut connecting plates II are mounted at the bottom of the horizontal beam steel pipe; the upper half stand include the steel pipe stand, the inboard welding of steel pipe stand has bracing connecting plate I, is connected with the bracing between bracing connecting plate I and the bracing connecting plate II.

Furthermore, a screw hole is formed in the base channel steel, a screw rod penetrates through the screw hole, and a supporting block is arranged at the lower end of the screw rod.

Compared with the prior art, the utility model discloses carry out the unloading of single part to the different equipment of component application difference of door style of calligraphy bed-jig when prefabricating, then carry out the equipment of widget and the correction of size to produce great error when avoiding assembling.

And assembling and correcting the size of the prefabricated small part, and modifying the improper part to meet the design and use requirements. The position that will guarantee to draw the support to one side when prefabricating door style of calligraphy bed-jig base, the base channel-section steel will be divided during the welded connection board, welds in the position of symmetry to the base can guarantee the stability of door style of calligraphy bed-jig better.

And prefabricating a horizontal support, an upper support and a lower support, and centering the horizontal support to find a center spot welding connecting plate so as to be conveniently connected with the electric hoist. The upper and lower upright columns are fixed with adjusting threads when prefabricated, so that the stability of the upright column during the process of stressing is improved, the lower upright column is connected stably by a horizontal bracing after being prefabricated, and the connection mode is still realized by bolts so as to facilitate disassembly and reuse.

The portal jig frame is hoisted to the site in a single-component mode for assembly and adjustment, and finally the power is supplied to draw out the floating roof strut for adjustment of the strut.

The pillar is adjusted and is accomplished, dismantles and packs door style of calligraphy bed-jig, has realized that door style of calligraphy bed-jig can used repeatedly many times, uses manpower sparingly and improves labor efficiency to and the waste of cost has been reduced.

Drawings

Fig. 1 is a schematic structural diagram in an embodiment of the present invention;

FIG. 2 is a front view of a door-shaped jig frame in an embodiment of the present invention;

FIG. 3 is a side view of a V-shaped jig frame according to an embodiment of the present invention;

FIG. 4 is a top view of a V-shaped jig frame according to an embodiment of the present invention;

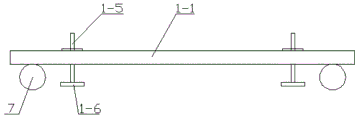

FIG. 5 is a schematic structural view of a base channel;

in the figure: a-door-shaped jig frame, B-floating roof, C-floating roof support, D-tank wall, E-tank bottom plate, 1-lower half column and support, 1-1-base channel steel, 1-2-lower half steel pipe column, 1-3-base diagonal brace, 1-4-horizontal support connecting plate, 1-5-screw, 1-6-supporting block, 2-threaded screw, 3-upper half column, 3-1-steel pipe column, 3-2-diagonal brace connecting plate I, 4-horizontal support beam, 4-1-horizontal beam steel pipe, 4-2-diagonal brace connecting plate II, 5-diagonal brace, 6-horizontal pull support, 7-brake universal wheel and 8-electric hoist.

Detailed Description

In order to make the objects, technical solutions and advantages of the embodiments of the present invention clearer, the technical solutions of the embodiments of the present invention will be clearly and completely described below, and it is obvious that the described embodiments are some, but not all, embodiments of the present invention; based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

As shown in figure 1, the special jig frame for the floating roof extraction support of the large-scale oil tank comprises a plurality of floating roof supports C arranged on a tank bottom plate E, wherein floating roofs B are arranged on the tops of the floating roof supports C, and door-shaped jig frames A capable of walking along the tops of the floating roof supports B are arranged on the floating roofs B.

As shown in fig. 2-4, the door-shaped jig frame a includes a lower half column and a support 1 respectively disposed at two sides, universal wheels 7 are installed at the bottom of the lower half column and the support 1, a horizontal pull support 6 is connected between the lower half column and the support 1 at two sides, the top of the lower half column and the support 1 is fixed with an upper half column 3 through a threaded screw rod 2, a horizontal support beam 4 is connected between the upper half column 3 at two sides, and an electric hoist 8 is disposed in the middle of the horizontal support beam 4.

The lower half part upright post and the support 1 comprise base channel steel 1-1, the upper part of the base channel steel 1-1 is fixed with a lower half part steel pipe upright post 1-2, a base inclined strut 1-3 is arranged between the lower half part steel pipe upright post 1-2 and the base channel steel 1-1, and the middle part of the lower half part steel pipe upright post 1-2 is fixed with a horizontal support connecting plate 1-4 for installing a horizontal pull support 6.

The horizontal support beam 4 comprises a horizontal beam steel pipe 4-1, steel pipes 4-3 which can be inserted into the upright columns 3 on the upper half part are welded at two ends of the horizontal beam steel pipe 4-1, and two groups of inclined support connecting plates II4-2 are arranged at the bottom of the horizontal beam steel pipe 4-1; the upper half upright post 3 comprises a steel pipe upright post 3-1, an inclined strut connecting plate I3-2 is welded on the inner side of the steel pipe upright post 3-1, and an inclined strut 5 is connected between the inclined strut connecting plate I3-2 and the inclined strut connecting plate II 4-2.

As shown in figure 5, a screw hole is formed in a base channel steel 1-1, a screw rod 1-5 penetrates through the screw hole, and a supporting block 1-6 is arranged at the lower end of the screw rod 1-5. The door-shaped jig frame is used for being installed on the floating roof B, the fixing effect of the common brake universal wheel 7 is weak, and the support blocks 1-6 at the lower ends of the screws 1-5 and the brake universal wheel 7 jointly play a supporting and fixing effect through the arrangement of the screws 1-5 capable of being adjusted up and down.

The utility model discloses a concrete method for construction as follows:

s100, lofting each node of the portal jig frame A by using CAD according to the height of the support column, blanking lofted dimension data by using a cutting machine, and carrying out component assembly and welding in a prefabrication yard.

S200, assembling and assembling each component while welding the components in a prefabricated yard in a group, so that each component can be smoothly installed on site, and during preassembly, in order to save time, preassembly of each component is carried out in a bolt manner. Because drawing pillar size height is inconsistent, plays to rise when taking out the pillar highly inconsistent, and the bed-jig stand need install the regulation lead screw additional and adjust the bed-jig stand height, for easy to operate at the bed-jig stand 1.2 meters welding the lead screw, guaranteed that the bed-jig height can be adjusted at any time.

S300, transporting each prefabricated part to the site, transferring the prefabricated part into a storage tank floating roof by using a crane, formally assembling each small part, formally fixing and assembling after checking and correcting errors, and fixing by using bolts during assembly. The door style of calligraphy bed-jig self dead weight is about 100Kg, and it takes time and labours to have taken out to lift the support by the manpower for every pillar, has installed the brake universal wheel on the bed-jig supports the channel-section steel through field study, as long as two people just can easily pass the bed-jig and construct, pulls down the brake of brake universal wheel when the bed-jig shifts to the construction position in order to guarantee the stability when taking out the pillar.

S400, conducting power-on debugging on the lifting device of the assembled door-shaped jig frame, debugging the height of the door-shaped jig frame after proper debugging to enable the height of the door-shaped jig frame to reach the height when the upright post is pulled out, ensuring the level of the door-shaped jig frame during adjustment, and pulling out the floating roof support post after the adjustment is completed. Because the common fixed pulley adopted in the previous construction lifts the pillar, an operator needs to do strenuous operation, and finally, a 0.5-ton electric hoist is arranged on the I-shaped steel of the portal beam of the jig frame, and the pillar can be drawn out as long as the operator hangs the lifting button of the lifting hook to lift.

Finally, it should be noted that: the above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some or all of the technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention.

Claims (4)

1. The utility model provides a be used for large-scale oil tank floating roof to take out special bed-jig of pillar which characterized in that: including setting up a plurality of top pillars (C) that float on tank bottoms board (E), top pillars (C) top is floated and is installed and float top (B), floats and install door style of calligraphy bed-jig (A) that can follow its top walking on top (B), door style of calligraphy bed-jig (A) including setting up respectively in the lower half stand of both sides and supporting (1), brake universal wheel (7) are installed to lower half stand and support (1) bottom, the lower half stand of both sides and support (1) between be connected with the level and draw support (6), lower half stand and support (1) top are fixed with upper half stand (3) through threaded lead screw (2), are connected with horizontal support beam (4) between upper half stand (3) of both sides, horizontal support beam (4) middle part is provided with electric block (8).

2. The special jig frame for the floating roof extraction pillar of the large oil tank as claimed in claim 1, wherein: the lower half column and support (1) comprises a base channel steel (1-1), a lower half steel pipe column (1-2) is fixed to the upper portion of the base channel steel (1-1), a base inclined support (1-3) is arranged between the lower half steel pipe column (1-2) and the base channel steel (1-1), and a horizontal support connecting plate (1-4) used for installing a horizontal pull support (6) is fixed to the middle of the lower half steel pipe column (1-2).

3. The special jig frame for the floating roof extraction pillar of the large oil tank as claimed in claim 2, wherein: the horizontal support beam (4) comprises a horizontal beam steel pipe (4-1), steel pipes (4-3) capable of being inserted into the upper half upright post (3) are welded at two ends of the horizontal beam steel pipe (4-1), and two groups of inclined support connecting plates II (4-2) are mounted at the bottom of the horizontal beam steel pipe (4-1); the upper half upright post (3) comprises a steel pipe upright post (3-1), an inclined strut connecting plate I (3-2) is welded on the inner side of the steel pipe upright post (3-1), and an inclined strut (5) is connected between the inclined strut connecting plate I (3-2) and the inclined strut connecting plate II (4-2).

4. The special jig frame for the floating roof extraction pillar of the large oil tank as claimed in claim 3, wherein: the base channel steel (1-1) is provided with a screw hole, a screw rod (1-5) penetrates through the screw hole, and the lower end of the screw rod (1-5) is provided with a supporting block (1-6).
