Abstract
The utility model discloses a wall-hanging supporter, extend including support body mounting panel and a left side and put the thing support body, the inside laminating of support body mounting panel is provided with the support body connecting plate, and the inboard of support body connecting plate is connected with the backup pad through the damping pivot, the outside welded connection of backup pad has the owner to put the thing support body, and the owner puts the inside right side of thing support body and be provided with the right side and extend and put the thing support body. This wall-hanging supporter, on the wall body was installed to the supporter connecting piece that support body mounting panel and fixed plate are constituteed utilized the bolt fastening's mode, insert the support body connecting plate in the support body mounting panel, realize being connected of support body connecting plate and support body mounting panel fast to the main thing support body of putting that rotates, will mainly put the thing support body and expand, and the backup pad card advances logical inslot, accomplishes the locking between support body connecting plate and the support body mounting panel, the assembly of quick completion supporter, the loading and unloading of the supporter of being convenient for of this structural design.
Description
Technical Field
The utility model relates to a supporter technical field specifically is a wall-hanging supporter.
Background
The supporter is the shelf that is used for placing debris in the family, can put in order and put in order articles for daily use, guarantees the clean and tidy of family's living environment to the later stage is convenient to be taken articles for daily use, and the supporter has numerous types such as console mode, wall-hanging, and the use of the connecting piece that wall-hanging supporter cooperation corresponds is fixed on the wall body, forms succinct thing space of putting.
However, the existing wall-mounted shelf still has shortcomings in the using process, the shelf can not be quickly and conveniently mounted and dismounted, the operation process is complicated, auxiliary tools are required to be used, the storage space of the shelf can not be flexibly controlled, and the occupied space of the shelf can not be reasonably planned as required.
Therefore, we propose a wall-mounted shelf to solve the above-mentioned problems.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a wall-hanging supporter to solve the current wall-hanging supporter on the existing market that above-mentioned background art provided and can not install and dismantle fast convenient opposition thing frame, and the problem of the thing space of putting of control supporter that can not be nimble.
In order to achieve the above object, the utility model provides a following technical scheme: a wall-mounted storage rack comprises a rack body mounting plate and a left extension storage rack body, wherein a rack body connecting plate is arranged inside the rack body mounting plate in a laminating mode, a supporting plate is connected to the inner side of the rack body connecting plate through a damping rotating shaft, a main storage rack body is welded to the outer side of the supporting plate, a right extension storage rack body is arranged on the right side of the inner portion of the main storage rack body, the left extension storage rack body is located on the left side of the inner portion of the main storage rack body, the right end of the left extension storage rack body is connected with the left end of the right extension storage rack body through a traction rope, the traction rope penetrates through the outer side of a fixed pulley, the fixed pulley is fixed inside the main storage rack body through a fixed pulley bolt, a fixed plate is mounted on the rear side of the rack body mounting plate, a through groove is formed in the upper side of the front of the rack body mounting plate, the outer side of the main storage rack body is connected with a locking rod through a spring, and the locking rod is located on the inner side of the locking groove, the locking groove is opened and is being extended the outside of putting the thing support body in a left side.
Preferably, the support body connecting plate is in sliding connection with the support body mounting plate, and the side section of the support body connecting plate is of a convex structure.
Preferably, the main storage rack body and the support plate are of an integrated structure, the support plate and the rack body connecting plate form a rotating mechanism, and the highest point of the support plate is higher than that of the rack body mounting plate.
Preferably, the right side is extended and is put the thing support body and extend the mutual parallel arrangement of thing support body in a left side, and the right side is extended and is put the thing support body and extend in a left side and put the thing support body and all constitute left right slide mechanism with the main thing support body of putting.
Preferably, the haulage rope passes the fixed pulley and extends respectively with the right side and put the thing support body with the left side and be connected, and the right side extends to put the thing support body and extend the main section of putting the thing support body on the left side and be "U" shape structure.
Preferably, the locking rod passes through the spring and constitutes elastic construction with the main thing support body of putting, and the locking rod is connected for the block with the left extension thing support body.
Compared with the prior art, the beneficial effects of the utility model are that: the wall-mounted shelf is provided with a plurality of shelves,
(1) the shelf connecting piece consisting of the shelf mounting plate and the fixing plate is mounted on a wall body in a bolt fixing mode, the shelf connecting plate is inserted into the shelf mounting plate, the connection between the shelf connecting plate and the shelf mounting plate is quickly realized, the main shelf is rotated, the main shelf is unfolded, the supporting plate is clamped into the through groove, the locking between the shelf connecting plate and the shelf mounting plate is completed, the assembly of the shelf is quickly completed, and the structural design is convenient for the loading and unloading of the shelf;
(2) the thing support body is put in the extension on the pulling right side, and the linkage structure's that cooperation haulage rope and fixed pulley are constituteed use realizes that the right side extends to put the thing support body and the left synchronous motion who extends to put the thing support body, according to actual need, adjusts and puts the thing space to the location structure's that cooperation locking lever and spring are constituteed use can extend to the right side and put the thing support body and extend the position of putting the thing support body on a left side and prescribe a limit to, improves the steadiness that the supporter used, flexibility and the convenience that improve the device and use.
Drawings

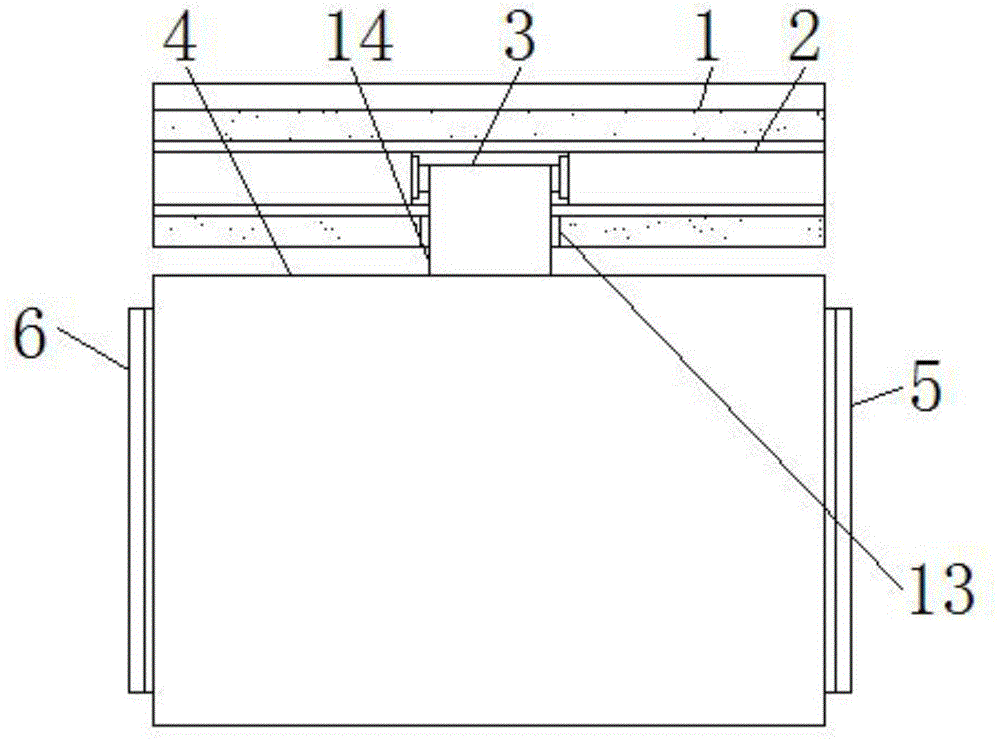

Fig. 1 is a schematic view of the top view structure of the present invention in the unfolded state;
fig. 2 is a schematic side view of the folding structure of the present invention;
FIG. 3 is a schematic side sectional view of the utility model in the unfolded state;
FIG. 4 is a schematic view of the main sectional structure of the main rack body of the present invention;
fig. 5 is an enlarged schematic view of a portion a in fig. 4 according to the present invention.
In the figure: 1. a frame body mounting plate; 2. a frame body connecting plate; 3. a damping rotating shaft; 4. a main article-holding frame body; 5. A right extension shelf body; 6. a left extension shelf body; 7. a hauling rope; 8. a fixed pulley; 9. a fixing plate; 10. a locking groove; 11. a locking lever; 12. a spring; 13. a through groove; 14. and a support plate.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: a wall-mounted shelf comprises a shelf body mounting plate 1, a shelf body connecting plate 2, a damping rotating shaft 3, a main shelf body 4, a right extending shelf body 5, a left extending shelf body 6, a traction rope 7, a fixed pulley 8, a fixed plate 9, a locking groove 10, a locking rod 11, a spring 12, a through groove 13 and a supporting plate 14, wherein the shelf body connecting plate 2 is arranged inside the shelf body mounting plate 1 in a laminating manner, the supporting plate 14 is connected to the inner side of the shelf body connecting plate 2 through the damping rotating shaft 3, the main shelf body 4 is welded to the outer side of the supporting plate 14, the right side inside the main shelf body 4 is provided with the right extending shelf body 5, the left extending shelf body 6 is positioned on the left side inside the main shelf body 4, the right end of the left extending shelf body 6 is connected with the left end of the right extending shelf body 5 through the traction rope 7, the traction rope 7 penetrates through the outer side of the fixed pulley 8, and the fixed pulley 8 is fixed inside the main shelf body 4 through bolts, fixed plate 9 is installed to the rear side of support body mounting panel 1, and the upside in support body mounting panel 1 the place ahead has seted up logical groove 13, and the outside that mainly puts thing support body 4 is connected with locking lever 11 through spring 12, and locking lever 11 is located the inboard of locking groove 10, and locking groove 10 is seted up and is extended the outside of putting thing support body 6 in a left side.
In the embodiment, the frame connecting plate 2 is connected with the frame mounting plate 1 in a sliding way, and the side section of the frame connecting plate 2 is of a convex structure, so that the connection between the frame connecting plate 2 and the frame mounting plate 1 can be realized quickly, and the shelf can be assembled;
the main storage rack body 4 and the support plate 14 are of an integrated structure, the support plate 14 and the rack body connecting plate 2 form a rotating mechanism, the highest point of the support plate 14 is higher than that of the rack body mounting plate 1, the main storage rack body 4 can be rotated by the design, the main storage rack body 4 is unfolded, locking between the rack body connecting plate 2 and the rack body mounting plate 1 is completed, and assembly of the storage rack is completed quickly;
the right extension shelf body 5 and the left extension shelf body 6 are arranged in parallel, and the right extension shelf body 5 and the left extension shelf body 6 and the main shelf body 4 form a left-right sliding mechanism, so that the right extension shelf body 5 and the left extension shelf body 6 can be moved out of the main shelf body 4 to extend the shelf space of the shelf;
the traction rope 7 penetrates through the fixed pulley 8 and is respectively connected with the right extending storage rack body 5 and the left extending storage rack body 6, the main sections of the right extending storage rack body 5 and the left extending storage rack body 6 are of U-shaped structures, and the design ensures that the right extending storage rack body 5 and the left extending storage rack body 6 synchronously move and the storage space is adjusted;
The working principle is as follows: when using the wall-mounted shelf, firstly, a user uses bolts to mount the shelf connecting piece consisting of the shelf mounting plate 1 and the fixing plate 9 on a wall body, then the object frame can be assembled, the frame body connecting plate 2 is inserted into the frame body mounting plate 1 from one end of the frame body mounting plate 1 until the position of the supporting plate 14 corresponds to the position of the through groove 13, the main object placing frame body 4 can be rotated, the main object placing frame body 4 drives the supporting plate 14 to rotate through the damping rotating shaft 3, the main object placing frame body 4 is rotated by 90 degrees, the support plate 14 is clamped into the through groove 13, the whole device is shown in fig. 3, at the moment, the assembly of the shelf can be rapidly completed, the main shelf body 4 is only required to be reversely rotated by 90 degrees in the later period, the support plate 14 is moved out of the through groove 13, the whole device is shown in fig. 2, the shelf body connecting plate 2 is pulled out of the shelf body mounting plate 1, and the disassembly of the shelf can be rapidly completed;
after the placement frame is assembled at the positions shown in fig. 1 and 3, the articles can be placed on the main placement frame body 4, if the placement space needs to be extended, as shown in fig. 4-5, the locking rod 11 is pulled downwards, the locking rod 11 pulls the spring 12 to move downwards, the connection between the locking rod 11 and the through groove 13 is released, meanwhile, the right extension placement frame body 5 is pulled rightwards, the right extension placement frame body 5 slides rightwards in the main placement frame body 4, the right extension placement frame body 5 pulls the traction rope 7 to move, the traction rope 7 passes through the fixed pulley 8 to be connected with the left extension placement frame body 6, the traction rope 7 can drive the left extension placement frame body 6 to move leftwards synchronously, the locking rod 11 slides at the lower side of the left extension placement frame body 6 to extend the right extension placement frame body 5 and the left extension placement frame body 6, when the position of the locking rod 11 corresponds to the position of the locking groove 10 at the lower side of the right extension placement frame body 6, the spring 12 can drive the locking rod 11 to be clamped into the locking groove 10 at the corresponding position, the positions of the right extending storage rack body 5 and the left extending storage rack body 6 are limited, the space of the storage rack is increased, the working process of the whole device is realized, and the content which is not described in detail in the specification belongs to the prior art which is known by the professional in the field.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a wall-hanging supporter, includes support body mounting panel (1) and left extension and puts thing support body (6), its characterized in that: the inside laminating of support body mounting panel (1) is provided with support body connecting plate (2), and the inboard of support body connecting plate (2) is connected with backup pad (14) through damping pivot (3), the outside welded connection of backup pad (14) has mainly puts thing support body (4), and mainly puts the right side of thing support body (4) inside and be provided with right side extension and put thing support body (5), left side extension is put thing support body (6) and is located the main left side of putting thing support body (4), and the right-hand member that puts thing support body (6) of left side extension passes through haulage rope (7) and right side extension and put the left end of thing support body (5) and be connected, haulage rope (7) run through the outside of fixed pulley (8), and fixed pulley (8) bolt fastening is in the main inside of putting thing support body (4), fixed plate (9) are installed to the rear side of support body mounting panel (1), and the upside in support body mounting panel (1) the place ahead has seted up logical groove (13), the outside of mainly putting thing support body (4) is connected with locking lever (11) through spring (12), and locking lever (11) are located the inboard of locking groove (10), locking groove (10) are seted up and are extended the outside of putting thing support body (6) in a left side.
2. A wall mountable shelf according to claim 1, wherein: the support body connecting plate (2) is in sliding connection with the support body mounting plate (1), and the side section of the support body connecting plate (2) is of a convex structure.
3. A wall mountable shelf according to claim 1, wherein: the main storage rack body (4) and the support plate (14) are of an integrated structure, the support plate (14) and the rack body connecting plate (2) form a rotating mechanism, and the highest point of the support plate (14) is higher than that of the rack body mounting plate (1).
4. A wall mountable shelf according to claim 1, wherein: the right side extends to put thing support body (5) and the left side extends to put thing support body (6) parallel arrangement each other, and the right side extends to put thing support body (5) and the left side extends to put thing support body (6) and all constitutes horizontal slide mechanism with main thing support body (4).
5. A wall mountable shelf according to claim 1, wherein: the haulage rope (7) pass through fixed pulley (8) and extend respectively with the right side and put thing support body (5) and extend to put thing support body (6) and be connected, and the right side extends to put thing support body (5) and extend the main section of putting thing support body (6) for "U" shape structure with the left side.
6. A wall mountable shelf according to claim 1, wherein: the locking rod (11) and the main article placing frame body (4) form an elastic structure through a spring (12), and the locking rod (11) is connected with the left extending article placing frame body (6) in a clamping mode.
