Tent with adjustable account body

Technical Field

The application relates to the field of tents, in particular to a tent with an adjustable tent body.

Background

Outdoor tent is outdoor common equipment in summer, can be used to keep out the sunshine of direct projection, provides comparatively shady and cool can supply the region of interim rest, generally all is collapsible assembly device, opens when using.

The utility model discloses a tent that a structure is firm that bulletin number is CN 205330262U's chinese utility model patent discloses, including frame main part and tent cloth, the frame main part includes the principal post and erects the tent skeleton on the principal post, is equipped with the cloth stay pole on the principal post, and cloth stay pole one end sliding connection is on the principal post, and the other end passes through connecting piece and tent cloth fixed connection.

To the correlation technique among the above-mentioned, the inventor thinks that in the use of tent, rainwater gets into the tent from roof below during the rainy, can't accomplish effectively rain-proofly, and adopts tent cloth confined tent all around to have the defect that the tent can't adapt to different weather conditions because the air permeability is relatively poor when there is not rain, tent inside sultry.

SUMMERY OF THE UTILITY MODEL

In order to improve the problem that the tent can not adapt to outdoor different weather conditions, the application provides a tent with adjustable account body.

The application provides a tent with adjustable account body adopts following technical scheme:

the utility model provides a tent with adjustable account body, includes the pillar and establishes the roof on the pillar, be equipped with on the pillar and settle the box, it has seted up the opening on the box to settle, it is connected with the pivot to settle the box interior rotation, the account body is equipped with to roll up in the pivot, account body one end and pivot fixed connection, the other end extends from the opening part to settle the box outside, the one end that the account body stretches out to settle the box is equipped with and is used for the fixed mounting with account body and pillar, it is equipped with drive pivot pivoted actuating mechanism on the box to settle.

By adopting the technical scheme, the tent body is contracted inside the placing box when the weather is clear, so that the ventilation of the tent is good; when raining, actuating mechanism starts, and the drive pivot rotates to make the account from settling the inside roll-off of box, manual pulling account utilizes the mounting with the account package on the pillar when pulling out suitable length with the account, thereby realizes that the tent is to the effective blocking of entering the inside rainwater of account from the roof, has increased the adaptability of tent under different weather conditions, and the range of application is extensive.

Optionally, the fixing piece is two rows of magnetic blocks arranged along the width direction of the mosquito net, a gap exists between the two rows of magnetic blocks, and one end of the mosquito net extending out of the placement box is fixed by the two rows of magnetic blocks in a mutual adsorption mode after surrounding the supporting column.

Through adopting above-mentioned technical scheme, when the account is fixed, walk around the pillar with the tip of account, two clearances between the magnetic path are used for around living the pillar, and two magnetic paths adsorb each other to fix the account on the pillar, adopt the mode person of facilitating the use installation of magnetism to dismantle easy operation.

Optionally, actuating mechanism includes worm wheel and with worm wheel meshed worm, box tip is settled in the extension of pivot one end, the worm wheel stretches out the one end fixed connection who settles the box with the pivot, it is equipped with the support to settle the box top, the worm rotates to be connected on the support, it is equipped with servo motor on the box to settle, servo motor's output shaft and worm fixed connection.

By adopting the technical scheme, the servo motor is started to drive the worm to rotate, so that the worm wheel is driven to rotate, the worm wheel drives the rotating shaft to rotate, and the mosquito net is wound on the rotating shaft to be loosened, so that a user can manually pull the mosquito net; the servo motor rotates reversely to rewind the tent on the rotating shaft; the worm gear and worm transmission has self-locking capability, so that the mosquito net body can keep the state of extending out of the placing box.

Optionally, the placing box is fastened on the pillar through a fixing hoop, the fixing hoop comprises two hoop bodies hinged to the pillar, one end, far away from the pillar, of each hoop body is hinged to a screw, a clamping block is connected to the screw in a threaded mode, and a groove for the screw to extend into is formed in the other hoop body.

Through adopting above-mentioned technical scheme, during the installation, with two hoop body cards on the pillar, rotate the screw rod and make the screw rod rotate to the recess in, twist the fixture block, tighten up until two hoop bodies to will settle the box fastening on the pillar, install and remove the convenience.

Optionally, a plurality of positioning grooves are formed in the support column along the length direction, a plurality of protruding blocks matched with the positioning grooves in an inserting mode are arranged on the placement box, and the fixing hoops are located in the arrangement direction of the protruding blocks.

Through adopting above-mentioned technical scheme, lug and constant head tank cooperation to will settle the box and carry out vertical ascending spacing, dispersed simultaneously and settled the load of box on the pillar, strengthen the installation intensity of settling the box on the pillar.

Optionally, the arrangement box is provided with a plurality of, and a plurality of arrangement boxes are fastened on the pillar in sequence end to end.

Through adopting above-mentioned technical scheme, a plurality of boxes of settling of installation on the pillar, the adjustable tent surrounds the area of tent, selects the quantity of the box of settling of installation according to the intensity of rainfall and wind, can keep the inside air volume of tent, has increased the adaptability of tent when using.

Optionally, the mosquito net both sides all are equipped with the magic subsides along length direction, and it has the waterproof cloth to glue through the magic subsides between two adjacent mosquito net.

Through adopting above-mentioned technical scheme, the space of leaving between two account bodies can seal through the tarpaulin, can reach good sealed effect when the rainfall is too big, adopts the mode of magic subsides adhesion simultaneously, convenient dismantlement.

Optionally, each the pillar bottom all sets up flutedly, be equipped with the connecting plate in the recess, it is connected with the gyro wheel to rotate on the connecting plate, the roof of connecting plate has set firmly the spring, the one end and the recess tank bottom fixed connection of connecting plate are kept away from to the spring, it has seted up the through-hole to lie in the recess cell wall on the pillar, be equipped with the horizontal pole of being connected with the through-hole slides on the connecting plate, the through-hole is stretched out to the one end that the connecting plate was kept away from to the horizontal pole, and slides with the through-hole and be connected, through-hole one end is equipped with the spacing groove that is used for with the horizontal pole inlay card.

Through adopting above-mentioned technical scheme, under the initial condition, the gyro wheel shrink is in the recess, and the user steps on the horizontal pole, holds the pillar and upwards stimulates, and the horizontal pole slips in the through-hole, and the spring atress is tensile simultaneously, slides to the spacing inslot until the horizontal pole, loosens the horizontal pole, and the spring resumes deformation, and the spring upwards stimulates the horizontal pole and makes the horizontal pole inlay card at the spacing inslot, and the gyro wheel on the connecting plate stretches out the recess this moment, pulls out the gyro wheel on each pillar in proper order, can easily remove the tent.

In summary, the present application includes at least one of the following beneficial technical effects:

1. when the weather is clear, the tent body is contracted in the placing box, the ventilation in the tent can be kept, and when raining, the tent body is unfolded and fixed on the support column, so that rainwater is effectively blocked;

2. the expansion and the contraction of the mosquito net body are realized by utilizing the worm gear and the worm, the mosquito net is simple and convenient, and the worm is driven to rotate by the servo motor, so that the burden of people is lightened.

Drawings

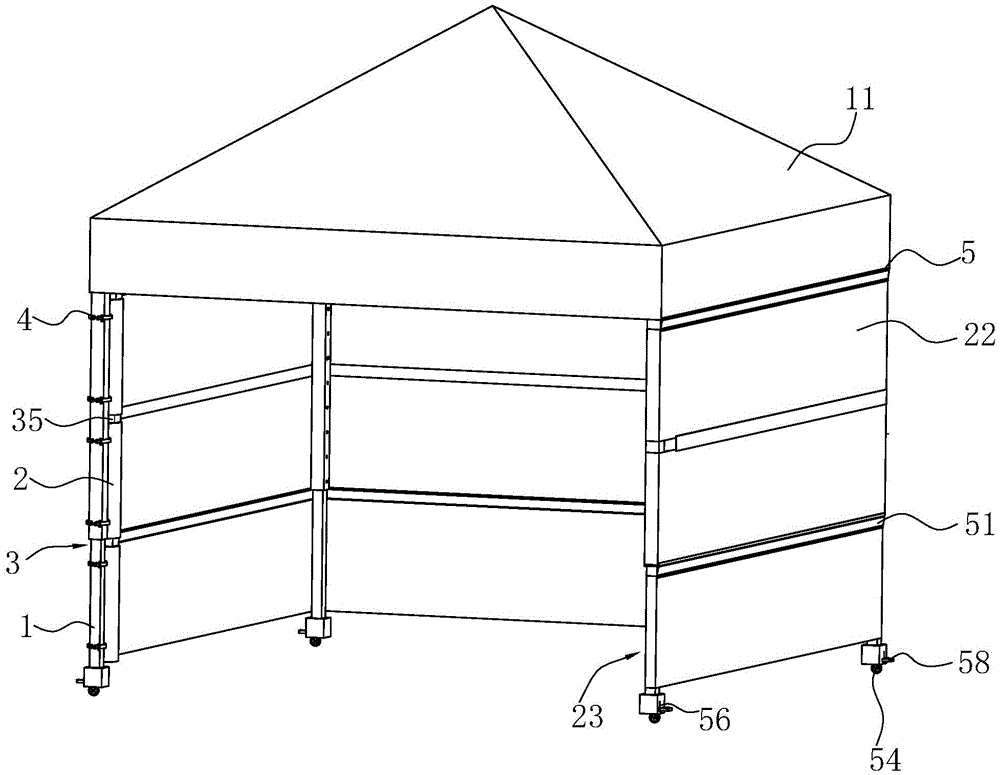

Fig. 1 is a schematic overall structure diagram of an embodiment of the present application.

Fig. 2 is a schematic structural diagram for embodying the fixing band in the embodiment of the present application.

Fig. 3 is a partially enlarged view of a portion a in fig. 2.

Fig. 4 is a partially enlarged view at B in fig. 2.

Fig. 5 is a schematic diagram for showing an internal structure of the installation box in the embodiment of the present application.

Fig. 6 is a partially enlarged view at C in fig. 5.

Fig. 7 is a schematic structural diagram for showing a connection relationship between the cross bar and the limiting groove in the embodiment of the application.

Description of reference numerals: 1. a pillar; 11. roof-top; 12. positioning a groove; 2. placing a box; 21. a rotating shaft; 22. a tent body; 23. a fixing member; 231. a magnetic block; 24. a bump; 25. an opening; 3. a drive mechanism; 31. a worm gear; 32. a worm; 33. a support; 34. a servo motor; 35. a protective shell; 4. a fixing hoop; 41. a hoop body; 42. a screw; 43. a clamping block; 44. a card slot; 5. magic tape; 51. waterproof cloth; 52. a groove; 53. a connecting plate; 54. a roller; 55. a spring; 56. a through hole; 561. a limiting groove; 57. a cross bar; 58. and (6) pedaling.

Detailed Description

The present application is described in further detail below with reference to figures 1-7.

The embodiment of the application discloses tent with adjustable account body. Referring to fig. 1, the tent with an adjustable tent body comprises four pillars 1 arranged in parallel, a roof 11 is installed on the tops of the four pillars 1, and the roof 11 is arranged in a square shape and can shield direct sunlight.

Referring to fig. 2 and 3, a mounting box 2 is arranged on one pillar 1, the mounting box 2 is arranged in a cylindrical shape, two ends of the mounting box 2 along the length direction of the mounting box are respectively provided with a fixed hoop 4, each fixed hoop 4 comprises two hoop bodies 41, the two hoop bodies 41 are hinged on the pillar 1, the two hoop bodies 41 are arranged perpendicular to the pillar 1, one end, away from the mounting box 2, of one hoop body 41 is hinged with a screw rod 42, a clamping block 43 is connected to the screw rod 42 in a threaded manner, one end, away from the mounting box 2, of the other hoop body 41 is provided with a clamping groove 44, and the screw rod 42 is in clearance fit with the clamping groove 44; when the box 2 is installed and arranged, the supporting column 1 is placed between the two hoop bodies 41, the screw rod 42 is rotated into the clamping groove 44, the clamping block 43 is screwed, the clamping block 43 moves towards the direction close to the hoop bodies 41 until the two hoop bodies 41 are fastened on the supporting column 1, the structure is simple, and the installation and the disassembly are convenient.

Referring to fig. 3 and 4, an opening 25 is axially formed in the side wall of the placing box 2, the opening 25 is located on the side, away from the projection 24, of the placing box 2, a rotating shaft 21 is rotatably connected in the placing box 2 along the axial direction, a mosquito net 22 is wound on the rotating shaft 21, one end of the mosquito net 22 is fixedly connected with the rotating shaft 21, and the other end of the mosquito net extends out of the placing box 2 from the opening 25; the fixing piece 23 is arranged at one end of the mosquito net 22 extending out of the mosquito net 22, the fixing piece 23 is a plurality of magnetic blocks 231 arranged at the end part of the mosquito net 22, two rows of the magnetic blocks 231 are arranged in parallel along the width direction of the mosquito net 22, and a distance is reserved between the two rows of the magnetic blocks 231, so that the two rows of the magnetic blocks 231 can be mutually adsorbed when the end part of the mosquito net 22 surrounds the pillar 1, and the mosquito net 22 is fastened; one end of the rotating shaft 21 extends to the outside of the placing box 2, and the placing box 2 is provided with a driving mechanism 3 for driving the rotating shaft 21 to rotate.

Referring to fig. 3, the driving mechanism 3 includes a support 33, a servo motor 34, a worm wheel 31 and a worm 32, the servo motor 34 is powered by a storage battery, the servo motor 34 is fixedly connected to the top wall of the placement box 2 and is located on one side of the rotating shaft 21, an output shaft of the motor is fixedly connected to the worm 32, the worm 32 is rotatably connected to the support 33, the support 33 is welded to the top wall of the placement box 2, the worm 32 is meshed with the worm wheel 31, the worm wheel 31 is fixedly connected to one end of the rotating shaft 21, which extends out of the placement box 2, a protective casing 35 is welded to the placement box 2, the support 33, the servo motor 34, the worm wheel 31 and the worm 32 are covered by the protective casing 35, rainwater is difficult to enter the protective casing 35 to damage the servo motor 34, and possibility that the worm wheel 31 and the worm 32 are corroded by rainwater is reduced.

Referring to fig. 5 and 6, a plurality of constant head tanks 12 have been seted up along direction of height equidistance on the pillar 1, settle and be equipped with a plurality ofly along direction of height on the box 2 and peg graft complex lug 24 with constant head tank 12, lug 24 sets up and lies in the same one side of fixed hoop 4 on pillar 1, and lug 24 is pegged graft in constant head tank 12, and the load of box 2 on pillar 1 is settled in the dispersibility.

Referring to fig. 6 and 7, in order to move the completely-unfolded tent conveniently, grooves 52 are formed in the bottoms of four pillars 1, springs 55 are welded at the bottoms of the grooves 52, connecting plates 53 are welded at one ends, far away from the bottoms of the grooves 52, of the springs 55, idler wheels 54 are connected to the connecting plates 53 in a rotating mode, through holes 56 are formed in one side wall of the bottoms of the pillars 1 in the vertical direction, limiting grooves 561 are formed in the bottom ends, located in the through holes 56, of the connecting plates 53, transverse rods 57 are perpendicularly arranged on the connecting plates 53, one ends of the transverse rods 57 are fixedly connected with the connecting plates 53, the other ends of the transverse rods penetrate through the through holes 56 and stretch out of the pillars 1, and the transverse rods 57 stretch out of one ends of the pillars 1 and are fixedly connected with pedals 58.

Referring to fig. 6 and 7, in an initial state, the rollers 54 are retracted in the grooves 52 at the bottom of the connecting plate 53, when the unfolded tent needs to be moved, a user steps on the pedals 58 with his feet, holds the support 1 with his hands and pulls it upward, so that the support 1 moves upward relative to the pedals 58, the cross bar 57 slides in the through hole 56, the cross bar 57 drives the connecting plate 53 to slide in the same direction, the connecting plate 53 drives the rollers 54 to slide in the same direction, the spring 55 elastically deforms, until the cross bar 57 slides into the limiting groove 561 on the through hole 56, the pedals 58 are released, the spring 55 recovers its deformation, the spring 55 pulls the connecting plate 53 upward, so that the cross bar 57 is engaged in the limiting groove 561, at this time, the rollers 54 extend out of the bottom end of the connecting plate 53, the above steps are repeated to pull out the rollers 54 on the supports 1, and finally the tent can be moved.

Referring to fig. 1, a plurality of mounting boxes 2 are mounted on a support 1, the mounting boxes 2 are connected end to end, the number of the mounting boxes 2 can be adjusted according to the height of the support 1, and the support is wide in application range and high in adaptability; the mosquito net 22 which is unfolded in the plurality of the placing boxes 2 is arranged on the support 1 in a surrounding way, and a gap is left between two adjacent mosquito nets 22, so that ventilation is facilitated; in order to increase the dryness inside the tent, the two side walls of the tent 22 are respectively provided with the magic tapes 5 along the length direction, and the waterproof cloth 51 is adhered between two adjacent tent 22 through the magic tapes 5, so that the gap between two adjacent tent 22 is blocked, the amount of rainwater entering the tent from the gap between the two tent 22 is reduced, and the dryness inside the tent is enhanced; when pasting 5 adhesions with the magic on account body 22, the tent rain proofness can be good, and the leakproofness is strong, and takes off the shutoff at magic subsides 5 in the space, is favorable to the tent to ventilate, adapts to the demand of two kinds of differences of user, and the range of application is extensive.

The implementation principle of the tent with the adjustable tent body in the embodiment of the application is as follows: the tent top 11 of the tent is completely unfolded, when raining, the bump 24 on the placing box 2 is clamped and embedded in the positioning groove 12, the placing box 2 is fixed on the pillar 1 through the fixing hoop 4, the servo motor 34 is started to drive the worm 32 to rotate, further drive the worm wheel 31 to rotate, the worm wheel 31 drives the rotating shaft 21 to rotate, meanwhile, a user pulls the tent body 22 to move towards the other pillar 1 until the tent body moves to the position of the pillar 1 to be fixed, the servo motor 34 stops, the pulled-out end of the tent body 22 is fixed on the pillar 1, and tightness adjustment of the tent body 22 can be achieved by controlling the servo motor 34 to rotate forwards and backwards; through adjusting account body 22, effectively block that the rainwater gets into inside the tent, and the quantity of settling box 2 of installation on the adjustable pillar 1 of size according to the rainfall, the range of application is extensive.

The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
