CN213864564U - Cloth coiling mechanism of weaving machine - Google Patents
Cloth coiling mechanism of weaving machine Download PDFInfo
- Publication number
- CN213864564U CN213864564U CN202022536610.7U CN202022536610U CN213864564U CN 213864564 U CN213864564 U CN 213864564U CN 202022536610 U CN202022536610 U CN 202022536610U CN 213864564 U CN213864564 U CN 213864564U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- butt joint
- right end
- rotating shaft
- support
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
Images
Landscapes
- Treatment Of Fiber Materials (AREA)
Abstract
The utility model relates to the technical field of textile, in particular to a cloth winding device of a textile machine, which comprises a base and an extension plate, wherein the left side and the right side of the upper end of the base are fixedly connected with a support, a winding roller is arranged between the upper ends of the inner sides of the two supports, the left end and the right end of the winding roller are fixedly connected with a butting sleeve, the upper end of the inner side of each support is fixedly connected with a fixed sleeve, the inner part of the fixed sleeve is rotatably connected with a shaft tube, the tail end of the shaft tube extends out of the fixed sleeve, the inner part of the shaft tube is slidably connected with a slide bar, the tail end of the slide bar penetrates out of the shaft tube, and the tail end of the slide bar is fixedly connected with a butting block outside the shaft tube; the winding roller is installed to the upper portions of the two supports conveniently and quickly, the winding roller is prevented from being directly supported by the telescopic cylinder through the support of the rotating shaft and the sliding rod to the winding roller, the telescopic cylinder is prevented from being excessively pressed and deformed, and the telescopic cylinder can be prevented from being deformed and blocked.
Description
Technical Field
The utility model relates to a weaving technical field especially relates to a cloth coiling mechanism of weaving machine.
Background
The original textile meaning is a general name taken from spinning and weaving, but with the continuous development and perfection of a textile knowledge system and a subject system, particularly after non-woven textile materials and three-dimensional compound weaving and other technologies are produced, the existing textile is not only the traditional hand-made spinning and weaving, but also clothing, industrial and decorative textiles produced by non-woven fabric technology, modern three-dimensional weaving technology, modern electrostatic nano-web technology and the like.
Present weaving machine's cloth coiling mechanism, the cloth finishes at the rolling, need change other wind-up rolls, but the wind-up roll is difficult for installing the dismantlement, it is not light convenient enough to lead to the change of wind-up roll, and the wind-up roll does not have extra bearing structure to support when changing and installing, easily drop when leading to the installation of wind-up roll to dismantle, and the cloth only compresses tightly through the compression roller usually, the functional singleness of compression roller, because the cloth easily wets, but be difficult to carry out drying process to the cloth, influence the quality that the cloth rolling was deposited.
SUMMERY OF THE UTILITY MODEL
The utility model provides a cloth coiling mechanism of weaving machine to the difficult installation of wind-up roll that the solution above-mentioned background art provided is dismantled, and easily drops when the installation is dismantled, and the compressing roller is functional single, is difficult to carry out the problem of drying to the cloth.
In order to solve the prior art problem, the utility model discloses a cloth coiling mechanism of weaving machine, including base and extension board:
the winding device is characterized in that the left side and the right side of the upper end of the base are fixedly connected with supports, two winding rollers are arranged between the upper ends of the inner sides of the supports, the left end and the right end of each winding roller are fixedly connected with butt sleeves and are every, the upper ends of the inner sides of the supports are fixedly connected with fixed sleeves, the inner parts of the fixed sleeves are rotatably connected with shaft tubes, the tail ends of the shaft tubes extend out of the fixed sleeves, slide rods are slidably connected inside the shaft tubes, the tail ends of the slide rods penetrate out of the shaft tubes, the tail ends of the slide rods are fixedly connected with butt blocks outside the shaft tubes, each support is arranged inside the support and inside the fixed sleeves, the head ends of the rotation shafts penetrate out of the outer sides of the supports, pull plates are fixedly connected with the peripheries of the head ends of the rotation shafts, rotary sleeves are fixedly connected with rotary, and the left end of the inner wall of the rotating sleeve is fixedly connected with a telescopic cylinder, the right end of the telescopic cylinder is fixedly connected with the left end of the rotating shaft, the right end of the inner part of the winding roller is provided with an inserting groove, an inserting rod is inserted into the inserting groove, a hydraulic telescopic shaft is fixedly connected with the middle position of the front part of the upper end of the base, a concave frame is fixedly connected with the upper end of the support plate, a pressing roller is installed at the lower end of the inner side of the concave frame, a ventilation pipe is fixedly connected with the inner part of the pressing roller, a plurality of air outlet pipes are connected with the periphery of the ventilation pipe, an air heater is fixedly connected with the middle part of the upper end of the concave frame, and the left end of the air heater is connected with a hot air pipe.
Furthermore, the inner periphery of the butt joint sleeve and the periphery of the butt joint block are hexagonal, and the butt joint block is in butt joint with the butt joint sleeve.
Furthermore, the slide bar periphery just is located the outside of central siphon cup joints the slip and has reset spring, just reset spring first and last both ends respectively in central siphon and butt joint piece fixed connection.
Furthermore, the end of the rotating shaft penetrates into the shaft tube, the end of the rotating shaft is fixedly connected with the head end of the sliding rod, the rotating shaft is connected with the shaft tube in a sliding manner, and the sliding rod slides left and right along the shaft tube.
Furthermore, the right end of the slot is communicated with the butt joint sleeve at the right end, the right end of the inserted rod sequentially penetrates through the butt joint sleeve, the butt joint block, the sliding rod and the rotating shaft at the right end, and the right end of the inserted rod penetrates through the rotating shaft at the right end.
Furthermore, the left end and the right end of the ventilation pipe respectively penetrate through the left end and the right end of the compression roller, the left end and the right end of the ventilation pipe are respectively rotatably connected to the left end and the right end of the inner side of the concave frame, the tail end of the hot air pipe is rotatably connected with the left end of the ventilation pipe, the hot air pipe, the ventilation pipe and the air outlet pipe are communicated with each other, the compression roller is of a net-shaped ventilation structure, the hot air fan is communicated with the hot air pipe, and the compression roller is located on the lower portion of the front end of the winding roller.
Compared with the prior art, the utility model discloses the beneficial effect who realizes:
the butt joint block and the butt joint sleeve can be conveniently and rapidly butted by sliding the slide rod left and right, the wind-up roll can be conveniently and rapidly installed on the upper parts of the two brackets, the winding roller is supported by the rotating shaft and the sliding rod, the winding roller is prevented from being directly supported by the telescopic cylinder, the deformation of the telescopic cylinder due to over-pressure is avoided, thereby preventing the telescopic cylinder from deforming and being blocked, and the winding pipe has better supporting force when being installed by inserting the inserting rod into the slot without excessively holding the winding roller by hands, ensuring the installation convenience and being beneficial to the disassembly and replacement of the winding roller, the cloth is pressed by the pressing roller, the compactness in the rolling process is ensured, the hot air sprayed out of the air outlet pipe is used for drying the cloth, the cloth rolling device has the advantages that the damp condition is avoided during cloth rolling, the quality of the cloth after being rolled and stored is guaranteed, and the function of the pressing roller is better.
Drawings

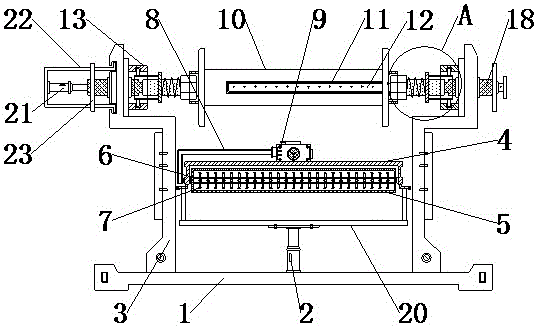

Fig. 1 is a schematic view of the overall structure of the present invention;
fig. 2 is an enlarged partial structural view of a in fig. 1 according to the present invention;
FIG. 3 is a schematic view of the overall split structure of the present invention;
fig. 4 is a schematic side view of the docking sleeve of the present invention.
In FIGS. 1-4: the device comprises a base 1, a hydraulic telescopic shaft 2, a support 3, a concave frame 4, a pressing roller 5, a ventilation pipe 6, an air outlet pipe 7, a hot air pipe 8, a hot air blower 9, a winding roller 10, a slot 11, an insertion rod 12, a fixed sleeve 13, a butt joint block 14, an axle pipe 15, a sliding rod 16, a return spring 17, a rotating shaft 18, a butt joint sleeve 19, a support plate 20, a telescopic cylinder 21, a rotating sleeve 22 and a pulling plate 23.
Detailed Description
The following description is provided for illustrative purposes, and other advantages and features of the present invention will become apparent to those skilled in the art from the following detailed description.
Please refer to fig. 1 to 4:
a cloth winding device of a textile machine comprises a base 1 and a support plate 20:
the equal fixedly connected with support 3 in base 1 upper end left and right sides, and two be equipped with wind-up roll 10 between the inboard upper end of support 3, the equal fixedly connected with of both ends is to nipple 19, and every about wind-up roll 10 the equal fixedly connected with fixed cover 13 in the inboard upper end of support 3, the inside rotation of fixed cover 13 is connected with central siphon 15, just central siphon 15 end extends fixed cover 13, the inside sliding connection of central siphon 15 has slide bar 16, just slide bar 16 end runs through out central siphon 15, slide bar 16 end just is located the outside fixedly connected with butt joint piece 14 of central siphon 15, every the inboard of support 3 just is located the inside equal swing joint of fixed cover 13 has axis of rotation 18, just axis of rotation 18 head end runs through out the outside of support 3, the equal fixedly connected with arm-tie 23 in axis of 18 head end periphery, and the left end the arm-tie 23 left end runs through and is fixed with the rotation cover 22, the right end of the rotating sleeve 22 is rotatably connected with the left end of the support 3, the left end of the inner wall of the rotating sleeve 22 is fixedly connected with a telescopic cylinder 21, the right end of the telescopic cylinder 21 is fixedly connected with the left end of the rotating shaft 18, the right end of the interior of the winding roller 10 is provided with a slot 11, an insertion rod 12 is inserted into the slot 11, the tail end of the rotating shaft 18 penetrates into the shaft tube 15, the tail end of the rotating shaft 18 is fixedly connected with the head end of the sliding rod 16, the rotating shaft 18 is slidably connected with the shaft tube 15, the sliding rod 16 slides left and right along the shaft tube 15, the right end of the slot 11 is communicated with the butt-joint sleeve 19 at the right end, the right end of the insertion rod 12 sequentially penetrates through the butt-joint sleeve 19 at the right end, the butt-joint block 14, the sliding rod 16 and the rotating shaft 18, and the right end of the insertion rod 12 penetrates out of the rotating shaft 18 at the right end;
specifically, after the cloth is completely wound by the winding roller 10, the winding roller 10 needs to be replaced, so that the telescopic cylinder 21 is contracted, the rotating shaft 18 at the left end drives the sliding rod 16 at the left end to slide to the left side, the return spring 17 at the left end is compressed, the butt joint block 14 at the left end is separated from the butt joint sleeve 19 at the right end, the butt joint block 14 at the right end is separated from the butt joint sleeve 19 at the right end, the insertion rod 12 supports the winding roller 10, a supporting force is applied to the winding roller 10, the winding roller 10 is prevented from falling off, the stability in the dismounting process is improved, the winding roller 10 is held by hand, the insertion rod 12 is pulled rightwards, the insertion rod 12 is separated from the slot 11, and the winding roller 10 can be dismounted quickly and conveniently;
further, when the wind-up roll 10 needs to be installed, the right butt joint sleeve 19 is butt jointed with the right butt joint block 14, then the insertion rod 12 is inserted into the insertion slot 11, so that the winding tube has a better supporting force when being installed, the wind-up roll 10 does not need to be held by hands, the installation convenience is guaranteed, then the telescopic cylinder 21 is extended, the telescopic cylinder 21 pushes the left rotating shaft 18, the left sliding rod 16 and the left butt joint block 14 rightwards, the left butt joint block 14 is butt jointed with the left butt joint sleeve 19, the wind-up roll 10 is finally installed, when the wind-up roll 10 rotates, the wind-up roll 10 drives the butt joint sleeve 19, the butt joint block 14, the sliding rod 16, the shaft sleeve, the rotating shaft 18, the pulling plate 23, the telescopic cylinder 21 and the rotating sleeve 22 to rotate together, the rotating effect is achieved, and the wind-up roll 10 is supported by the rotating shaft 18 and the sliding rod 16, avoid telescopic cylinder 21 directly to support wind-up roll 10 to the condition emergence of deformation is excessively pressed to telescopic cylinder 21, thereby can prevent that telescopic cylinder 21 warp the card and die.
A hydraulic telescopic shaft 2 is fixedly connected at the middle position of the front part of the upper end of the base 1, a concave frame 4 is fixedly connected at the upper end of the support plate 20, a pressing roller 5 is installed at the lower end of the inner side of the concave frame 4, a ventilation pipe 6 is fixedly connected in the pressing roller 5, a plurality of air outlet pipes 7 are connected at the periphery of the ventilation pipe 6, a hot air blower 9 is fixedly connected at the middle part of the upper end of the concave frame 4, a hot air pipe 8 is connected at the left end of the hot air blower 9, the left end and the right end of the ventilation pipe 6 respectively penetrate through the left end and the right end of the pressing roller 5, the left end and the right end of the ventilation pipe 6 are respectively and rotatably connected at the left end and the right end of the inner side of the concave frame 4, the tail end of the hot air pipe 8 is rotatably connected with the left end of the ventilation pipe 6, the hot air pipe 8, the ventilation pipe 6 and the air outlet pipes 7 are communicated with each other, the pressing roller 5 is of a net ventilation structure, and the hot air blower 9 is communicated with the hot air pipe 8, the compression roller 5 is positioned at the lower part of the front end of the winding roller 10;
further, press the upper end at the cloth with pinch roller 5 lower extreme, when the cloth carries out the rolling, make the shrink of hydraulic telescoping shaft 2, extension board 20 then drives concave type frame 4 and pinch roller 5 and move down, then make pinch roller 5 exert decurrent pressure to the cloth, thereby make the cloth take up the tensioning, make the compactness more of cloth when the rolling, open air heater 9 simultaneously, air heater 9 carries hot-blast to in hot-blast main 8 and the ventilation pipe 6, finally discharge by air-out pipe 7, the hot-blast pinch roller 5 through netted ventilation structure of air-out pipe 7 exhaust is then discharged, thereby make hot-blast drying process to the cloth, the condition that wets takes place when in order to avoid the cloth rolling, the quality after having guaranteed the cloth rolling and depositing, make pinch roller 5's functional better.
The inner periphery of the butt-joint sleeve 19 and the periphery of the butt-joint block 14 are hexagonal, and the butt-joint block 14 is in butt joint in the butt-joint sleeve 19;
further, since the outer periphery of the docking block 14 and the inner periphery of the docking sleeve 19 are hexagonal in shape, the docking block 14 is prevented from rotating within the docking sleeve 19.
A return spring 17 is sleeved and slid on the periphery of the slide bar 16 and outside the shaft tube 15, and the head end and the tail end of the return spring 17 are respectively and fixedly connected with the shaft tube 15 and the butt-joint block 14;
further, the rotation shaft 18 is pulled by the pulling plate 23 through the elasticity of the return spring 17, so that the manual adjustment of the left-right sliding distance of the two slide bars 16 is facilitated, and the return force of the return spring 17 is utilized to reset the slide bars 16 to the initial position.
The above embodiments are merely illustrative of the principles and effects of the present invention, and are not to be construed as limiting the invention. Modifications and variations can be made to the above-described embodiments by those skilled in the art without departing from the spirit and scope of the present invention. Accordingly, it is intended that all equivalent modifications or changes which may be made by those skilled in the art without departing from the spirit and technical spirit of the present invention be covered by the claims of the present invention.
Claims (6)
1. The utility model provides a cloth coiling mechanism of weaving machine, includes base (1) and extension board (20), its characterized in that:
the equal fixedly connected with support (3) in base (1) upper end left and right sides, and two be equipped with wind-up roll (10) between support (3) inboard upper end, the equal fixedly connected with butt joint cover (19) in both ends about wind-up roll (10), and every the equal fixedly connected with fixed cover (13) in support (3) inboard upper end, the inside rotation of fixed cover (13) is connected with central siphon (15), just central siphon (15) end-to-end extension fixed cover (13), the inside sliding connection of central siphon (15) has slide bar (16), just slide bar (16) end runs through out central siphon (15), slide bar (16) end just is located the outside fixedly connected with butt joint piece (14) of central siphon (15), every support (3) inboard just is located the inside equal swing joint of fixed cover (13) has axis of rotation (18), the head end of the rotating shaft (18) penetrates out of the outer side of the support (3), a pulling plate (23) is fixedly connected to the periphery of the head end of the rotating shaft (18), a rotating sleeve (22) is fixedly connected to the left end of the pulling plate (23) in a penetrating manner, the right end of the rotating sleeve (22) is rotatably connected with the left end of the support (3), a telescopic cylinder (21) is fixedly connected to the left end of the inner wall of the rotating sleeve (22), the right end of the telescopic cylinder (21) is fixedly connected with the left end of the rotating shaft (18), a slot (11) is formed in the right end of the interior of the winding roller (10), an inserting rod (12) is inserted into the slot (11), a hydraulic telescopic shaft (2) is fixedly connected to the middle position of the front portion of the upper end of the base (1), a concave frame (4) is fixedly connected to the upper end of the support plate (20), and a pressing roller (5) is installed at the lower end of the inner side of the concave frame (4), the inside fixedly connected with ventilation pipe (6) of pinch roller (5), just ventilation pipe (6) periphery has connect a plurality of tuber play tuber pipes (7) mutually, concave type frame (4) upper end middle part fixedly connected with air heater (9), just air heater (9) left end has connect hot-blast main (8).
2. A cloth take-up device of a textile machine, as claimed in claim 1, wherein: the inner periphery of the butt joint sleeve (19) and the periphery of the butt joint block (14) are hexagonal, and the butt joint block (14) is in butt joint with the butt joint sleeve (19).
3. A cloth take-up device of a textile machine, as claimed in claim 1, wherein: the slide bar (16) periphery just is located the outside of central siphon (15) is cup jointed to slide and is had reset spring (17), just reset spring (17) head and end both ends respectively in central siphon (15) and butt joint piece (14) fixed connection.
4. A cloth take-up device of a textile machine, as claimed in claim 1, wherein: the end of the rotating shaft (18) penetrates into the shaft tube (15), the end of the rotating shaft (18) is fixedly connected with the head end of the sliding rod (16), the rotating shaft (18) is slidably connected with the shaft tube (15), and the sliding rod (16) slides left and right along the shaft tube (15).
5. A cloth take-up device of a textile machine, as claimed in claim 1, wherein: the right end of the slot (11) is communicated with the butt joint sleeve (19) at the right end, the right end of the inserted rod (12) sequentially penetrates through the butt joint sleeve (19), the butt joint block (14), the sliding rod (16) and the rotating shaft (18) at the right end, and the right end of the inserted rod (12) penetrates through the rotating shaft (18) at the right end.
6. A cloth take-up device of a textile machine, as claimed in claim 1, wherein: the left end and the right end of the ventilation pipe (6) penetrate through the left end and the right end of the pressing roller (5) respectively, the left end and the right end of the ventilation pipe (6) are connected to the left end and the right end of the inner side of the concave frame (4) in a rotating mode respectively, the tail end of the hot air pipe (8) is connected with the left end of the ventilation pipe (6) in a rotating mode, the hot air pipe (8), the ventilation pipe (6) and the air outlet pipe (7) are communicated with each other, the pressing roller (5) is of a net-shaped ventilation structure, the hot air fan (9) is communicated with the hot air pipe (8), and the pressing roller (5) is located on the lower portion of the front end of the winding roller (10).
