CN213837671U

CN213837671U - Construction hanging basket

Info

Publication number: CN213837671U
Application number: CN202022666190.4U
Authority: CN
Inventors: 周敏
Original assignee: Individual
Current assignee: Individual
Priority date: 2020-11-18
Filing date: 2020-11-18
Publication date: 2021-07-30
Anticipated expiration: 2030-11-18

Abstract

The utility model discloses a construction hanging basket, which comprises a wall surface and a mounting plate fixedly mounted on the upper end of the wall surface. Two winches are symmetrically arranged at the upper end of the mounting plate. The basket is located under the mounting plate, the front side wall of the hanging basket is provided with a hanging basket door, the left and right side walls of the hanging basket are movably installed with a movable plate through the installation groove, the upper end of the movable plate is provided with a protective roof, and a positioning rod is inserted into the movable plate. The outer walls of the positioning rods are all slidably installed on the upper end of the hanging basket through the fixing blocks, the outer walls of the positioning rods are all provided with limit blocks, the outer walls of the positioning rods are all sleeved with compression springs, and the compression springs are all located between the fixed blocks and the limit blocks. Reasonable design, the protective roof is easy to adjust the height, and the protective roof can protect the worker's head without hindering the worker's work.

Description

Construction hanging basket

Technical Field

The utility model relates to a construction equipment technical field specifically is a construction hanging flower basket.

Background

The hanging basket is a construction tool for high-altitude operation in construction engineering, can replace a traditional scaffold, can reduce labor intensity, improves working efficiency, and can be repeatedly used. The use of the construction hanging basket has gradually become a trend, and the construction hanging basket is widely used in high-altitude operations such as outer wall construction, curtain wall installation, heat preservation construction, maintenance and outer wall cleaning of high-rise multi-storey buildings, and can be used for the operation of large-scale tank bodies, bridges, dams and other projects.

Use the construction hanging flower basket, can exempt from to take the scaffold frame, make construction cost reduce, the operating expenses is only 28% of traditional scaffold frame, can make work efficiency improve by a wide margin moreover. And the hanging basket has the advantages of flexible operation, easy displacement, convenience, practicability, safety and reliability. However, the existing hanging basket still has certain defects, for example, the top of the hanging basket is basically not provided with a protective top, the head of a worker cannot be protected during high-altitude operation, and the worker is easily damaged by falling objects on a construction site.

SUMMERY OF THE UTILITY MODEL

To the problem, the utility model provides a construction hanging flower basket, aim at set up but height-adjusting's protection top, avoid the workman to receive the injury of droppings.

In order to realize the technical purpose, the technical effect is achieved, the utility model discloses a realize through following technical scheme:

the utility model provides a construction hanging basket, includes wall and fixed mounting in the mounting panel of wall upper end, mounting panel upper end symmetry is equipped with two winches, the capstan winch all is connected with the hanging flower basket through bearing hawser and connecting piece, the hanging flower basket is located the mounting panel below, the lateral wall is equipped with the hanging flower basket door before the hanging flower basket, the lateral wall all has the fly leaf through mounting groove movable mounting about the hanging flower basket, the fly leaf upper end is equipped with the protection top, all peg graft on the fly leaf has the locating lever, the locating lever outer wall all through fixed block slidable mounting in the hanging flower basket upper end, the locating lever outer wall all is equipped with the stopper, the locating lever outer wall all overlaps and is equipped with compression spring, compression spring all is located the fixed block with between the stopper.

Preferably, in the construction hanging basket, a plurality of telescopic limiting rods are symmetrically arranged on the bottom surface of the mounting plate, and the lower ends of the telescopic limiting rods are connected with the upper end of the hanging basket.

Preferably, among the above-mentioned construction hanging flower basket, the inside first pivot that all is equipped with of capstan winch, first pivot tip all is equipped with from the driving wheel, all be connected with the drive wheel through transmission of drive belt from the driving wheel, the inside second pivot that all is equipped with of drive wheel, second pivot both ends are all installed through the mount pad rotation the mounting panel upper surface, all be equipped with drive gear in the second pivot, and two intermeshing connects between the drive gear, one of them second pivot tip is equipped with the transmission worm wheel, the meshing is connected with the drive worm on the transmission worm wheel, drive worm tip transmission is connected with driving motor, driving motor fixed mounting be in the mounting panel upper surface.

Preferably, in the construction hanging basket, the transmission belt is a toothed transmission belt.

Preferably, in the construction hanging basket, the mounting plate is provided with a dust cover on the upper surface.

Preferably, in the construction hanging basket, a damping block is arranged on the bottom surface of the hanging basket, and a fixing platform is arranged inside the hanging basket.

Compared with the prior art, the utility model discloses a construction hanging flower basket beneficial effect is:

(1) the utility model has the advantages of reasonable design, the protection top is through fly leaf and mounting groove cooperation movable mounting on the lateral wall about the hanging flower basket, through promoting the fly leaf from top to bottom and realize that the protection is pushed up and down to be adjusted, and the locating lever pegs graft in the fly leaf under compression spring effect, realizes the stability of protection top height, can be under the condition that does not hinder workman's work, makes the protection top realize protecting workman's head.

(2) The utility model discloses a mounting panel underrun is connected with the hanging flower basket upper end through flexible gag lever post, realizes the spacing of hanging flower basket, avoids the hanging flower basket to receive the wind-force influence to take place to rock, has reduced the risk of falling when workman operates.

Drawings

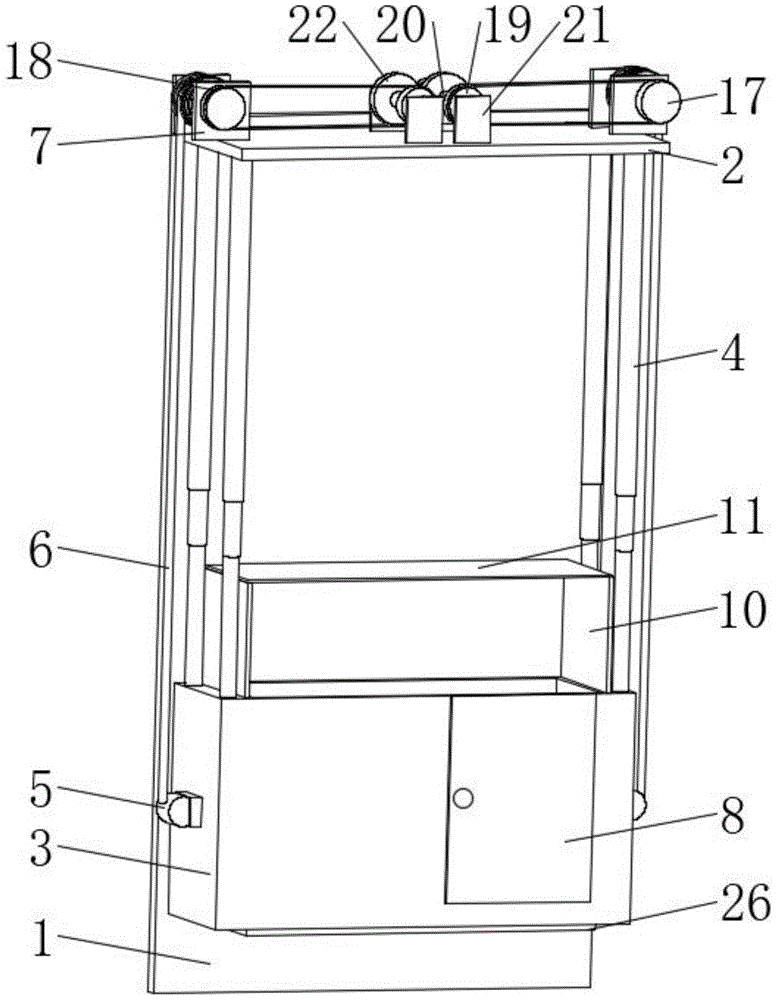

Fig. 1 is a schematic perspective view of the present invention;

fig. 2 is a top view of the structure of the present invention;

fig. 3 is a schematic view of the installation structure of the protection roof of the present invention.

In the drawings: 1. a wall surface; 2. mounting a plate; 3. a hanging basket; 4. a telescopic limiting rod; 5. a connecting member; 6. a load-bearing cable; 7. a winch; 8. a basket door; 9. mounting grooves; 10. a movable plate; 11. protecting the roof; 12. positioning a rod; 13. a fixed block; 14. a limiting block; 15. a compression spring; 16. a first rotating shaft; 17. a driven wheel; 18. a transmission belt; 19. a drive wheel; 20. a second rotating shaft; 21. a mounting seat; 22. a transmission gear; 23. a drive worm gear; 24. a drive worm; 25. a drive motor; 26. a damper block; 27. and a fixed platform.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments of the present invention, all other embodiments obtained by a person of ordinary skill in the art without creative efforts belong to the protection scope of the present invention.

Referring to fig. 1-3, the present embodiment is a construction basket, which includes a wall surface 1 and a mounting plate 2 fixedly mounted on the upper end of the wall surface 1, two winches 7 are symmetrically arranged at the upper end of the mounting plate 2, the winches 7 are connected with the hanging basket 3 through a bearing cable 6 and a connecting piece 5, the hanging basket 3 is positioned below the mounting plate 2, a hanging basket door 8 is arranged on the front side wall of the hanging basket 3, movable plates 10 are movably arranged on the left side wall and the right side wall of the hanging basket 3 through mounting grooves 9, a protective roof 11 is arranged at the upper end of each movable plate 10, the movable plates 10 are all inserted with positioning rods 12, the outer walls of the positioning rods 12 are all slidably mounted at the upper end of the hanging basket 3 through fixing blocks 13, locating lever 12 outer wall all is equipped with stopper 14, locating lever 12 outer wall all overlaps and is equipped with compression spring 15, compression spring 15 all is located fixed block 13 with between the stopper 14. In the embodiment, the hanging basket 3 is lifted through the operation of the winch 7, the protective roof 11 is movably mounted on the left and right side walls of the hanging basket 3 through the cooperation of the movable plate 10 and the mounting groove 9, the height adjustment of the protective roof 11 can be realized by pushing the movable plate 10 up and down, and the positioning rod 12 is inserted into the movable plate 10 under the action of the compression spring 15, so that the movable plate 10 is positioned, and the height stabilization of the protective roof 11 is realized.

Further, 2 bottom surfaces of mounting panel symmetry are equipped with a plurality of flexible gag lever posts 4, flexible gag lever post 4 lower extreme all with 3 upper ends of hanging flower basket are connected. In this embodiment, 2 underrun of mounting panel is connected with 3 upper ends of hanging flower basket through flexible gag lever post 4, realizes hanging flower basket 3 spacing, avoids hanging flower basket 3 to receive wind-force to influence to take place to rock, the risk of falling when increasing the workman and operating.

Further, the inside first pivot 16 that all is equipped with of capstan winch 7, the tip of first pivot 16 all is equipped with from driving wheel 17, it all is connected with drive wheel 19 through the transmission of drive belt 18 to follow driving wheel 17, the inside second pivot 20 that all is equipped with of drive wheel 19, the both ends of second pivot 20 all rotate through mount pad 21 and install 2 upper surfaces of mounting panel, all be equipped with drive gear 22 on the second pivot 20, and two intermeshing connects between drive gear 22, one of them 20 tip of second pivot is equipped with transmission worm wheel 23, the meshing is connected with drive worm 24 on the transmission worm wheel 23, 24 end drive of drive worm are connected with driving motor 25, driving motor 25 fixed mounting be in 2 upper surfaces of mounting panel. In the embodiment, the driving motor 25 drives one of the second rotating shafts 20 to rotate through the driving worm 24 and the transmission worm wheel 23, the two second rotating shafts 20 realize relative rotation through the action of the transmission gear 22, the driving wheels 19 on the two second rotating shafts 20 drive the driven wheels 17 to rotate through the transmission belt 18, so that the winch 7 rotates, and the hanging basket 3 is driven to lift through the bearing cable 6.

Further, the belt 18 is a toothed belt. In the present embodiment, the belt 18 is a toothed belt, and the belt teeth are engaged with the driving wheel 19 and the driven wheel 17, thereby preventing the belt 18 from slipping and stabilizing the basket 3.

Further, the upper surface of the mounting plate 2 is provided with a dust cover. In this embodiment, the dust cover is provided to prevent the transmission structure from being contaminated by dust.

Further, the bottom surface of the hanging basket 3 is provided with a damping block 26, and a fixing platform 27 is arranged inside the hanging basket 3. In the present embodiment, when the basket 3 is lowered to the ground, the damping of the basket 3 is achieved by the damping blocks 26, and a worker can rest or place articles on the fixing table 27.

The utility model discloses a concrete application method includes the step:

(1) driving a hanging basket: a switch of a driving motor 25 is turned on, the driving motor 25 drives one of the second rotating shafts 20 to rotate through a driving worm 24 and a transmission worm wheel 23, the two second rotating shafts 20 realize relative rotation through the action of a transmission gear 22, driving wheels 19 on the two second rotating shafts 20 drive driven wheels 17 to rotate through a transmission belt 18, so that a winch 7 rotates, and a hanging basket 3 is driven to lift through a bearing cable 6;

(2) adjusting the protective roof: when the construction position is reached, the height of the protective roof is required to be adjusted according to the field requirements or the height of workers, the positioning rod 12 is pulled inwards to separate the positioning rod 12 from the movable plate 10, the height of the protective roof 11 is adjusted by pushing the movable plate 10, the positioning rod 12 is loosened, the positioning rod 12 is inserted into the movable plate 10 under the action of the compression spring 15, and the stability of the movable plate 10 and the protective roof 11 after the height is adjusted is achieved.

In the description herein, references to the description of "one embodiment," "an example," "a specific example," etc., mean that a particular feature, structure, material, or characteristic described in connection with the embodiment or example is included in at least one embodiment or example of the invention. In this specification, the schematic representations of the terms used above do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials, or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are intended only to help illustrate the present invention. The preferred embodiments are not exhaustive and do not limit the invention to the precise embodiments disclosed. Obviously, many modifications and variations are possible in light of the above teaching. The embodiments were chosen and described in order to best explain the principles of the invention and its practical applications, to thereby enable others skilled in the art to best understand the invention for and utilize the invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims

1. A construction hanging basket is characterized in that: comprising a wall (1) and a mounting plate (2) fixedly installed on the upper end of the wall (1), the upper end of the mounting plate (2) is symmetrically provided with two winches (7), the winches (7) are connected with the connecting piece (5) through the load-bearing cable (6) with a hanging basket (3), the hanging basket (3) is located under the mounting plate (2), The front side wall of the hanging basket (3) is provided with a hanging basket door (8). 10) The upper end is provided with a protective roof (11), and positioning rods (12) are inserted on the movable plates (10), and the outer walls of the positioning rods (12) are all slidably installed on the hanging rods through the fixing blocks (13). At the upper end of the basket (3), limit blocks (14) are provided on the outer walls of the positioning rods (12), and compression springs (15) are sleeved on the outer walls of the positioning rods (12). between the fixing block (13) and the limiting block (14).

2. A construction hanging basket according to claim 1, characterized in that: the bottom surface of the mounting plate (2) is symmetrically provided with a plurality of telescopic limit rods (4), and the lower end of the telescopic limit rod (4) Both are connected with the upper end of the hanging basket (3).

3. A construction hanging basket according to claim 1, characterized in that: a first rotating shaft (16) is provided inside the winch (7), and an end of the first rotating shaft (16) is provided with a first rotating shaft (16). A driven wheel (17), the driven wheel (17) is connected to a driving wheel (19) through a transmission belt (18), and a second rotating shaft (20) is provided inside the driving wheel (19). Both ends of the rotating shaft (20) are rotatably mounted on the upper surface of the mounting plate (2) through the mounting seat (21), the second rotating shaft (20) is provided with a transmission gear (22), and the two transmission The gears (22) are meshed and connected to each other, wherein one end of the second rotating shaft (20) is provided with a transmission worm gear (23), and a drive worm (24) is meshed and connected to the transmission worm gear (23). A drive motor (25) is drivingly connected to the end of the drive worm (24), and the drive motor (25) is fixedly mounted on the upper surface of the mounting plate (2).

4. A construction hanging basket according to claim 3, characterized in that: the transmission belt (18) is a toothed transmission belt.

5 . The construction hanging basket according to claim 1 , wherein a dust cover is provided on the upper surface of the mounting plate ( 2 ). 6 .

6. A construction hanging basket according to claim 1, characterized in that: the bottom surface of the hanging basket (3) is provided with a shock-absorbing block (26), and the hanging basket (3) is provided with a fixing table ( 27).
