Abstract
本申请涉及一种栈道平台排水结构，其包括平台、固定设置在平台底部的排水装置；所述排水装置包括集水箱、设置在集水箱上的滤水组件以及设置在集水箱内的排水管，所述排水管一端连接在排水系统内，设置在集水箱内的另一端开口设置，高度高于集水箱高度的一半；所述集水箱用于集水并可以浇灌周围的植株，所述滤水组件包括过滤框架和滤水板，所述滤水板能够从过滤框架中抽出并进行清洁，所述平台上设置有多个栈道板，所述栈道板上设置有若干个排水孔。本申请具有增强栈道平台排水速度、减少平台上积水以及收集雨水循环利用的效果。
The application relates to a plank road platform drainage structure, which includes a platform and a drainage device fixedly arranged at the bottom of the platform; the drainage device includes a water collection tank, a water filter assembly arranged on the water collection tank, and a drainage pipe arranged in the water collection tank, One end of the drainage pipe is connected to the drainage system, and the other end is open in the water collection tank, and the height is higher than half of the height of the water collection tank; the water collection tank is used for water collection and can water the surrounding plants, and the filtered water The assembly includes a filter frame and a water filter plate, the water filter plate can be pulled out from the filter frame and cleaned, a plurality of plank boards are arranged on the platform, and a plurality of drainage holes are arranged on the plank plate. The present application has the effects of enhancing the drainage speed of the plank road platform, reducing the accumulation of water on the platform, and collecting rainwater for recycling.
Description
Technical Field
The application relates to the technical field of gallery drainage, in particular to a gallery platform drainage structure.
Background
In landscape construction, the trestle platform is a landscape platform with a large number of applications and a wide application range, and is increasingly widely applied to modern ecological landscape.
As rainwater flows into the drainage device from the gallery platform and is often attached with garbage such as sand and stone particles, the problems of blockage of the drainage device and water accumulation of the gallery platform are easily caused in the drainage process.
SUMMERY OF THE UTILITY MODEL
In order to improve the problem of the easy ponding of plank road platform, this application provides a plank road platform drainage structures.
The application provides a plank road platform drainage structures adopts following technical scheme:
a landing stage drainage structure comprises a landing, a drainage device fixed at the bottom of the landing; the drainage device comprises a water collection tank, a water filtering component arranged on the water collection tank and a drainage pipe arranged in the water collection tank, wherein one end of the drainage pipe is connected in a drainage system, and the other end of the drainage pipe arranged in the water collection tank is provided with an opening and is higher than half of the height of the water collection tank; the water collecting tank is used for collecting water and can water surrounding plants, and the water filtering component comprises a filtering frame and a water filtering plate, wherein the water filtering plate can be drawn out of the filtering frame and cleaned.
Through adopting above-mentioned technical scheme, the rainwater flows to the header tank in by the plank road platform after, the debris of rainwater can be crossed to the drainage subassembly in the header tank, the drainage subassembly can be taken out alone and clear up, the ponding in the header tank can be watered etc. effect simultaneously, the drain pipe in the header tank can reach a certain amount of back row to drainage system in the header tank ponding, reduce the possibility of plank road platform ponding, the drainage device of plank road platform has the advantage that reduces platform ponding, energy saving and emission reduction and cyclic utilization resource.
Optionally, the platform is provided with a plurality of stack plates, and the stack plates are provided with a plurality of drain holes.
Through adopting above-mentioned technical scheme, the wash port on the plank road board has the effect of drainage with higher speed, reduction platform ponding, and the wash port can also the impurity of prefiltration rainwater simultaneously.
Optionally, the water collecting tank is fixedly arranged in the platform, and a plurality of water collecting plates extend outwards in an inclined mode on the outer wall of the periphery of the water collecting tank.
Through adopting above-mentioned technical scheme, the water-collecting plate can enlarge the water-collecting range of header tank, reduces ponding and unrestrained outside the landing stage, influences the possibility of landing stage platform environment all around.
Optionally, a square hole is formed in the surface of one side of the water collecting tank, a plurality of ribs are respectively arranged on two adjacent sides of the water collecting tank and the side provided with the square hole, a plurality of sliding grooves are respectively formed in two parallel sides of the filtering frame, the filtering frame is arranged on the ribs in a sliding mode through the sliding grooves, and the filtering frame can enter the water collecting tank through the square hole.
Through adopting above-mentioned technical scheme, filtering framework can pass through the square hole to slide and set up in the header tank, the user can pull out filtering framework to the header tank outside through the square hole, and clean alone, has the effect of clean change drainage subassembly at any time, has improved the convenience when drainage device uses.
Optionally, a plurality of supporting members are fixedly arranged in the filtering frame, and the water filtering plate is arranged in the filtering frame through the supporting members.
Through adopting above-mentioned technical scheme, the drainage board that sets up on support piece has the characteristics of convenient dismantlement, and the person of facilitating the use dismantles when the clearance.
Optionally, convex edges are arranged on the periphery of the water filtering plate, and a plurality of handles are arranged on the convex edges.
Through adopting above-mentioned technical scheme, at the in-process that takes out the filter, the filter protruding edge all around has the effect that blocks impurity and drop, and the handle on the protruding edge has the effect that the person of facilitating the use holds simultaneously.
Optionally, a water pump is arranged in the water collecting tank, a water pipe is connected to the water pump, the water pipe penetrates through the side wall of the upper portion of the water collecting tank, and the front end of the water pipe is connected with a spray head.
Through adopting above-mentioned technical scheme, the ponding in the water header tank can be extracted to the water pump to spout ponding through the shower nozzle, realize watering gallery road platform plant all around purpose.
Optionally, a plurality of filter plates are arranged around the water pump, and the filter plates are connected in pairs to form a closed structure so as to enclose the water pump in the filter plates.
Through adopting above-mentioned technical scheme, the ponding in the water collecting tank can further be filtered to water pump filter all around, reduces the impurity content of the ponding aquatic of water pump extraction, prevents that shower nozzle and water pump from being stopped up by impurity. .
In summary, the present application includes at least one of the following beneficial technical effects:
1. the water collecting tank arranged in the trestle platform can filter and collect the accumulated water flowing down from the platform, and can primarily filter the accumulated water and irrigate the surrounding plants;
2. the inside drainage subassembly of header tank can take out alone, and convenience of customers cleans and changes drainage subassembly.
Drawings

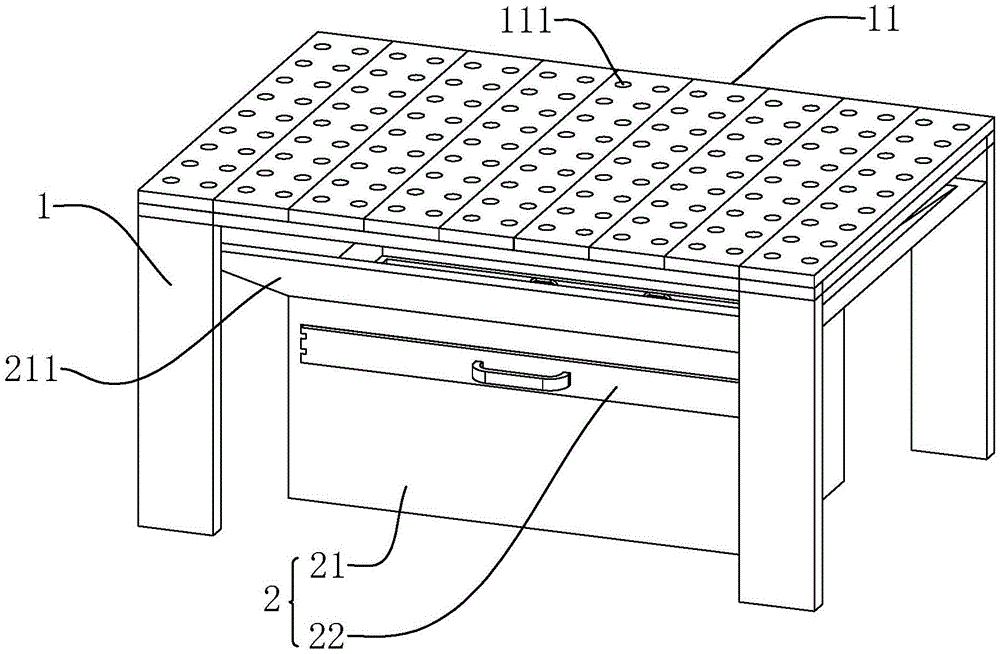

Fig. 1 is a schematic view of the overall structure of the present invention.
Fig. 2 is a schematic view for highlighting the water collection tank of fig. 1.
Fig. 3 is a schematic view highlighting the water filtration assembly of fig. 1.
Fig. 4 is a schematic view for highlighting the filter frame and the support member of fig. 3.
Description of reference numerals: 1. a platform; 11. a gallery road plate; 111. a drain hole; 2. a drainage device; 21. a water collection tank; 211. a water collection plate; 212. a square hole; 213. a rib; 214. a water pump; 215. a water pipe; 216. a spray head; 217. a filter plate; 22. a water filtration assembly; 221. a filter frame; 222. a water filter plate; 223. a chute; 224. a support member; 225. a convex edge; 226. a handle; 227. a handle; 23. and a water discharge pipe.
Detailed Description
The present application is described in further detail below with reference to figures 1-4.
The embodiment of the application discloses plank road platform drainage structures. Referring to fig. 1, the drainage structure of the gallery road platform comprises a platform 1 and a drainage device 2, wherein the drainage device 2 is arranged in the platform 1 and is connected with the ground; be provided with a plurality of plank road plates 11 side by side on the platform 1, evenly seted up a plurality of wash ports 111 on the plank road plate 11, wash port 111 can filter the debris of the rainwater on the platform to can accelerate in rainwater flows to drainage device 2 from platform 1, avoid 1 ponding of platform to lead to plank road plate 11 to be wet and slippery, improve the problem that plank road plate 11 receives the rainwater to corrode simultaneously, prolong the life of plank road plate 11.
Referring to fig. 1 and 2, drainage device 2 is including setting up at subaerial header tank 21, water filtering component 22 and drain pipe 23, water filtering component 22 can dismantle the setting in header tank 21, drain pipe 23 is fixed to be set up in the one corner of header tank 21, the height of drain pipe 23 is higher than half of header tank 21 height, be less than water filtering component 22's height, make can save the same water with drain pipe 23 height in header tank 21, can water or spray water clean platform all around to platform 1 plant all around, simultaneously drain pipe 23 opening part is higher, can make the sediment in the sediment once more deposit, further reduce the silt that discharges to drainage system through drain pipe 23, reduce the possibility of blockking up drainage system.
When the water level in the water collecting tank 21 is higher than the drain pipe 23, accumulated water can be discharged into a drainage system through the drain pipe 23, and the situation that the surplus accumulated water submerges the platform 1 to cause the slipway plate 11 to be wet and slippery and influence the surrounding sanitation is avoided; a water pump 214 is fixedly arranged at one corner of the water collecting tank 21, a water pipe 215 is fixedly connected to the water pump 214, the water pipe 215 penetrates through the side wall of the water collecting tank 21 and extends out of the water collecting tank 21, a spray head 216 is fixedly connected to one end, extending out of the water collecting tank 21, of the water pipe 215, and a worker can use the water pump 214, the water pipe 215 and the spray head 216 to spray water or clean the periphery.
Referring to fig. 1, 2 and 3, four water collecting plates 211 are fixedly connected to the upper opening of the water collecting tank 21, the water collecting plates 211 are in an isosceles trapezoid structure, the shorter bottom edge of each water collecting plate 211 is connected to the upper opening of the water collecting tank 21, the side edges of two adjacent water collecting plates 211 are connected to each other, and the four water collecting plates 211 enclose a conical barrel structure with a larger opening at the upper end, so that the amount of collected rainwater is maximized; the side of header tank 21 towards the platform 1 outside has seted up square hole 212, square hole 212 respectively is provided with two fins 213 on two lateral walls that the inside extension of header tank 21, water filtering component 22 includes filtering frame 221 and drainage 222, the height of square hole 212 is slightly more than filtering frame 221's height, filtering frame 221 wherein has respectively seted up two spouts 223 on two parallel lateral walls, filtering frame 221 passes through spout 223 and fin 213 sliding fit, realize sliding the setting in header tank 21, filtering frame 221 exposes at the fixed handle 227 that is provided with on the surface in the header tank 21 outside, handle 227 convenience of customers takes out filtering frame 221, the detachable ability of water filtering component 22 has been strengthened, convenience of customers clearance changes water filtering component 22.
Referring to fig. 3 and 4, two support members 224 are uniformly distributed on four inner side surfaces of the filtering frame 221, each support member 224 is of a right-angle structure, one right-angle surface is fixedly arranged on the inner side surface of the filtering frame 221, and the other right-angle surface is attached to the bottom surface of the water filtering plate 222, so that the water filtering plate 222 has an effect of being convenient to detach; four sides of the water filtering plate 222 are provided with four convex edges 225, the four convex edges 225 are connected end to form a closed loop structure, the upper surface of each convex edge 225 is uniformly provided with two handles 226, the highest position of each handle 226 is always lower than the upper surface of the filtering frame 221, and when the filtering frame 221 is prevented from being inserted into the square hole 212, the handles 226 are prevented from interfering with the square hole 212.
The implementation principle of the landing stage drainage structure in the embodiment of the application is as follows: after rainwater falls on the gallery platform, the rainwater can enter the drainage device 2 in the gallery platform through the drainage holes 111 on the gallery plate 11, and then when passing through the water filtering component 22, the water filtering plate 222 in the water filtering component 22 can further filter impurities such as silt in the rainwater, reduce silt impurities flowing into the water collecting tank 21, and meanwhile, impurities in accumulated water flowing into the water collecting tank 21 can further precipitate and deposit at the bottom of the water collecting tank 21, so that the impurities can be cleaned along with the cleaning of the water collecting tank 21; when the accumulated water in the water collecting tank 21 exceeds the upper opening position of the drain pipe 23, the redundant accumulated water can be discharged into a drainage system through the drain pipe 23, and the accumulated water in the water collecting tank 21 can be pressurized through the water pump 214 to water plants around the trestle platform.
The above embodiments are preferred embodiments of the present application, and the protection scope of the present application is not limited by the above embodiments, so: all equivalent changes made according to the structure, shape and principle of the present application shall be covered by the protection scope of the present application.
