Abstract

The utility model discloses a high-efficient energy-concerving and environment-protective air can heat pump water heater, comprising a base plate, be provided with first cavity and second cavity in fourth pipeline other end fixedly connected with heat pipe and the heat pipe, the left side and the fourth pipeline of second cavity are linked together, heat pipe upper end fixedly connected with oil inlet and oil inlet link to each other with first cavity, heat pipe fixed connection is in water tank upper surface rear side, the first pipeline of choke valve upper end fixedly connected with, water tank fixed surface is connected with solar vacuum tube, the equal fixedly connected with reflector panel in inboard of solar vacuum tube. The utility model discloses in, the hot air of compressor input in first cavity is fully absorbed the back by the conduction oil and is transmitted the water in the water tank, and heating efficiency is high, sets up reflector panel and solar energy vacuum tube simultaneously in the water tank outside and can absorb solar energy and heat for the water in the water tank in having solar weather, reduces energy consumption, and is energy-concerving and environment-protective, is worth wideling popularize.

Description

Efficient energy-saving environment-friendly air energy heat pump water heater
Technical Field
The utility model relates to a water heater field especially relates to a high-efficient energy-concerving and environment-protective air can heat pump water heater.
Background
The water heater is a device which increases the temperature of cold water into hot water within a certain time through various physical principles, and can be divided into an electric water heater, a gas water heater, a solar water heater, a magnetic water heater, an air energy water heater, a heating water heater and the like according to different principles.
The air energy water heater has incomparable advantages compared with the traditional water heater in many aspects, but the traditional air energy water heater has low heat conduction efficiency, and most of air service water heaters installed indoors are not energy-saving and environment-friendly enough.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a high-efficiency energy-saving environment-friendly air energy heat pump water heater.
In order to achieve the above purpose, the utility model adopts the following technical scheme: a high-efficiency energy-saving environment-friendly air energy heat pump water heater comprises a bottom plate, wherein a water tank is fixedly connected to the center of the upper surface of the bottom plate, a throttling valve is fixedly connected to the right side of the upper end of the water tank, a second pipeline is fixedly connected to the lower end of the throttling valve, a heat exchanger is fixedly connected to the right side of the top of the bottom plate, a compressor is fixedly connected to the left side of the top of the bottom plate, a heat exchanger is fixedly connected to the lower end of the second pipeline, a third pipeline is fixedly connected to the left lower end of the front side of the heat exchanger, the other end of the third pipeline is fixedly connected to the lower end of the front side of the compressor, a fourth pipeline is fixedly connected to the upper end of the compressor, a heat conduction pipe is fixedly connected to the other end of the fourth pipeline, a first cavity and a second cavity are arranged in the heat conduction pipe, the left side of the second cavity is communicated with the fourth pipeline, an oil inlet is fixedly connected to the upper end of the heat conduction pipe, and the oil inlet is connected with the first cavity, the heat conduction pipe is fixedly connected to the rear side of the upper surface of the water tank, the upper end of the throttle valve is fixedly connected with a first pipeline, the surface of the water tank is fixedly connected with a solar vacuum pipe, and the inner sides of the solar vacuum pipe are fixedly connected with a reflector.
As a further description of the above technical solution:
and a water outlet is formed in the front side of the lower end of the water tank.
As a further description of the above technical solution:
the water tank upper surface left side fixedly connected with water inlet.
As a further description of the above technical solution:
the second cavity is arranged in the center of the interior of the heat conduction pipe, and air flows in the second cavity.
As a further description of the above technical solution:
the first cavity is arranged in the heat conduction pipe, and heat conduction oil flows in the first cavity.
As a further description of the above technical solution:
the left side of the first pipeline is fixedly connected with the right side of the second cavity.
As a further description of the above technical solution:
the lower end of the heat conduction pipe is arranged in the water tank.
As a further description of the above technical solution:
the lower end of the heat conduction pipe is spiral.
The utility model discloses following beneficial effect has:
in the utility model, the other end of the fourth pipeline is fixedly connected with a heat conduction pipe, a first cavity and a second cavity are arranged in the heat conduction pipe, the left side of the second cavity is communicated with the fourth pipeline, the upper end of the heat conduction pipe is fixedly connected with an oil inlet and the oil inlet is connected with the first cavity, the heat conduction pipe is fixedly connected with the rear side of the upper surface of the water tank, the upper end of the throttle valve is fixedly connected with the first pipeline, the surface of the water tank is fixedly connected with a solar vacuum pipe, the inner side of the solar vacuum pipe is fixedly connected with a reflecting plate, hot air input by the compressor in the first cavity is fully absorbed by the heat conduction oil and then is transmitted to water in the water tank by the heat conduction oil, the heating efficiency is high, meanwhile, the reflecting plate and the solar vacuum pipe which are arranged outside the water tank can absorb solar energy to heat the water in the water tank in the sunny weather, and the energy consumption is reduced, energy conservation and environmental protection, and is worthy of great popularization.
Drawings

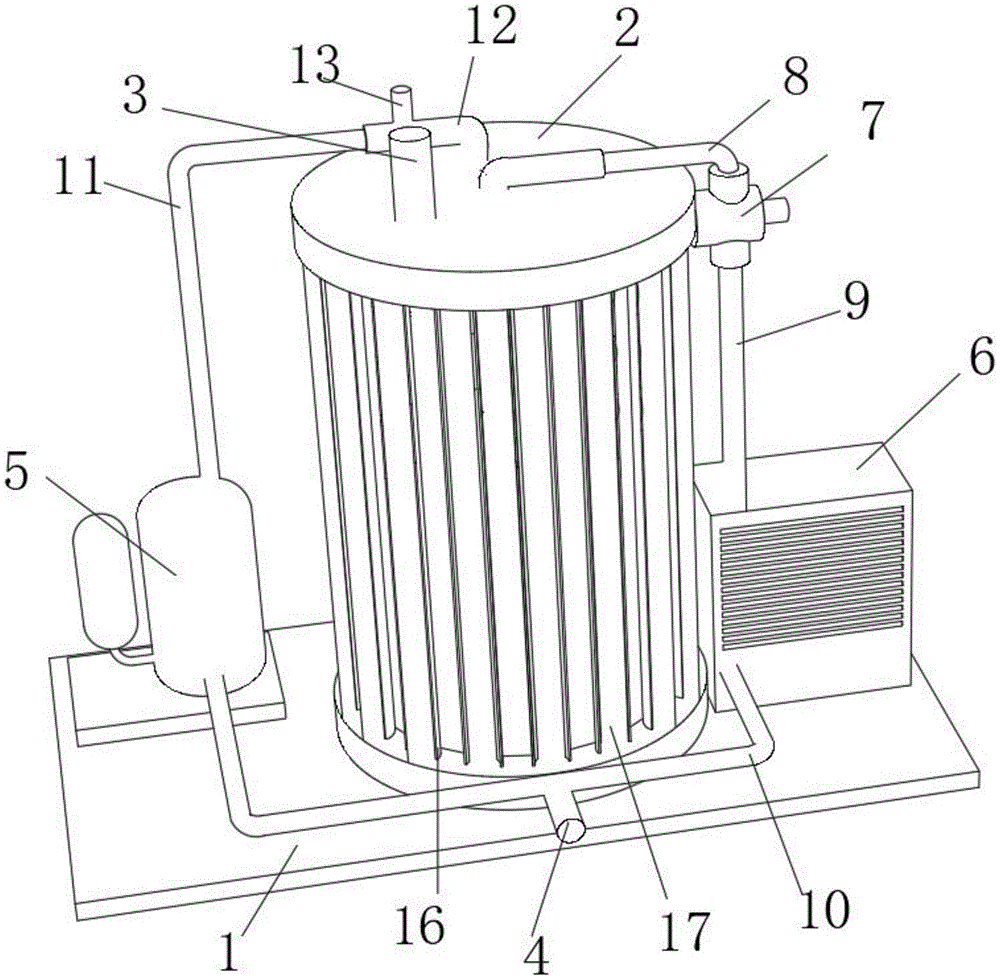

Fig. 1 is an appearance diagram of an efficient energy-saving environment-friendly air energy heat pump water heater provided by the utility model;
FIG. 2 is an exploded view of a water tank of the high-efficiency energy-saving environment-friendly air energy heat pump water heater provided by the present invention;
fig. 3 is the utility model provides a heat pipe cross-sectional view of energy-efficient environmental protection air can heat pump water heater.
Illustration of the drawings:
1. a base plate; 2. a water tank; 3. a water inlet; 4. a water outlet; 5. a compressor; 6. a heat exchanger; 7. a throttle valve; 8. a first conduit; 9. a second conduit; 10. a third pipeline; 11. a fourth conduit; 12. a heat conducting pipe; 13. an oil inlet; 14. a first cavity; 15. a second cavity; 16. a reflector; 17. solar vacuum tube.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention; the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance, and furthermore, unless otherwise explicitly stated or limited, the terms "mounted," "connected," and "connected" are to be construed broadly and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
Referring to fig. 1-3, the present invention provides an embodiment: an efficient energy-saving environment-friendly air energy heat pump water heater comprises a bottom plate 1, a water tank 2 is fixedly connected to the center of the upper surface of the bottom plate 1, a throttling valve 7 is fixedly connected to the right side of the upper end of the water tank 2, a second pipeline 9 is fixedly connected to the lower end of the throttling valve 7, a heat exchanger 6 is fixedly connected to the right side of the top of the bottom plate 1, a compressor 5 is fixedly connected to the left side of the top of the bottom plate 1, outside air flows through the heat exchanger 6, energy in the air is absorbed by the heat exchanger 6 and transferred into the water tank 2 through the compressor 5 to supply water for heating, the lower end of the second pipeline 9 is fixedly connected with the heat exchanger 6, a third pipeline 10 is fixedly connected to the left lower end of the front side of the heat exchanger 6, the other end of the third pipeline 10 is fixedly connected to the lower end of the front side of the compressor 5, a fourth pipeline 11 is fixedly connected to the upper end of the compressor 5, a heat pipe 12 is fixedly connected to the other end of the fourth pipeline 11, and a first cavity 14 and a second cavity 15 are arranged in the heat pipe 12, the left side of second cavity 15 is linked together with fourth pipeline 11, and heat pipe 12 upper end fixedly connected with oil inlet 13 and oil inlet 13 link to each other with first cavity 14, and heat pipe 12 fixed connection is in water tank 2 upper surface rear side, and the first pipeline 8 of 7 upper ends fixedly connected with of choke valve, water tank 2 fixed surface are connected with solar vacuum tube 17, the equal fixedly connected with reflector panel 16 in solar vacuum tube 17's the inboard.
2 lower extreme front sides of water tank are provided with delivery port 4, 2 upper surface left side fixedly connected with water inlets 3 on the water tank, 15 settings of second cavity have the air at the inside center of heat pipe 12 and the inside flow of second cavity, first cavity 14 sets up and has the conduction oil at the inside and the inside flow of first cavity 12, the conduction oil heat conduction effect is better than water, the left side of first pipeline 8 and the right side fixed connection of second cavity 15, 12 lower extremes of heat pipe set up inside water tank 2, 12 lower extremes of heat pipe are the heliciform, the thermal abundant exchange of being convenient for.
The working principle is as follows: the heat exchanger 6 sucks air into the compressor 5, hot air input in the first cavity 14 by the work of the compressor 5 is fully absorbed by the heat conduction oil and then is transferred to water in the water tank 2 through the heat conduction oil, the heating efficiency is high, meanwhile, the reflecting plate 16 and the solar vacuum tube 17 are arranged outside the water tank 2, so that solar energy can be absorbed in the weather with the sun to heat the water in the water tank 2, the energy consumption is reduced, and the energy-saving and environment-friendly effects are achieved.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (8)

1. The utility model provides an energy-efficient environmental protection air can heat pump water heater, includes bottom plate (1), its characterized in that: the water tank (2) is fixedly connected to the center of the upper surface of the bottom plate (1), the throttle valve (7) is fixedly connected to the right side of the upper end of the water tank (2), the second pipeline (9) is fixedly connected to the lower end of the throttle valve (7), the heat exchanger (6) is fixedly connected to the right side of the top of the bottom plate (1), the compressor (5) is fixedly connected to the left side of the top of the bottom plate (1), the heat exchanger (6) is fixedly connected to the lower end of the front side of the heat exchanger (6), the third pipeline (10) is fixedly connected to the lower end of the front side of the compressor (5), the fourth pipeline (11) is fixedly connected to the upper end of the compressor (5), the heat pipe (12) is fixedly connected to the other end of the fourth pipeline (11), and the first cavity (14) and the second cavity (15) are arranged in the heat pipe (12), the left side of second cavity (15) is linked together with fourth pipeline (11), heat pipe (12) upper end fixedly connected with oil inlet (13) and oil inlet (13) link to each other with first cavity (14), heat pipe (12) fixed connection is in water tank (2) upper surface rear side, choke valve (7) upper end fixedly connected with first pipeline (8), water tank (2) fixed surface is connected with solar energy vacuum tube (17), the equal fixedly connected with reflector panel (16) in inboard of solar energy vacuum tube (17).
2. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: a water outlet (4) is arranged on the front side of the lower end of the water tank (2).
3. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the water tank (2) is characterized in that a water inlet (3) is fixedly connected to the left side of the upper surface of the water tank.
4. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the second cavity (15) is arranged in the center of the interior of the heat conduction pipe (12), and air flows in the second cavity (15).
5. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the first cavity (14) is arranged inside the heat conduction pipe (12) and heat conduction oil flows inside the first cavity (14).
6. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the left side of the first pipeline (8) is fixedly connected with the right side of the second cavity (15).
7. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the lower end of the heat conducting pipe (12) is arranged in the water tank (2).
8. The efficient energy-saving environment-friendly air energy heat pump water heater according to claim 1, characterized in that: the lower end of the heat conduction pipe (12) is spiral.
