CN213795339U

CN213795339U - Inclined motor chassis machining tool

Info

Publication number: CN213795339U
Application number: CN202022489530.0U
Authority: CN
Inventors: 曹文志
Original assignee: Hubei Erdian Electric Co ltd
Current assignee: Hubei Erdian Electric Co ltd
Priority date: 2020-11-02
Filing date: 2020-11-02
Publication date: 2021-07-27
Anticipated expiration: 2030-11-02

Abstract

The utility model discloses a processing tool for an inclined motor chassis, comprising an operation table, a fixing column is fixedly connected to the middle part of the top of the operation table, a rotating drum is fixedly connected to the middle part of the fixing column through two bolts, and one side of the rotating drum is fixedly connected with a rotating drum. Auxiliary device, the top of the fixed column is fixedly installed with a lighting lamp, the utility model of the inclined motor chassis processing tool, by rotating the two rotating handles to push the two moving splints to move towards each other, to fix the special-shaped workpiece, to avoid the machining process. Due to the improper fixing of the special-shaped workpiece, the workpiece is scrapped and the economic loss is caused. Through the joint action of the turntable, the mechanical arm and the rotating seat, the position of the magnifying glass can be adjusted in all directions to provide the auxiliary function of magnification for the processing of the motor base. Several different The setting of the large and small parts placement lever can sort and place nuts of different sizes, which is convenient for the operator.

Description

Inclined motor chassis machining tool

Technical Field

The utility model relates to a technology processing field specifically is inclined motor chassis processing frock.

Background

The motor is an electromagnetic device for realizing electric energy conversion or transmission according to an electromagnetic induction law. Denoted in the circuit by the letter M (old standard by D). Its main function is to generate driving torque as power source of electric appliance or various machines. The generator is denoted in the circuit by the letter G. The main function of the device is to convert mechanical energy into electric energy, at present, the most common method is to utilize heat energy, water energy and the like to push a generator rotor to generate electricity, and in the processing process of an inclined motor base, because a plurality of special-shaped workpieces are not convenient to fix, the workpieces are damaged, and economic loss is caused.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an inclined motor chassis processing frock to the abnormal shape work piece that proposes in solving above-mentioned background art is not convenient for fix and leads to the work piece to damage the problem that causes economic loss.

In order to achieve the above object, the utility model provides a following technical scheme: the inclined motor chassis machining tool comprises an operation table, wherein a fixed column is fixedly connected to the middle of the top end of the operation table, a rotary drum is fixedly connected to the middle of the fixed column through two bolts, an auxiliary device is fixedly connected to one side of the rotary drum, an illuminating lamp is fixedly mounted at the top end of the fixed column, a fixing device is fixedly arranged at one side of the top end of the operation table, a part storage box is fixedly arranged at the other side of the top end of the operation table, a moisture-proof layer is fixedly arranged at the inner side of the part storage box, a fixed rod is fixedly arranged at the top of the inner wall of the part storage box, a plurality of hooks are fixedly arranged at one side of the fixed rod, a fixed plate is fixedly connected to the bottom end of the inner wall of the part storage box, a plurality of part placing rods are fixedly connected to the top end of the fixed plate, and a placing plate is fixedly arranged at the middle of the inner wall of the part storage box, the bottom end of the operating platform is fixedly connected with a base.

As an optimal technical scheme of the utility model, one side fixed mounting of operation panel has the switch, the light has external power supply electric connection through the switch.

As a preferred technical scheme of the utility model, auxiliary device comprises fixing base, carousel, arm, roating seat and magnifying glass, one side of fixing base is rotated and is connected with the carousel, one side fixedly connected with arm of carousel, the one end fixedly connected with roating seat of arm, the one end of roating seat is rotated and is connected with the magnifying glass.

As a preferred technical scheme of the utility model, fixing device comprises two rotatory handles, two screw thread posts, bottom plate, two movable clamp plate and two screw thread seats, the both sides on fixing device top are all fixed and are provided with the screw thread seat, two the equal threaded connection in middle part of screw thread seat has the screw thread post, two the equal fixedly connected with of one end of screw thread post is rotatory handle, two the other end of screw thread post all rotates and is connected with movable clamp plate, two the spout sliding connection that the bottom of movable clamp plate was seted up with fixing device top middle part both sides respectively.

As a preferred technical solution of the present invention, the moisture-proof layer is made of activated alumina.

Compared with the prior art, the beneficial effects of the utility model are that: the device simple structure, high durability and convenient operation, promote two movable clamp plate and remove in opposite directions through rotating two rotatory handles, come to fix heterotypic work piece, avoid in the course of working because the fixed improper work piece that leads to of heterotypic work piece scraps and causes economic loss, through the carousel, the combined action of arm and roating seat, can carry out the omnidirectional regulation with the position of magnifying glass, come to provide the enlarged additional function to motor base's processing, the setting that the pole was placed to the part of a plurality of equidimension not can place the nut of equidimension not in classification, facilitate for operating personnel.

Drawings

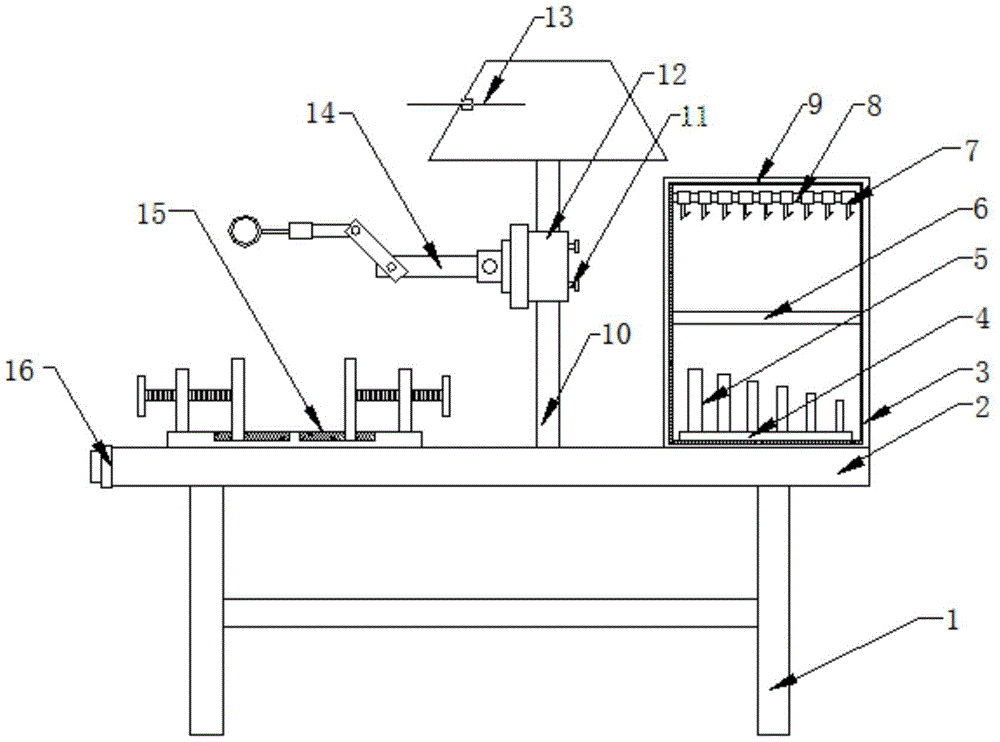

Fig. 1 is a front sectional view of the present invention;

FIG. 2 is a structural view of the fixing device of the present invention;

fig. 3 is a structural diagram of the auxiliary device of the present invention.

In the figure: 1. a base; 2. an operation table; 3. a parts storage box; 4. a fixing plate; 5. a part placing rod; 6. placing the plate; 7. hooking; 8. fixing the rod; 9. a moisture barrier; 10. fixing a column; 11. a bolt; 12. a rotating drum; 13. an illuminating lamp; 14. an auxiliary device; 15. a fixing device; 16. a switch; 17. rotating the handle; 18. a threaded post; 19. a base plate; 20. moving the clamping plate; 21. a threaded seat; 22. a fixed seat; 23. a turntable; 24. a mechanical arm; 25. a rotating base; 26. a magnifying glass.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the utility model provides an inclined motor chassis processing tool, which comprises an operation table 2, a fixed column 10 is fixedly connected to the middle part of the top end of the operation table 2, a rotary drum 12 is fixedly connected to the middle part of the fixed column 10 through two bolts 11, an auxiliary device 14 is fixedly connected to one side of the rotary drum 12, a lighting lamp 13 is fixedly installed at the top end of the fixed column 10, a fixing device 15 is fixedly arranged at one side of the top end of the operation table 2, a part storage box 3 is fixedly arranged at the other side of the top end of the operation table 2, a damp-proof layer 9 is fixedly arranged at the inner side of the part storage box 3, a fixed rod 8 is fixedly arranged at the top part of the inner wall of the part storage box 3, a plurality of hooks 7 are fixedly arranged at one side of the fixed rod 8, a fixed plate 4 is fixedly connected to the bottom end of the inner wall of the part storage box 3, a plurality of part placing rods 5 are fixedly connected to the top end of the fixed plate 4, a placing plate 6 is fixedly arranged at the middle part storage box 3, the bottom end of the operating platform 2 is fixedly connected with a base 1.

Preferably, a switch 16 is fixedly installed on one side of the operating platform 2, the illuminating lamp 13 is electrically connected with an external power supply through the switch 16, the switch 16 is turned on, and the illuminating lamp 13 is electrified to start to release light energy so as to provide light for an operator.

Preferably, auxiliary device 14 is by fixing base 22, carousel 23, arm 24, roating seat 25 and magnifying glass 26 are constituteed, one side of fixing base 22 is rotated and is connected with carousel 23, one side fixedly connected with arm 24 of carousel 23, the one end fixedly connected with roating seat 25 of arm 24, the one end of roating seat 25 is rotated and is connected with magnifying glass 26, this auxiliary device 14 is through carousel 23, arm 24 and roating seat 25's combined action, can carry out the omnidirectional regulation with magnifying glass 26's position, come to provide the auxiliary function that enlargies to motor base's processing.

Preferably, fixing device 15 is by two rotatory handles 17, two screw thread posts 18, bottom plate 19, two remove splint 20 and two screw thread seats 21 and constitute, the both sides on fixing device 15 top are all fixed and are provided with screw thread seat 21, the equal threaded connection in middle part of two screw thread seats 21 has screw thread post 18, the equal fixedly connected with of one end of two screw thread posts 18 is rotatory handle 17, the other end of two screw thread posts 18 all rotates and is connected with and removes splint 20, the spout sliding connection that the bottom of two remove splint 20 was seted up with 15 top middle part both sides of fixing device respectively, promote two remove splint 20 and remove in opposite directions through rotating two rotatory handles 17, come to fix heterotypic work piece, avoid in the course of working because heterotypic work piece is fixed improper to lead to the work piece to scrap and cause economic loss.

Preferably, the moisture-proof layer 9 is made of activated alumina, and the activated alumina can absorb moisture to prevent the moisture from entering the inside and causing the corrosion of the parts to be scrapped.

When the oblique motor chassis machining tool is used, an operator firstly places a special-shaped workpiece in the middle of the bottom plate 19, rotates the two rotating handles 17 to push the two movable clamping plates 20 to move oppositely to fix the special-shaped workpiece, so that economic loss caused by scrapping of the workpiece due to improper fixation of the special-shaped workpiece in the machining process is avoided, the bolt 11 is loosened, the position of the rotary drum 12 is adjusted, the bolt 11 is then tightened to fix the rotary drum 12, the position of the magnifier 26 is adjusted in an all-dimensional mode by rotating the rotary table 23, the mechanical arm 24 and the rotary seat 25 to provide an amplification auxiliary function for machining of the motor chassis, the switch 16 is then opened, the light 13 is powered on to release light energy, brightness is provided for the operator, nuts with different sizes can be placed in a classified mode through the arrangement of the part placing rods 5 with different sizes, providing convenience for operators.

Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.

Claims

1. A processing tool for an inclined motor chassis, comprising an operating table (2), characterized in that: a fixed column (10) is fixedly connected to the middle of the top of the operating table (2), and the middle of the fixed column (10) passes through Two bolts (11) are fixedly connected with a rotating drum (12), an auxiliary device (14) is fixedly connected to one side of the rotating drum (12), and a lighting lamp (13) is fixedly installed on the top of the fixing column (10). ), a fixing device (15) is fixedly arranged on one side of the top of the console (2), and a parts storage box (3) is fixedly arranged on the other side of the top of the console (2), and the parts storage box ( 3) A moisture-proof layer (9) is fixedly arranged on the inner side, a fixing rod (8) is fixedly arranged on the top of the inner wall of the parts storage box (3), and a number of hooks (8) are fixedly arranged on one side of the fixing rod (8). 7), a fixing plate (4) is fixedly connected to the bottom end of the inner wall of the parts storage box (3), and a plurality of parts placing rods (5) are fixedly connected to the top of the fixing plate (4). (3) A placing plate (6) is fixedly arranged in the middle of the inner wall, and a base (1) is fixedly connected to the bottom end of the operating table (2).

2 . The slanted motor chassis processing tool according to claim 1 , wherein a switch ( 16 ) is fixedly installed on one side of the operating table ( 2 ), and the lighting lamp ( 13 ) passes through the switch ( 16 ). 3 . ) is electrically connected to an external power supply.

3. The inclined motor chassis processing tool according to claim 1, characterized in that: the auxiliary device (14) consists of a fixed seat (22), a turntable (23), a mechanical arm (24), a rotating seat (25) ) and a magnifying glass (26), a turntable (23) is rotatably connected to one side of the fixed seat (22), and a mechanical arm (24) is fixedly connected to one side of the turntable (23). ) is fixedly connected with a rotating seat (25), and one end of the rotating seat (25) is rotatably connected with a magnifying glass (26).

4. The slanted motor chassis processing tool according to claim 1, characterized in that: the fixing device (15) consists of two rotating handles (17), two threaded posts (18), a bottom plate (19), Two movable splints (20) and two threaded seats (21) are formed, the two sides of the top of the fixing device (15) are fixedly provided with threaded seats (21), and the middle parts of the two threaded seats (21) are A threaded post (18) is threadedly connected, one end of the two threaded posts (18) is fixedly connected with a rotating handle (17), and the other end of the two threaded posts (18) is rotatably connected with a movable splint (20). ), the bottom ends of the two moving splints (20) are respectively slidably connected with the chute provided on both sides of the top middle of the top of the fixing device (15).

5 . The processing tool of the inclined motor chassis according to claim 1 , wherein the moisture-proof layer ( 9 ) is made of activated alumina. 6 .
