Abstract
本实用新型公开了一种混凝土生产用除尘装置，包括底板，所述底板顶部固定安装有蓄电池，所述底板顶部固定安装有除尘箱，所述除尘箱一侧固定安装有开关，所述除尘箱顶部固定安装有吸尘风机，所述吸尘风机的出风口通过导管与除尘箱的进风口固定连接，所述除尘箱内顶部固定安装有储水盒，利用吸尘风机把灰尘吸入通过导管送入除尘箱内，通过喷头洒水进行除尘，灰尘与水接触落到过滤网上，经过过滤利用第二水泵使污水通过导水管送入储水箱内，储水箱内进一步利用第一水泵使污水通过导水管送入储水盒内，实现水的多次利用，出风口内固定安装有除尘网，避免灰尘从出风口排出，除尘结束后利用把手打开箱门对除尘箱内过滤网进行清洗。
The utility model discloses a dust removal device for concrete production, comprising a bottom plate, a battery is fixedly installed on the top of the bottom plate, a dust removal box is fixedly installed on the top of the bottom plate, a switch is fixedly installed on one side of the dust removal box, and the dust removal box is fixedly installed. A dust suction fan is fixedly installed on the top, and the air outlet of the dust suction fan is fixedly connected with the air inlet of the dust removal box through a duct. After entering the dust removal box, the water is sprinkled by the sprinkler to remove dust. The dust and water fall into the filter net. After filtering, the second water pump is used to send the sewage into the water storage tank through the aqueduct. The first water pump is further used in the water storage tank to make the sewage pass through the aqueduct. It is sent into the water storage box to realize the multiple use of water. The air outlet is fixedly installed with a dust removal screen to prevent dust from being discharged from the air outlet. After the dust removal is completed, use the handle to open the box door to clean the filter screen in the dust removal box.
Description
Technical Field
The utility model relates to a dust collector specifically is a dust collector for concrete production.
Background
The concrete is artificial stone which is prepared by taking cement as a main cementing material, adding water, sand, stones and chemical additives and mineral admixtures if necessary, mixing the materials according to a proper proportion, uniformly stirring, densely molding, curing and hardening. Concrete is mainly divided into two stages and states: plastic state before setting and hardening, namely fresh concrete or concrete mixture; hardened, i.e. hardened concrete or concrete. The concrete strength grade is divided into a cubic compressive strength standard value, and the Chinese common concrete strength grade is divided into 14 grades: c15, C20, C25, C30, C35, C40, C45, C50, C55, C60, C65, C70, C75 and C80.
The existing concrete can generate a large amount of dust during production, so that production personnel can not work normally, and therefore the dust removal device for concrete production needs to be invented for removing dust generated by the concrete during production.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dust collector is used in concrete production to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a dust removal device for concrete production comprises a bottom plate, wherein a storage battery is fixedly mounted at the top of the bottom plate, a dust removal box is fixedly mounted at the top of the bottom plate, a switch is fixedly mounted on one side of the dust removal box, a dust suction fan is fixedly mounted at the top of the dust removal box, an air outlet of the dust suction fan is fixedly connected with an air inlet of the dust removal box through a guide pipe, a water storage box is fixedly mounted at the top of the dust removal box, a water outlet of the water storage box is connected with a water inlet of a spray head, a plurality of spray heads are fixedly mounted at the bottom of the water storage box, a filter screen is fixedly mounted between the inner walls of the dust removal box, a water drain is formed in the bottom of the dust removal box, a water pipe is fixedly connected with the water drain and penetrates through the bottom plate, a through hole for water pipe to penetrate through is formed in the bottom plate, a valve is fixedly mounted on the water pipe, and the water outlet of the dust removal box is fixedly connected with a water inlet of a second water pump through the water pipe, second water pump fixed mounting is at the bottom plate top, the delivery port of second water pump leads to pipe and the water inlet fixed connection of storage water tank, storage water tank fixed mounting is at the dust removal roof portion, the storage water tank top surface is the opening design, the case lid is installed to the storage water tank top surface, the storage water tank delivery port leads to pipe and the water inlet fixed connection of first water pump, first water pump fixed mounting is at the top of dust removal case, the delivery port of first water pump leads to pipe and is connected with the water storage box, the chamber door has been seted up to dust removal case front surface.
As a further aspect of the present invention: an air outlet is formed in the other side of the dust removing box, and a dust removing net is fixedly mounted in the air outlet.
As a further aspect of the present invention: the box door is hinged with the front surface of the dust removing box through a hinge.
As a further aspect of the present invention: and a handle is fixedly arranged on the front surface of the box door.
As a further aspect of the present invention: and the bottom of the bottom plate is symmetrically and fixedly provided with rollers.
As a further aspect of the present invention: the dust collection fan is electrically connected with the switch through a wire, and the switch is electrically connected with the storage battery through a wire.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the roller wheels are arranged, so that the device is convenient to move.
2. Utilize dust absorption fan to send into the dust removal incasement through the pipe dust removal, remove dust through the shower nozzle watering, the dust falls on the filter screen with the water contact, utilizes the second water pump to make sewage send into the storage water tank through the aqueduct through filtering in, further utilizes first water pump to make sewage send into in the storage water tank through the aqueduct in the storage water tank, realizes the reuse of water.
3. A dust removal net is fixedly arranged in the air outlet, so that dust is prevented from being discharged from the air outlet.
4. After the dust removal, the door of the box is opened by the handle to clean the filter screen in the dust removal box, so that the filtering effect of the filter screen is ensured.
Drawings

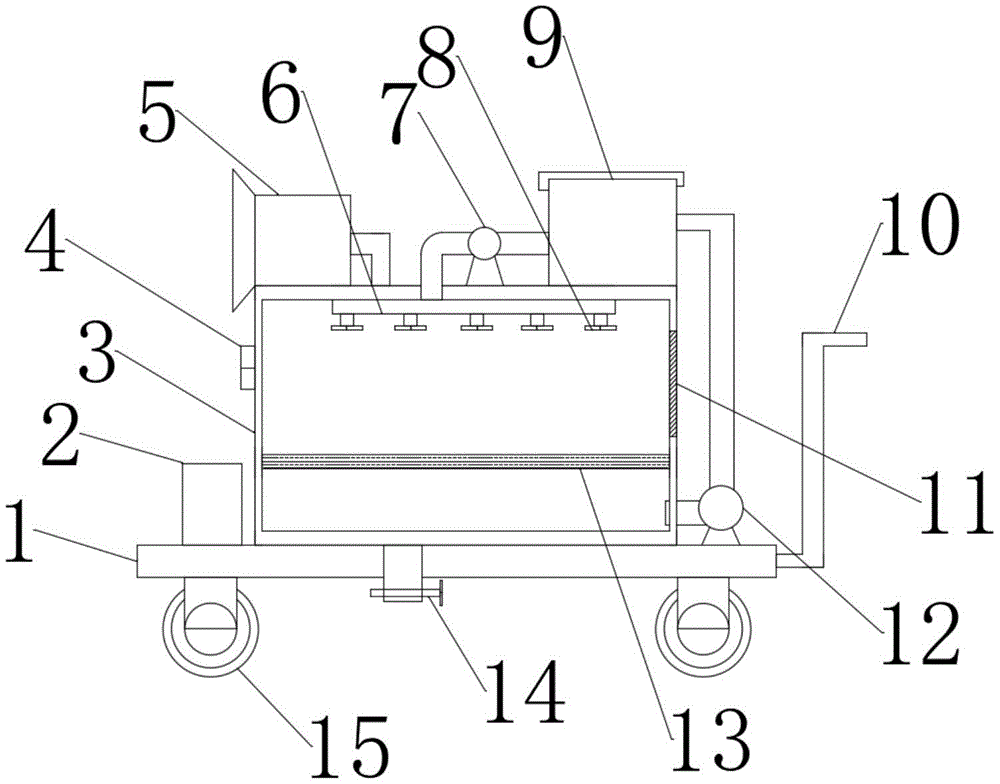

Fig. 1 is a sectional view of a dust removing device for concrete production.
Fig. 2 is a front view of the dust removing device for concrete production.
Fig. 3 is a side view of the dust removing device for concrete production.
As shown in the figure: the device comprises a bottom plate 1, a battery 2, a dust removal box 3, a switch 4, a dust collection fan 5, a water storage box 6, a first water pump 7, a spray head 8, a water storage box 9, a push rod 10, an air outlet 11, a second water pump 12, a filter screen 13, a valve 14, a roller 15, a handle 16 and a box door 17.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1 to 3, in the embodiment of the present invention, a dust removing device for concrete production includes a bottom plate 1, a battery 2, a dust removing box 3, a switch 4, a dust suction fan 5, a water storage box 6, a first water pump 7, a nozzle 8, a water storage box 9, a push rod 10, an air outlet 11, a second water pump 12, a filter screen 13, a valve 14, a roller 15, a handle 16 and a box door 17, wherein the top of the bottom plate 1 is fixedly installed with the battery 2, the top of the bottom plate is fixedly installed with the dust removing box 3, one side of the dust removing box 3 is fixedly installed with the switch 4, the top of the dust removing box 3 is fixedly installed with the dust suction fan 5, the model of the dust suction fan 5 is RB-82S-1, the air outlet of the dust suction fan 5 is fixedly connected with the air inlet of the dust removing box 3 through a guide pipe, the top of the dust removing box 3 is fixedly installed with the water storage box 6, the water outlet of the water storage box 6 is connected with the water inlet of the nozzle 8, the bottom of the water storage box 6 is fixedly provided with a plurality of spray heads 8, the inner wall of the dust removal box 3 is fixedly provided with a filter screen 13, the bottom of the dust removal box 3 is provided with a water drain, the water drain is fixedly connected with a water pipe and penetrates through the bottom plate 1, the bottom plate 1 is provided with a through hole for the water pipe to penetrate through, the water pipe is fixedly provided with a valve 14, a water outlet of the dust removal box 3 is fixedly connected with a water inlet of a second water pump 12 through a water pipe, the second water pump 12 is fixedly arranged at the top of the bottom plate 1, a water outlet of the second water pump 12 is fixedly connected with a water inlet of a water storage tank 9 through a water pipe, the water storage tank 9 is fixedly arranged at the top of the dust removal box 3, the top surface of the water storage tank 9 is designed to be an opening, the top surface of the water storage tank 9 is provided with a tank cover, the water outlet of the water storage tank 9 is fixedly connected with a water inlet of a first water pump 7 through a water pipe, the first water pump 7 is fixedly arranged at the top of the dust removal box 3, the delivery port of first water pump 7 leads to pipe and is connected with water storage box 6, air outlet 11 has been seted up to 3 opposite sides of dust removal case, fixed mounting has the net that removes dust in the air outlet 11, chamber door 17 has been seted up to 3 front surfaces of dust removal case, chamber door 17 is articulated through hinge and 3 front surfaces of dust removal case, 17 front surface fixed mounting of chamber door has handle 16, 1 bottom symmetry fixed mounting of bottom plate has gyro wheel 15, dust absorption fan 5 is connected through the wire and switch 4 electricity, switch 4 is connected through the wire and battery 2 electricity.
The utility model discloses a theory of operation is: install gyro wheel 15, facilitate device's removal, utilize dust absorption fan 5 to send into dust removal case 3 in through the pipe the dust suction, remove dust through 8 watering of shower nozzle, the dust falls on the filter screen with the water contact, utilize second water pump 12 to make sewage send into in storage water tank 9 through the aqueduct through filtering, further utilize first water pump 7 to make sewage send into in water storage box 6 through the aqueduct in the storage water tank 9, realize the reuse of water many times, fixed mounting has the dust removal net in the air outlet 11, avoid the dust to discharge from air outlet 11, utilize handle 16 to open chamber door 17 after the dust removal is ended and wash filter screen 13 in the dust removal case 3, guarantee filter screen 13's filter effect, discharge sewage through opening valve 14.
Although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments or portions thereof without departing from the spirit and scope of the invention.
Claims (6)
1. The utility model provides a dust collector is used in concrete production, includes bottom plate (1), its characterized in that: the dust removal device is characterized in that a storage battery (2) is fixedly mounted at the top of the bottom plate (1), a dust removal box (3) is fixedly mounted at the top of the bottom plate, a switch (4) is fixedly mounted on one side of the dust removal box (3), a dust suction fan (5) is fixedly mounted at the top of the dust removal box (3), an air outlet of the dust suction fan (5) is fixedly connected with an air inlet of the dust removal box (3) through a guide pipe, a water storage box (6) is fixedly mounted at the inner top of the dust removal box (3), a water outlet of the water storage box (6) is connected with a water inlet of a spray head (8), a plurality of spray heads (8) are fixedly mounted at the bottom of the water storage box (6), a filter screen (13) is fixedly mounted between inner walls of the dust removal box (3), a water drain is formed at the bottom of the dust removal box (3), a water pipe is fixedly connected with a water pipe and penetrates through the bottom plate (1), and a through hole for the water pipe to penetrate through is formed in the bottom plate (1), a valve (14) is fixedly arranged on the water pipe, the water outlet of the dust removing box (3) is fixedly connected with the water inlet of the second water pump (12) through the water pipe, the second water pump (12) is fixedly arranged at the top of the bottom plate (1), the water outlet of the second water pump (12) is fixedly connected with the water inlet of the water storage tank (9) through a water pipe, the water storage tank (9) is fixedly arranged at the top of the dust removing tank (3), the top surface of the water storage tank (9) is designed to be an opening, a tank cover is arranged on the top surface of the water storage tank (9), the water outlet of the water storage tank (9) is fixedly connected with the water inlet of the first water pump (7) through a water pipe, first water pump (7) fixed mounting is at the top of dust removal case (3), the delivery port of first water pump (7) leads to pipe and is connected with water storage box (6), chamber door (17) have been seted up to dust removal case (3) front surface.
2. The dust removing device for concrete production according to claim 1, wherein: an air outlet (11) is formed in the other side of the dust removing box (3), and a dust removing net is fixedly mounted in the air outlet (11).
3. The dust removing device for concrete production according to claim 1, wherein: the box door (17) is hinged with the front surface of the dust removing box (3) through a hinge.
4. The dust removing device for concrete production according to claim 1, wherein: the front surface of the box door (17) is fixedly provided with a handle (16).
5. The dust removing device for concrete production according to claim 1, wherein: the bottom of the bottom plate (1) is symmetrically and fixedly provided with rollers (15).
6. The dust removing device for concrete production according to claim 1, wherein: the dust collection fan (5) is electrically connected with the switch (4) through a wire, and the switch (4) is electrically connected with the storage battery (2) through a wire.
