Abstract
本实用新型提供一种塑料薄膜全自动生产用吹膜机，包括底座，所述底座的顶部栓接有吹膜机本体，所述底座顶部的右侧从左至右依次栓接有第一支撑板、风机和收卷箱，所述风机的进风口连通有进气管，所述风机的出风口连通有出气管，且出气管远离风机的一侧贯穿第一支撑板并与吹膜机本体右侧的顶部连通，所述第一支撑板位于吹膜机本体的右侧，所述吹膜机本体的顶部栓接有第二支撑板。本实用新型通过第二电机、齿轮、齿条板、第一滑槽、第一滑块、第一活动杆、第二滑槽、第二滑块和第二活动杆的配合，便于使用者根据薄膜的厚度对压辊的高度进行调节，从而快速将薄膜进行压紧，防止薄膜在传送过程中发生移动。
The utility model provides a film blowing machine for automatic production of plastic films, which comprises a base, the top of the base is bolted with a film blowing machine body, and the right side of the top of the base is bolted with a first support sequentially from left to right A plate, a fan and a winding box, the air inlet of the fan is connected with an air inlet pipe, the air outlet of the fan is connected with an air outlet pipe, and the side of the air outlet pipe away from the fan runs through the first support plate and is connected to the right side of the film blowing machine body. The top of the side is connected, the first support plate is located on the right side of the film blowing machine body, and the top of the film blowing machine body is bolted with a second support plate. Through the cooperation of the second motor, the gear, the rack plate, the first sliding groove, the first sliding block, the first movable rod, the second sliding groove, the second sliding block and the second movable rod, the utility model is convenient for the user according to the The thickness of the film adjusts the height of the pressing roller, which can quickly compress the film and prevent the film from moving during the conveying process.
Description
Technical Field
The utility model relates to a inflation film manufacturing machine field especially relates to a full automatic production of plastic film uses inflation film manufacturing machine.
Background
The film blowing machine is characterized in that plastic particles are heated and melted and blown into films, the film blowing machine is divided into a plurality of types, such as PE, POF, PVC and the like, the brand-new particles are blown into new materials, the colors are uniform and clean, the bags are well stretched, and the film blowing machine mainly comprises an extruder, a machine head, a die head, a cooling device, a foam stabilizing frame, a herringbone plate, a traction roller, a coiling device and the like.
Inflation film manufacturing machine mainly used plastic film produces, however when traditional full-automatic for production inflation film manufacturing machine of plastic film conveys the film, it is poor to plastic film's the effect that compresses tightly to cause plastic film to take place the skew easily, and then lead to plastic film to drop from the driving pulley surface, the user need fix plastic film again, has wasted user's a large amount of time, has reduced user's work efficiency.
Therefore, it is necessary to provide a film blowing machine for full-automatic production of plastic films to solve the above technical problems.
SUMMERY OF THE UTILITY MODEL
The utility model provides a film blowing machine for full-automatic production of plastic film has solved the problem that traditional film blowing machine for full-automatic production of plastic film compresses tightly the effect difference to plastic film.
In order to solve the technical problem, the utility model provides a film blowing machine for full-automatic production of plastic films, which comprises a base, wherein the top of the base is bolted with a film blowing machine body, the right side of the top of the base is sequentially bolted with a first supporting plate, a fan and a rolling box from left to right, an air inlet of the fan is communicated with an air inlet pipe, an air outlet of the fan is communicated with an air outlet pipe, one side of the air outlet pipe, which is far away from the fan, penetrates through the first supporting plate and is communicated with the top of the right side of the film blowing machine body, the first supporting plate is positioned on the right side of the film blowing machine body, the top of the film blowing machine body is bolted with a second supporting plate, the top of the opposite side of the first supporting plate and the second supporting plate is bolted with an installation box, the bottoms of the two sides of the inner cavity of the installation box are respectively bolted with an, the front and the back of the right side of the inner cavity of the installation box are respectively embedded with a second bearing, the inner cavity of the second bearing is rotatably connected with a first rotating shaft, the surface of the first rotating shaft is bolted with a transmission roller, the front and the back of the inner cavity of the installation box are respectively and slidably connected with a fixed frame, the top of the fixed frame is provided with a lifting mechanism, the bottom of the front and the back of the inner cavity of the fixed frame is respectively embedded with a third bearing, the inner cavity of the third bearing is rotatably connected with a compression roller, the right side of the first support plate is sequentially bolted with a mounting seat from top to bottom, one opposite side of the mounting seat is rotatably connected with a guide carrier roller through a fourth bearing, the back of the inner cavity of the winding box is bolted with a first motor, the output shaft of the first motor is bolted with a second rotating shaft, the surface of the second rotating shaft is bolted with a, and the outer ring of the fifth bearing is embedded in the front of the inner cavity of the winding box.
Compared with the prior art, the utility model provides a pair of film blowing machine for full-automatic production of plastic film has following beneficial effect:
the utility model provides a film blowing machine for full-automatic production of plastic films,
1. the utility model discloses a second motor, the gear, the rack board, first spout, first slider, first movable rod, the second spout, the cooperation of second slider and second movable rod, convenient to use person highly adjusts the compression roller according to the thickness of film, thereby compress tightly the film fast, prevent that the film from taking place to remove in the data send process, thereby lead to the film to drop from the driving drum surface, and then the user need fix plastic film again, user's plenty of time has been wasted, user's work efficiency has been reduced, the problem that traditional plastic film for the full automatic production inflation film manufacturing compresses tightly the effect difference to plastic film has been solved.
2. The utility model discloses a cooperation of second motor, the gear, the rack board, first spout, first slider, first movable rod, the second spout, second slider and second movable rod, convenient to use person adjusts the height of compression roller according to the thickness of film, thereby compress tightly the film fast, prevent that the film from shifting in the course of transmitting, thereby lead to the film to drop, through the cooperation of fixed box, the movable plate, first movable rod, the second movable rod, limiting plate and clamp plate, convenient to use person compresses tightly the pressure drive drum, prevent that film rolling time gap is too big, lead to the rolling volume to reduce, prevent simultaneously that the film from breaking away from the surface of rolling drum, through the cooperation of third spout and third slider, convenient to use person carries out spacing to the fixed plate, thereby spacing to the compression roller, and then improved the stability of compression roller, through the cooperation of fourth spout and fourth slider, the person of being convenient for carries on spacingly to the rack board, and the supplementary rack board removes simultaneously, thereby through the cooperation of filter screen, thereby prevents that the impurity in the air from getting into the inflation film manufacturing machine body and influencing the quality of film, through the bottom of clamp plate and the surface laminating of rolling cylinder, has improved the effect that compresses tightly to the film, through the cooperation of protection pad, prevents the bottom of clamp plate to wearing and tearing to the film.
Drawings

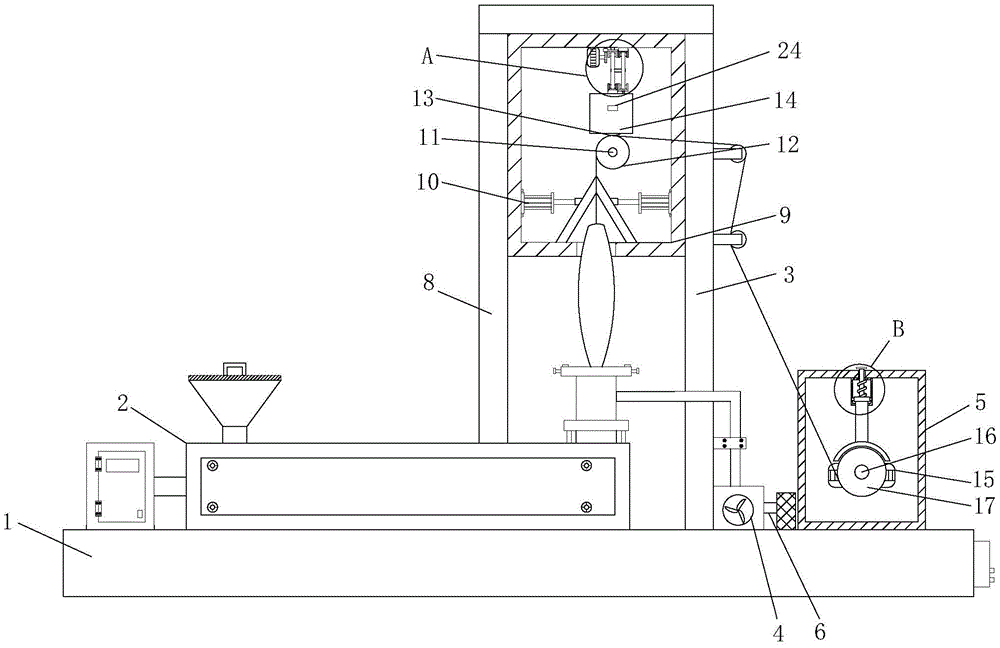

Fig. 1 is a schematic structural diagram of a preferred embodiment of a film blowing machine for full-automatic production of plastic films according to the present invention;
FIG. 2 is a right side sectional view of the construction of the mounting box shown in FIG. 1;
FIG. 3 is an enlarged view of the structure of region A shown in FIG. 1;
FIG. 4 is an enlarged view of the structure of the area B shown in FIG. 1;
FIG. 5 is a perspective view of the take-up drum and platen.
Reference numbers in the figures: 1. a base; 2. a film blowing machine body; 3. a first support plate; 4. a fan; 5. a rolling box; 6. an air inlet pipe; 7. a lifting mechanism; 71. a second motor; 72. a gear; 73. a rack plate; 74. a first chute; 75. a first slider; 76. a first movable bar; 77. a second chute; 78. a second slider; 79. a second movable bar; 8. a second support plate; 9. installing a box; 10. a cylinder; 11. a first rotating shaft; 12. a driving roller; 13. a fixing frame; 14. a compression roller; 15. a first motor; 16. a second rotation shaft; 17. a winding roller; 18. a fixed box; 19. moving the plate; 20. a first movable bar; 21. a compression spring; 22. pressing a plate; 23. a third chute; 24. a third slider; 25. a fourth chute; 26. and a fourth slider.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and embodiments.
Please refer to fig. 1, fig. 2, fig. 3, fig. 4 and fig. 5 in combination, in which fig. 1 is a schematic structural diagram of a film blowing machine for full-automatic production of plastic films according to a preferred embodiment of the present invention; FIG. 2 is a right side sectional view of the construction of the mounting box shown in FIG. 1; FIG. 3 is an enlarged view of the structure of region A shown in FIG. 1; FIG. 4 is an enlarged view of the structure of the area B shown in FIG. 1; FIG. 5 is a structural perspective view of a rolling roller and a pressing plate, and relates to a film blowing machine for full-automatic production of plastic films, which comprises a base 1, wherein the top of the base 1 is bolted with a film blowing machine body 2, the right side of the top of the base 1 is sequentially bolted with a first supporting plate 3, a fan 4 and a rolling box 5 from left to right, an air inlet of the fan 4 is communicated with an air inlet pipe 6, an air outlet of the fan 4 is communicated with an air outlet pipe, one side of the air outlet pipe, which is far away from the fan 4, penetrates through the first supporting plate 3 and is communicated with the top of the right side of the film blowing machine body 2, the first supporting plate 3 is positioned on the right side of the film blowing machine body 2, the top of the film blowing machine body 2 is bolted with a second supporting plate 8, the tops of one side, which is opposite to the first supporting plate 3 and the second supporting plate 8, are bolted with an installation box 9, the bottoms, and one side of the connecting block opposite to each other is bolted with a herringbone plate, a second bearing is embedded in the front and the back of the right side of the inner cavity of the installation box 9, the inner cavity of the second bearing is rotatably connected with a first rotating shaft 11, the surface of the first rotating shaft 11 is bolted with a transmission roller 12, the front and the back of the inner cavity of the installation box 9 are slidably connected with a fixed frame 13, the top of the fixed frame 13 is provided with a lifting mechanism 7, the bottom of the front and the back of the inner cavity of the fixed frame 13 is embedded with a third bearing, the inner cavity of the third bearing is rotatably connected with a compression roller 14, the right side of the first supporting plate 3 is sequentially bolted with a mounting seat from top to bottom, one side of the mounting seat opposite to each other is rotatably connected with a guide carrier roller through a fourth bearing, the back of the inner cavity of the winding box 5 is bolted with a first motor 15, the output shaft of the first motor 15 is bolted with a, the front surface of the second rotating shaft 16 is rotatably connected with a fifth bearing, and the outer ring of the fifth bearing is embedded in the front surface of the inner cavity of the winding box 5.
The lifting mechanism 7 comprises a second motor 71, a gear 72, a rack plate 73, a first sliding groove 74, a first sliding block 75, a first movable rod 76, a second sliding groove 77, a second sliding block 78 and a second movable rod 79, the second motor 71 is bolted at the center of the top of the installation box 9, the gear 72 is bolted at the output shaft of the second motor 71, the rack plate 73 is meshed at the top of the gear 72, a first fixed seat is bolted at the right side of the rack plate 73, the bottom of the first fixed seat is movably connected with the first movable rod 76 through a movable shaft, the second fixed seat is movably connected to one side, away from the first fixed seat, of the first movable rod 76, the bottom of the second fixed seat is bolted with the back of the top of the fixed frame 13, a third fixed seat is bolted at the back of the top of the inner cavity of the installation box 9, and the second movable rod 79 is movably connected to the bottom of the third fixed seat through a movable shaft, the centers of the first movable rod 76 and the second movable rod 79 are movably connected through a movable shaft, one side of the second movable rod 79, which is far away from the third fixed seat, is movably connected with a fourth fixed seat through the movable shaft, the right side of the top of the installation box 9 is provided with a first sliding groove 74, the inner cavity of the first sliding groove 74 is slidably connected with a first sliding block 75, the bottom of the first sliding block 75 penetrates through the first sliding groove 74 and is bolted with the top of the first fixed seat, the center of the top of the fixed frame 13 is provided with a second sliding groove 77, the inner cavity of the second sliding groove 77 is slidably connected with a second sliding block 78, the top of the second sliding block 78 penetrates through the second sliding groove 77 and is bolted with the bottom of the fourth fixed seat, and through the matching of a second motor 71, a gear 72, a rack plate 73, the first sliding groove 74, the first sliding block 75, the first movable rod 76, the second sliding groove 77, the second sliding block 78 and the second movable rod, the user of being convenient for adjusts the height of compression roller 14 according to the thickness of film to compress tightly the film fast, prevent that the film from taking place the skew in the transfer process, thereby lead to the film to take place to drop.
A fixed box 18 is bolted at the center of the top of the inner cavity of the winding box 5, moving plates 19 are slidably connected to both sides of the inner cavity of the fixed box 18, a first moving rod 20 is bolted at the top of the moving plate 19, the top of the first moving rod 20 sequentially penetrates through the fixed box 18 and the winding box 5 and is bolted with a limiting plate, a compression spring 21 is wound on the surface of the first moving rod 20, the top of the compression spring 21 is bolted with the top of the inner cavity of the fixed box 18, the bottom of the compression spring 21 is bolted with the top of the moving plate 19, a second moving rod is bolted with the bottom of the moving plate 19, the bottom of the second moving rod penetrates through the fixed box 18 and is bolted with a pressure plate 22, and through the matching of the fixed box 18, the moving plate 19, the first moving rod 20, the second moving rod, the limiting plate and the pressure plate 22, a user can conveniently compress the compression transmission roller 12 to prevent the film winding time gap from being too large, resulting in a reduction in take-up amount while preventing the film from being released from the surface of the take-up roller 17.
The right-hand member bolt of intake pipe 6 has the filter screen, and the bottom of filter screen and the right side bolt at base 1 top through the cooperation of filter screen, thereby prevents that the impurity in the air from getting into inflation film manufacturing machine body 2 and influencing the quality of film.
The bottom of clamp plate 22 and the laminating of the surface of rolling drum 17, the bottom bolt of clamp plate 22 has the protection to fill up, and the bottom through clamp plate 22 and the laminating of the surface of rolling drum 17 have improved the effect that compresses tightly to the film, and through the cooperation of protection pad, prevent the bottom of clamp plate 22 to film wearing and tearing.
The utility model provides a pair of inflation film manufacturing machine for full-automatic production of plastic film's theory of operation as follows:
when in use, the user puts the raw material into the film blowing machine body 2, then the user opens the fan 4 through the controller, then the fan 4 conveys air to the film blowing machine body 2 through the air outlet pipe, thereby blowing the raw material, then the user opens the second motor 71, then the second motor 71 drives the gear 72 to rotate, thereby driving the rack plate 73 to move rightwards, further driving the first movable rod 76 and the second movable rod 79 to move crosswise, then the pressing roller 14 is driven to move towards the transmission roller 12, thereby compressing the film, then the user opens the first motor 15 through the controller, then the first motor 15 drives the second rotating shaft 16 to rotate, thereby driving the rolling roller 17 to rotate, further driving the guide roller to rotate, then the film is conveyed to the guide roller, thereby conveying the film to the surface of the rolling roller 17, and then the rolling roller 17 carries out the film, at this moment, along with the continuous increase of the thickness of the rolled film, the pressing plate 22 is driven to move upwards, the second moving rod drives the moving plate 19 to move upwards, the first moving rod 20 is driven to move upwards, the first moving rod 20 extrudes the compression spring 21 at this moment, the compression spring 21 rebounds through the elasticity of the compression spring 21, the moving plate 19 is driven to move downwards, the pressing plate 22 is driven to compress the film, and the film is prevented from being loose during rolling.
Compared with the prior art, the utility model provides a pair of film blowing machine for full-automatic production of plastic film has following beneficial effect:
the utility model discloses a second motor 71, gear 72, rack plate 73, first spout 74, first slider 75, first movable rod 76, second spout 77, second slider 78 and second movable rod 79's cooperation, convenient to use person highly adjusts compression roller 14 according to the thickness of film, thereby compress tightly the film fast, prevent that the film from taking place to remove in the data send process, thereby lead to the film to come off from driving drum 12 surface, and then the user need fix plastic film again, user's plenty of time has been wasted, user's work efficiency has been reduced, the problem that traditional plastic film full-automatic production compresses tightly the effect difference with the inflation film manufacturing machine to plastic film has been solved.
Claims (7)
