Abstract

The utility model discloses a welding jig for metal welding machine, including base and anchor clamps main part, the inside lower extreme of base is provided with accomodates the chamber, and accomodates the intracavity portion all be fixed with the dead lever in both sides about, and is two sets of the dead lever is kept away from and is accomodate one side of intracavity wall and all be fixed with the rotor plate, and the inside of rotor plate all is fixed with the fixed plate, one side that the dead lever was kept away from to the fixed plate all has the lagging through pivot swing joint, and the inside of lagging all has a telescopic plate, and is two sets of through first slider sliding connection the telescopic plate passes through connecting block fixed connection, the inside all is fixed with the spring of lagging at both ends about the telescopic plate, and one side that the spring is close to the telescopic plate is fixed. The utility model discloses a rotor plate supports the operation to the base, and does not need to progressively rotate the rotor plate of both sides, when the metal material that gets is got when needs to change simultaneously, need not change wholly, only need to change the anchor clamps main part can.

Description

Welding fixture for metal welding machine

Technical Field

The utility model relates to a welding jig technical field specifically is a welding jig for metal welding machine.

Background

In order to fix metal connecting piece, connect through the welded mode usually, in order to make the welding more firm, generally carry out the spacing operation of centre gripping through welding jig, current welding jig satisfies people's practical demand basically, still has following problem.

Problem 1: the height of traditional device anchor clamps base is unified setting usually, but if change for the higher operating personnel of height, then inconvenient use anchor clamps this moment to inconvenient welding operation has reduced the practicality and the convenience of device.

Problem 2: the fixture of the traditional device is generally uniformly and integrally fixed, if another connecting piece needs to be clamped, another integral fixture needs to be used, so that the use cost is increased, the application range and the practicability of the device are reduced, and therefore a welding fixture for a metal welding machine is urgently needed to solve the problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a welding jig for metal-soldering machine to the bottom height of the traditional device who proposes among the solution above-mentioned background art is unified fixed usually, and the higher people of inconvenient height uses, and traditional device's anchor clamps are unified fixed simultaneously, reduce accommodation's problem.

In order to achieve the above object, the utility model provides a following technical scheme: a welding fixture for a metal welding machine comprises a base and a fixture main body, wherein a containing cavity is arranged at the lower end of the interior of the base, fixing rods are fixed on the left side and the right side of the interior of the containing cavity, two groups of fixing rods are fixed on one side, far away from the inner wall of the containing cavity, of the fixing rods, fixing plates are fixed inside the fixing plates, one side, far away from the fixing rods, of each fixing plate is movably connected with a sleeve plate through a rotating shaft, the interior of each sleeve plate is slidably connected with a telescopic plate through a first sliding block, the two groups of telescopic plates are fixedly connected through a connecting block, springs are fixed inside the sleeve plates at the upper end and the lower end of each telescopic plate, a limiting block is fixed on one side, close to each telescopic plate, of each spring, fixing seats are fixed on the left side and the right side of the top end of the base, the interiors of the two groups of, fixed blocks are fixed on the front side and the rear side of the upper end of the clamp main body, a rotating clamp is movably connected to the front side and the rear side of the top end of the fixed seat through a rotating shaft, and a second clamping block is fixed at the bottom end, close to one side of the fixed block, of the rotating clamp.

Preferably, the sleeve plate and the telescopic plate are both arranged in an inclined shape, and a rubber cushion is glued outside the connecting block.

Preferably, the upper and lower both ends of lagging inside all are provided with the first slide of mutually supporting with first slider, the inside upper and lower both ends that are close to connecting block one side of expansion plate all are provided with the first spacing groove of mutually supporting with the stopper, the inside upper and lower both ends of keeping away from connecting block one side of expansion plate are provided with the second spacing groove of mutually supporting with the stopper.

Preferably, the bottom of the inside of the fixing seat is provided with a first clamping groove matched with the first clamping block, and the front end and the rear end of the inside of the fixing seat are both provided with second sliding ways matched with the second sliding blocks.

Preferably, the upper end of the inside of the fixing block is provided with a second clamping groove matched with a second clamping block, and a rubber gasket is adhered to one side, far away from the clamp main body, of the second clamping block.

Compared with the prior art, the beneficial effects of the utility model are that:

1. this a welding jig for metal welding machine is provided with the base, the rotor plate, the lagging, expansion plate and connecting block, when the base height is lower, at first the downwards pulling connecting block, the connecting block drives the expansion plate downstream this moment, the expansion plate moves the lagging downstream, the lagging drives the rotor plate and rotates, continue the downwards pulling connecting block, the expansion plate is taken out from the inside of lagging this moment, make the rotor plate continue to rotate to the direction of keeping away from the connecting block, through this design, the rotor plate that does not need progressively to rotate both sides, only need downwards the pulling connecting block can, the operation is simple, support the operation to the base through the rotor plate, make the high promotion of base, the convenience and the practicality of device have been improved.

2. This a welding jig for metal welding machine is provided with the anchor clamps main part, the fixed block, it presss from both sides and the second fixture block to rotate, when need not use the anchor clamps main part, at first will rotate and press from both sides the direction pulling to keeping away from the anchor clamps main part, make the second fixture block to the fixed block of removing of fixed block, upwards stimulate the anchor clamps main part afterwards, realize the dismantlement operation of anchor clamps main part, removable another anchor clamps afterwards, through this design, when the metal material that needs the clamp to get changes, need not change wholly, only need change the anchor clamps main part can, thereby use cost is reduced, the practicality of device is improved.

Drawings

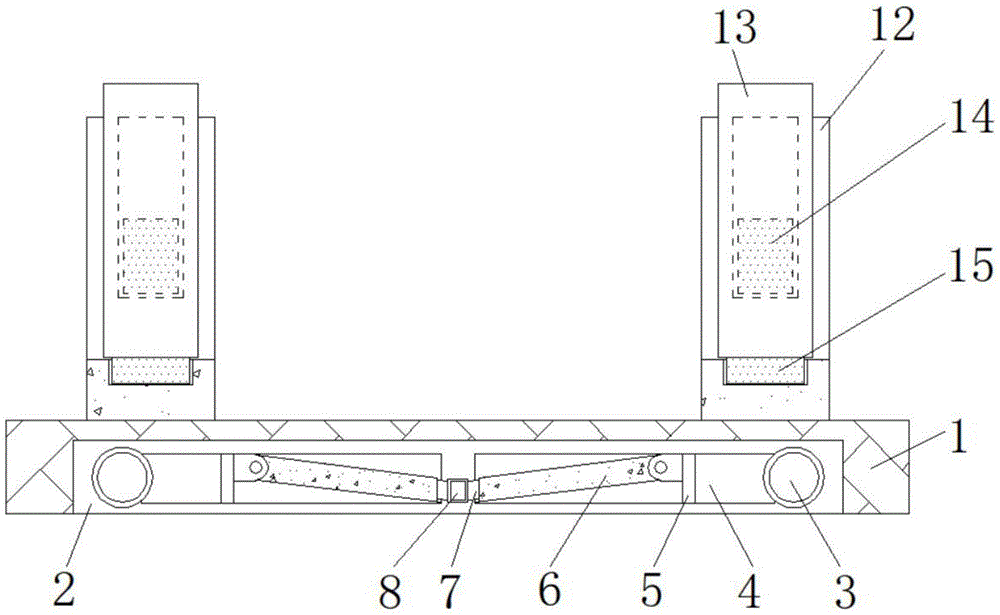

Fig. 1 is a schematic structural front sectional view in a first state of the present invention;

FIG. 2 is a schematic bottom view of the structure of the present invention;

fig. 3 is a schematic structural front sectional view in a second state of the present invention;

FIG. 4 is an enlarged schematic view of the structure at A in FIG. 3 according to the present invention;

fig. 5 is a schematic side view of the structure of the present invention.

In the figure: 1. a base; 2. a receiving cavity; 3. fixing the rod; 4. a rotating plate; 5. a fixing plate; 6. sheathing; 7. a retractable plate; 8. connecting blocks; 9. a first slider; 10. a spring; 11. a limiting block; 12. a fixed seat; 13. a clamp body; 14. a second slider; 15. a first clamping block; 16. a fixed block; 17. rotating the clamp; 18. and a second clamping block.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-5, the present invention provides an embodiment:

a welding fixture for a metal welding machine comprises a base 1 and a fixture main body 13, wherein a containing cavity 2 is arranged at the lower end inside the base 1, fixing rods 3 are fixed on the left side and the right side inside the containing cavity 2, rotating plates 4 are fixed on the sides, far away from the inner wall of the containing cavity 2, of the two groups of fixing rods 3, fixing plates 5 are fixed inside the rotating plates 4, one sides, far away from the fixing rods 3, of the fixing plates 5 are movably connected with sleeve plates 6 through rotating shafts, the insides of the sleeve plates 6 are connected with telescopic plates 7 in a sliding mode through first sliding blocks 9, the two groups of telescopic plates 7 are fixedly connected through connecting blocks 8, the sleeve plates 6 and the telescopic plates 7 are arranged in an inclined mode, rubber cushions are glued outside the connecting blocks 8, the telescopic plates 7 can be conveniently drawn out of the sleeve plates 6 through the inclined design, operators can hold the connecting blocks 8 more comfortably through the rubber cushions, and, the spring 10 is fixed on the upper end and the lower end of the expansion plate 7 inside the sleeve plate 6, and the spring 10 is fixed with the limiting block 11 on the side close to the expansion plate 7, the upper end and the lower end of the sleeve plate 6 inside are provided with the first slide of mutually supporting with the first slide 9, the upper end and the lower end of the expansion plate 7 inside close to one side of the connecting block 8 are provided with the first limiting groove of mutually supporting with the limiting block 11, the upper end and the lower end of the expansion plate 7 inside far away from one side of the connecting block 8 are provided with the second limiting groove of mutually supporting with the limiting block 11, through the design, the expansion plate 7 is subjected to limiting operation, so that the expansion plate 7 is more stable when being taken out from the sleeve plate 6, the expansion plate 7 convenient to take out simultaneously.

The left side and the right side of the top end of the base 1 are both fixed with fixing seats 12, the insides of the two groups of fixing seats 12 are both connected with a clamp main body 13 in a sliding way through second sliding blocks 14, the bottom end of the clamp main body 13 is both fixed with first clamping blocks 15, the bottom end of the inside of the fixing seats 12 is provided with first clamping grooves matched with the first clamping blocks 15, the front end and the back end of the inside of the fixing seats 12 are both provided with second sliding ways matched with the second sliding blocks 14, through the design, the clamp main body 13 is limited so that the clamp main body 13 can only move up and down, the stability of the device is improved, the front side and the back side of the upper end of the clamp main body 13 are both fixed with fixing blocks 16, the front side and the back side of the top end of the fixing seats 12 are both movably connected with rotating clamps 17 through rotating shafts, the bottom end of one side of the rotating clamps, one side of the second fixture block 18, which is far away from the fixture main body 13, is glued with a rubber gasket, so that the second fixture block 18 is clamped on the fixing block 16 more stably, the fixture main body 13 is fixed more stably, and the stability of the device is improved.

The working principle is as follows: when the height of the base 1 is lower, firstly, the connecting block 8 is pulled downwards, at the same time, the expansion plate 7 moves downwards along with the connecting block 8 synchronously, under the pulling of the expansion plate 7, the sleeve plate 6 moves downwards along with the expansion plate 7 synchronously, under the coordination of the external rotating shaft of the sleeve plate 6, the sleeve plate 6 rotates, simultaneously, the sleeve plate 6 drives the rotating plate 4 to move downwards, under the coordination of the external rotating shaft of the fixing rod 3, the rotating plate 4 rotates, then, the connecting block 8 is pulled downwards continuously, at the same time, the spring 10 is in a compression force storage state, the limiting block 11 moves out from the inside of the first limiting groove, the expansion plate 7 moves towards the direction far away from the fixing rod 3 in the inside of the sleeve plate 6, the moving-out of the expansion plate 7 pushes the rotating plate 4 to rotate towards the direction far away from the connecting block 8, at the same time, the first slide block 9 slides synchronously along with the expansion plate 7, the re-fixing operation of the telescopic plate 7 is achieved, and at this time the supporting operation of the pivotal plate 4 is achieved.

When the clamp main body 13 is not needed, the rotating clamp 17 is firstly pulled in the direction away from the clamp main body 13, under the cooperation of the rotating shaft, the rotating clamp 17 rotates, the second clamping block 18 rotates synchronously along with the rotating clamp 17, the second clamping block 18 moves out of the second clamping groove, meanwhile, the rubber cushion outside the second clamping block 18 elastically deforms and then moves out of the second clamping groove, then the clamp main body 13 is lifted upwards, at the moment, the second sliding block 14 moves upwards synchronously along with the clamp main body 13 in the second sliding groove, the first clamping block 15 moves out of the second clamping groove until the clamp main body 13 completely moves out of the fixed seat 12, the dismounting operation of the clamp main body 13 is realized, and the operation is finished.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (5)

1. A welding jig for metal welding machine, includes base (1) and anchor clamps main part (13), its characterized in that: the lower end of the interior of the base (1) is provided with a containing cavity (2), the left side and the right side of the interior of the containing cavity (2) are both fixed with fixing rods (3), one side of the two groups of fixing rods (3) far away from the inner wall of the containing cavity (2) is both fixed with a rotating plate (4), the interior of the rotating plate (4) is both fixed with a fixing plate (5), one side of the fixing plate (5) far away from the fixing rods (3) is both movably connected with a sleeve plate (6) through a rotating shaft, the interior of the sleeve plate (6) is both connected with a telescopic plate (7) through a first sliding block (9) in a sliding manner, the two groups of telescopic plates (7) are fixedly connected through connecting blocks (8), springs (10) are both fixed in the sleeve plates (6) at the upper end and the lower end of each telescopic plate (7), a limiting block (11) is fixed on one side of each spring (10) close to each telescopic plate (7, two sets of the inside of fixing base (12) all has anchor clamps main part (13) through second slider (14) sliding connection, the bottom of anchor clamps main part (13) all is fixed with first fixture block (15), both sides all are fixed with fixed block (16) around anchor clamps main part (13) upper end, both sides all rotate through pivot swing joint around fixing base (12) top and press from both sides (17), and rotate and press from both sides (17) and be close to the bottom mounting of fixed block (16) one side and have second fixture block (18).

2. The welding fixture for a metal welding machine of claim 1, wherein: the sleeve plate (6) and the telescopic plate (7) are both arranged to be inclined, and a rubber cushion is glued outside the connecting block (8).

3. The welding fixture for a metal welding machine of claim 1, wherein: the upper and lower both ends of lagging (6) inside all are provided with the first slide of mutually supporting with first slider (9), the upper and lower both ends that connecting block (8) one side is close to in expansion plate (7) inside all are provided with the first spacing groove of mutually supporting with stopper (11), the upper and lower both ends that connecting block (8) one side was kept away from in expansion plate (7) inside are provided with the second spacing groove of mutually supporting with stopper (11).

4. The welding fixture for a metal welding machine of claim 1, wherein: the bottom of fixing base (12) inside is provided with the first draw-in groove of mutually supporting with first fixture block (15), both ends all are provided with the second slide of mutually supporting with second slider (14) around fixing base (12) inside.

5. The welding fixture for a metal welding machine of claim 1, wherein: the upper end of the inside of the fixing block (16) is provided with a second clamping groove matched with the second clamping block (18), and a rubber gasket is glued on one side, away from the clamp main body (13), of the second clamping block (18).
