CN213608909U - An infusion pipeline fixing device for obstetrics and gynecology nursing - Google Patents
An infusion pipeline fixing device for obstetrics and gynecology nursing Download PDFInfo
- Publication number
- CN213608909U CN213608909U CN202022212261.3U CN202022212261U CN213608909U CN 213608909 U CN213608909 U CN 213608909U CN 202022212261 U CN202022212261 U CN 202022212261U CN 213608909 U CN213608909 U CN 213608909U
- Authority
- CN
- China
- Prior art keywords
- fixedly connected
- fixing device
- bolt
- obstetrics
- pipe clamp
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Infusion, Injection, And Reservoir Apparatuses (AREA)
Abstract
本实用新型公开了一种妇产科护理用输液管道固定装置，包括支撑平台、固定管夹、螺纹孔、螺栓和旋钮，所述螺栓的底端活动连接有轴承座，所述轴承座的底部固定连接有活动管夹，所述支撑平台的下表面从左至右依次固定连接有连接支架和装配架，所述装配架的内部固定连接有强力磁铁，所述连接支架的一端固定连接有安装板。本实用新型的主要优势在于提供一种妇产科护理用输液管道固定装置，本设备提供一种卡固结构，旋转旋钮带动螺栓推动活动夹管与固定夹管之间对输液管进行夹固，同时本设备通过强力磁铁方便对病床边沿进行吸附固定，如周围没有金属边沿可吸附的情况下可使用双面胶进行粘贴固定。
The utility model discloses an infusion pipeline fixing device for obstetrics and gynecology nursing, which comprises a support platform, a fixed pipe clamp, a threaded hole, a bolt and a knob. The bottom end of the bolt is movably connected with a bearing seat, and the bottom of the bearing seat is connected A movable pipe clamp is fixedly connected, a connecting bracket and an assembly frame are fixedly connected to the lower surface of the supporting platform in sequence from left to right, the inner part of the assembly frame is fixedly connected with a strong magnet, and one end of the connecting bracket is fixedly connected with a mounting frame plate. The main advantage of the utility model is to provide an infusion pipeline fixing device for obstetrics and gynecology nursing. The device provides a clamping structure. The rotating knob drives the bolt to push the movable clamping tube and the fixed clamping tube to clamp the infusion tube. At the same time, the device can easily adsorb and fix the edge of the hospital bed through a strong magnet. If there is no metal edge around it to be adsorbed, it can be pasted and fixed with double-sided tape.
Description
Technical Field
The utility model relates to a gynaecology and obstetrics equipment technical field specifically is a transfusion tube way fixing device is used in gynaecology and obstetrics's nursing.
Background
The operating bed is a necessary tool for a doctor in the operation process, is the most important tool for arranging a patient to enable the doctor to provide an operation environment more conveniently, is mainly provided with an electric operating bed and a hydraulic operating bed, is divided into a multifunctional operating bed, a gynecological operating bed, an orthopedic operating bed and other various methods according to purposes, and is often provided with various pipelines such as infusion pipelines, detection pipelines and the like on the gynecological operating bed.
In view of the fact that various pipelines, such as infusion pipelines and detection pipelines, are often used in the gynecological operation bed, and are usually scattered directly on the bed, and a patient can easily press the pipelines to influence the use of the pipelines, the inventor takes hold of design concepts and practical operation experiences related to the industry for many years, researches and improves the existing problems, and provides an infusion pipeline fixing device for gynecological nursing.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
The utility model provides a to prior art not enough, the utility model provides a transfusion tube way fixing device is used in gynaecology and obstetrics's nursing has solved the problem that proposes in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: the utility model provides a transfusion tube way fixing device is used in gynaecology and obstetrics's nursing, includes supporting platform, supporting platform's the fixed pipe clamp of last fixed surface fixedly connected with, the upper surface set screw hole of fixed pipe clamp, the inside swing joint of screw hole has the bolt, the top fixedly connected with knob of bolt, the bottom swing joint of bolt has the bearing frame, the bottom fixedly connected with activity pipe clamp of bearing frame, supporting platform's lower surface is fixedly connected with linking bridge and assembly jig from a left side to the right side in proper order.
Optionally, a powerful magnet is fixedly connected to the inside of the mounting bracket.
Optionally, one end of the connecting bracket is fixedly connected with a mounting plate.
Optionally, a double-sided adhesive tape is attached to the lower surface of the mounting plate.
Optionally, the supporting platform, the fixed pipe clamp and the movable pipe clamp are all made of plastics, and the type of the plastics is high-density polyethylene.
(III) advantageous effects
The utility model provides a transfusion tube way fixing device is used in gynaecology and obstetrics's nursing possesses following beneficial effect:
the utility model has the main advantage of providing a transfusion tube fixing device is used in gynaecology and obstetrics's nursing, this equipment provides a card solid construction, and rotatory knob drives and carries out the clamping to the transfer line between bolt promotion activity double-layered pipe and the fixed double-layered pipe, and this equipment adsorbs fixedly through strong magnet convenience to the sick bed border simultaneously, and it is fixed to use the double faced adhesive tape to paste if there is not the adsorbable condition in metal border around.
For traditional gynaecology and obstetrics's nursing is with infusion tube fixing device, this equipment more can conveniently carry out supplementary use according to user's needs, for example, makes things convenient for medical personnel to carry out classification fixed to transfer line and medical instrument cable, avoids patient and family members to press and drag the pipeline, influences the normal treatment of patient, causes the secondary injury to the patient.
Drawings

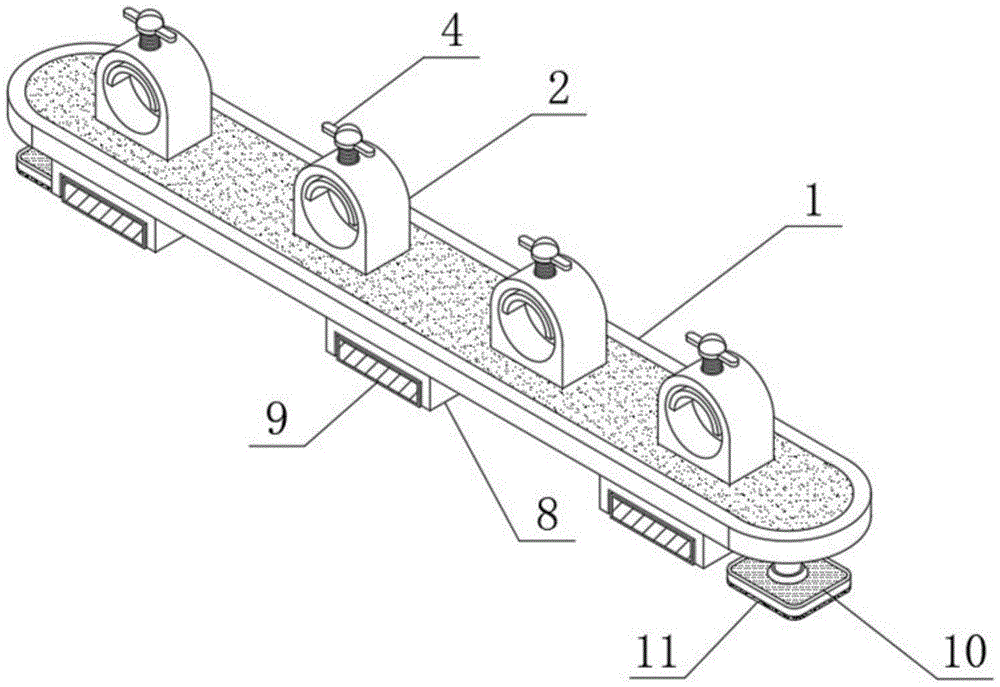

FIG. 1 is a schematic structural view of the present invention;
FIG. 2 is a schematic view of the structure of the fixing pipe clamp of the present invention;
fig. 3 is the schematic diagram of the structure of the installation plate of the present invention.
In the figure: 1. a support platform; 2. fixing the pipe clamp; 3. a bolt; 4. a knob; 5. a bearing seat; 6. a movable pipe clamp; 7. connecting a bracket; 8. an assembly frame; 9. a strong magnet; 10. mounting a plate; 11. and (4) double-sided adhesive tape.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1 to 3, the present invention provides a technical solution: a transfusion pipeline fixing device for gynecological nursing comprises a supporting platform 1, wherein the upper surface of the supporting platform 1 is fixedly connected with a fixed pipe clamp 2, the upper surface of the fixed pipe clamp 2 is provided with a threaded hole, the inside of the threaded hole is movably connected with a bolt 3, the top end of the bolt 3 is fixedly connected with a knob 4, the bottom end of the bolt 3 is movably connected with a bearing seat 5, the bottom of the bearing seat 5 is fixedly connected with a movable pipe clamp 6, the supporting platform 1, the fixed pipe clamp 2 and the movable pipe clamp 6 are all made of plastics, the types of the plastics are high-density polyethylene, the lower surface of the supporting platform 1 is fixedly connected with a connecting bracket 7 and an assembling bracket 8 from left to right in sequence, the inside of the assembling bracket 8 is fixedly connected with a strong magnet 9, one end of the connecting bracket 7 is fixedly connected with an installing plate 10, the lower surface of the installing plate 10 is attached with a double faced adhesive tape 11, meanwhile, the device is convenient to adsorb and fix the edges of the sickbed through the powerful magnet 9, if the periphery of the sickbed is not provided with the adsorbable metal edges, the double faced adhesive tape 11 can be used for pasting and fixing, so that medical care personnel can classify and fix infusion tubes and medical instrument cables, the situation that patients and family members press and pull pipelines to influence normal treatment of patients and cause secondary injury to the patients is avoided, detailed descriptions of known functions and known parts are omitted in the specific implementation mode, and the adopted operation means are kept consistent with the parameters of instruments on the market for ensuring the compatibility of the device.
To sum up, this infusion tube fixing device is used in gynaecology and obstetrics's nursing, during the use, rotatory knob 4 drives 3 promotion activity clamp pipes of bolt 6 and fixed clamp pipe between 2 and carries out the clamping to the transfer line, this equipment is convenient to adsorb fixedly to the sick bed border through strong magnet 9 simultaneously, do not have around can use double faced adhesive tape 11 to paste fixedly under the adsorbable condition in metal border, make things convenient for medical personnel to classify fixedly to transfer line and medical instrument cable, avoid patient and family members to press and drag the pipeline, influence the normal treatment of patient, cause the secondary injury to the patient.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (5)
1. The utility model provides a gynaecology and obstetrics's nursing is with infusion pipeline fixing device, includes supporting platform (1), its characterized in that: the upper surface fixedly connected with of supporting platform (1) fixes pipe clamp (2), the upper surface set up threaded hole of fixed pipe clamp (2), the inside swing joint of screw hole has bolt (3), the top fixedly connected with knob (4) of bolt (3), the bottom swing joint of bolt (3) has bearing frame (5), the bottom fixedly connected with activity pipe clamp (6) of bearing frame (5), the lower surface of supporting platform (1) is fixedly connected with linking bridge (7) and assembly jig (8) from a left side to the right side in proper order.
2. The transfusion tube fixing device for gynecological and obstetrical nursing according to claim 1, characterized in that: and a powerful magnet (9) is fixedly connected inside the assembling frame (8).
3. The transfusion tube fixing device for gynecological and obstetrical nursing according to claim 1, characterized in that: one end of the connecting bracket (7) is fixedly connected with a mounting plate (10).
4. The transfusion tube fixing device for gynecological and obstetrical nursing according to claim 3, characterized in that: the lower surface of the mounting plate (10) is attached with a double-sided adhesive tape (11).
5. The transfusion tube fixing device for gynecological and obstetrical nursing according to claim 1, characterized in that: the supporting platform (1), the fixed pipe clamps (2) and the movable pipe clamps (6) are all made of plastics, and the types of the plastics are high-density polyethylene.
