CN211068297U - Urinary surgery is with catheterization device - Google Patents

Abstract

The utility model discloses a urinary catheterization device for urology, comprising a base plate and a base, the upper surface of the base plate is fixedly connected with the base, the inner wall of the base is screwed with a connecting cylinder, and the upper surface of the connecting cylinder is movably connected There is a catheter, the surface of the connecting cylinder is movably connected with a communication pipe and a sampling pipe, the surface of the communication pipe is provided with a first valve, the surface of the sampling pipe is provided with a second valve, and the surface of the base is fixed A fixing plate is connected, and the upper surface of the fixing plate is movably connected with a support rod through bolts. The urinary catheterization device for urology can place and support the urine collection bag through the cooperating arrangement between the strut, the connecting post and the placing box, and can place and support the urine collecting bag through the placing box, and pass the communication pipe, the first valve, the connecting head and the urine collecting bag. The matching arrangement between them can make the urine flow to the inside of the communication pipe through the catheter diameter connecting cylinder, so as to collect the urine through the urine collecting bag.

Description

A urinary catheter for urology

technical field

The utility model relates to the technical field of medical instruments for urology, in particular to a urinary catheterization device for urology.

Background technique

The main treatment areas of urology include various urinary stones and complex kidney stones, kidney and bladder tumors, prostatic hyperplasia and prostatitis, inflammation and tumors of the testicular epididymis, testicular spermatic hydrocele, various urinary tract injuries and urinary Congenital malformations, etc.

Urological patients need to use a urinary catheter to assist in urination during the postoperative recovery period. The urinary catheters used in clinical practice are mainly urinary catheters and urine collection bags. The urine tube is docked with the urine collection bag, and then the urine in the patient will flow into the urine collection bag along the catheter. Most of the urine collection bags are hung by the bedside. The urine bag falls, and there is a problem of unreliable fixation. Most of the existing urinary catheters are only connected to a urine collection bag. When the urine collection bag needs to be replaced, there is no spare urine collection bag to collect urine. It is inconvenient, and the existing urinary catheter device is inconvenient to sample and submit the urine discharged from the patient.

Utility model content

(1) Technical problems solved

Aiming at the deficiencies of the prior art, the utility model provides a urinary catheterization device for urology, which solves the problems raised in the above-mentioned background technology.

(2) Technical solutions

In order to achieve the above purpose, the present invention is achieved through the following technical solutions: a urinary catheterization device for urology, comprising a base plate and a base, the upper surface of the base plate is fixedly connected with a base, and the inner wall of the base is threadedly connected with a connecting cylinder , the upper surface of the connecting tube is movably connected with a urinary catheter, the surface of the connecting tube is movably connected with a communication tube and a sampling tube, the surface of the communication tube is provided with a first valve, and the surface of the sampling tube is provided with a For the second valve, a fixing plate is fixedly connected to the surface of the base, a strut is movably connected to the upper surface of the fixing plate through bolts, and a connecting column is fixedly connected to one side of the strut, and the connecting column is far away from the strut One end is fixedly connected with a placing box, the upper surface of the support rod is fixedly connected with a positioning ring, one end of the connecting pipe away from the connecting cylinder is movably connected with a connecting head, and one end of the connecting head away from the connecting pipe is movably connected with a urine collection The surface of the connecting cylinder is fixedly connected with a support plate.

Optionally, the support plate is arranged below the sampling pipe.

Optionally, the surface of the bottom plate is fixedly connected with legs, and the number of the legs is four.

Optionally, the number of the communicating pipes is two, and the two communicating pipes are symmetrically arranged with the vertical centerline of the connecting cylinder as the symmetry axis.

Optionally, the inner wall of the positioning ring is movably connected with the surface of the communication pipe.

Optionally, the inner wall of the placing box is movably connected with the urine collection bag.

(3) Beneficial effects

The utility model provides a urinary catheterization device for urology, which has the following beneficial effects:

1. The urinary catheterization device for urology can place and support the urine collection bag through the cooperating arrangement between the strut, the connecting column and the placing box, so that the position of the urine collecting bag is not easily changed. , The cooperation between the first valve, the connector and the urine collection bag can make the urine flow to the interior of the communication pipe through the catheter diameter connecting cylinder, so that the urine is collected through the urine collection bag, and the number of the communication pipes is Two, corresponding to two urine collection bags, when replacing one of the urine collection bags, the first valve corresponding to this urine collection bag is closed, and the first valve corresponding to the other urine collection bag is opened, so that Urine flows to the inside of another urine collection bag, so that changing the urine collection bag will not affect the patient's urination, which is convenient for medical staff to use.

2. The urinary catheter for urology can be placed on the surface of the support plate through the cooperation between the sampling tube, the second valve and the support plate. The second valve, the urine flows to the inside of the collection tube through the sampling tube, when a certain amount is collected, the second valve can be closed to send the urine inside the collection tube for inspection, which is very convenient to operate.

Description of drawings

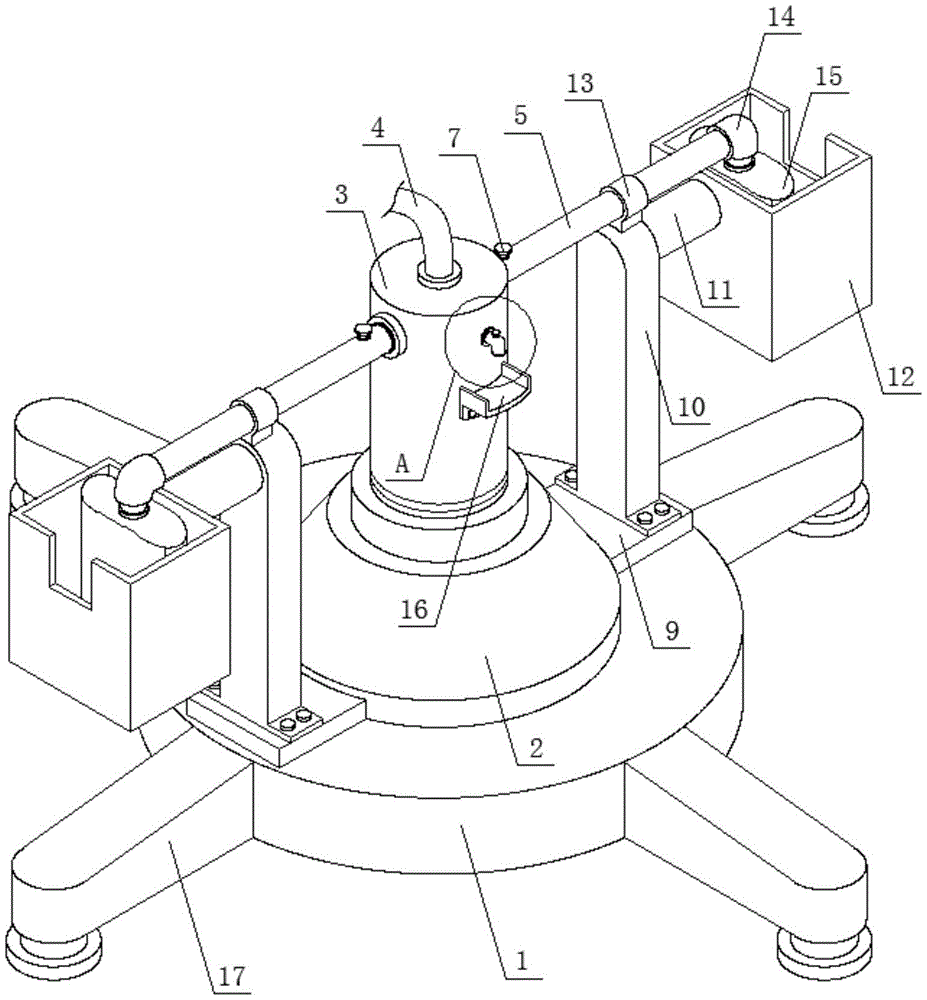

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged schematic diagram of the structure at place A in Fig. 1 of the utility model;

FIG. 3 is a schematic diagram of the structure of the connecting cylinder of the present invention.

In the figure: 1. Bottom plate; 2. Base; 3. Connecting cylinder; 4. Catheter; 5. Connecting pipe; 6. Sampling pipe; 7. First valve; 8. Second valve; 9. Fixed plate; 10 11, connecting column; 12, placing box; 13, positioning ring; 14, connecting head; 15, collecting urine bag; 16, supporting plate; 17, outrigger.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Please refer to FIGS. 1 to 3, the present utility model provides a technical solution: a urinary catheterization device for urology, comprising a base plate 1 and a base 2, the base 2 is fixedly connected to the upper surface of the base plate 1, and the inner wall of the base 2 is threadedly connected There is a connecting tube 3, the upper surface of the connecting tube 3 is movably connected with a urinary catheter 4, and the surface of the connecting tube 3 is movably connected with a communication tube 5 and a sampling tube 6, the number of the communication tube 5 is two, and the two communication tubes 5 Taking the vertical midline of the connecting cylinder 3 as the axis of symmetry, it is symmetrically arranged, the surface of the communication pipe 5 is provided with the first valve 7, the surface of the sampling pipe 6 is provided with the second valve 8, and the surface of the base 2 is fixedly connected with a fixed plate 9;

In order to enable the present utility model to support the urine collection bag 15 and not affect the patient's urination when the urine collection bag 15 is replaced, a support rod 10 is movably connected to the upper surface of the fixing plate 9 through bolts. A connecting column 11 is fixedly connected to one side, and a placing box 12 is fixedly connected to one end of the connecting column 11 away from the support rod 10 . The urine bag 15 is placed and supported, so that the position of the urine collection bag 15 is not easily changed. Through the cooperation between the communication pipe 5, the first valve 7, the connector 14 and the urine collection bag 15, the urine can pass through the catheter. 4. It flows into the communication pipe 5 through the connecting cylinder 3, so that urine is collected through the urine collection bag 15. The number of the communication pipes 5 is two, and there are two urine collection bags 15 corresponding to it. When the urine collection bag 15 is used, the first valve 7 corresponding to this urine collection bag 15 is closed, and the first valve 7 corresponding to the other urine collection bag 15 is opened, so that the urine flows into the other urine collection bag 15, so that the urine collection bag 15 can be replaced. The urine bag 15 will not affect the patient's urination, and is convenient for medical personnel to use;

In order to make the present utility model convenient for sampling and sending urine for inspection, a positioning ring 13 is fixedly connected to the upper surface of the support rod 10, and a connecting head 14 is movably connected to the end of the communication pipe 5 away from the connecting cylinder 3, and the connecting head 14 is far away from the connecting head 14. One end of the communication pipe 5 is movably connected with a urine collection bag 15, and the surface of the connecting cylinder 3 is fixedly connected with a support plate 16. Through the cooperation between the sampling pipe 6, the second valve 8 and the support plate 16, the urine collection pipe can be placed On the surface of the support plate 16, the nozzle is facing upwards. When the patient is urinating, the second valve 8 is opened, and the urine flows to the inside of the urine collection tube through the sampling tube 6. When a certain amount is collected, the second valve can be closed. 8. The urine inside the urine collection tube is sent for inspection, which is very easy to operate. The support plate 16 is arranged below the sampling tube 6, and the surface of the bottom plate 1 is fixedly connected with outriggers 17, and the number of the outriggers 17 is four, The inner wall of the positioning ring 13 is movably connected with the surface of the communication pipe 5 , and the inner wall of the placing box 12 is movably connected with the urine collection bag 15 .

To sum up, the urinary catheter for urology, when in use, connects the urinary catheter 4 with the inside of the patient's bladder. 12. Place and support the urine collection bag 15, and through the cooperation between the communication pipe 5, the first valve 7, the connector 14 and the urine collection bag 15, the urine can be made to flow through the catheter 4 through the connection cylinder 3 to communicate with each other. Inside the tube 5, the urine is collected through the urine collection bag 15, and the number of the communication tubes 5 is two, and two urine collection bags 15 are provided corresponding to it. When replacing one of the urine collection bags 15, this The first valve 7 corresponding to the urine collection bag 15 is closed, and the first valve 7 corresponding to the other urine collection bag 15 is opened, so that the urine flows to the inside of the other urine collection bag 15, so that the replacement of the urine collection bag 15 will not affect the patient. The urination is affected, and the position of the communication pipe 5 can be limited by the setting of the positioning ring 13, and the urine collecting pipe can be placed on the support plate through the cooperation between the sampling pipe 6, the second valve 8 and the support plate 16. 16, with the nozzle facing upwards, when the patient is urinating, open the second valve 8, and the urine will flow to the inside of the urine collection pipe through the sampling tube 6. When a certain amount is collected, the second valve 8 can be closed, and the The urine inside the collection tube is sent for inspection, which is very easy to operate.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A urinary surgery catheterization device, includes bottom plate (1) and base (2), its characterized in that: the upper surface of the base plate (1) is fixedly connected with a base (2), the inner wall of the base (2) is in threaded connection with a connecting cylinder (3), the upper surface of the connecting cylinder (3) is movably connected with a catheter (4), the surface of the connecting cylinder (3) is movably connected with a communicating pipe (5) and a sampling pipe (6), the surface of the communicating pipe (5) is provided with a first valve (7), the surface of the sampling pipe (6) is provided with a second valve (8), the surface of the base (2) is fixedly connected with a fixed plate (9), the upper surface of the fixed plate (9) is movably connected with a support rod (10) through a bolt, one side of the support rod (10) is fixedly connected with a connecting column (11), one end of the connecting column (11) far away from the support rod (10) is fixedly connected with a placing box (12), the upper surface of the support rod (10, one end swing joint that connecting cylinder (3) was kept away from in communicating pipe (5) has connector (14), the one end swing joint that communicating pipe (5) were kept away from in connector (14) has urine collection bag (15), the fixed surface of connecting cylinder (3) is connected with backup pad (16).

2. A urinary surgical urinary catheterization device as claimed in claim 1, wherein: the support plate (16) is arranged below the sampling tube (6).

3. A urinary surgical urinary catheterization device as claimed in claim 1, wherein: the surface of the bottom plate (1) is fixedly connected with four support legs (17), and the number of the support legs (17) is four.

4. A urinary surgical urinary catheterization device as claimed in claim 1, wherein: the number of the communicating pipes (5) is two, and the communicating pipes (5) are symmetrically arranged by taking the vertical central line of the connecting cylinder (3) as a symmetry axis.

5. A urinary surgical urinary catheterization device as claimed in claim 1, wherein: the inner wall of the positioning ring (13) is movably connected with the surface of the communicating pipe (5).

6. A urinary surgical urinary catheterization device as claimed in claim 1, wherein: the inner wall of the placing box (12) is movably connected with a urine collecting bag (15).
