Patient limb fixing frame for operating room nursing

Technical Field

The utility model relates to a patient's limbs mount specifically is a patient's limbs mount is used in operating room nursing, belongs to patient's limbs mount application technical field.

Background

The operating room is a place for providing operations and rescue for patients and is an important technical department of hospitals; the operating room is connected with an operating department and is also close to a blood bank, a monitoring room, an anesthesia resuscitation room and the like; grasping the link management of four ways of surgical incision infection, namely: air in the operating room; items required for surgery; the fingers of doctors and nurses and the skin of patients prevent infection and ensure the success rate of the operation; the design is reasonable, the equipment is complete, the nurse has sensitive and quick working response, and the working efficiency is high; the operating room needs a set of strict and reasonable rules and regulations and aseptic operation specifications; with the rapid development of surgical techniques, the operating room is increasingly modern.

Present some patient's shanks need tie patient's shank when needing to be loaded with medicine, and the nursing staff shank of being convenient for is loaded with medicine to the nursing staff shank, and some mounts are highly fixed simultaneously, influence the patient comfort level that the in-process shank of loading with medicine was placed, and the mount is relatively poor to the fixed effect of patient's limbs simultaneously, influences the use. Therefore, a limb fixing frame for nursing the operating room for the patient is provided for solving the problems.

SUMMERY OF THE UTILITY MODEL

The utility model aims to provide a patient limb fixing frame for nursing in an operating room in order to solve the problems.

The utility model realizes the purpose through the following technical proposal, a patient limb fixing frame for nursing in an operating room, which comprises a fixing seat, a supporting leg, a supporting cylinder, a height adjusting mechanism and a fixing mechanism; wherein the bottom of the fixed seat is fixedly connected with a supporting leg, and the top side of the fixed seat is fixedly connected with a supporting cylinder;

the height adjusting mechanism comprises a threaded column, a rotating disc, a rotating rod and a supporting column, and the threaded column is in threaded connection with the inner cavity of the supporting cylinder; the top end of the threaded column is fixedly connected with a rotating disc, and the bottom side of the rotating disc is fixedly connected with a rotating rod; a support column is fixedly connected to the top side of the rotating disc;

the fixing mechanism comprises a placing plate, an elastic rubber pad, a spongy cushion, a connecting belt and a second magic tape, and the placing plate is rotatably connected to the top end of the supporting column; the side surface of the top of the placing plate is provided with a placing groove, and the inner wall of the placing groove is fixedly connected with an elastic rubber pad; the inner wall of the elastic rubber pad is fixedly connected with a sponge pad; the front side surface of the placing plate is fixedly connected with a connecting belt, and the inner wall of the bottom side of the connecting belt is fixedly connected with a sponge belt; the terminal inner wall fixedly connected with of connecting band is pasted with first magic, and just first magic is pasted and is pasted with the second magic of fixing at the side of placing the board backside surface.

Preferably, the number of the supporting legs is four, and the four supporting legs are located on the bottom side of the fixed seat and are uniformly distributed.

Preferably, the number of the rotating rods is four, and the four rotating rods are located on the bottom side of the rotating disc and distributed in an annular mode.

Preferably, the bottom side surface of the placing plate is provided with a rotating groove, a rotating block is rotatably connected in the rotating groove, and the bottom side of the rotating block is fixedly connected with the top end of the supporting column.

Preferably, the section of the placing groove is of a semicircular structure, and the top side of the placing groove is provided with a connecting belt.

Preferably, the number of the connecting bands is two, and the two connecting bands are arranged in parallel.

The utility model has the advantages that:

1. this kind of patient's limbs mount for operating room nursing novel in design, simple structure, the nursing staff of being convenient for highly adjust according to patient's shank is placed, is convenient for improve patient's shank place the comfort level, and the guarantee is placed the use of board after adjusting and is stable, satisfies worker's user demand, the operation of being convenient for.

2. When using, under the effect of fixed establishment through setting up, be convenient for fix the patient's shank in the standing groove through the connecting band, improve the fixed stability of patient's shank, be convenient for improve the comfort level of placing in the standing groove simultaneously, the practicality value is higher, is fit for using widely.

Drawings

In order to more clearly illustrate the embodiments of the present invention or the technical solutions in the prior art, the drawings needed to be used in the description of the embodiments or the prior art will be briefly described below, it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to the drawings without inventive exercise.

FIG. 1 is a schematic view of the overall structure of the present invention;

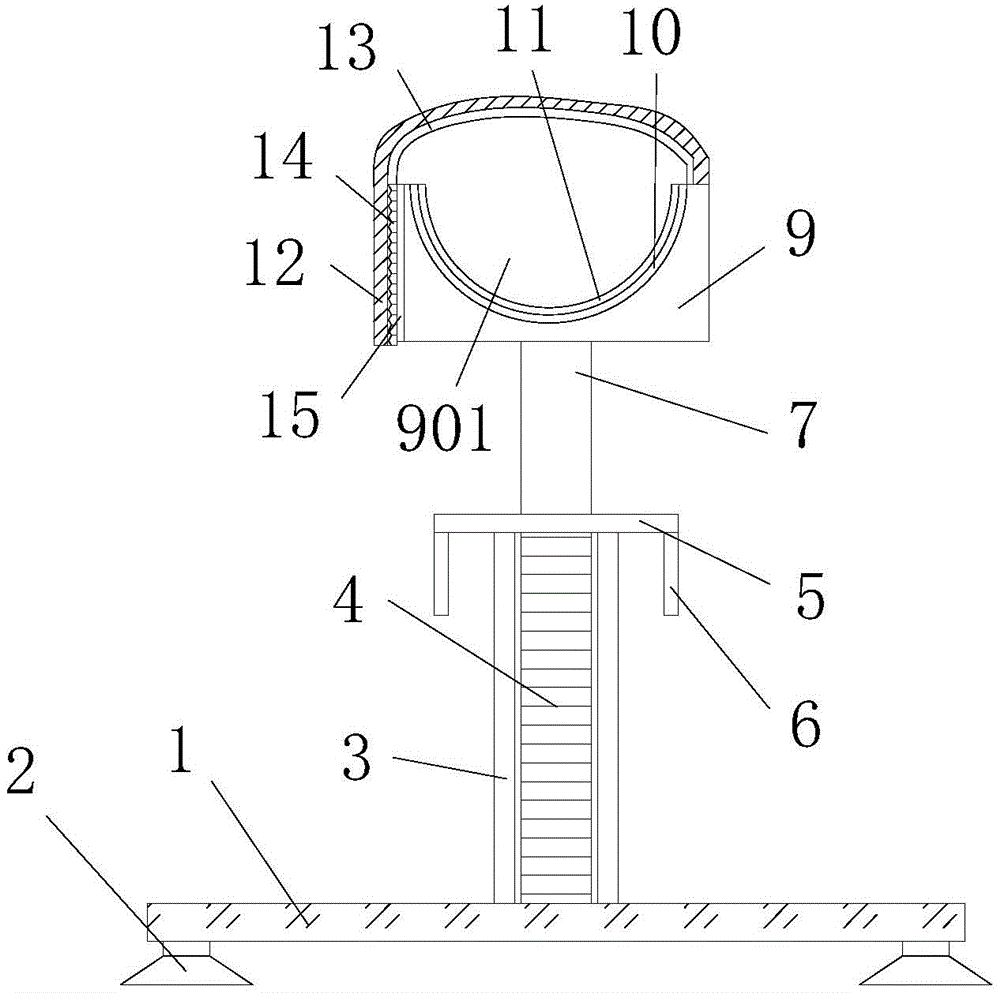

FIG. 2 is a schematic view of the connection structure of the present invention in a right side cross-sectional view;

fig. 3 is a schematic view of the connecting structure of the bottom surface of the rotating plate of the present invention.

In the figure: 1. fixing base, 2, supporting legs, 3, a supporting cylinder, 4, screw post, 5, rolling disc, 6, dwang, 7, support column, 8, turning block, 9, place the board, 901, standing groove, 10, elastic rubber pad, 11, foam-rubber cushion, 12, connecting band, 13, sponge area, 14, first magic subsides, 15, second magic subsides.

Detailed Description

In order to make the objects, features and advantages of the present invention more obvious and understandable, the drawings in the embodiments of the present invention are combined below to clearly and completely describe the technical solutions in the embodiments of the present invention, and obviously, the embodiments described below are only some embodiments of the present invention, but not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative efforts belong to the protection scope of the present invention.

The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on those shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore should not be construed as limiting the present invention.

Referring to fig. 1-3, a patient limb fixing frame for operating room nursing comprises a fixing base 1, supporting legs 2, a supporting cylinder 3, a height adjusting mechanism and a fixing mechanism; wherein the bottom of the fixed seat 1 is fixedly connected with a supporting leg 2, and the top side of the fixed seat 1 is fixedly connected with a supporting cylinder 3;

the height adjusting mechanism comprises a threaded column 4, a rotating disc 5, a rotating rod 6 and a supporting column 7, and the threaded column 4 is in threaded connection with the inner cavity of the supporting cylinder 3; the top end of the threaded column 4 is fixedly connected with a rotating disc 5, and the bottom side of the rotating disc 5 is fixedly connected with a rotating rod 6; a support column 7 is fixedly connected to the top side of the rotating disc 5;

the fixing mechanism comprises a placing plate 9, an elastic rubber pad 10, a spongy cushion 11, a connecting belt 12 and a second magic tape 15, and the placing plate 9 is rotatably connected to the top end of the supporting column 7; a placing groove 901 is formed in the surface of the top side of the placing plate 9, and an elastic rubber pad 10 is fixedly connected to the inner wall of the placing groove 901; the inner wall of the elastic rubber pad 10 is fixedly connected with a sponge pad 11; the front side surface of the placing plate 9 is fixedly connected with a connecting belt 12, and the inner wall of the bottom side of the connecting belt 12 is fixedly connected with a sponge belt 13; the inner wall of the tail end of the connecting band 12 is fixedly connected with a first magic tape 14, and the first magic tape 14 is adhered with a second magic tape 15 fixed on the surface of the back side of the placing plate 9.

The number of the supporting feet 2 is four, and the four supporting feet 2 are uniformly distributed at the bottom side of the fixed seat 1, so that the fixed seat 1 can be stably supported through the supporting seat 2; the number of the rotating rods 6 is four, and the four rotating rods 6 are annularly distributed on the bottom side of the rotating disc 5, so that the rotating rods 6 are compactly arranged, and the rotating disc 5 is conveniently driven to rotate by the rotating rods 6; a rotating groove is formed in the surface of the bottom side of the placing plate 9, a rotating block 8 is rotatably connected in the rotating groove, the bottom side of the rotating block 8 is fixedly connected with the top end of the supporting column 7, and the supporting column 7 is conveniently and rotatably connected with the bottom of the placing plate 9; the section of the placing groove 901 is in a semicircular structure, and the top side of the placing groove 901 is provided with the connecting belt 12, so that the connecting belt 12 can be conveniently used; the number of the connecting bands 12 is two, and the two connecting bands 12 are arranged in parallel, so that the connecting bands 12 can be conveniently operated and used.

The utility model discloses when using, need carry out the medicine on the shank at the patient, nursing staff needs rotatory dwang 6, dwang 6 drives top side fixed connection's rolling disc 5 and rotates, the screw thread post 4 of support column 7 and the bottom of dwang 6 drive top side rotates along 3 inner chamber screw threads of a support section of thick bamboo, through screw thread post 4 and then adjust the board 9 of placing that the top was placed, satisfy the comfort level that the patient placed the shank, be convenient for patient's shank medicine on, after the shank is placed simultaneously, will place the shank of board 9 top side standing groove 901 through connecting band 12 and fix, paste 14 through first magic and paste 15 with the second magic under the cooperation, improve the fixed effect of shank, improve the fixed comfort level of shank, and the operation of being convenient for.

It is well within the skill of those in the art to implement, without undue experimentation, the present invention does not relate to software and process improvements, as related to circuits and electronic components and modules.

It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.

The above embodiments are only used to illustrate the technical solution of the present invention, and not to limit the same; although the present invention has been described in detail with reference to the foregoing embodiments, it should be understood by those skilled in the art that: the technical solutions described in the foregoing embodiments may still be modified, or some technical features may be equivalently replaced; such modifications and substitutions do not depart from the spirit and scope of the present invention in its corresponding aspects.

Claims

1. The utility model provides a patient's limbs mount is used in operating room nursing which characterized in that: comprises a fixed seat (1), supporting legs (2), a supporting cylinder (3), a height adjusting mechanism and a fixing mechanism; wherein the bottom of the fixed seat (1) is fixedly connected with a supporting leg (2), and the top side of the fixed seat (1) is fixedly connected with a supporting cylinder (3);

the height adjusting mechanism comprises a threaded column (4), a rotating disc (5), a rotating rod (6) and a supporting column (7), and the threaded column (4) is in threaded connection with the inner cavity of the supporting cylinder (3); the top end of the threaded column (4) is fixedly connected with a rotating disc (5), and the bottom side of the rotating disc (5) is fixedly connected with a rotating rod (6); a support column (7) is fixedly connected to the top side of the rotating disc (5);

the fixing mechanism comprises a placing plate (9), an elastic rubber pad (10), a spongy cushion (11), a connecting belt (12) and a second magic tape (15), and the placing plate (9) is rotatably connected to the top end of the supporting column (7); a placing groove (901) is formed in the surface of the top side of the placing plate (9), and an elastic rubber pad (10) is fixedly connected to the inner wall of the placing groove (901); the inner wall of the elastic rubber pad (10) is fixedly connected with a sponge pad (11); the front side surface of the placing plate (9) is fixedly connected with a connecting belt (12), and the inner wall of the bottom side of the connecting belt (12) is fixedly connected with a sponge belt (13); the inner wall of the tail end of the connecting band (12) is fixedly connected with a first magic tape (14), and the first magic tape (14) is adhered with a second magic tape (15) fixed on the back surface of the placing plate (9).

2. The patient's limb holder for operating room care of claim 1, wherein: the number of the supporting legs (2) is four, and the four supporting legs (2) are uniformly distributed on the bottom side of the fixed seat (1).

3. The patient's limb holder for operating room care of claim 1, wherein: the number of the rotating rods (6) is four, and the rotating rods (6) are located on the bottom side of the rotating disc (5) and distributed in an annular mode.

4. The patient's limb holder for operating room care of claim 1, wherein: the rotary groove is formed in the bottom side surface of the placing plate (9), the rotary block (8) is connected in the rotary groove in a rotating mode, and the bottom side of the rotary block (8) is fixedly connected with the top end of the supporting column (7).

5. The patient's limb holder for operating room care of claim 1, wherein: the section of the placing groove (901) is of a semicircular structure, and a connecting belt (12) is arranged on the top side of the placing groove (901).

6. The patient's limb holder for operating room care of claim 1, wherein: the number of the connecting bands (12) is two, and the two connecting bands (12) are arranged in parallel.
