Abstract

The utility model provides a zero-touch rubber glove, which belongs to the technical field of medical equipment. The zero-touch rubber glove comprises a rubber palm and a PVC finger cot, wherein the bottom outer wall of the PVC finger cot is fixedly connected to the corresponding outer wall of the rubber palm finger part; the PVC The finger cover includes the little finger cover, the ring finger cover, the middle finger cover, the index finger cover and the thumb finger cover. The inner wall of the bottom of the little finger cover is fixedly connected to the outer wall of the pinky finger of the rubber palm, and the inner wall of the bottom of the ring finger cover is fixedly connected to the ring finger of the rubber palm. The outer wall, the inner wall of the bottom of the middle finger cuff is fixedly connected to the outer wall of the middle finger of the rubber palm, the inner wall of the bottom of the index finger cuff is fixedly connected to the outer wall of the index finger of the rubber palm, and the inner wall of the bottom of the thumb cuff is fixedly connected to the outer wall of the thumb of the rubber palm. The side and outer walls are evenly distributed with integrally formed anti-skid particles; the rubber glove of the utility model can ensure the sensitivity of the user's finger touch and realize zero touch.

Description

Zero-touch rubber glove

Technical Field

The utility model belongs to the technical field of medical instrument, concretely relates to zero sense of touch rubber gloves.

Background

In the prior art, blood sampling or transfusion by wearing gloves is one of common clinical operations, however, the gloves bring inconvenience to blood sampling or transfusion persons while protecting the safety of doctors and patients, visual methods and touch methods are two important methods for positioning blood vessels used clinically at present, the visual methods search and position blood vessels by naked eyes, the method is only suitable for patients with superficial and prominent vein positions, and the blood vessel size, bending and branching states of subcutaneous tissues cannot be guaranteed to be clear at a glance; the touch method finds and positions the blood vessel by the touch feeling, and the method distinguishes the qualitative difference between the blood vessel and the surrounding tissues by the touch feeling of the medical personnel, thereby determining the position and the depth of the blood vessel, and the touch method is required to be used in many situations; most of medical personnel wear rubber gloves during blood sampling or infusion, gloves thickness is too thick, wears gloves and is unfavorable for touching vein elasticity, feels not good, especially to the patient that the blood vessel is difficult to find, and the blood vessel aassessment is inaccurate, punctures repeatedly and both brings the misery for patient, seriously influences doctor-patient's relation, also can increase blood sampling or infusion personnel's work load simultaneously.

Through retrieval, the Chinese patent with the publication number of CN207821184U discloses a medical rubber glove, which comprises a glove body, wherein the upper parts of the index finger and the middle finger of the glove body are thinner than the lower parts of the index finger and the middle finger of the glove body, the positions of the thumb, the ring finger and the little finger of the glove body and the palm part of the glove body, the medical rubber glove is provided with a protective finger sleeve at the positions of the index finger and the middle finger, the thickness of the protective finger sleeve is thicker than the upper parts of the index finger and the middle finger of the glove body and at least covers the upper parts of the index finger and the middle finger of the glove body; the medical rubber glove is very durable, is very convenient to operate and use, improves the hand feeling of a user touching blood vessels, better ensures the accuracy of touching the blood vessels, reduces the possibility of repeated puncture, can well improve the relationship between doctors and patients, and improves the working efficiency of the user.

However, the above-mentioned technical solutions still have a problem that the fingers of the user are not sensitive to touch because the finger pulp is still made of rubber.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a zero sense of touch rubber gloves aims at solving the insensitive problem of user's finger sense of touch among the prior art.

In order to achieve the above object, the utility model provides a following technical scheme: the PVC fingerstall comprises a rubber palm and a PVC fingerstall body, wherein the outer wall of the bottom of the PVC fingerstall body is fixedly connected with the corresponding outer wall of the finger part of the rubber palm.

In order to make gloves have good flexibility, can realize zero sense of touch, as the utility model relates to an it is preferred, the PVC dactylotheca uses polyvinyl chloride material preparation, the PVC dactylotheca includes little finger dactylotheca, ring finger dactylotheca, the middle finger dactylotheca, forefinger dactylotheca and thumb dactylotheca, little finger dactylotheca bottom inner wall fixed connection is in rubber palm little finger department outer wall, ring finger dactylotheca bottom inner wall fixed connection is in rubber palm ring finger department outer wall, middle finger dactylotheca bottom inner wall fixed connection is in rubber palm forefinger department outer wall, forefinger dactylotheca bottom inner wall fixed connection is in rubber palm forefinger department outer wall, thumb dactylotheca.

In order to increase the frictional force of user when the object of taking, avoid article from the hand landing, conduct the utility model relates to an it is preferred, rubber palm one side outer wall integrated into one piece has evenly distributed's anti-skidding granule.

In order to help the better record work information of user that can be swift, as the utility model relates to an it is preferred, rubber palm opposite side outer wall bonds and has blank label

In order to avoid the oppression sense that the long-time wearing gloves caused, alleviate user's burden, conduct the utility model relates to an it is preferred, flat elasticity rubber band is installed to rubber palm bottom inner wall.

In order to ensure that the air of the wrist part of the user circulates, reduce the probability of sweating of the palm of the user and keep the palm dry and comfortable, the outer wall of the bottom of the rubber palm is provided with air holes, and the diameter range of the air holes is 0.3mm-0.6 mm.

Compared with the prior art, the beneficial effects of the utility model are that:

1. through setting up the PVC dactylotheca, five finger dactylotheca can both guarantee the sensitivity that the user pointed the sense of touch, compare in current thinner rubber sense of touch, and the PVC dactylotheca can realize zero sense of touch, has guaranteed the vascular accuracy of touch better, has reduced the possibility of puncturing repeatedly.

2. Through setting up flat elasticity rubber band, increase the area of contact of elasticity rubber band and wrist prevents the gloves slippage, has effectively reduced the oppression power of rubber band when gloves are worn in addition, has alleviateed medical personnel's health burden.

3. Through setting up blank label, the relevant information of record patient that can be swift helps medical personnel to reduce operating pressure, quick carding patient relevant information.

Drawings

The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.

In the drawings:

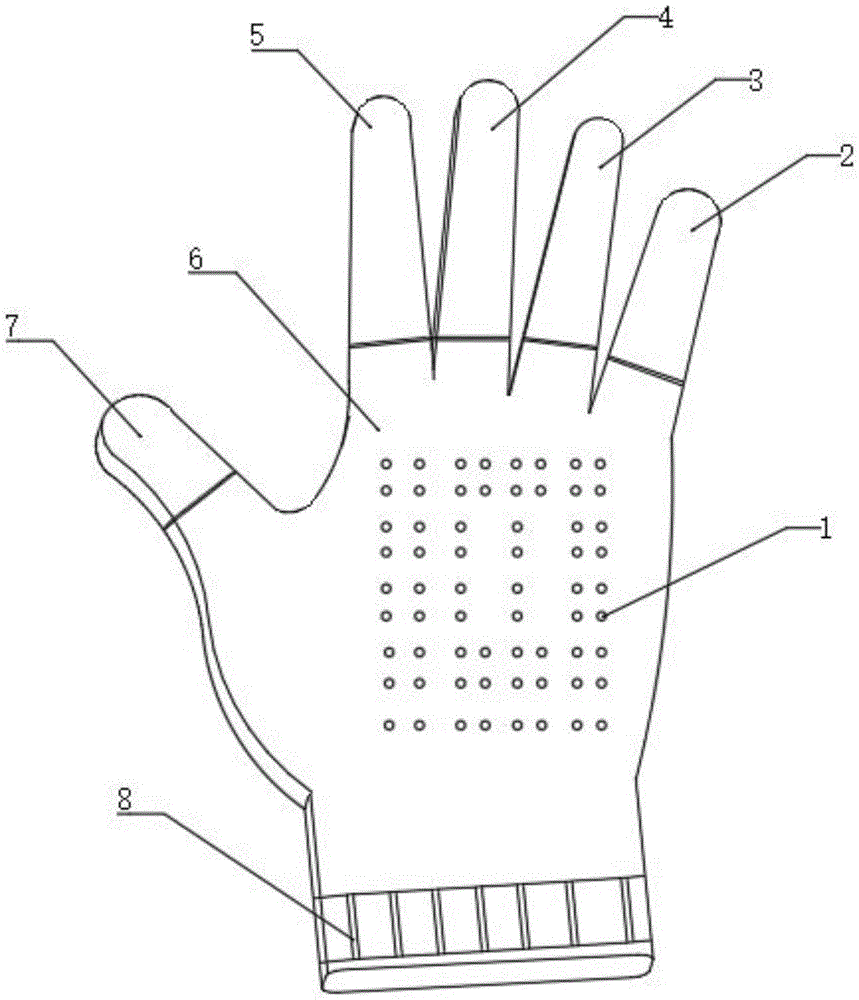

fig. 1 is a schematic front view of the present invention;

fig. 2 is a schematic rear view of the present invention;

fig. 3 is an isometric view of the present invention;

in the figure: 1-anti-slip particles; 2-little finger stall; 3-ring finger stall; 4-middle finger stall; 5-forefinger sleeve; 6-rubber palm; 7-thumb stall; 8-flat elastic rubber band; 9-blank label; 10-air holes.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

Referring to fig. 1-3, the present invention provides the following technical solutions: the PVC fingerstall comprises a rubber palm 6 and a PVC fingerstall, wherein the outer wall of the bottom of the PVC fingerstall is fixedly connected with the corresponding outer wall of the 6 finger part of the rubber palm.

In an embodiment of the utility model, the PVC dactylotheca can realize zero sense of touch for the sense of touch is pointed in the impression that the user can be sensitive.

Specifically, the PVC dactylotheca is the polyvinyl chloride material, the PVC dactylotheca includes little finger dactylotheca 2, ring finger dactylotheca 3, middle finger dactylotheca 4, forefinger dactylotheca 5 and thumb dactylotheca 7, 2 bottom inner wall fixed connection of little finger dactylotheca are in 6 little finger department outer walls of rubber palm, 3 bottom inner wall fixed connection of ring finger dactylotheca are in 6 ring finger department outer walls of rubber palm, 4 bottom inner wall fixed connection of middle finger dactylotheca are in 6 middle finger department outer walls of rubber palm, 5 bottom inner wall fixed connection of forefinger dactylotheca are in 6 forefinger department outer walls of rubber palm, 7 bottom inner wall fixed.

In this embodiment: the PVC fingerstall does not contain allergens, has good flexibility, can realize zero touch, has antistatic performance, and the finger can move about in a flexible way when using, and the sense that can be sensitive moreover is to the muscle touch of finger abdomen department.

Specifically, the outer wall of one side of the rubber palm 6 is integrally formed with the anti-skid particles 1 which are uniformly distributed.

In this embodiment: the anti-slip particles 1 can increase the friction force of a user when the user takes an object, and prevent the object from slipping off the hand.

Specifically, a blank label 9 is adhered to the outer wall of the other side of the rubber palm 6.

In this embodiment: the blank label 9 can help the user to record the working information quickly.

Specifically, the inner wall of the bottom of the rubber palm 6 is provided with a flat elastic rubber band 8.

In this embodiment: the flat elastic rubber band 8 has a large contact area with the wrist of the user, so that the glove is prevented from slipping, the oppression caused by long-time wearing can be avoided, and the burden of the user is reduced.

Specifically, the outer wall of the bottom of the rubber palm 6 is provided with air holes 10, and the diameter range of the air holes 10 is 0.3mm-0.6 mm.

In this embodiment: the air holes 10 can circulate air at the wrist of the user, reduce the probability of sweating of the palm of the user and keep the palm dry and comfortable.

The utility model discloses a theory of operation and use flow: when the novel zero-touch glove is used, zero touch can be realized by five fingers, the accuracy of touching blood vessels is better ensured, and the possibility of repeated puncture is reduced; meanwhile, the anti-skid particles 1 can increase the friction force of a user when the user takes the articles, and prevent the articles from sliding down to cause injury; the blank label 9 on the back can be convenient for medical personnel to record the relevant information of the patient quickly, and important events are prevented from being omitted; the flat elastic rubber band 8 can increase the contact area of the elastic rubber band and the wrist, prevent the glove from slipping, effectively reduce the compression force of the rubber band when the glove is worn and reduce the body burden of medical care personnel; the air holes 10 can ensure the air circulation of the wrist of the user, reduce the probability of sweating of the palm of the user and keep the palm dry and comfortable.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.

Claims (1)

1. The rubber glove with zero touch comprises a rubber palm (6) and a PVC (polyvinyl chloride) fingerstall, and is characterized in that the outer wall of the bottom of the PVC fingerstall is fixedly connected to the outer wall of the rubber palm (6) corresponding to the finger part, and the PVC fingerstall is made of a polyvinyl chloride material; the PVC fingerstall comprises a little finger fingerstall (2), a ring finger fingerstall (3), a middle finger fingerstall (4), a forefinger fingerstall (5) and a thumb fingerstall (7), the bottom inner wall of the little finger fingerstall (2) is fixedly connected with the outer wall of the little finger position of the rubber palm (6), the bottom inner wall of the ring finger fingerstall (3) is fixedly connected with the outer wall of the ring finger position of the rubber palm (6), the bottom inner wall of the middle finger fingerstall (4) is fixedly connected with the outer wall of the middle finger position of the rubber palm (6), the bottom inner wall of the forefinger fingerstall (5) is fixedly connected with the outer wall of the forefinger position of the rubber palm (6), and the bottom inner wall of the;

the outer wall of one side of the rubber palm (6) is integrally formed with evenly distributed anti-skid particles (1);

a blank label (9) is adhered to the outer wall of the other side of the rubber palm (6);

the inner wall of the bottom of the rubber palm (6) is provided with a flat elastic rubber band (8);

the outer wall of the bottom of the rubber palm (6) is provided with air holes (10), and the diameter range of the air holes (10) is 0.3mm-0.6 mm.
