CN217040949U - Needle-prick injury preventing device for needle pulling in transfusion port - Google Patents

Abstract

The utility model discloses an anti-needle puncture device for needle pulling in an infusion port, comprising a pressure plate, wherein a vertical plate is integrally formed on the pressure plate, and a hand-kneading block is integrally formed with the pressure plate on one side of the vertical plate. The pressing plate on the other side of the vertical plate is provided with a through groove that penetrates the pressing plate, the top of the vertical plate and the vertical plate are inclined with a stab-proof plate, and the bottom end of the pressing plate is provided with an infusion port card slot. An infusion port indwelling inside the human skin is matched with the infusion port card slot. The through slot is used to puncture the dish-shaped needle. The vertical plate and the stab-proof plate are inclined at an angle of 0-120 degrees. The stab-proof plate is made of soft rubber material, and a rubber gasket is embedded in the infusion port card slot. The utility model has simple and convenient operation and strong practicability.

Description

Anti-needle stick injury prevention device for needle pulling in infusion port

technical field

The utility model relates to the technical field of medical devices, in particular to an anti-needle puncture device for needle-pulling in an infusion port.

Background technique

The infusion port is a closed infusion device that is completely implanted in the human body, including the catheter part with the tip located in the superior vena cava and the injection seat implanted under the skin. Blood sample collection, etc. In the process of daily use of the infusion port, both hands are required for puncturing or needle withdrawal. One hand is used for operation, and the other hand is used for fixation. Generally, the thumb, index finger and middle finger are required to fix the infusion port in an arc shape. The operating hand is supported on the skin by the wrist to indicate puncture or needle extraction. During the operation, medical staff are often injured by needle sticks in the fixed hand due to unskilled or other factors. Nursing staff are prone to puncture due to the rebound of the back pressure of the needle when placing the butterfly needle or separating the infusion port from the butterfly wing needle at the end of the infusion. Injuries to non-operating hands, according to relevant literature reports, the probability of needle stick injury in the infusion port is 43.37%. Needle stick injury is the most direct and most critical way of occupational exposure for clinical nurses, and it is very common in clinical work. In order to reduce the risk of needle stick injuries in the infusion port for medical staff, a needle stick prevention device for needle extraction in the infusion port is required.

Utility model content

The purpose of the utility model is to provide an anti-needle puncture device for needle-pulling in an infusion port. When the utility model performs puncture, the fixed position of the body surface of the infusion port is found first, and then the skin is disinfected, gloves are worn, etc., and the skin and the silicone plug on the infusion port base are placed in the infusion port card slot after the preparation is completed. Stop and squeeze the block and press down the pressure plate and the base of the infusion port with a little force to fix it, and then the operator uses the butterfly needle to puncture the skin from the piercing groove. If the factor stabs the fixed hand, the stab-proof board can play a role in preventing the fixed hand from being stabbed.

When pulling out the butterfly needle: remove the wound dressing, complete the steps of disinfection, wearing gloves, etc., take the butterfly needle as the center, slide the pressure plate through the groove, insert the butterfly needle into the groove, and place the needle on the base of the infusion port. The silicone plug is placed in the slot of the infusion port; the pressure plate will be located between the skin and the butterfly needle; the fixed hand holds the grip handle downward with a little force to fix the pressure plate and the base of the infusion port without any displacement, and the operator pulls out the butterfly with a little force. pin. Since the fixed hand is located behind the stab-proof plate, if the operator holding the butterfly needle rebounds due to the back pressure when the needle is withdrawn, the stab-proof plate can play a role in preventing the fixed hand from being stabbed. The utility model has simple and convenient operation and strong practicability.

The utility model is realized in this way:

An anti-needle puncture device for needle-pulling in an infusion port, comprising a pressure plate, a vertical plate is integrally formed on the pressure plate, and a hand pinch block is integrally formed with the pressure plate on one side of the vertical plate, The pressing plate on the other side is provided with a through-groove penetrating the pressing plate, the top of the vertical plate and the vertical plate are inclined with a stab-proof plate, and the bottom end of the pressing plate is provided with a slot for infusion port. The pressing plate is made of hard plastic or rubber.

Further, an infusion port indwelling on the inner side of the human skin is matched with the infusion port card slot. The infusion port includes an infusion port base, and an infusion port silicone plug is arranged above the infusion port base.

Further, the piercing groove is used for piercing the dish-shaped needle.

Further, the inclination angle between the vertical plate and the stab-proof plate is 0°-120°.

Further, the stab-proof plate is made of soft rubber material, and a rubber gasket is embedded in the infusion port clamping groove. The soft rubber material can effectively resist the rebound of the needle, and the rubber gasket can prevent the hard contact between the pressure plate and the infusion port.

Compared with the prior art, the beneficial effects of the utility model are: the utility model is simple and convenient to operate and has strong practicability.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention. Therefore, it should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

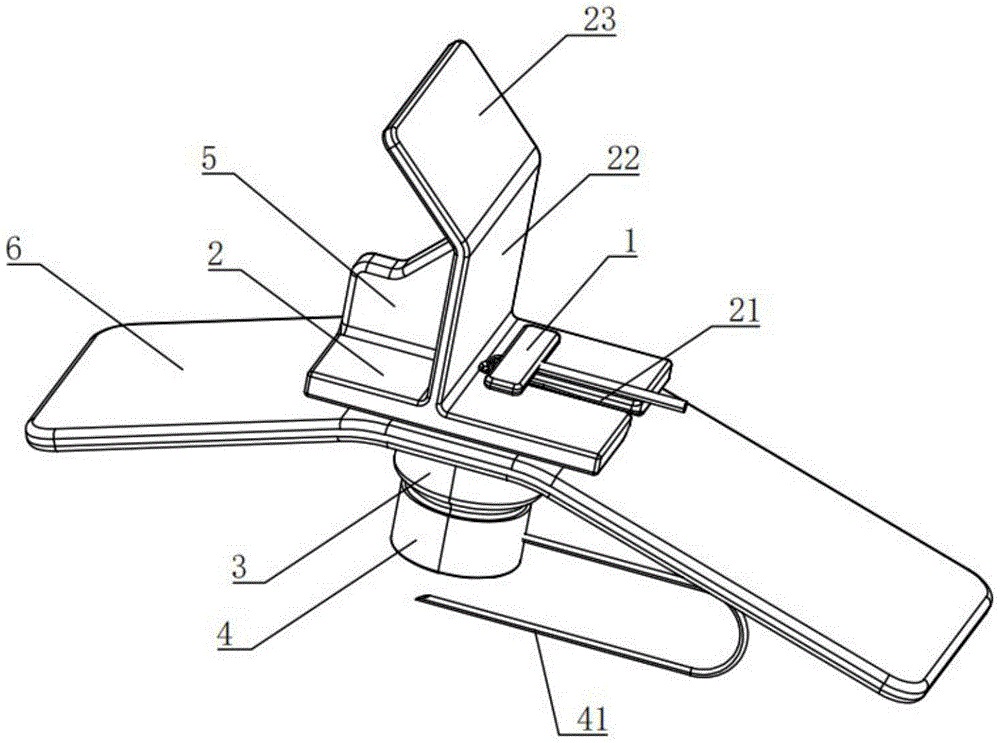

Fig. 1 is the structural representation of one side of the present utility model;

Fig. 2 is the structural representation of the bottom end of the pressing plate of the present invention;

Among them, butterfly needle 1, pressure plate 2, through groove 21, vertical plate 22, puncture-proof plate 23, infusion port silicone plug 3, infusion port base 4, infusion port infusion tube 41, hand pinch block 5, skin 6, infusion port Card slot 24.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described The embodiments of the present invention are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2, an anti-needle stick device for needle pulling in an infusion port, including a pressure plate 2, a vertical plate 22 is integrally formed on the pressure plate 2, and a side of the vertical plate 22 is integrally formed with the pressure plate There is a hand-kneading block 5 , a through groove 21 is formed on the pressing plate 2 on the other side of the vertical plate 22 , and a penetration groove 21 is formed through the pressing plate 2 , and the top of the vertical plate 22 and the vertical plate 22 are inclined with a stab-proof The plate 23 is provided with an infusion port card slot 24 at the bottom end of the pressing plate 2 .

In this embodiment, an infusion port indwelling inside the human skin is matched with the infusion port slot 24 . The piercing slot 21 is used to puncture the dish-shaped needle. The inclination angle between the vertical plate 22 and the stab-proof plate 23 is 120 degrees.

In this embodiment, the anti-stab plate 23 is made of soft rubber material, and a rubber gasket is embedded in the infusion port slot 24 . The soft rubber material can effectively resist the rebound of the needle, and the rubber gasket can prevent the hard contact between the pressure plate and the infusion port.

The above descriptions are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. An anti-needle puncture device for needle-pulling in an infusion port, characterized in that: it comprises a pressure plate (2), and a vertical plate (22) is integrally formed on the pressure plate, and a side of the vertical plate (22) is connected with all the vertical plates (22). The pressing plate (2) is integrally formed with a hand-kneading block (5), and a through groove (21) passing through the pressing plate (2) is formed on the pressing plate on the other side of the vertical plate (22). The top of (22) is inclined with the vertical plate (22) and is provided with a stab-proof plate (23), and the bottom end of the pressing plate (2) is provided with an infusion port clamping slot (24). 2 . The anti-needle puncture device for needle-pulling in an infusion port according to claim 1 , wherein an infusion port indwelling on the inner side of human skin is matched with the infusion port card slot (24). 3 . 3 . The anti-needle puncture device for needle pulling in an infusion port according to claim 1 , wherein the piercing groove ( 21 ) is used to puncture the dish-shaped needle ( 1 ). 4 . 4 . The device for preventing needle stab wounds from pulling a needle in an infusion port according to claim 1 , wherein the inclination angle between the vertical plate ( 22 ) and the stab-proof plate ( 23 ) is 0° to 120°. 5 . . 5. A kind of anti-needle puncture device according to claim 1, characterized in that, the anti-puncture plate (23) is made of soft rubber material, and the infusion port card slot (24) is embedded in the device. With rubber gasket.
