Abstract
The utility model discloses an industry dust catcher is with dust removal sack convenient to dismouting, which comprises a housin, the top cover of casing is equipped with the cap, the horizontal fixedly connected with ring board of inner chamber of casing, the bottom intercommunication of ring board has the nozzle stub, the bottom cover of nozzle stub is equipped with dust removal sack body, the outside cover of dust removal sack body is equipped with filter vat, the fixed pipe of the equal fixedly connected with in both sides of ring board bottom. The utility model discloses a casing, the cap, the ring board, the nozzle stub, the dust removal sack body, the filter vat, fixed pipe, the slot hole, a spring, the kelly, card hole and connecting rod cooperate, possess and be convenient for dismantle and install the dust removal sack, the advantage of the clearance dust of being convenient for, it piles up inside the dust removal sack to have solved the long-time dust absorption back dust of industrial dust catcher, it clears up the dust often to dismantle the dust removal sack, it is loaded down with trivial details to dismantle the process, need use special extracting tool, the problem troublesome has been brought for empting of dust.
Description
Technical Field
The utility model relates to a dust removal sack technical field for the dust catcher specifically is a dust removal sack for industrial dust catcher convenient to dismouting.
Background
The industrial dust collector is an environmental protection cleaning device commonly used in industry, is used for collecting wastes, filtering and purifying air and cleaning dust and particles in the environment in the industrial production process, is widely applied to various fields of textile, chemical industry, machinery, medicine, casting and the like, and can prevent the harm of certain occupational diseases and improve the production efficiency.
The dust removal sack of inside fixed mounting of industrial dust catcher, long-time dust absorption back dust is piled up inside the dust removal sack, needs often to dismantle the dust removal sack and clears up the dust, and the dismantlement process is loaded down with trivial details, needs to use special extracting tool, has brought the trouble for empting of dust.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a dust removal sack for industrial vacuum cleaner convenient to dismouting possesses and is convenient for dismantle and install the dust removal sack, and the advantage of the clearance dust of being convenient for has solved long-time dust absorption back dust of industrial vacuum cleaner and has piled up inside the dust removal sack, needs often to dismantle the dust removal sack and clears up the dust, and it is loaded down with trivial details to dismantle the process, needs to use special extracting tool, has brought troublesome problem for empting of dust.
In order to achieve the above object, the utility model provides a following technical scheme: a dust collecting cloth bag for an industrial dust collector convenient to disassemble and assemble comprises a shell, wherein a shell cover is sleeved at the top of the shell, the inner cavity of the shell is transversely and fixedly connected with a circular ring plate, the bottom of the circular ring plate is communicated with a short pipe, the bottom of the short pipe is sleeved with a dust removing cloth bag body, the outer part of the dust removing cloth bag body is sleeved with a filter barrel, the two sides of the bottom of the circular plate are fixedly connected with fixed pipes, the bottom of each fixed pipe is provided with a long hole, the inner wall of the fixed pipe is fixedly connected with a spring, one end of the spring, which is far away from the inner wall of the fixed pipe, is fixedly connected with a clamping rod, the two sides of the short pipe are both provided with clamping holes, one end of the clamping rod, which is far away from the spring, sequentially penetrates through the fixed pipe, the filter barrel and the dust removal cloth bag body and extends to the inner cavity of the clamping holes, the bottom of kelly just is located the inner chamber fixedly connected with connecting rod of fixed pipe, the bottom of connecting rod runs through the slot hole and extends to the inner chamber of casing.
Preferably, the guide way has been seted up at the top of fixed pipe inner chamber, the top of kelly just is located the inner chamber fixedly connected with guide block of fixed pipe, the top of guide block extend to the inner chamber of guide way and with guide way swing joint.
Preferably, a vertical pipe penetrates through the top of the shell cover, the bottom of the vertical pipe penetrates through an inner cavity of the short pipe, the top of the vertical pipe is communicated with a connecting pipe, and external threads are arranged on the surface of the connecting pipe.
Preferably, four corners of the bottom of the short pipe are fixedly connected with supporting rods, one side opposite to the supporting rods is fixedly connected with a supporting ring, and a sealing sleeve is sleeved at the top of the surface of the shell and between the shell covers.
Preferably, the bottom of the shell is embedded with a ventilating screen plate, and the surface of the ventilating screen plate is provided with meshes.
Compared with the prior art, the beneficial effects of the utility model are as follows:
1. the utility model discloses a casing, the cap, the ring board, the nozzle stub, the dust removal sack body, the filter vat, fixed pipe, the slot hole, a spring, the kelly, card hole and connecting rod cooperate, possess and be convenient for dismantle and install the dust removal sack, the advantage of the clearance dust of being convenient for, it piles up inside the dust removal sack to have solved the long-time dust absorption back dust of industrial dust catcher, it clears up the dust often to dismantle the dust removal sack, it is loaded down with trivial details to dismantle the process, need use special extracting tool, the problem troublesome has been brought for empting of dust.
2. The utility model discloses a set up guide way and guide block, can lead to the kelly, the lateral shifting of the kelly of being convenient for, through setting up standpipe and connecting pipe, be convenient for be connected with outside dust absorption pipe, through setting up bracing piece and support ring, can support the inside of dust removal sack, avoid the dust removal sack to be in the fold state, through setting up the seal cover, strengthened the leakproofness between casing and the cap inner wall, through setting up ventilative otter board, be convenient for the circulation of casing inner chamber and bottom air.
Drawings

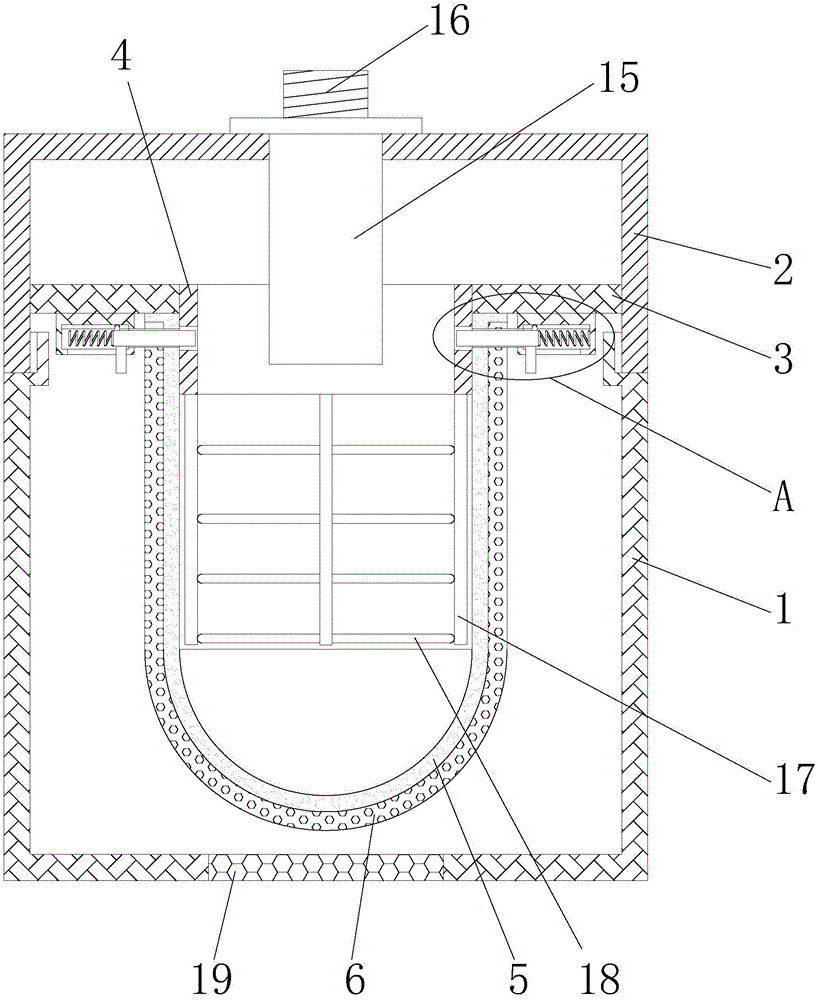

FIG. 1 is a schematic sectional view of the structure of the present invention;
FIG. 2 is an enlarged view of the structure A in FIG. 1 according to the present invention;
FIG. 3 is a front view of the structure of the present invention;
fig. 4 is a schematic bottom sectional view of the local structure of the present invention.
In the figure: the dust removal cloth bag comprises a shell 1, a shell cover 2, a ring plate 3, short pipes 4, a dust removal cloth bag body 5, a filter barrel 6, a fixed pipe 7, a long hole 8, a spring 9, a clamping rod 10, a clamping hole 11, a connecting rod 12, a guide groove 13, a guide block 14, a vertical pipe 15, a connecting pipe 16, a supporting rod 17, a supporting ring 18 and a ventilating screen plate 19.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "the other end", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element to be referred must have a specific orientation, be constructed in a specific orientation, and be operated, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "provided", "connected", and the like are to be construed broadly, such as "connected", which may be fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
The utility model discloses a casing 1, cap 2, ring board 3, nozzle stub 4, dust removal sack body 5, filter vat 6, fixed pipe 7, slot hole 8, spring 9, kelly 10, calorie hole 11, connecting rod 12, guide way 13, guide block 14, standpipe 15, connecting pipe 16, bracing piece 17, support ring 18 and ventilative otter board 19 parts are the parts that general standard spare or technical personnel in the field know, and its structure and principle all are this technical personnel and all can learn the manual through the technique or learn through conventional experimental approach.
Referring to fig. 1-4, a dust collecting cloth bag for an industrial vacuum cleaner convenient to disassemble and assemble comprises a shell 1, a shell cover 2 is sleeved on the top of the shell 1, a circular ring plate 3 is transversely and fixedly connected to the inner cavity of the shell 1, a short pipe 4 is communicated with the bottom of the circular ring plate 3, a dust collecting cloth bag body 5 is sleeved on the bottom of the short pipe 4, a filter barrel 6 is sleeved on the outer portion of the dust collecting cloth bag body 5, a fixed pipe 7 is fixedly connected to both sides of the bottom of the circular ring plate 3, a long hole 8 is formed in the bottom of the fixed pipe 7, a spring 9 is fixedly connected to the inner wall of the fixed pipe 7, a clamping rod 10 is fixedly connected to one end of the spring 9 far away from the inner wall of the fixed pipe 7, clamping holes 11 are formed in both sides of the short pipe 4, one end of the clamping rod 10 far away from the spring 9 sequentially penetrates through the fixed pipe 7, the filter barrel 6 and, the bottom of the connecting rod 12 penetrates through the long hole 8 and extends to the inner cavity of the shell 1, the top of the inner cavity of the fixed pipe 7 is provided with a guide groove 13, the top of the clamping rod 10 is positioned in the inner cavity of the fixed pipe 7 and fixedly connected with a guide block 14, the top of the guide block 14 extends to the inner cavity of the guide groove 13 and is movably connected with the guide groove 13, through the arrangement of the guide groove 13 and the guide block 14, the clamping rod 10 can be guided, the clamping rod 10 can be moved transversely conveniently, the top of the shell cover 2 is provided with a vertical pipe 15 in a penetrating manner, the bottom of the vertical pipe 15 penetrates through the inner cavity of the short pipe 4, the top of the vertical pipe 15 is communicated with a connecting pipe 16, the surface of the connecting pipe 16 is provided with external threads, through the arrangement of the vertical pipe 15 and the connecting pipe 16, the connection with an external dust suction pipe is convenient, four corners at, can support the inside of a dust removing cloth bag, avoid the dust removing cloth bag from being in a folded state, a sealing sleeve is sleeved at the top of the surface of a shell 1 and between shell covers 2, the sealing property between the inner walls of the shell 1 and the shell covers 2 is enhanced by arranging the sealing sleeve, a ventilating screen plate 19 is embedded and installed at the bottom of the shell 1, meshes are formed in the surface of the ventilating screen plate 19, the ventilation of the inner cavity of the shell 1 and the air at the bottom is facilitated by arranging the ventilating screen plate 19, the dust removing cloth bag body 5, a filter barrel 6, a fixed pipe 7, a long hole 8, a spring 9, a clamping rod 10, a clamping hole 11 and a connecting rod 12 are matched through the shell 1, the shell covers 2, a circular plate 3, a short pipe 4, the dust removing cloth bag body 5, the filter barrel 6, the fixed pipe 7, the long hole 8, the spring 9, the clamping rod 10, the clamping hole 11 and, the disassembly process is complicated, a special disassembling tool is required, and trouble is brought to the dumping of dust.
Theory of operation, when dismantling the sack, the separation of lapse casing 1 and cap 2, the movable connecting rod 12 drives kelly 10 and removes, makes kelly 10 keep away from card hole 11, dust removal sack body 5 and filter vat 6 in proper order, and the nozzle stub 4 is kept away from to the downshifting filter vat 6 drives dust removal sack body 5 to dismantle dust removal sack body 5, clear up the inside dust.
In summary, the following steps: this industrial vacuum cleaner is with dust removal sack convenient to dismouting, through casing 1, cap 2, ring plate 3, nozzle stub 4, dust removal sack body 5, filter vat 6, fixed pipe 7, slot hole 8, spring 9, kelly 10, card hole 11 and connecting rod 12 cooperate, it piles up inside the dust removal sack to have solved the long-time dust absorption back dust of industrial vacuum cleaner, it clears up the dust often to dismantle the dust removal sack, it is loaded down with trivial details to dismantle the process, need use special extracting tool, the pouring of giving the dust has brought troublesome problem.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (5)
1. The utility model provides a dust removal sack for industrial vacuum cleaner convenient to dismouting, includes casing (1), its characterized in that: the top cover of casing (1) is equipped with cap (2), the horizontal fixedly connected with ring board (3) of inner chamber of casing (1), the bottom intercommunication of ring board (3) has nozzle stub (4), the bottom cover of nozzle stub (4) is equipped with dust removal sack body (5), the outside cover of dust removal sack body (5) is equipped with filter vat (6), the equal fixedly connected with fixed pipe (7) in both sides of ring board (3) bottom, slot hole (8) have been seted up to the bottom of fixed pipe (7), the inner wall fixedly connected with spring (9) of fixed pipe (7), one end fixedly connected with kelly (10) of fixed pipe (7) inner wall are kept away from in spring (9), card hole (11) have all been seted up to the both sides of nozzle stub (4), the one end that spring (9) were kept away from in kelly (10) runs through fixed pipe (7) in proper order, The filter vat (6) and the dust removal cloth bag body (5) extend to the inner cavity of the clamping hole (11), the bottom of the clamping rod (10) is fixedly connected with a connecting rod (12) which is located in the inner cavity of the fixing pipe (7), and the bottom of the connecting rod (12) penetrates through the long hole (8) and extends to the inner cavity of the shell (1).
2. The easy-to-detach dust collecting bag for industrial vacuum cleaner as claimed in claim 1, wherein: guide way (13) have been seted up at the top of fixed pipe (7) inner chamber, the top of kelly (10) just is located inner chamber fixedly connected with guide block (14) of fixed pipe (7), the top of guide block (14) extend to the inner chamber of guide way (13) and with guide way (13) swing joint.
3. The easy-to-detach dust collecting bag for industrial vacuum cleaner as claimed in claim 1, wherein: the top of cap (2) is run through and is provided with standpipe (15), the bottom of standpipe (15) is run through to the inner chamber of nozzle stub (4), the top intercommunication of standpipe (15) has connecting pipe (16), the surface of connecting pipe (16) is provided with the external screw thread.
4. The easy-to-detach dust collecting bag for industrial vacuum cleaner as claimed in claim 1, wherein: the supporting device is characterized in that supporting rods (17) are fixedly connected to four corners of the bottom of the short pipe (4), a supporting ring (18) is fixedly connected to one side, opposite to the supporting rods (17), of the supporting ring, and a sealing sleeve is sleeved at the top of the surface of the shell (1) and between the shell covers (2).
5. The easy-to-detach dust collecting bag for industrial vacuum cleaner as claimed in claim 1, wherein: the bottom of the shell (1) is embedded with a ventilating screen plate (19), and the surface of the ventilating screen plate (19) is provided with meshes.
