Abstract
The utility model discloses a tealeaves drying device with screening function, including the device body, be provided with the screening stoving dish on the inside wall of device body, the screening stoving dish includes one-level screening stoving dish and second grade screening stoving dish, and the top of device body is provided with the feed inlet, and the lateral wall upper end of device body is provided with hot-blast mechanism, and another lateral wall lower extreme of device body is provided with exhaust mechanism, and the screening stoving dish, including spring assembly, year thing basket, year thing frame, cam and gear motor, year thing frame fixed connection is in the inside wall of device body. Carry the thing frame inside wall and be provided with spring assembly, the one end that spring assembly was kept away from to carry the thing frame inside wall is provided with the cam, carries thing frame upper portion and is provided with and carries the thing basket, and carries the bottom of thing basket and be porose form, and the upper portion of cam is provided with gear motor, carries the thing basket and vibrates on carrying the thing frame, sieves through the bottom hole and realizes screening many times, sieves out the garrulous end leaf to it can collect the garrulous foam to be provided with the collecting box.
Description
Technical Field
The utility model relates to the relevant technical field of tea processing especially relates to a tealeaves drying device with screening function.
Background
Tea, a plant of the genus camellia of the family theaceae, is distributed in mountain areas of southern provinces of the Yangtze river of China, tea leaves can be used as drinks, contain various beneficial components and have a health care effect, and the drying of the tea leaves is one of important processes for tea leaf processing.
Present most tealeaves drying device has tealeaves to pile up more and influence the problem of stoving effect among the drying process, and does not have screening mechanism in present drying device mostly, and the function singleness, the broken leaf that produces among the drying process can influence the quality of tealeaves, consequently needs a tealeaves drying device with screening function to improve above-mentioned problem.
SUMMERY OF THE UTILITY MODEL
In order to solve the problem, the utility model provides a tealeaves drying device with screening function, the device comprises a device body, be provided with the screening stoving dish on the inside wall of device body, the screening stoving dish includes one-level screening stoving dish and second grade screening stoving dish, the top of device body is provided with the feed inlet, the lateral wall upper end of device body is provided with the bracket, bracket upper portion is provided with hot-blast mechanism, another lateral wall lower extreme of device body is provided with exhaust mechanism, the inner wall bottom of device body is provided with the garrulous end dish, the screening stoving dish, including spring assembly, carry the thing basket, carry the thing frame, cam and gear motor, it carries thing frame fixed connection in the inside wall of device body. The inner side wall of the carrying frame is provided with a spring device, one end, far away from the spring device, of the inner side wall of the carrying frame is provided with a cam, the upper portion of the carrying frame is provided with a carrying basket, the carrying basket is located between the spring device and the cam, the bottom of the carrying basket is porous, the upper portion of the cam is provided with a speed reduction motor, and the output end of the speed reduction motor is fixedly connected to the rotating shaft of the cam.
Furthermore, the secondary screening drying disc is located under the primary screening drying disc, the primary screening drying disc and the secondary screening drying disc are identical in structure except for the object carrying basket, and the diameter of the bottom hole of the object carrying basket of the secondary screening drying disc is smaller than that of the bottom hole of the object carrying basket of the primary screening drying disc.
Furthermore, the bottom of the device body is provided with a universal wheel, and a fixed clamping block is arranged on the universal wheel.
Furthermore, one end of an air inlet of the air exhaust mechanism is provided with adsorption cotton.
Further, the bottom of the primary screening drying disk and the bottom of the secondary screening drying disk are provided with material guide plates.
Furthermore, a handle is arranged at the top of the carrying basket.
Furthermore, the bottom of the device body is provided with a pulley groove, the bottom of the powder crushing disc is provided with a pulley, and the pulley is matched with the pulley groove.
Furthermore, a visual window is arranged on the door.
The utility model discloses possess following beneficial effect:
1. the utility model discloses, heated air circulation who forms through hot-blast mechanism and exhaust mechanism, dry tealeaves, the inside screening stoving dish that is provided with two of device, promote through the cam rotation and carry thing basket translation, spring assembly receives pressure resilience simultaneously, realize carrying the thing basket and vibrate on carrying the thing frame, screen through the bottom hole that carries thing basket bottom, the thing basket bottom hole diameter of carrying of two screening stoving dishes is different simultaneously, realize screening many times, screen out the garrulous end leaf, and be provided with the collecting box and can collect the garrulous foam, the functionality of device has been strengthened.
2. The utility model discloses an exhaust mechanism air intake is provided with and adsorbs the cotton, can adsorb the impurity that tealeaves produced when drying, improves the quality of tealeaves, and the material basket is provided with the handle, makes things convenient for the staff to retrieve the tealeaves of drying. The bottom of garrulous end dish is provided with the pulley and with pulley groove looks adaptation, makes things convenient for the staff to clear up garrulous end, simultaneously the utility model discloses a be provided with visual window on the door and make things convenient for the staff to observe the inside condition.
Drawings

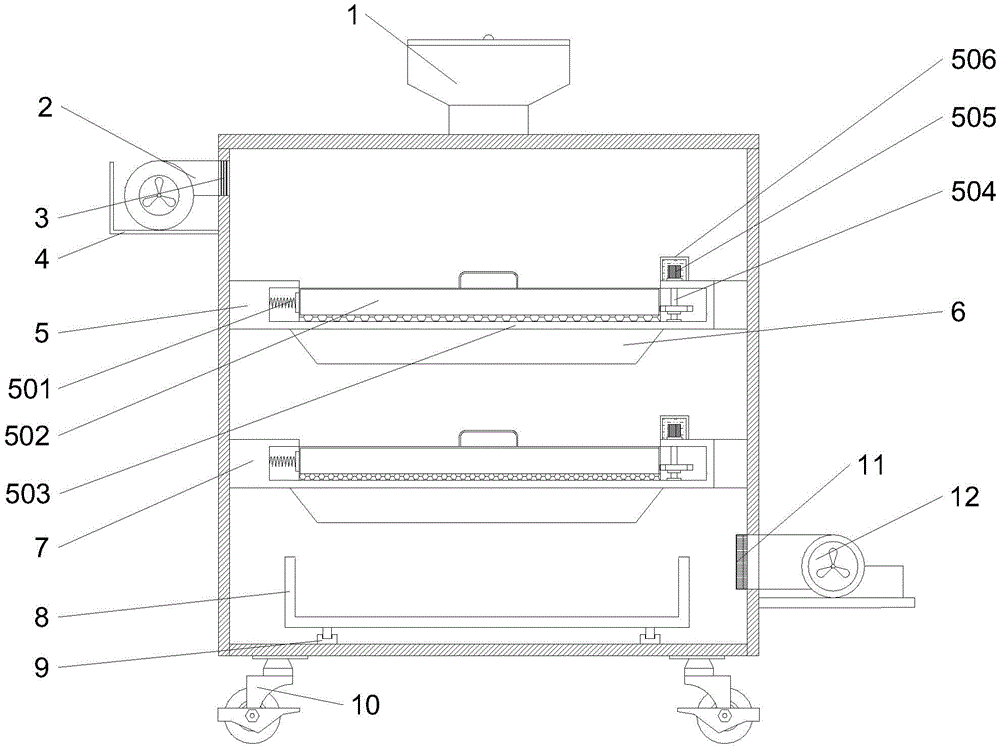

Fig. 1 is a schematic structural view of a cross section of the present invention;
fig. 2 is a schematic front view of the structure of the present invention;
wherein the reference numerals are as follows: 1. a feed inlet; 2. a hot air mechanism; 3. an electric heating wire; 4. a bracket; 5. A primary screening drying disc; 501. a spring device; 502. a carrying basket; 503. a carrying frame; 504. a cam; 505. a reduction motor; 506. a motor chamber; 6. a material guide plate; 7. a secondary screening drying disc; 8. a crumbling disc; 9. a pulley groove; 10. a universal wheel; 11. adsorbing cotton; 12. an air exhaust mechanism; 13. a visible window.
Detailed Description
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying a relative importance.
In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted," "connected," and "connected" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art.
As shown in fig. 1 and 2, a screening and drying disc is arranged on the inner side wall of the device body, the screening and drying disc comprises a primary screening and drying disc 5 and a secondary screening and drying disc 7, a feeding port 1 is arranged at the top of the device body, a bracket 4 is arranged at the upper end of the outer side wall of the device body, a hot air mechanism 2 is arranged at the upper part of the bracket 4, an exhaust mechanism 12 is arranged at the lower end of the other outer side wall of the device body, and adsorption cotton 11 is arranged at one end of an air inlet of. The inner wall bottom of device body is provided with garrulous end dish 8, and the bottom of device body is provided with pulley groove 9, and the bottom of garrulous end dish 8 is provided with the pulley, pulley and pulley groove 9 looks adaptation. The screening and drying tray comprises a spring device 501, a carrying basket 502, a carrying frame 503, a cam 504 and a speed reducing motor 505, wherein the carrying frame 503 is fixedly connected to the inner side wall of the device body. The inner side wall of the carrying frame 503 is provided with a spring device 501, one end of the inner side wall of the carrying frame 503, which is far away from the spring device 501, is provided with a cam 504, the upper part of the carrying frame 503 is provided with a carrying basket 502, the carrying basket 502 is positioned between the spring device 501 and the cam 504, the bottom of the carrying basket 502 is porous, the upper part of the cam 504 is provided with a speed reducing motor 505, and the output end of the speed reducing motor 505 is fixedly connected to the rotating shaft of the cam 504. The secondary screening drying disk 7 is positioned under the primary screening drying disk 5, the primary screening drying disk 5 and the secondary screening drying disk 7 have the same structure except for the carrying basket 502, and the diameter of the bottom hole of the carrying basket 502 of the secondary screening drying disk 7 is smaller than that of the bottom hole of the carrying basket 502 of the primary screening drying disk 5. The bottom of the primary screening and drying disk 5 and the bottom of the secondary screening and drying disk 7 are provided with a material guide plate 6. The bottom of the device body is provided with a universal wheel 10, the universal wheel 10 is provided with a fixed clamping block, the top of the object carrying basket 502 is provided with a handle, and the door is provided with a visual window 13.
The utility model discloses the theory of operation as follows: during the use, open wind mechanism and exhaust mechanism 12 earlier, make hot-blast ability flow in the device, play the effect of drying, preheat the device body, pour tealeaves by feed inlet 1 into, the landing is to one-level screening drying dish 5 on, the motor is opened, it is rotatory to drive cam 504, promote thing basket 502 case left translation, the spring assembly 501 of extrusion left end, spring assembly 501 receives rebounding after the pressure, the repeated action, make thing basket 502 vibration round trip, make tealeaves and the garrulous end of leaflet pass through stock guide 6 landing to second thing basket 502 through the bottom hole of thing basket 502, second screening drying dish is the same with the theory of operation of first screening drying dish, it is only that thing basket 502's bottom hole diameter is less than the bottom hole of first screening drying dish, can filter tealeaves and garrulous end, garrulous end slides into garrulous end dish 8 through stock guide 6.
The foregoing illustrates and describes the principles, general features, and advantages of the present invention. It will be understood by those skilled in the art that the present invention is not limited to the above embodiments, and that the foregoing embodiments and descriptions are provided only to illustrate the principles of the present invention without departing from the spirit and scope of the present invention.
Claims (8)
1. The utility model provides a tealeaves drying device with screening function, includes device body and door, be provided with the screening stoving dish on the inside wall of device body, the screening stoving dish includes one-level screening stoving dish (5) and second grade screening stoving dish (7), its characterized in that: the device comprises a device body, wherein a feeding hole (1) is formed in the top of the device body, a bracket (4) is arranged at the upper end of the outer side wall of the device body, a hot air mechanism (2) is arranged at the upper part of the bracket (4), an exhaust mechanism (12) is arranged at the lower end of the other outer side wall of the device body, a scrap chopper disk (8) is arranged at the bottom of the inner wall of the device body, the screening and drying disk comprises a spring device (501), a carrying basket (502), a carrying frame (503), a cam (504) and a speed reduction motor (505), the carrying frame (503) is fixedly connected to the inner side wall of the device body, the spring device (501) is arranged on the inner side wall of the carrying frame (503), the cam (504) is arranged at one end, far away from the spring device (501), of the inner side wall of the carrying frame (503), the carrying basket (502) is arranged at, the bottom of the carrying basket (502) is porous, a speed reducing motor (505) is arranged on the upper portion of the cam (504), and the output end of the speed reducing motor (505) is fixedly connected to the rotating shaft of the cam (504).
2. The tea drying device with the screening function as claimed in claim 1, wherein: the secondary screening drying disc (7) is located under the primary screening drying disc (5), the primary screening drying disc (5) and the secondary screening drying disc (7) are identical in structure except for a carrying basket (502), and the diameter of a hole at the bottom of the carrying basket (502) of the secondary screening drying disc (7) is smaller than that of a hole at the bottom of the carrying basket (502) of the primary screening drying disc (5).
3. The tea drying device with the screening function as claimed in claim 1, wherein: the device is characterized in that a universal wheel (10) is arranged at the bottom of the device body, and a fixed clamping block is arranged on the universal wheel (10).
4. The tea drying device with the screening function as claimed in claim 1, wherein: and one end of an air inlet of the air exhaust mechanism (12) is provided with adsorption cotton (11).
5. The tea drying device with the screening function as claimed in claim 1, wherein: and material guide plates (6) are arranged at the bottoms of the primary screening and drying disk (5) and the secondary screening and drying disk (7).
6. The tea drying device with the screening function as claimed in claim 1, wherein: the top of the carrying basket (502) is provided with a handle.
7. The tea drying device with the screening function as claimed in claim 1, wherein: the device is characterized in that a pulley groove (9) is formed in the bottom of the device body, a pulley is arranged at the bottom of the powder crushing disc (8), and the pulley is matched with the pulley groove (9).
8. The tea drying device with the screening function as claimed in claim 1, wherein: the door is provided with a visual window (13).
