Abstract
The utility model discloses a preparation machine of functional ceramic powder relates to ceramic powder preparation technical field, the power distribution box comprises a box body, the motor is installed in the outside of box, the output of motor is connected with the action wheel, one side of action wheel is connected with the drive roll, one side of drive roll is connected with the driven voller, the below of drive roll is provided with fine mesh screen, fine mesh screen's outer wall connection has the belt, the top that the inner wall of belt is located the action wheel is provided with from the driving wheel. The utility model discloses a set up the motor, action wheel, from driving wheel, belt, connecting axle, driving gear, first driven gear and second driven gear, the motor is rotatory to drive the action wheel through the shaft coupling and rotate, the action wheel is rotatory to drive from the driving wheel through the belt and rotate, from the rotatory drive of driving wheel; the connecting shaft rotates, the connecting shaft rotates to drive the driving gear to rotate, and the driving gear rotates to drive the first driven gear and the second driven gear to rotate through gear meshing.
Description
Technical Field
The utility model relates to a ceramic powder preparation technical field specifically is a preparation machine of functional ceramic powder.
Background
Due to the high development of scientific technology, the requirements on the performance, quality and quality of ceramic materials are higher and higher, partial ceramics are promoted to be developed into novel materials with special functional types, the ceramics are called functional ceramics, in the production and manufacturing process of the functional ceramics, special equipment is needed to be used for grinding raw materials required by production, the quality of the ground raw materials can also influence the quality of the later-stage functional ceramics, and therefore equipment for preparing functional ceramic powder is very important.
But general milling equipment directly grinds raw and other materials, seldom can stir earlier raw and other materials before the grinding and smash, leads to grinding insufficient, can't make functional ceramic thoroughly smash, and consuming time is longer, and current device needs extra motor to drive the inside reducing mechanism of device to operate when carrying out the crushing, not only increases the device and occupies the volume, has still increased manufacturing cost simultaneously.
SUMMERY OF THE UTILITY MODEL
The utility model aims to provide a: in order to solve the problems of fully crushing raw materials and reducing the production cost of a device, the preparation machine of the functional ceramic powder is provided.
In order to achieve the above object, the utility model provides a following technical scheme: a preparation machine for functional ceramic powder comprises a box body, wherein a motor is installed on the outer side of the box body, the output end of the motor is connected with a driving wheel, one side of the driving wheel is connected with a driving roller, one side of the driving roller is connected with a driven roller, a fine screen is arranged below the driving roller, the outer wall of the fine screen is connected with a belt, a driven wheel is arranged on the inner wall of the belt, which is positioned above the driving wheel, one end of the driven wheel is connected with a connecting shaft, one end of the connecting shaft is connected with a driving gear, the top end of the driving gear is connected with a first driven gear, the bottom end of the first driven gear is connected with a first rotating rod, the outer wall of the first rotating rod is connected with a first grinding cutter, a coarse screen is arranged below the first rotating rod, the bottom end of the driving gear is connected with, the outer wall of the second rotating rod is connected with a second grinding knife, the top end of the box body is connected with a feeding hole, and the bottom end of the box body is connected with a collecting box.
Preferably, the inner wall of the box body is positioned on two sides of the first rotating rod and provided with discharge ports, the inner wall of the box body is positioned on two sides of the fine screen and provided with discharge ports, and the bottom end of the box body is provided with discharge ports.
Preferably, the top end of the driving gear is in meshed connection with the first driven gear, and the bottom end of the driving gear is in meshed connection with the second driven gear.
Preferably, the second dwang runs through the inside that extends to the box in the top of box, first dwang runs through the outside that extends to the second dwang in the inner wall of second dwang.
Preferably, the motor is connected with the driving roller through a coupler, and the driving roller penetrates through the inner wall of the box body and extends into the box body.
Preferably, the outer wall of the driving roller is provided with a grinding rack, and the outer wall of the driven roller is provided with a grinding rack matched with the outer wall of the driving roller.
Compared with the prior art, the beneficial effects of the utility model are that:
1. the utility model discloses a set up the drive roll, the driven voller, first dwang, the second dwang, first grinding sword and second grinding sword, first dwang carries out corotation and drives first grinding sword and carry out corotation, the second dwang carries out reversal and drives the second grinding sword and carry out reversal, grind the raw materials and smash, screen the raw materials through the coarse screen, make the raw materials of small granule fall down, large granule raw materials discharge to the external world through the discharge gate of coarse screen both sides, grind the crushing again to the small granule raw materials through drive roll and driven voller, screen the raw materials through the fine screen, up to standard powder raw materials get into to collect incasement portion, the raw materials of bigger granule are discharged to the external world from the discharge gate of fine screen both sides, carry out abundant grinding to the raw materials and smash;
2. the utility model discloses a set up the motor, action wheel, from driving wheel, belt, connecting axle, driving gear, first driven gear and second driven gear, the motor is rotatory to drive the action wheel through the shaft coupling and rotate, the action wheel is rotatory to drive from the driving wheel through the belt and rotate, from the rotatory drive of driving wheel; the connecting shaft is rotatory, and the connecting shaft is rotatory to drive the driving gear rotatory, and the driving gear is rotatory to drive first driven gear and second driven gear through gear engagement and rotate, and the action wheel rotates and drives the drive roll and rotate, makes the device drive the drive roll through a motor, first axis of rotation and second axis of rotation and rotates, reduces the installation increase device volume of extra motor, has reduced device manufacturing cost simultaneously.
Drawings

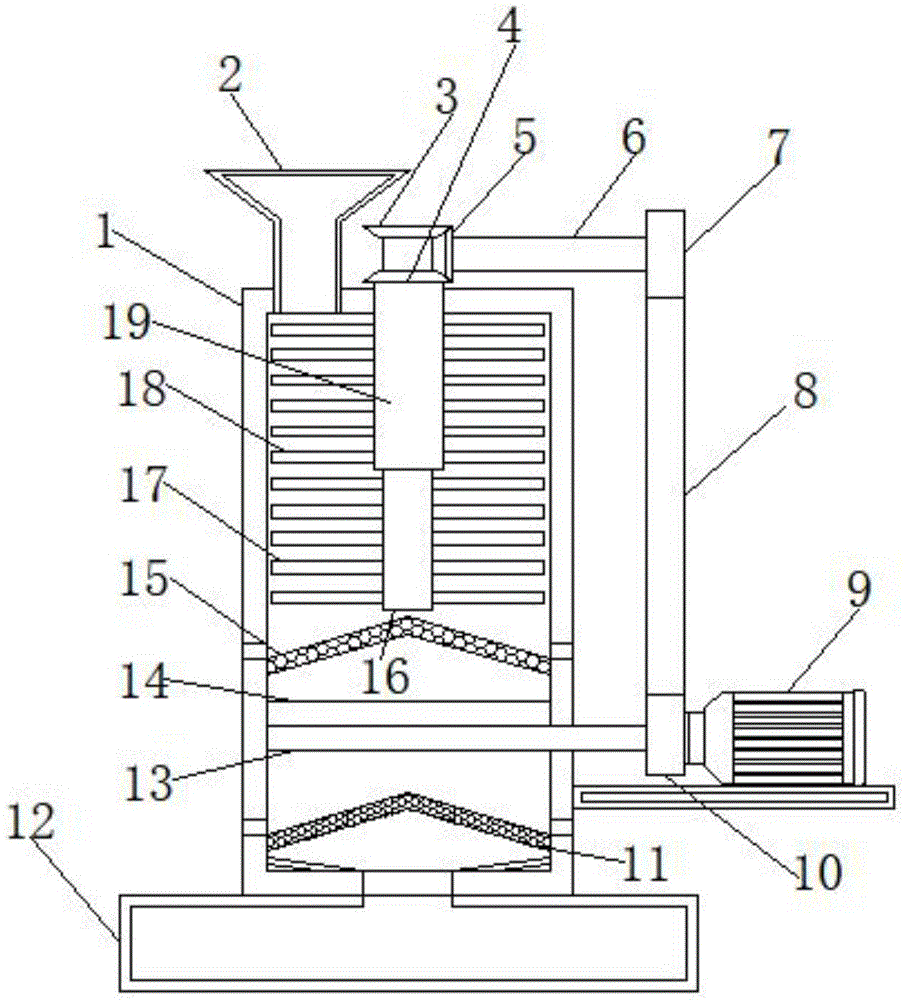

Fig. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic structural view of the first rotating rod and the second rotating rod of the present invention;
fig. 3 is a schematic structural view of the driving roller and the driven roller of the present invention.
In the figure: 1. a box body; 2. a feed inlet; 3. a first driven gear; 4. a second driven gear; 5. a driving gear; 6. a connecting shaft; 7. a driven wheel; 8. a belt; 9. a motor; 10. a driving wheel; 11. a fine screen; 12. a collection box; 13. a drive roll; 14. a driven roller; 15. coarse screening; 16. a first rotating lever; 17. a first grinding blade; 18. a second grinding knife; 19. a second rotating rod.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplification of description, but do not indicate or imply that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus, should not be construed as limiting the present invention. Furthermore, the terms "first," "second," and "third" are used for descriptive purposes only and are not to be construed as indicating or implying relative importance. In the description of the present invention, it is to be noted that, unless otherwise explicitly specified or limited, the terms "mounted", "connected" and "disposed" are to be construed broadly, and may be, for example, fixedly connected, detachably connected, or integrally connected; can be mechanically or electrically connected; they may be connected directly or indirectly through intervening media, or they may be interconnected between two elements. The specific meaning of the above terms in the present invention can be understood in specific cases to those skilled in the art. The following describes an embodiment of the present invention according to its overall structure.
The motor (90YYJJ) mentioned in the utility model can be obtained by market or private ordering.
Referring to fig. 1-3, a preparation machine for functional ceramic powder comprises a box body 1, a motor 9 is installed on the outer side of the box body 1, an output end of the motor 9 is connected with a driving wheel 10, one side of the driving wheel 10 is connected with a driving roller 13, one side of the driving roller 13 is connected with a driven roller 14, a fine screen 11 is arranged below the driving roller 13, the outer wall of the fine screen 11 is connected with a belt 8, the inner wall of the belt 8 is arranged above the driving wheel 10 and is provided with a driven wheel 7, one end of the driven wheel 7 is connected with a connecting shaft 6, one end of the connecting shaft 6 is connected with a driving gear 5, the top end of the driving gear 5 is connected with a first driven gear 3, the bottom end of the first driven gear 3 is connected with a first rotating rod 16, the outer wall of the first rotating rod 16 is connected with a first grinding cutter 17, the bottom of second driven gear 4 is connected with second dwang 19, and the outer wall of second dwang 19 is connected with second grinding sword 18, and the top of box 1 is connected with feed inlet 2, and the bottom of box 1 is connected with collecting box 12.
Please refer to fig. 1, the inner wall of the box 1 is located at two sides of the first rotating rod 16 and is provided with a discharge hole, the inner wall of the box 1 is located at two sides of the fine screen 11 and is provided with a discharge hole, and the bottom end of the box 1 is provided with a discharge hole for discharging raw materials.
Please refer to fig. 2, the top end of the driving gear 5 is engaged with the first driven gear 3, and the bottom end of the driving gear 5 is engaged with the second driven gear 4, so that the driving gear 5 rotates to drive the first driven gear 3 and the second driven gear 4 to rotate through gear engagement.
Please refer to fig. 1, the second rotating rod 19 penetrates the top of the box body 1 and extends into the box body 1, and the first rotating rod 16 penetrates the inner wall of the second rotating rod 19 and extends to the outer side of the second rotating rod 19, so as to fully crush the inside of the device.
Please refer to fig. 1, the motor 9 is connected to the driving roller 13 through a coupling, and the driving roller 13 extends into the box 1 through the inner wall of the box 1, so that the motor 9 rotates to drive the driving roller 13 to rotate through the coupling.
Please refer to fig. 3, the outer wall of the driving roller 13 is provided with a grinding rack, and the outer wall of the driven roller 14 is provided with a grinding rack matched with the outer wall of the driving roller 13, so as to facilitate the sufficient crushing of the inside of the device.
The working principle is as follows: firstly, the device is connected with an external power supply, raw materials are conveyed from a feeding hole 2 to the interior of a box body 1, a motor 9 is started, the motor 9 rotates to drive a driving wheel 10 to rotate through a coupler, the driving wheel 10 rotates to drive a belt 8 on the outer wall to rotate, the belt 8 rotates to drive a driven wheel 7 to rotate, the driven wheel 7 rotates to drive a connecting shaft 6 to rotate, the connecting shaft 6 rotates to drive a driving gear 5 to rotate, the driving wheel 5 rotates to drive a first driven gear 3 to rotate through gear meshing, the first driven gear 3 rotates to drive a first rotating rod 16 to rotate, the first rotating rod 16 rotates to drive a first grinding cutter 17 to rotate, the driving gear 5 rotates to drive a second driven gear 4 to rotate, and the second driven gear 4 rotates to drive a second rotating rod 19 to rotate, second dwang 19 rotates and drives second grinding sword 18 and rotates, carry out preliminary screening to the raw materials through coarse screen 15, the discharge gate discharge external world of the too big raw materials of volume from coarse screen 15 both sides, action wheel 10 rotates and drives drive roll 13 and rotate, drive roll 13 rotates and drives driven voller 14 through the assorted gear and rotates, filter the raw materials after smashing through fine screen 11, the discharge gate discharge external world of the too big raw materials of volume from fine screen both sides, smash up to standard raw materials and get into inside collection box 12 from the discharge gate of box 1 bottom.
It is obvious to a person skilled in the art that the invention is not restricted to details of the above-described exemplary embodiments, but that it can be implemented in other specific forms without departing from the spirit or essential characteristics of the invention. The present embodiments are therefore to be considered in all respects as illustrative and not restrictive, the scope of the invention being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (6)
1. A machine for preparing functional ceramic powders, comprising a box (1), characterized in that: the grinding device is characterized in that a motor (9) is installed on the outer side of the box body (1), the output end of the motor (9) is connected with a driving wheel (10), one side of the driving wheel (10) is connected with a driving roller (13), one side of the driving roller (13) is connected with a driven roller (14), a fine screen (11) is arranged below the driving roller (13), the outer wall of the fine screen (11) is connected with a belt (8), a driven wheel (7) is arranged on the inner wall of the belt (8) and located above the driving wheel (10), one end of the driven wheel (7) is connected with a connecting shaft (6), one end of the connecting shaft (6) is connected with a driving gear (5), the top end of the driving gear (5) is connected with a first driven gear (3), the bottom end of the first driven gear (3) is connected with a first rotating rod (16), the outer wall of the first, the screening device is characterized in that a coarse screen (15) is arranged below the first rotating rod (16), the bottom end of the driving gear (5) is connected with a second driven gear (4), the bottom end of the second driven gear (4) is connected with a second rotating rod (19), the outer wall of the second rotating rod (19) is connected with a second grinding cutter (18), the top end of the box body (1) is connected with the feeding hole (2), and the bottom end of the box body (1) is connected with the collecting box (12).
2. The machine for preparing functional ceramic powder according to claim 1, wherein: the inner wall of the box body (1) is located on two sides of the first rotating rod (16) and provided with discharge ports, the inner wall of the box body (1) is located on two sides of the fine screen (11) and provided with discharge ports, and the bottom end of the box body (1) is provided with discharge ports.
3. The machine for preparing functional ceramic powder according to claim 1, wherein: the top end of the driving gear (5) is meshed with the first driven gear (3), and the bottom end of the driving gear (5) is meshed with the second driven gear (4).
4. The machine for preparing functional ceramic powder according to claim 1, wherein: second dwang (19) run through the inside that extends to box (1) on the top of box (1), first dwang (16) run through the outside that extends to second dwang (19) in the inner wall of second dwang (19).
5. The machine for preparing functional ceramic powder according to claim 1, wherein: the motor (9) is connected with the driving roller (13) through a coupler, and the driving roller (13) penetrates through the inner wall of the box body (1) and extends to the inside of the box body (1).
6. The machine for preparing functional ceramic powder according to claim 1, wherein: the outer wall of the driving roller (13) is provided with a grinding rack, and the outer wall of the driven roller (14) is provided with a grinding rack matched with the outer wall of the driving roller (13).
