The utility model belongs to the technical field of public display equipment correlation, in particular to a public column used in a warehouse, which comprises a bottom plate, fixed blocks, a switch, light-emitting elements, clamping grooves and an inner plate, wherein the front end of the bottom plate is fixedly provided with the fixed blocks, the front end of the fixed blocks is embedded with the switch, the bottom ends of the fixed blocks are fixedly provided with the light-emitting elements, the light-emitting elements are electrically connected with the switch, the number of the light-emitting elements is four groups, the bottom ends of the four groups of the light-emitting elements are respectively and fixedly provided with the clamping grooves, the bottom plate, the fixed blocks, the switch, the light-emitting elements, the clamping grooves, the inner plate and the like of the public column used in the warehouse are sequentially connected, the structure is simple, the investment cost is low, the public file display number is effectively increased on the basis of saving space, various files are randomly inserted and used, overdue files are timely replaced, and the light, to be eye-catching and thus to optimize the public effect.

Description

Bulletin board for warehouse
Technical Field
The utility model belongs to the technical field of the publicity equipment is relevant, specifically is a publicity column that warehouse used.
Background
The method is characterized in that a large number of documents such as company regulations, quality documents, customer delivery requirements, warehouse duty tables, 5S duty tables and the like are posted on the wall of a warehouse area for workers to know in time, but the existing bulletin boards are increasingly increased along with the increase of three customers, the special requirements of entrusters and customers are more and more, various documents are posted on the wall of the warehouse area and are very irregular and influence the attractiveness, paper needs to be replaced during document updating and needs to be torn down and re-posted, and sometimes, because of more public contents, some documents which need to be shown urgently are buried in the bulletin boards, and the bulletin boards are difficult to draw attention.
SUMMERY OF THE UTILITY MODEL
This section is for the purpose of summarizing some aspects of embodiments of the invention and to briefly introduce some preferred embodiments. Some simplifications or omissions may be made in this section and in the abstract of the specification and the title of the application to avoid obscuring the purpose of this section, the abstract of the specification and the title of the application, and such simplifications or omissions are not intended to limit the scope of the invention.
In view of the fact that the existing bulletin board is increasing along with the increase of three-party customers, the special requirements of each consignor and the customers are more and more, various files are pasted on the wall of a storage area, the appearance is very irregular and the attractiveness is influenced, the paper needs to be replaced during the file updating and needs to be torn down and pasted again, and moreover, sometimes, because the bulletin content is more, some files which need to be urgently shown are buried in the bulletin board, and the utility model discloses a bulletin board is provided.
For solving the technical problem, according to the utility model discloses an aspect, the utility model provides a following technical scheme: the utility model provides a bulletin board that warehouse used, includes bottom plate, fixed block, switch, light emitting component, draw-in groove and inner plate, the front end of bottom plate is fixed and is provided with the fixed block, the front end embedding of fixed block is provided with the switch, the bottom mounting of fixed block is provided with light emitting component, and light emitting component and switch pass through electric connection, light emitting component's quantity is four groups, and four groups light emitting component's bottom is all fixed and is provided with the draw-in groove, and the bottom of draw-in groove and the front end fixed connection of bottom plate, the inner chamber top of bottom plate all is fixed with the slide rail with the bottom, and the outer wall activity of slide rail is provided with the inner plate, the right-hand member of inner plate.
As an optimized technical scheme of the utility model, the material of bottom plate is the PVC board material, and the length of bottom plate is sixty centimetres, wide for eighty centimetres.
As an optimized technical scheme of the utility model, the front end of inner plate is fixed and is provided with the draw-in groove, and the lateral wall of draw-in groove is the opening design.
As a preferred technical scheme of the utility model, the rear end of bottom plate is fixed to be provided with pastes the strip, and the material of pasting the strip is the hot melt adhesive double faced adhesive tape material.
Compared with the prior art, the beneficial effects of the utility model are that: the bottom plate, the fixed block, the switch, the light-emitting element, the clamping groove, the inner plate and the like of the bulletin board used for the warehouse are sequentially connected, the structure is simple, the investment cost is low, the problem that the number of showing of the bulletin files is increased on the basis of saving the space is effectively solved, various files are inserted at any time, overdue files are replaced in time, and the light-emitting element can be utilized to polish important files or files needing to be bulletin, so that the bulletin effect is optimized.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the present invention will be described in detail with reference to the accompanying drawings and detailed embodiments, and it is obvious that the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without inventive labor. Wherein:

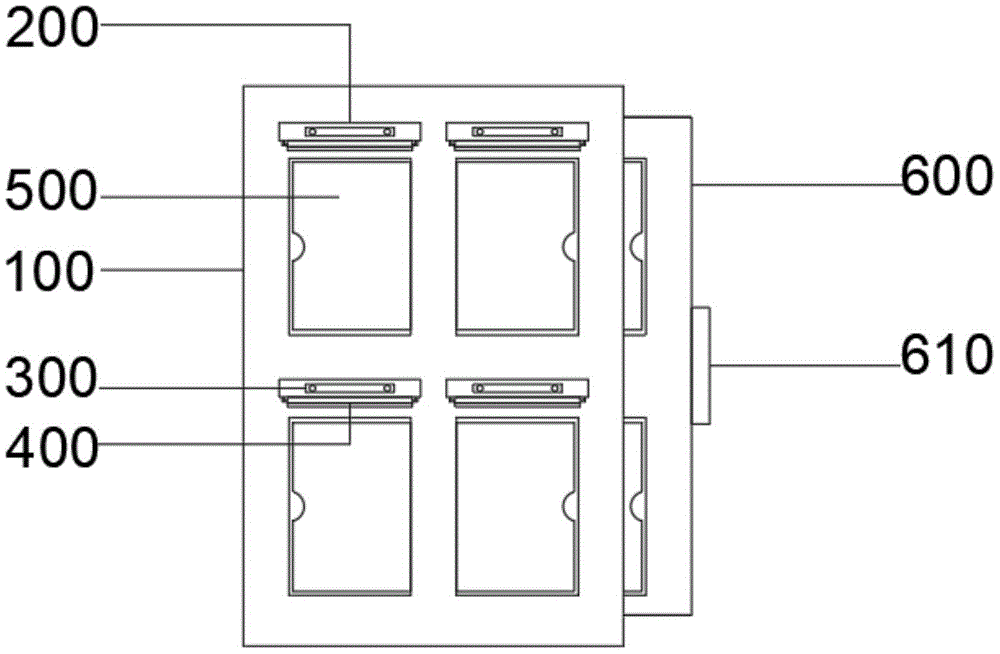

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of the rear view of the structure of the present invention.
In the figure: the LED lamp comprises a base plate 100, a sticking strip 110, a fixing block 200, a switch 300, a light emitting element 400, a clamping groove 500, an inner layer plate 600 and a handle 610.
Detailed Description
In order to make the above objects, features and advantages of the present invention more comprehensible, embodiments of the present invention are described in detail below with reference to the accompanying drawings.
In the following description, numerous specific details are set forth in order to provide a thorough understanding of the present invention, but the present invention may be implemented in other ways than those specifically described herein, and one skilled in the art may similarly generalize the present invention without departing from the spirit of the present invention, and therefore the present invention is not limited to the specific embodiments disclosed below.
Next, the present invention will be described in detail with reference to the schematic drawings, and in the detailed description of the embodiments of the present invention, for convenience of explanation, the sectional view showing the device structure will not be enlarged partially according to the general scale, and the schematic drawings are only examples, and should not limit the scope of the present invention. In addition, the three-dimensional dimensions of length, width and depth should be included in the actual fabrication.
In order to make the objects, technical solutions and advantages of the present invention clearer, embodiments of the present invention will be described in further detail below with reference to the accompanying drawings.
The utility model provides a bulletin board that warehouse used, simple structure, investment cost is low, effectively solves on the basis of practicing thrift the space, increases the show quantity of bulletin file to usable light emitting component polishes the more important file or the file that the urgent need is disclosed, in order to make the eye-catching and optimize the bulletin effect, please refer to fig. 1, bottom plate 100, fixed block 200, switch 300, light emitting component 400, draw-in groove 500 and inner plating 600;
referring to fig. 1-2, a fixing block 200 is fixedly disposed at the front end of a base plate 100, a switch 300 is embedded at the front end of the fixing block 200, a light emitting device 400 is fixedly disposed at the bottom end of the fixing block 200, the light emitting device 400 is electrically connected to the switch 300, the number of the light emitting devices 400 is four, the bottom ends of the four sets of light emitting devices 400 are fixedly disposed with a slot 500, the bottom ends of the slot 500 are fixedly connected to the front end of the base plate 100, a slide rail is fixedly disposed at the top end and the bottom end of the inner cavity of the base plate 100, an inner plate 600 is movably disposed on the outer wall of the slide rail, the right end of the inner plate 600 extends to the right end of the base plate 100 and is fixedly disposed with a handle 610, the base plate 100 is made of PVC plate material, the base plate 100 has a length of sixty centimeters and a width of eighty centimeters, the slot 500 is fixedly disposed, the material of the adhesive tape 110 is a hot melt adhesive double-sided tape material, the switch 300 controls the light emitting element 400 to be turned on and off, and the light of the light emitting element 400 shines on the document in the card slot 500, so as to play a striking role.
The utility model discloses a theory of operation and use flow: in the process of using the bulletin board to disclose documents, each document can be inserted into the card slot 500, so that each document can be inserted and used at any time, expired documents can be replaced in time, the inner board 600 is movably arranged in the bottom board 100 of the bulletin board to deal with a large number of public documents, and for some urgent or important documents, the switch 300 is used for controlling the on and off of the light-emitting element 400, and the light of the light-emitting element 400 shines on the documents in the card slot 500, so as to play a striking role.
While the invention has been described above with reference to an embodiment, various modifications may be made and equivalents may be substituted for elements thereof without departing from the scope of the invention. In particular, as long as there is no structural conflict, the various features of the disclosed embodiments of the present invention can be used in any combination with each other, and the non-exhaustive description of these combinations in this specification is merely for the sake of brevity and resource conservation. Therefore, it is intended that the invention not be limited to the particular embodiments disclosed, but that the invention will include all embodiments falling within the scope of the appended claims.

Claims (4)

1. The utility model provides a bulletin board that warehouse used, includes bottom plate (100), fixed block (200), switch (300), light emitting component (400), draw-in groove (500) and inner plate (600), its characterized in that: the fixed block (200) that is provided with in front end of bottom plate (100), the front end embedding of fixed block (200) is provided with switch (300), the bottom mounting of fixed block (200) is provided with light-emitting component (400), and light-emitting component (400) and switch (300) pass through electric connection, the quantity of light-emitting component (400) is four groups, and four groups the bottom of light-emitting component (400) is all fixed and is provided with draw-in groove (500), and the bottom of draw-in groove (500) and the front end fixed connection of bottom plate (100), the inner chamber top of bottom plate (100) is all fixed with the bottom and is provided with the slide rail, and the outer wall activity of slide rail is provided with inner plate (600), the right-hand member of inner plate (600) extends to the right-hand member of bottom plate (100).
2. A bulletin board for use in a warehouse, in accordance with claim 1, wherein: the bottom plate (100) is made of a PVC plate material, and the length of the bottom plate (100) is sixty centimeters and the width of the bottom plate is eighty centimeters.
3. A bulletin board for use in a warehouse, in accordance with claim 1, wherein: the front end of the inner layer plate (600) is fixedly provided with a clamping groove (500), and the side wall of the clamping groove (500) is designed to be an opening.
4. A bulletin board for use in a warehouse, in accordance with claim 1, wherein: the rear end of the bottom plate (100) is fixedly provided with a pasting strip (110), and the material of the pasting strip (110) is a hot melt adhesive double-sided adhesive tape material.
