CN213432129U - A medical urology expansion and drainage device - Google Patents
A medical urology expansion and drainage device Download PDFInfo
- Publication number
- CN213432129U CN213432129U CN202022069093.7U CN202022069093U CN213432129U CN 213432129 U CN213432129 U CN 213432129U CN 202022069093 U CN202022069093 U CN 202022069093U CN 213432129 U CN213432129 U CN 213432129U
- Authority
- CN
- China
- Prior art keywords
- box
- drainage device
- threaded rod
- sliding plate
- bevel gear
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- External Artificial Organs (AREA)
Abstract
本实用新型公开了一种医用泌尿外科扩张引流装置，包括引流装置和箱体，所述箱体上端设置箱盖，箱盖下端安装紫外线杀菌灯，箱体内设置滑动板，箱体内左部竖向安装固定杆，且固定杆穿过滑动板，箱体内右部竖向安装螺纹杆，且螺纹杆穿过滑动板，螺纹杆上下两端对称安装轴承座，固定杆和螺纹杆上端均设置连接板，螺纹杆外表面套设伞齿轮一，箱体内安装电机，电机下端安装减震垫，电机右端安装伞齿轮二，且伞齿轮二和伞齿轮一相啮合。本实用新型通过紫外线杀菌灯对引流装置进行照射，进行杀菌消毒，同时通过喷头喷出消毒剂对箱体内进行杀菌净化，保证引流装置的干净，避免患者感染。
The utility model discloses a medical urological expansion and drainage device, comprising a drainage device and a box body. A box cover is arranged at the upper end of the box body, an ultraviolet germicidal lamp is arranged at the lower end of the box cover, a sliding plate is arranged in the box body, and the left part of the box body is vertically arranged. Install the fixed rod, and the fixed rod passes through the sliding plate, the threaded rod is installed vertically in the right part of the box, and the threaded rod passes through the sliding plate, the upper and lower ends of the threaded rod are symmetrically installed with bearing seats, and the upper ends of the fixed rod and the threaded rod are provided with connecting plates , the outer surface of the threaded rod is sleeved with a bevel gear 1, a motor is installed in the box, a shock pad is installed at the lower end of the motor, a bevel gear 2 is installed on the right end of the motor, and the bevel gear 2 and the bevel gear 1 are meshed. The utility model irradiates the drainage device through the ultraviolet germicidal lamp for sterilization and disinfection, and at the same time sprays the disinfectant through the nozzle to sterilize and purify the inside of the box, so as to ensure the cleanness of the drainage device and avoid the infection of patients.
Description
Technical Field
The utility model relates to a drainage device, in particular to a medical urinary surgery expansion drainage device.
Background
Urology, a hospital department who primarily diagnoses and treats diseases in the "surgical" segment of the urinary system, primarily treats various urological diseases. In the urology department, a lot of patients can not independently urinate, and some patients appear the micturition obstacle in the postoperative, and also some patients can't get up to urinate in bed, all need use catheterization hose and catheterization drainage bag to draw forth the urine, avoid making dirty the sick bed.
The existing drainage device has different use interval time, is put on one side after being used, and then is reused when a patient needs to urinate next time, the resistance of the patient is poor, the drainage device is in direct contact with the urethral orifice of the patient, and if bacteria exist on the drainage device, the urethral orifice of the patient can be infected. Therefore, the utility model provides a medical uropoiesis surgery expansion drainage device to solve the problem that proposes in the above-mentioned background art.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a medical uropoiesis surgery expansion drainage device to solve the problem that proposes in the above-mentioned background art.
In order to achieve the above object, the utility model provides a following technical scheme:
a medical urinary surgery dilation drainage device comprises a drainage device and a box body, wherein a box cover is arranged at the upper end of the box body, an ultraviolet sterilization lamp is installed at the lower end of the box cover, a sliding plate is arranged in the box body, a fixing rod is vertically installed on the left portion in the box body and penetrates through the sliding plate, a threaded rod is vertically installed on the right portion in the box body and penetrates through the sliding plate, bearing seats are symmetrically installed at the upper end and the lower end of the threaded rod, connecting plates are arranged at the upper ends of the fixing rod and the threaded rod, a first bevel gear is sleeved on the outer surface of the threaded rod, a motor is installed in the box body, a damping pad is installed at;
the utility model discloses a portable vacuum cleaner, including sliding plate, slide plate, fixed plate, right side wall installation shower nozzle, box right-hand member installation disinfect box, the box right-hand member installation pump body, pump body lower extreme installation extraction tube, and extraction tube intercommunication disinfect box, pump body upper end installation conveyer pipe, and conveyer pipe intercommunication shower nozzle, a plurality of through-hole is seted up to the box left end, the box left end corresponds the position installation dustproof cloth of through-hole, drainage device includes the bin, cylinder and expansion head, bin the place ahead sets up driving motor, driving motor front end installation cylinder, cylinder front end installation expansion head, expansion head rear end left side installation communicating pipe, communicating pipe one end installation power pump, power pump one end installation hose, and hose intercommunication bin.
As a further scheme of the utility model, the case lid left end is passed through the hinge and is connected with the box rotation, and the case lid right-hand member passes through hasp and box fixed connection.
As a further proposal of the utility model, the slider is transversal and is of a convex shape, and the sliding groove is transversal and is of a convex shape.
As the utility model discloses the scheme of furthering again, case lid upper end installation handle, and handle and case lid rotate to be connected.
As a still further aspect of the present invention, the fixing rod and the sliding plate are slidably connected, and the threaded rod and the sliding plate are threadedly connected.
As a further proposal of the utility model, the upper end of the sterilizing box is provided with a medicine inlet, and a cover is arranged on the medicine inlet.
Compared with the prior art, the beneficial effects of the utility model are that:
the utility model discloses conveniently carry, constitute a cavity through box and case lid, make drainage device can not the dust that falls when not using, shine drainage device through sterilamp, disinfect through the purification of disinfecting in the shower nozzle blowout disinfectant is to the box simultaneously, guarantees drainage device's clean, avoids the patient to infect.
Drawings

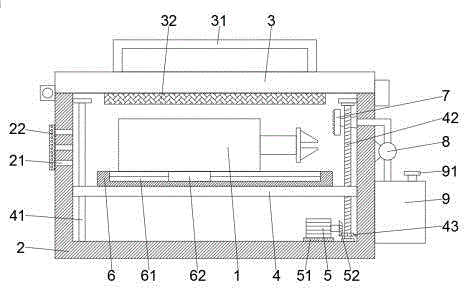

Fig. 1 is a schematic structural view of a medical urological dilation drainage device.
Fig. 2 is a schematic structural view of a drainage device in a medical urological dilation drainage device.
Fig. 3 is a schematic structural view of a slider in the medical urinary surgery dilation drainage device.
In the figure: 1. a drainage device; 11. a storage tank; 12. a power pump; 13. a communicating pipe; 14. a drive motor; 15. a cylinder; 16. an expansion head; 2. a box body; 21. a through hole; 22. a dust cloth; 3. a box cover; 31. a handle; 32. an ultraviolet germicidal lamp; 4. a sliding plate; 41. fixing the rod; 42. a threaded rod; 43. a first bevel gear; 5. a motor; 51. a shock pad; 52. a second bevel gear; 6. a fixing plate; 61. a sliding groove; 62. a slider; 7. a spray head; 8. a pump body; 9. a sterilizing box; 91. a medicine inlet.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-3, in the embodiment of the present invention, a medical urinary surgery dilation drainage device comprises a drainage device 1 and a box 2, a box cover 3 is disposed on the upper end of the box 2, the left end of the box cover 3 is rotatably connected with the box 2 through a hinge, the right end of the box cover 3 is fixedly connected with the box 2 through a lock catch, a handle 31 is disposed on the upper end of the box cover 3, the handle 31 is rotatably connected with the box cover 3, an ultraviolet germicidal lamp 32 is mounted on the lower end of the box cover 3, a sliding plate 4 is disposed in the box 2, a fixing rod 41 is vertically mounted on the left portion of the box 2, the fixing rod 41 passes through the sliding plate 4, the fixing rod 41 is slidably connected with the sliding plate 4, a threaded rod 42 is vertically mounted on the right portion of the box 2, the threaded rod 42 passes through the sliding plate 4, the threaded, the outer surface of the threaded rod 42 is sleeved with a first bevel gear 43, the motor 5 is arranged in the box body 2, the lower end of the motor 5 is provided with a shock absorption pad 51, the shock absorption pad 51 is fixedly connected with the bottom in the box body 2, the right end of the motor 5 is provided with a second bevel gear 52, and the second bevel gear 52 is meshed with the first bevel gear 43;
the upper end of the sliding plate 4 is provided with a fixed plate 6, the upper end of the fixed plate 6 is provided with a sliding groove 61, a sliding block 62 is arranged in the sliding groove 61, the cross section of the sliding block 62 is in a convex shape, the cross section of the sliding groove 61 is in a convex shape, the upper end of the fixed plate 6 is provided with a drainage device 1, the lower end of the drainage device 1 is fixedly connected with the sliding block 62, a spray head 7 is arranged on the right wall in the box body 2, the right end of the box body 2 is provided with a disinfection box 9, the right end of the box body 2 is provided with a pump body 8, the lower end of the pump body 8 is provided with an extraction pipe which is communicated with the disinfection box 9, the upper end of the pump body 8 is provided with a conveying pipe which is communicated with the spray head 7, the upper end of the disinfection box 9 is provided with a medicine inlet 91, a cover is arranged on the medicine inlet 91, the, an air cylinder 15 is installed at the front end of a driving motor 14, an expansion head 16 is installed at the front end of the air cylinder 15, a communicating pipe 13 is installed on the left side of the rear end of the expansion head 16, a power pump 12 is installed at one end of the communicating pipe 13, a hose is installed at one end of the power pump 12, and the hose is communicated with a storage tank 11.
The utility model discloses a theory of operation is: when using drainage device 1, motor 5 drives threaded rod 42 through two 52 of bevel gears and a 43 meshing transmission of bevel gear and rotates, because threaded rod 42 and 4 threaded connection of sliding plate, threaded rod 42 drives sliding plate 4 and removes, sliding plate 4 drives drainage device 1 through fixed plate 6 and rises, leave box 2, slide in sliding tray 61 through slider 62, remove drainage device 1's position, when not using, drainage device 1 hides in box 2, cover case lid 3, shine drainage device 1 through sterilamp 32, disinfect and disinfect, simultaneously through pump body 8 with the disinfectant in the disinfect box 9 take out on shower nozzle 7, disinfect and purify in the box 2 through shower nozzle 7.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. The utility model provides a medical uropoiesis surgery expansion drainage device, including drainage device (1) and box (2), characterized in that, box (2) upper end sets up case lid (3), ultraviolet germicidal lamp (32) is installed to case lid (3) lower extreme, set up sliding plate (4) in the box (2), the vertical installation dead lever (41) in left part in box (2), and dead lever (41) pass sliding plate (4), the vertical installation threaded rod (42) in right part in box (2), and threaded rod (42) pass sliding plate (4), bearing frame is installed to threaded rod (42) upper and lower both ends symmetry, the connecting plate all sets up on dead lever (41) and threaded rod (42), bevel gear (43) outer surface cover is established to threaded rod (42), install motor (5) in box (2), shock pad (51) is installed to motor (5) lower extreme, and shock pad (51) fixed connection box (2) bottom in, a second bevel gear (52) is mounted at the right end of the motor (5), and the second bevel gear (52) is meshed with the first bevel gear (43);
the upper end of the sliding plate (4) is provided with a fixed plate (6), the upper end of the fixed plate (6) is provided with a sliding groove (61), a sliding block (62) is arranged in the sliding groove (61), the upper end of the fixed plate (6) is provided with a drainage device (1), the lower end of the drainage device (1) is fixedly connected with the sliding block (62), the right wall in the box body (2) is provided with a spray head (7), the right end of the box body (2) is provided with a disinfection box (9), the right end of the box body (2) is provided with a pump body (8), the lower end of the pump body (8) is provided with an extraction pipe which is communicated with the disinfection box (9), the upper end of the pump body (8) is provided with a conveying pipe which is communicated with the spray head (7), the left end of the box body (2) is provided with a plurality of through holes (21), the left end of, the front of the storage box (11) is provided with a driving motor (14), the front end of the driving motor (14) is provided with a cylinder (15), the front end of the cylinder (15) is provided with an expansion head (16), the left side of the rear end of the expansion head (16) is provided with a communicating pipe (13), one end of the communicating pipe (13) is provided with a power pump (12), one end of the power pump (12) is provided with a hose, and the hose is communicated with the storage box (11).
2. The medical urinary surgery dilation drainage device is characterized in that the left end of the box cover (3) is rotatably connected with the box body (2) through a hinge, and the right end of the box cover (3) is fixedly connected with the box body (2) through a lock catch.
3. The medical urinary surgical dilation drainage device according to claim 1, wherein the slider (62) is convex in cross section, and the sliding groove (61) is convex in cross section.
4. The medical urinary surgery dilation drainage device for drainage according to claim 1, wherein the cover (3) is provided with a handle (31) at the upper end, and the handle (31) is rotatably connected with the cover (3).
5. The medical urinary surgical dilation drainage device according to claim 1, wherein the fixing rod (41) and the sliding plate (4) are slidably connected, and the threaded rod (42) and the sliding plate (4) are threadedly connected.
6. The medical urinary surgery dilation drainage device for drainage according to claim 1, wherein the upper end of the disinfection box (9) is provided with a medicine inlet (91), and a cover is arranged on the medicine inlet (91).
