Abstract

The utility model discloses an automatic flat push saw of wooden furniture board, the on-line screen storage device comprises a base, the vertical splint that are provided with on the face of base top, the splint symmetry be provided with two sets ofly and all with base sliding connection, two sets of the equal level in one side that splint kept away from each other is provided with first screw rod, the both ends of first screw rod are all rotated through first fixed plate and are installed on the base, and are two sets of equal screw thread has cup jointed first slider, and is two sets of the vertical first U-shaped frame that is provided with in top of first slider, all set up flutedly on the inner wall of first U-shaped frame both sides, install first electric putter perpendicularly on the roof in the recess, the vertical downward just level of flexible end of first electric putter is fixed with the saw blade, the one end of first screw rod still drive connection has first motor. The automatic flat push saw for the wooden furniture board has the advantages of reasonable structure, automatic push cutting, convenience in adjustment and popularization value.

Description

Automatic flat push saw for wooden furniture board

Technical Field

The utility model belongs to the technical field of panel processing equipment, concretely relates to wooden furniture board's automatic flat push saw.

Background

At present, in the production of furniture, a flat push saw is required to be used for cutting a plate, the flat push saw in the prior art is generally used for pushing the plate on the flat push saw by using a worker, but the operation mode greatly increases the labor amount of workers and masters, has low working efficiency and is not suitable for the production requirement of modern industrial furniture.

The utility model discloses a chinese utility model patent of application number 201520612259.1 discloses an automatic flat push saw of furniture board, including the sawing machine, the upper portion of sawing machine has tin face and backup pad, installs the slip saw seat in the backup pad, and the lower part of slip saw seat has a set of walking wheel and walking motor, install driving motor in the slip saw seat, connect in the gearbox of driving motor output shaft and installing the saw bit at slip saw seat top, the output belt pulley of gearbox passes through the belt and drives the saw bit rotates, still installs a set of G type that is used for the solid panel of card on the saw face and presss from both sides, and the G type presss from both sides the lower part and has the tight double-screw bolt in top. The utility model discloses improved furniture board's cutting efficiency widely, reduced master worker intensity of labour widely, and stable in structure is reliable.

Although the technical scheme improves the flat pushing efficiency of the plate, the technical scheme does not have an adjusting function, so that the use is inconvenient, and further improvement is needed.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide an automatic flat push saw of wooden furniture board to solve the problem that proposes among the above-mentioned background art.

In order to achieve the above object, the utility model provides a following technical scheme: an automatic flat push saw for wooden furniture plates comprises a base, wherein a clamping plate is vertically arranged on the top end surface of the base, two groups of the clamping plates are symmetrically arranged and are both connected with the base in a sliding way, one sides of the two groups of the clamping plates far away from each other are both horizontally provided with first screw rods, two ends of the first screw rods are rotatably arranged on the base through first fixing plates, first sliding blocks are sleeved on the two groups of first screw rods in a threaded manner, first U-shaped frames are vertically arranged at the top ends of the two groups of first sliding blocks, the inner walls of the two sides of the first U-shaped frame are provided with grooves, the top wall in the grooves is vertically provided with a first electric push rod, the utility model discloses a motor, including first electric putter, first screw rod, first motor, first fixed plate, first electric putter's flexible end is vertical downwards and the level is fixed with the saw blade, the one end of first screw rod still drive is connected with first motor, first motor is installed in the one end that first fixed plate kept away from first screw rod.

Preferably, the lower level of base is provided with the second screw rod, second screw rod parallel arrangement has two sets ofly and both sides screw thread opposite direction, and is two sets of the equal perpendicular to splint setting of second screw rod, and is two sets of the both ends of second screw rod are all installed on the bottom face of base through the rotation of second fixed plate, the equal screw thread in both sides of second screw rod has cup jointed the second slider, and is two sets of the second slider all passes the base rather than the splint fixed connection that corresponds, offer the confession on the base the gliding spout of second slider.

Preferably, the one end of keeping away from first U-shaped frame on the bottom face of base is vertical to be provided with second U-shaped frame, be provided with second electric putter perpendicularly on the diapire in the second U-shaped frame, second electric putter is provided with the multiunit side by side, multiunit second electric putter's flexible end level is provided with the push pedal, be provided with the dog perpendicularly on the top face of push pedal, the base is run through on the top of dog.

Preferably, a blower is horizontally arranged above the first U-shaped frame, and two ends of the blower are rotatably installed on the top end face of the first U-shaped frame through a vertical plate.

Preferably, the top end surface of the first sliding block is flush with the top end surfaces of the clamping plates, and one end surfaces of the two groups of clamping plates, which are opposite to each other, are both rough surfaces.

The utility model discloses a technological effect and advantage: the automatic flat push saw for the wooden furniture board can achieve the purpose of fixing the board through the matching of the second motor, the second screw rod, the second sliding block and the clamping plate; through first motor, first screw rod, first slider, the cooperation of first U-shaped frame and saw blade, can realize the automatic push away of panel and cut, and at the push away and cut the in-process, can blow off the saw-dust from panel through the hair-dryer, in order to avoid piling up the saw-dust on pushing away and cutting the in-process and cause the influence to processing because of panel, simultaneously under electric putter's effect, can adjust the height position point of saw blade, the regulation push away of both being convenient for cuts thickness, make the device can be applicable to the panel of different thickness again. The automatic flat push saw for the wooden furniture board has the advantages of reasonable structure, automatic push cutting, convenience in adjustment and popularization value.

Drawings

Fig. 1 is a schematic structural view of the present invention;

fig. 2 is an enlarged view of a point a in fig. 1 according to the present invention;

FIG. 3 is a schematic structural view of a second U-shaped frame of the present invention;

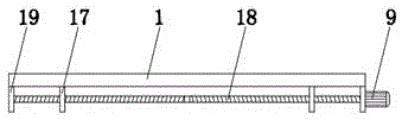

fig. 4 is a schematic view of a second screw structure of the present invention.

In the figure: the device comprises a base 1, a clamping plate 2, a first screw rod 3, a blower 4, a first sliding block 5, a saw blade 6, a first motor 7, a first U-shaped frame 8, a second motor 9, a first fixing plate 10, a first electric push rod 11, a groove 12, a second U-shaped frame 13, a stop 14, a push plate 15, a second electric push rod 16, a second sliding block 17, a second screw rod 18 and a second fixing plate 19.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.

The utility model provides an automatic flat push saw for wooden furniture board as shown in figures 1-4, which comprises a base 1, wherein a clamp plate 2 is vertically arranged on the top end face of the base 1, the clamp plate 2 is symmetrically provided with two groups and is in sliding connection with the base 1, one side of the two groups of clamp plates 2 which is far away from each other is horizontally provided with a first screw 3, two ends of the first screw 3 are rotatably arranged on the base 1 through a first fixing plate 10, two groups of first screw 3 are in threaded sleeve connection with a first slider 5, the top ends of the two groups of first sliders 5 are vertically provided with a first U-shaped frame 8, the inner walls of two sides of the first U-shaped frame 8 are respectively provided with a groove 12, a first electric push rod 11 is vertically arranged on the top wall in the groove 12, a saw blade 6 is vertically and horizontally fixed at the telescopic end of the first electric push rod 11, one end of the first screw 3 is also in driving connection with a first motor 7, the first motor 7 is installed at one end of the first fixing plate 10 far away from the first screw rod 3.

Specifically, base 1's below level is provided with second screw rod 18, second screw rod 18 parallel arrangement has two sets ofly and both sides screw thread opposite direction, and is two sets of second screw rod 18 all sets up perpendicular to splint 2, and is two sets of second screw rod 18's both ends are all rotated through second fixed plate 19 and are installed on base 1's bottom face, second slider 17 has been cup jointed to the equal screw thread in both sides of second screw rod 18, and is two sets of second slider 17 all passes base 1 and rather than 2 fixed connection of splint that correspond, seted up the confession on the base 1 the gliding spout of second slider 17.

Specifically, the vertical second U-shaped frame 13 that is provided with of one end of keeping away from first U-shaped frame 8 on the bottom face of base 1, be provided with second electric putter 16 on the diapire in the second U-shaped frame 13 perpendicularly, second electric putter 16 is provided with the multiunit side by side, multiunit the flexible end level of second electric putter 16 is provided with push pedal 15, be provided with dog 14 on the top face of push pedal 15 perpendicularly, base 1 is run through on the top of dog 14, through promoting dog 14 to base 1 top, can carry out spacingly to panel to prevent that the translation from taking place in the panel course of working.

Specifically, the top level of first U-shaped frame 8 is provided with hair-dryer 4, the both ends of hair-dryer 4 are passed through the riser and are rotated and install on the top face of first U-shaped frame 8, play the effect of blowing off the saw-dust from panel to avoid piling up the saw-dust on pushing away the cutting in-process and cause the influence to processing because of the panel.

Specifically, the top end face of the first sliding block 5 is flush with the top end face of the clamping plate 2, the saw blade 6 is prevented from being abutted to the clamping plate 2, and two opposite end faces of the clamping plate 2 are both arranged to be rough faces, so that the clamping effect is more stable.

The working principle is as follows: when the automatic flat push saw for wooden furniture boards is used, the boards are placed between the two groups of clamping plates 2, then the second electric push rod 16 is started to push the stop block 14 to ascend through the push plate 15, then one end of the boards is abutted against the stop block 14, secondly, the two groups of second motors 9 are synchronously started to respectively drive the two groups of second screw rods 18 to rotate, because the directions of the threads on the two sides of the second screw rods 18 are opposite, the rotation of the second screw rods 18 can drive the second sliding blocks 17 on the two sides of the second screw rods 18 to drive the clamping plates 2 to move close to each other, so that the purpose of fixing the boards is achieved, further, the two groups of first motors 7 are synchronously started to respectively drive the two groups of first screw rods 3 to rotate, the rotation of the first screw rods 3 can drive the first sliding blocks 5 to drive the first U-shaped frames 8 to move towards one side of the stop block 14, and under the matching of the saw blades 6, the automatic push, and at the push-cut in-process, can blow off the saw-dust from panel through hair-dryer 4 to avoid piling up the saw-dust on the push-cut in-process and causing the influence to processing because of the panel, can adjust the height position of saw blade 6 through starting first electric putter 11 simultaneously, both be convenient for adjust push-cut thickness, make the device can be applicable to the panel of different thickness again.

Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications and variations can be made in the embodiments or in part of the technical features of the embodiments without departing from the spirit and the scope of the invention.

Claims (5)

1. The utility model provides an automatic flat push saw of wooden furniture board, includes base (1), its characterized in that: the clamping plate is vertically arranged on the top end face of the base (1), two groups of clamping plates (2) are symmetrically arranged and are in sliding connection with the base (1), a first screw (3) is horizontally arranged on one side, far away from each other, of each group of clamping plates (2), two ends of each first screw (3) are rotatably arranged on the base (1) through first fixing plates (10), first sliding blocks (5) are sleeved on the two groups of first screws (3) in a threaded manner, first U-shaped frames (8) are vertically arranged at the top ends of the two groups of first sliding blocks (5), grooves (12) are formed in the inner walls of two sides of each first U-shaped frame (8), first electric push rods (11) are vertically arranged on top walls in the grooves (12), saw blades (6) are vertically downwards and horizontally fixed at the telescopic ends of the first electric push rods (11), one ends of the first screws (3) are further in driving connection with first motors (7), the first motor (7) is arranged at one end, far away from the first screw rod (3), of the first fixing plate (10).

2. The automatic flat push saw for wooden furniture boards as claimed in claim 1, wherein: the below level of base (1) is provided with second screw rod (18), second screw rod (18) parallel arrangement has two sets ofly and both sides screw thread opposite direction, and is two sets of equal perpendicular to splint (2) setting of second screw rod (18), and is two sets of the both ends of second screw rod (18) are all rotated through second fixed plate (19) and are installed on the bottom face of base (1), the equal screw thread in both sides of second screw rod (18) has cup jointed second slider (17), and is two sets of base (1) and splint (2) fixed connection that correspond are all passed in second slider (17), set up the confession on base (1) the gliding spout of second slider (17).

3. The automatic flat push saw for wooden furniture boards as claimed in claim 1, wherein: keep away from the vertical second U-shaped frame (13) that is provided with of one end of first U-shaped frame (8) on the bottom face of base (1), be provided with second electric putter (16) on the diapire in second U-shaped frame (13) perpendicularly, second electric putter (16) are provided with the multiunit side by side, multiunit the flexible end level of second electric putter (16) is provided with push pedal (15), be provided with dog (14) on the top face of push pedal (15) perpendicularly, base (1) is run through on the top of dog (14).

4. The automatic flat push saw for wooden furniture boards as claimed in claim 1, wherein: the top level of first U-shaped frame (8) is provided with hair-dryer (4), the both ends of hair-dryer (4) are passed through the riser and are rotated and install on the top face of first U-shaped frame (8).

5. The automatic flat push saw for wooden furniture boards as claimed in claim 1, wherein: the top end face of the first sliding block (5) is flush with the top end faces of the clamping plates (2), and the opposite end faces of the two groups of clamping plates (2) are both rough faces.
