Abstract
The utility model discloses a metal working fluid stirred tank, the reactor comprises a kettle body, agitating unit and heating rod, the internal zone of heating that is provided with of cauldron, be provided with the wall between cauldron internal wall and the zone of heating, the interval is fixed with the heating rod on the wall, the zone of heating is provided with the chamber that holds that corresponds the setting with the heating rod, the heating rod extends to and holds the intracavity, the motor links firmly at cauldron body top, be connected with the motor behind the (mixing) shaft upper end running through the cauldron body, the lower extreme rotates with the connecting seat to be connected, the connecting seat links firmly in cauldron body bottom, (mixing) shaft upper portion and middle part are provided with the first puddler of a plurality of, the lower part is provided with the second puddler, first puddler and second puddler set up with the heating rod is crisscross, and all seted up a plurality of trompil on first puddler and the second. The utility model discloses can carry out abundant heating and misce bene to the metalworking fluid, heating and stirring effect are good.
Description
Technical Field
The utility model relates to a metalworking fluid agitated vessel technical field especially relates to a metalworking fluid stirred tank.
Background
The metal working fluid is a fluid used for metal working, mainly plays roles of lubrication and cooling, and has the functions of rust prevention and cleaning, and generally comprises cutting fluid, cutting oil, emulsion, stamping oil, a quenching agent, high-temperature oil, extreme pressure cutting fluid, grinding fluid, rust prevention oil, a cleaning agent, a blackening agent, drawing oil, a thickening agent and the like. The existing metal working fluid reaction kettle has the following problems: 1. the metal working fluid in the reaction kettle cannot be heated, so that part of the metal working fluid needing to be heated cannot be better reacted and mixed; 2. the existing reaction kettle has poor stirring effect on metal working fluid, so that better stirring cannot be performed.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a metal working fluid stirred tank solves the unable heating of metal working fluid reation kettle among the prior art, and the relatively poor problem of stirring effect.
In order to solve the technical problem, the utility model adopts the following technical scheme:
the utility model discloses a metal working fluid stirred tank, including the cauldron body, agitating unit and heating rod, the internal zone of heating that is provided with of cauldron, be the conduction oil in the zone of heating, cauldron internal wall with be provided with the wall between the zone of heating, the interval is fixed with on the wall the heating rod, the zone of heating be provided with the chamber that holds that the heating rod corresponds the setting, the heating rod extends to hold the intracavity, cauldron body top is provided with the inlet pipe, the bottom is provided with the discharging pipe, agitating unit includes motor, (mixing) shaft, connecting seat, first puddler and second puddler, the motor links firmly cauldron body top, the (mixing) shaft upper end runs through behind the cauldron body with the motor is connected, the lower extreme with the connecting seat rotates to be connected, the connecting seat links firmly cauldron body bottom, (mixing) shaft upper portion and middle part are provided with a plurality of first puddler, The lower part is provided with the second puddler, first puddler with the second puddler with the heating rod is crisscross to be set up, just a plurality of trompil has all been seted up on first puddler with the second puddler, the second puddler downside has linked firmly the vice puddler of a plurality of.
Further, a material guiding slope-shaped block is arranged at the bottom in the kettle body and fixedly connected between the connecting seat and the side wall of the kettle body.
Furthermore, the cross section of the material guide slope type block is in a smooth transition slope shape.
Furthermore, the first stirring rod, the second stirring rod and the heating rod are arranged horizontally, and the auxiliary stirring rod is arranged vertically.
Furthermore, the number of the first stirring rods or the number of the second stirring rods on the same horizontal plane are four, and the four first stirring rods or the four second stirring rods are uniformly and fixedly connected to the circumferential direction of the stirring shaft.
Furthermore, a heat conduction oil inlet is formed in the upper portion of the heating layer, a heat conduction oil outlet is formed in the lower portion of the heating layer, and the heat conduction oil inlet and the heat conduction oil outlet penetrate through the side wall of the kettle body and the spacing layer and are communicated with the heating layer.
Furthermore, the outer wall of the kettle body is coated with a heat insulation layer.
Compared with the prior art, the utility model discloses a beneficial technological effect:
the utility model discloses a metal working fluid stirred tank can carry out abundant heating and misce bene to the internal metal working fluid of cauldron through setting up agitating unit and heating rod for the mixture in the working fluid can fully melt, thereby makes more abundant of metal working fluid reaction, improves the quality of metal working fluid, has avoided the part to need to heat the metal working fluid that just can react and can't react, and heating and stirring effect are good, and simple structure, convenient to use.
Drawings
The present invention will be further explained with reference to the following description of the drawings.

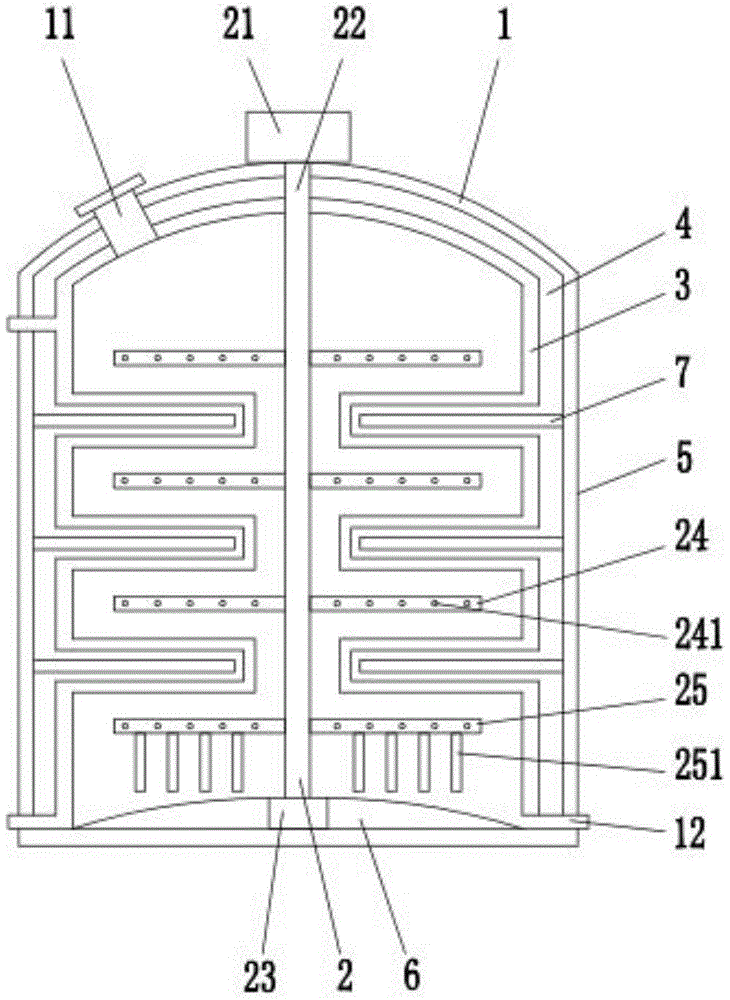

FIG. 1 is a schematic structural view of a metal working fluid stirring tank of the present invention;
fig. 2 is a schematic structural diagram of the first stirring rod of the metal working fluid stirring kettle of the present invention.
Description of reference numerals: 1. a kettle body; 11. a feed pipe; 12. a discharge pipe; 2. a stirring device; 21. a motor; 22. a stirring shaft; 23. a connecting seat; 24. a first stirring rod; 241. opening a hole; 25. a second stirring rod; 251. an auxiliary stirring rod; 3. a heating layer; 4. a spacer layer; 5. a heat insulation layer; 6. a material guiding slope-shaped block; 7. the rod is heated.
Detailed Description
As shown in fig. 1 and 2, a metal working fluid stirring kettle comprises a kettle body 1, a stirring device 2 and a heating rod 7, wherein a heating layer 3 is arranged in the kettle body 1, heat transfer oil is arranged in the heating layer 3, a spacing layer 4 is arranged between the inner wall of the kettle body 1 and the heating layer 3, the heating rod 7 is fixed on the spacing layer 4 at intervals, the heating layer 3 is provided with a containing cavity corresponding to the heating rod 7, the heating rod 7 extends into the containing cavity, the top of the kettle body 1 is provided with an inlet pipe 11, the bottom of the kettle body is provided with a discharge pipe 12, the stirring device 2 comprises a motor 21, a stirring shaft 22, a connecting seat 23, a first stirring rod 24 and a second stirring rod 25, the motor 21 is fixedly connected to the top of the kettle body 1, the upper end of the stirring shaft 22 penetrates through the kettle body 1 and then is connected with the motor 21, and the lower end of the stirring shaft, connecting seat 23 links firmly 1 bottom of the cauldron body, (mixing) shaft 22 upper portion and middle part are provided with a plurality of first puddler 24, lower part are provided with second puddler 25, first puddler 24 with second puddler 25 with the crisscross setting of heating rod 7, just first puddler 24 with a plurality of trompil 241 has all been seted up on the second puddler 25, second puddler 25 downside has linked firmly the vice puddler 251 of a plurality of.
The metalworking fluid stirred tank of this embodiment is when using, lead to into cauldron body 1 with the metalworking fluid through inlet pipe 11, heat-conducting oil in zone of heating 3 through heating rod 7 this moment, reach the purpose that heats the metalworking fluid in the cauldron body 1, then drive (mixing) shaft 22 through motor 21 and rotate, thereby drive the effect that the metalworking fluid of first puddler 24 and second puddler 25 that links firmly on the (mixing) shaft 22 in to the cauldron body 1 played the stirring, wherein, through setting up trompil 241 and vice puddler 251, can improve stirring effect.
And, the valve that can set up on discharging pipe 12 to conveniently carry out open and close control to discharging pipe 12, thereby be convenient for the discharge of the metalworking fluid in the cauldron body 1.
Specifically, the bottom in the kettle body 1 is provided with a material guiding slope-shaped block 6, and the material guiding slope-shaped block 6 is fixedly connected between the connecting seat 23 and the side wall of the kettle body 1.
In this embodiment, through setting up guide slope type piece 6, can be convenient for to the discharge of metal working fluid, improve row material efficiency.
Specifically, the cross section of the material guiding slope-shaped block 6 is in a smooth transition slope shape.
Specifically, the first stirring rod 24, the second stirring rod 25 and the heating rod 7 are all horizontally arranged, and the auxiliary stirring rod 251 is vertically arranged.
In this embodiment, the first stirring rod 24 and the second stirring rod 25 which are horizontal and the auxiliary stirring rod 251 which is vertical can stir more uniformly, thereby enhancing the stirring effect.
Specifically, the number of the first stirring rods 24 or the number of the second stirring rods 25 on the same horizontal plane are four, and the four first stirring rods 24 or the four second stirring rods 25 are uniformly and fixedly connected to the circumferential direction of the stirring shaft 22.
Specifically, the upper part of the heating layer 3 is provided with a heat conduction oil inlet, the lower part of the heating layer is provided with a heat conduction oil outlet, and the heat conduction oil inlet and the heat conduction oil outlet both penetrate through the side wall of the kettle body 1 and the spacing layer 4 and are communicated with the heating layer 3.
Specifically, the outer wall of the kettle body 1 is coated with a heat insulation layer 5.
In this embodiment, through at the thermal-insulated heat preservation 5 of 1 outer wall cladding of the cauldron body, can play effectual sealed thermal-insulated effect, reduce the heat and give off, improve the heating effect.
The above-mentioned embodiments are only intended to describe the preferred embodiments of the present invention, but not to limit the scope of the present invention, and those skilled in the art should also be able to make various modifications and improvements to the technical solution of the present invention without departing from the spirit of the present invention, and all such modifications and improvements are intended to fall within the scope of the present invention as defined in the appended claims.
Claims (7)
1. The utility model provides a metal working fluid stirred tank which characterized in that: the stirring device comprises a kettle body, a stirring device and a heating rod, wherein a heating layer is arranged in the kettle body, heat conducting oil is arranged in the heating layer, a spacing layer is arranged between the inner wall of the kettle body and the heating layer, the heating rod is fixed on the spacing layer at intervals, the heating layer is provided with a containing cavity which is correspondingly arranged with the heating rod, the heating rod extends into the containing cavity, the top of the kettle body is provided with an inlet pipe, the bottom of the kettle body is provided with a discharging pipe, the stirring device comprises a motor, a stirring shaft, a connecting seat, a first stirring rod and a second stirring rod, the motor is fixedly connected with the top of the kettle body, the upper end of the stirring shaft penetrates through the kettle body and is connected with the motor, the lower end of the stirring shaft is rotatably connected with the connecting seat, the connecting seat is fixedly connected with the bottom of the kettle body, the, first puddler with the second puddler with the heating rod is crisscross to be set up, just a plurality of trompil has all been seted up on first puddler with the second puddler, the second puddler downside has linked firmly the vice puddler of a plurality of.
2. The metal working fluid stirred tank of claim 1, wherein: the bottom in the kettle body is provided with a material guiding slope-shaped block which is fixedly connected between the connecting seat and the side wall of the kettle body.
3. The metal working fluid stirred tank of claim 2, wherein: the cross section of the material guide slope type block is in a smooth transition slope shape.
4. The metal working fluid stirred tank of claim 1, wherein: the first stirring rod, the second stirring rod and the heating rod are arranged horizontally, and the auxiliary stirring rod is arranged vertically.
5. The metal working fluid stirred tank of claim 4, wherein: the first stirring rods or the second stirring rods on the same horizontal plane are four in number, and the first stirring rods or the second stirring rods are evenly and fixedly connected to the circumferential direction of the stirring shaft.
6. The metal working fluid stirred tank of claim 1, wherein: the heating layer is provided with a heat conduction oil inlet at the upper part and a heat conduction oil outlet at the lower part, and the heat conduction oil inlet and the heat conduction oil outlet both penetrate through the side wall of the kettle body and the spacing layer and are communicated with the heating layer.
7. The metal working fluid stirred tank of any one of claims 1 to 6, wherein: the outer wall of the kettle body is coated with a heat insulation layer.
