Abstract
The utility model relates to the technical field of medical equipment, a inhale phlegm apparatus car is disclosed, support including base and locating base upper end one side, the lower part of support is equipped with the mount, the mount is located the base directly over, the mount is used for carrying on spacingly to the sputum aspirator, the upper portion of support is equipped with places the basket and puts the bottleholder, it is used for placing and inhales the phlegm pipe to place the basket, it is used for placing the solution bottle to put the bottleholder, the side of support is equipped with puts the thing cabinet, it is used for placing the manometer to put the thing cabinet. This inhale phlegm apparatus car can be in the same place the fragmentary phlegm apparatus of inhaling rationally, when inhaling the phlegm operation, need not to inhale other positions that the phlegm apparatus was placed in the ward, but the phlegm apparatus is inhaled to reducible pollution, makes things convenient for the nursing staff swiftly to inhale the phlegm operation, make full use of the space of vertical direction in addition, practice thrift and prevent putting the space, still can practice thrift medical personnel's preparation time, can effectively alleviate medical personnel work load, convenient to use, easy to carry out.
Description
Technical Field
The utility model relates to the technical field of medical equipment, especially, relate to a sputum suction apparatus car.
Background
The sputum aspiration nursing process generally comprises the steps of sucking sputum and vomit which are aspirated by mistake in the respiratory tract through an opening, a nasal cavity or an artificial airway so as to keep the respiratory tract smooth and solve the problems of dyspnea, atelectasis, lung infection and the like of a patient caused by airway obstruction. The existing sputum suction apparatus is prevented from being placed dispersedly and is not provided with a fixed placing position. When medical staff perform sputum suction operation on a patient beside a hospital bed, sputum suction devices, other sputum suction tools and bottles are often placed on the table top of the bedside table, but the bottles placed on the table top of the bedside table are easy to turn over or fall off the table top, and in addition, the bedside table is often provided with articles of the patient, so that the patient is messy. Some hospitals place sputum suction articles on a treatment vehicle, and a single treatment vehicle is large and has more articles, and the defects of insecure fixation, increased space land occupation and the like exist.
SUMMERY OF THE UTILITY MODEL
In order to overcome the defects of the prior art, the utility model provides a sputum suction tool vehicle which can suck sputum articles and place the scattered problem.
The utility model provides a technical scheme that its technical problem adopted does:
the utility model provides an inhale phlegm apparatus car, includes the base and locates the support of base upper end one side, the lower part of support is equipped with the mount, the mount is located the base directly over, the mount is used for carrying on spacingly to the sputum aspirator, the upper portion of support is equipped with places the basket and puts the bottleholder, it is used for placing the sputum aspirator pipe to place the basket, it is used for placing the solution bottle to put the bottleholder, the side of support is equipped with puts the thing cabinet, it is used for placing the manometer to put the thing cabinet.
As an improvement of the technical scheme, the bottom of the base is provided with a plurality of universal wheels.
As an improvement of the technical scheme, the universal wheel is provided with a brake pad.
As the improvement of the technical scheme, the base comprises a framework and a balancing weight arranged on the framework, and the framework is wrapped by a plastic cover.
As an improvement of the technical scheme, the framework is composed of a 316 stainless steel square tube, and the balancing weight is an iron block.
As an improvement of the technical scheme, the fixing frame comprises a circular steel ring, gaskets are arranged at two joints of the steel ring, and the two gaskets are connected through screws.
As an improvement of the technical scheme, the top end of the support is provided with a vertical jack, one side of the placing basket is provided with an inverted U-shaped hook, and one end of the hook is inserted into the jack.
As an improvement of the technical scheme, the support is a square tube which is vertically arranged, the middle part of the support is provided with a partition plate, the side surface of the lower part of the support is provided with a door opening, and the space surrounded by the base, the lower part of the support and the partition plate forms the storage cabinet.
As an improvement of the technical scheme, the height of the bracket is 75cm-85 cm.
As an improvement of the technical scheme, the upper part of the bracket is also provided with a handle.
The beneficial effects of the utility model are that:
this inhale phlegm apparatus car sets up from top to bottom and has place the basket, put the bottleholder, the mount and put the thing cabinet, with be used for placing respectively and inhale the required phlegm pipe of inhaling that uses of phlegm, the solution bottle, manometer and sputum aspirator, can collect the phlegm apparatus of inhaling of fragmentary rationally and place together, and fix these phlegm apparatus of inhaling, when inhaling the phlegm operation, need not to inhale other positions that the phlegm apparatus placed in the ward, but the reducible pollution phlegm apparatus of inhaling, can not influence the article that patient placed at the bedside cupboard desktop again, make things convenient for the nursing staff swiftly to inhale the phlegm operation, this inhale phlegm apparatus car make full use of the space of vertical direction simultaneously, practice thrift and prevent putting the space, still can practice thrift medical personnel's preparation time, can effectively alleviate medical personnel's work load, moreover, the steam generator is simple in structure, high durability and convenient use, easy implementation, and low cost.
Drawings
The present invention will be further described with reference to the accompanying drawings and specific embodiments, wherein:

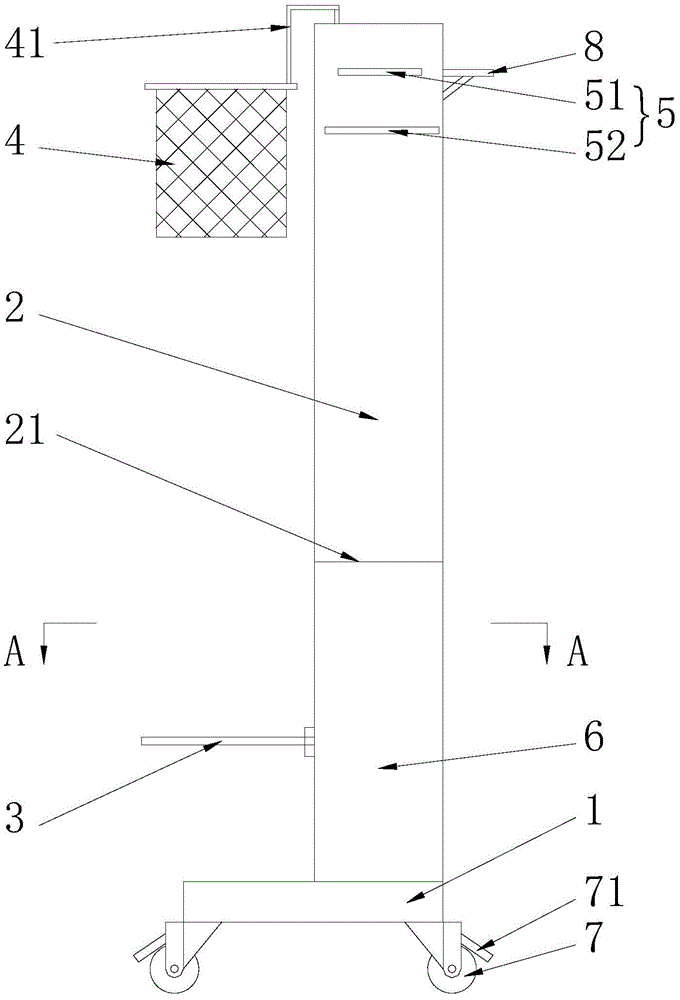

fig. 1 is a schematic side view of an embodiment of the invention;
fig. 2 is a schematic cross-sectional view taken at a-a in fig. 1.
Detailed Description
Referring to fig. 1, the utility model discloses an inhale phlegm apparatus car, support 2 including base 1 and locating 1 upper end one side of base, the lower part of support 2 is equipped with mount 3, mount 3 is located base 1 directly over, mount 3 is used for carrying on spacingly to the sputum aspirator, the upper portion of support 2 is equipped with places basket 4 and puts bottleholder 5, place basket 4 is used for placing inhales the phlegm pipe, it is used for placing the solution bottle to put bottleholder 5, the side of support 2 is equipped with puts thing cabinet 6, it is used for placing the manometer to put thing cabinet 6.
Specifically, this sputum suction apparatus car sets up from top to bottom and has place basket 4, put a bottle rack 5, mount 3 and put thing cabinet 6, in order to be used for placing the sputum suction pipe that the sputum suction needs to use, the solution bottle, manometer and sputum aspirator, can reasonably collect the sputum suction apparatus of fragmentary inhaling and place together, and fix these sputum suction apparatus, when inhaling the phlegm operation, need not to inhale other positions that the sputum suction apparatus placed in the ward, the reducible pollution sputum suction apparatus, can not influence the article that patient placed at bedside cupboard desktop again, make things convenient for the nursing staff swiftly to inhale the phlegm operation, this sputum suction apparatus car make full use of the space of vertical direction simultaneously, practice thrift and prevent putting the space, still can practice thrift medical personnel's preparation time, can effectively alleviate medical personnel's work load, moreover, the steam generator is simple in structure, high durability and convenient use, easy implementation, and low cost. The placing basket 4 is reasonably arranged on the upper part of the bracket 2, so that the sputum suction tube is easy to take, the chance of blockage caused by bending of the connecting tube is reduced, the sputum suction is kept quick and smooth, and the rescue time is strived for patients blocked by sputum. The solution bottle is filled with normal saline for flushing the sputum suction tube.
In addition, the bottom of base 1 is equipped with a plurality of universal wheels 7, be equipped with brake block 71 on the universal wheel 7. The upper part of the bracket 2 is also provided with a handle 8. The sputum suction tool trolley is convenient to move and stop as required, is flexible and convenient to use, and has a wide application range.
Further referring to fig. 2, the distance from the fixing frame 3 to the upper end face of the base 1 is 10cm-15 cm. In this embodiment, the distance from the fixing frame 3 to the upper end surface of the base 1 is 13 cm. The fixing frame 3 comprises a first circular steel ring 31, gaskets 32 are arranged at two joints of the first steel ring 31, and the two gaskets 32 are connected through screws. The gasket 32 is provided with a connecting sheet which is in contact with the bracket 2, and the connecting sheet is connected with the bracket 2 through a screw. The sputum aspirator passes first steel ring 31, places on base 1, and the removal of sputum aspirator is restricted to first steel ring 31.
Specifically, the top end of the support 2 is provided with a vertical jack, one side of the placing basket 4 is provided with an inverted U-shaped hook 41, and one end of the hook 41 is inserted into the jack. The bottle placing frame 5 comprises a second steel ring 51 and a bottle placing plate 52, the second steel ring 51 is arranged on the side face of the support 2, the second steel ring 51 is a circular steel ring, and the bottle placing plate 52 is arranged right below the second steel ring 51.
Further, the support 2 is a square tube which is vertically arranged, the cross section width of the square tube is 8cm-12cm, the length of the square tube is 10cm-14cm, and in the embodiment, the cross section width of the square tube is 10cm, and the length of the square tube is 12 cm. The support 2 is divided into an upper part and a lower part, a partition plate 21 is arranged in the middle of the support 2, a door opening is formed in the side face of the lower part of the support 2, and the upper end face of the base 1, the lower part of the support 2 and the partition plate 21 form the storage cabinet 6.
In addition, base 1 includes the skeleton and locates the balancing weight of skeleton, the outside parcel of skeleton has the plastics cover. The skeleton comprises 316 stainless steel square tube, the balancing weight is the iron plate. The height from the upper end surface of the base 1 to the bottom side of the universal wheel 7 is 8cm-15cm, and in the embodiment, the height from the upper end surface of the base 1 to the bottom side of the universal wheel 7 is 10 cm. The height of the bracket 2 is 75cm-85 cm. In this embodiment, the height of the support 2 is 80cm, and the sputum suction trolley is arranged above the waist of the operator, so as to accord with the aseptic operation principle.
The above description is only a preferred embodiment of the present invention, but the present invention is not limited to the above embodiments, and the technical effects of the present invention should be all included in the protection scope of the present invention as long as the technical effects are achieved by any of the same or similar means.
Claims (10)
1. A sputum suction tool trolley is characterized in that: including base (1) and locate support (2) of base (1) upper end one side, the lower part of support (2) is equipped with mount (3), mount (3) are located base (1) directly over, mount (3) are used for carrying on spacingly to the sputum aspirator, the upper portion of support (2) is equipped with places basket (4) and puts bottleholder (5), it is used for placing the sputum suction pipe to place basket (4), it is used for placing the solution bottle to put bottleholder (5), the side of support (2) is equipped with puts thing cabinet (6), it is used for placing the manometer to put thing cabinet (6).
2. The sputum suction kit as claimed in claim 1, wherein: the bottom of base (1) is equipped with a plurality of universal wheels (7).
3. The sputum suction kit as claimed in claim 2, wherein: and a brake pad (71) is arranged on the universal wheel (7).
4. The sputum suction kit as claimed in claim 1, wherein: base (1) includes the skeleton and locates the balancing weight of skeleton, the outside parcel of skeleton has the plastics cover.
5. The sputum suction kit as claimed in claim 4, wherein: the skeleton comprises 316 stainless steel square tube, the balancing weight is the iron plate.
6. The sputum suction kit as claimed in claim 1, wherein: the fixing frame (3) comprises a circular steel ring (31), gaskets (32) are arranged at two joints of the steel ring (31), and the gaskets (32) are connected through screws.
7. The sputum suction kit as claimed in claim 1, wherein: the top end of the support (2) is provided with a vertical jack, one side of the placing basket (4) is provided with an inverted U-shaped hook (41), and one end of the hook (41) is inserted into the jack.
8. The sputum suction kit as claimed in claim 1, wherein: the storage cabinet is characterized in that the support (2) is a square tube which is vertically arranged, a partition plate (21) is arranged in the middle of the support (2), a door opening is formed in the side face of the lower portion of the support (2), and a space surrounded by the base (1), the lower portion of the support (2) and the partition plate (21) forms the storage cabinet (6).
9. The sputum aspirator trolley of claim 1, 7 or 8, wherein: the height of the bracket (2) is 75cm-85 cm.
10. The sputum suction kit as claimed in claim 1, wherein: the upper part of the bracket (2) is also provided with a handle (8).
