Abstract
本实用新型公开了一种床旁吸痰用置物推车，所述推车本体，所述推车本体的下部设有供床头柜(14)伸入的避让口，所述推车本体上端设有置物台面(3)，所述置物台面(3)上设有用于放置吸痰器的第一限位槽(3‑1)、及用于放置无菌托盘(10)的第二限位槽(3‑2)，所述第一限位槽(3‑1)内设有弹性缓冲垫(3‑3)，所述置物台面(3)的侧部设有至少一个吸痰管支撑件(7)，所述吸痰管支撑件(7)设有供吸痰管伸入的吸痰管穿槽(7‑3a)。本实用新型提供的床旁吸痰用置物推车，可提高护理效率。
The utility model discloses a trolley for bedside sputum suction. The trolley body has a lower part of the trolley body provided with an escape opening for a bedside table (14) to extend into, and the upper end of the trolley body is provided with an escape port. The object placement table top (3) is provided with a first limit groove (3-1) for placing a sputum suction device, and a second limit groove (3-1) for placing a sterile tray (10). 3-2), an elastic buffer pad (3-3) is provided in the first limiting groove (3-1), and at least one suction tube support (7) is provided on the side of the storage table (3) ), the sputum suction tube support (7) is provided with a sputum suction tube through slot (7-3a) for the sputum suction tube to extend into. The bedside phlegm suction cart provided by the utility model can improve the nursing efficiency.
Description
Technical Field
The utility model relates to the technical field of medical equipment, in particular to bedside sputum suction is with putting thing shallow.
Background
Sputum aspiration refers to the aspiration of secretions in the respiratory tract through the oral cavity, nasal cavity and artificial airway to keep the respiratory tract unblocked and prevent complications such as aspiration pneumonia, atelectasis, asphyxia and the like.
When the sputum suction is carried out, a sputum aspirator, a disposable sputum suction tube or a sputum suction bag, water for injection and sterilization, an aseptic treatment tray, hand-disinfecting liquid and other articles are needed, and when the nursing staff carries out the sputum suction operation on a patient, the sputum suction articles are placed on a bedside table or a sickbed, so that the articles are various and messy and influence the sputum suction operation.
SUMMERY OF THE UTILITY MODEL
The utility model aims at providing a bedside sputum suction is with putting thing shallow, simple structure, convenient to use.
Based on the above problem, the utility model provides a technical scheme is:
the utility model provides a bedside is inhaled phlegm with putting thing shallow, the shallow body, the lower part of shallow body is equipped with the mouth of dodging that supplies the bedside cupboard to stretch into, shallow body upper end is equipped with puts the thing mesa, it is equipped with the first spacing groove that is used for placing the sputum aspirator and is used for placing the second spacing groove of aseptic tray on the thing mesa to put, be equipped with elastic buffer pad in the first spacing groove, the lateral part of putting the thing mesa is equipped with at least one and inhales phlegm pipe support piece, it is equipped with the phlegm pipe wearing groove of inhaling that supplies to inhale that the phlegm pipe stretches into to inhale phlegm pipe support piece.
In some of them embodiments, the shallow body includes the support, sets up the first fixing base of support first side and setting are in the second fixing base of support second side, first side with the second side sets up relatively, the front and back end of the bottom of first fixing base, second fixing base is equipped with the brake gyro wheel respectively, it sets up to put the thing mesa the upper end of support.
In some of them embodiments, the support includes vertical arrangement's first backup pad and second backup pad, form between first backup pad, the second backup pad dodge the mouth, first fixing base is fixed the outside of first backup pad, the second fixing base is fixed the outside of second backup pad, it fixes to put the thing mesa the upper end of first backup pad, second backup pad.
In some embodiments, a storage part for placing a sputum suction product is arranged at the lower end of the storage table top, and the storage part is fixed between the first support plate and the second support plate.
In some embodiments, the storage portion includes a fixing portion and a drawer slidably engaged with the fixing portion, and a handle is disposed on a front surface of the drawer.
In some embodiments, a waste liquid collecting tank is arranged on the first fixing seat, a plurality of limiting hoops are arranged on the outer side of the first supporting plate, and the limiting hoops are provided with penetrating openings for the waste liquid collecting tank to extend into.
In some embodiments, the second fixing seat is provided with a positioning groove for placing the garbage collecting can.
In some embodiments, the sputum-aspirating tube support comprises a connecting block, a supporting rod arranged at the upper end of the connecting block, and a fixing ring arranged at the upper end of the supporting rod, wherein the sputum-aspirating tube through groove is arranged on the fixing ring.
In some of these embodiments, the outside of the connecting block is provided with a hook.
In some embodiments, a handle portion is arranged at the front end of the object placing table top, the handle portion comprises two oppositely arranged support rods and a push rod connected with the two support rods, and two anti-skid sheaths are arranged on the push rod.
Compared with the prior art, the utility model has the advantages that:
1. the storage cart can be arranged above the bedside table of the sickbed, occupies small space and is convenient for nursing staff to perform sputum suction operation;
2. the first limit groove for placing the sputum aspirator and the second limit groove for placing the sterile tray are arranged on the object placing table board of the object placing cart, so that the placement of the sputum aspirator and the sterile tray is facilitated, the displacement of articles or the slippage of the articles from the object placing table board are avoided, and an elastic buffer pad is arranged in the first limit groove, so that the buffer and shock absorption effects can be realized, and the noise of the sputum aspirator can be reduced;
3. the lower end of the object placing table top is provided with an object storing part which can be used for storing disposable sputum suction pipes, hand-disinfecting liquid and other sputum suction objects;
4. a waste liquid collecting tank is arranged on the first fixing seat and can be used for collecting secretions of the respiratory tract of the patient;
5. a garbage collecting barrel is arranged on the second fixed seat and can be used for collecting medical garbage generated in sputum suction operation;
6. the sputum suction pipe supporting piece is arranged, so that the sputum suction pipe can be combed and fixed, and the displacement of the sputum suction pipe is avoided.
Drawings
In order to more clearly illustrate the technical solutions of the embodiments of the present invention, the drawings required to be used in the description of the embodiments are briefly introduced below, the drawings in the following description are only some embodiments of the present invention, and for those skilled in the art, other drawings can be obtained according to these drawings without creative efforts.

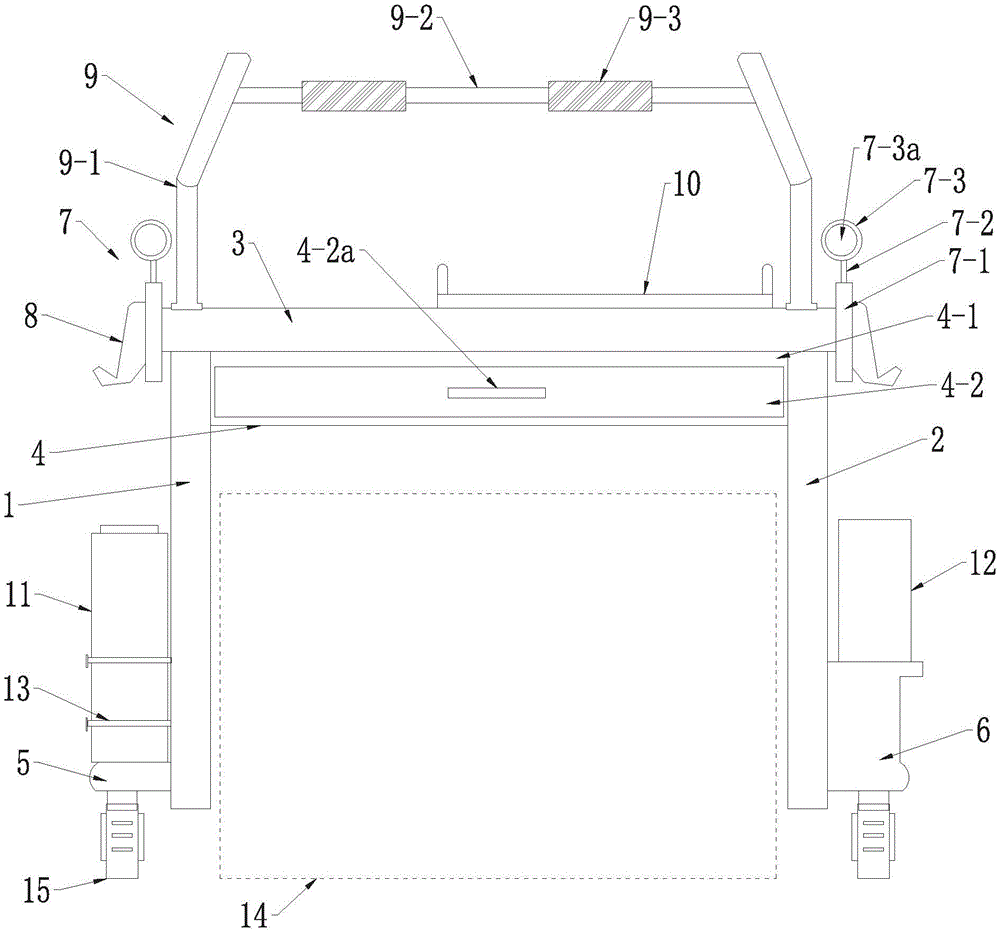

FIG. 1 is a schematic structural view of an embodiment of a bedside storage cart for sputum suction of the present invention;
FIG. 2 is a schematic view of an embodiment of the present invention showing a structure of a platform;
wherein:
1. a first support plate;
2. a second support plate;
3. a storage table top; 3-1, a first limiting groove; 3-2, a second limiting groove; 3-3, an elastic buffer cushion;
4. a storage section; 4-1, a fixing part; 4-2, a drawer; 4-2a, a handle;
5. a first fixed seat;
6. a second fixed seat;
7. a suction catheter support; 7-1, connecting blocks; 7-2, a support rod; 7-3, fixing a ring; 7-3a, passing a sputum suction tube through the groove;
8. hooking;
9. pushing the hand; 9-1, supporting rods; 9-2, a push rod; 9-3, an anti-slip sheath;
10. a sterile tray;
11. a waste liquid collection tank;
12. a refuse collection bin;
13. a limiting hoop;
14. a bedside table;
15. and (5) braking the roller.
Detailed Description
The above-described scheme is further illustrated below with reference to specific examples. It should be understood that these examples are for illustrative purposes and are not intended to limit the scope of the present invention. The conditions used in the examples may be further adjusted according to the conditions of the particular manufacturer, and the conditions not specified are generally the conditions in routine experiments.
Referring to fig. 1-2, for the structural schematic diagram of embodiment 1 of the present invention, a bedside table for sputum suction is provided, which includes a cart body, a dodging opening for a bedside table 14 to extend into is provided at the lower part of the cart body, a table top 3 is provided at the upper end of the cart body, a first limiting groove 3-1 for placing a sputum aspirator and a second limiting groove 3-2 for placing a sterile tray 10 are provided on the table top 3, an elastic cushion 3-2 is provided in the first limiting groove 3-1, sputum suction tube supporting members 7 are respectively provided at the left and right sides of the table top 3, the sputum suction tube supporting members 7 are provided with sputum suction tube penetrating grooves 7-3a for the sputum suction tubes to extend into, wherein the elastic cushion 3-3 can be made of sponge, silica gel or rubber.
In this example, the shallow body includes the support, set up at the first fixing base 5 of support first side and set up the second fixing base 6 at the support second side, and first side sets up with the second side relatively, and the front and back end of the bottom of first fixing base 5, second fixing base 6 is equipped with brake roller 15 respectively, puts thing mesa 3 and sets up the upper end at the support, and brake roller 15 is prior art, the utility model discloses no longer describe repeatedly.
Specifically, the support includes vertical first backup pad 1 of arranging, and second backup pad 2, forms between first backup pad 1, the second backup pad 2 and dodges the mouth, and first fixing base 5 is fixed in the outside of first backup pad 1, and second fixing base 6 is fixed in the outside of second backup pad 2, puts thing mesa 3 and fixes the upper end at first backup pad 1, second backup pad 2.
For conveniently taking in and inhaling the phlegm articles for use, be equipped with the storing portion 4 that is used for placing and inhales the phlegm articles for use at the lower extreme of putting thing mesa 3, storing portion 4 is fixed between first backup pad 1, second backup pad 2.
In this embodiment, the storage part 4 comprises a fixed part 4-1 and a drawer 4-2 slidably engaged with the fixed part 4-1, and a handle 4-2a is provided on the front end surface of the drawer 4-2. The storage part 4 is arranged in a drawer shape, and the operation is convenient.
In order to facilitate the secretion of accomodating patient's respiratory track, be equipped with waste liquid collection tank 11 on first fixing base 5, in order to fix waste liquid collection tank 11, be equipped with a plurality of spacing hoops 13 in the 1 outside of first backup pad, spacing hoop 13 has the mouth of wearing that supplies waste liquid collection tank 11 to stretch into.
In order to facilitate the collection of the garbage generated by the sputum suction operation, the second fixing seat 6 is provided with a garbage collection barrel 12, specifically, the second fixing seat 6 is provided with a positioning groove, and the garbage collection barrel 12 can be arranged in the positioning groove.
In this example, the sputum aspirator tube supporting member 7 comprises a connecting block 7-1, a supporting rod 7-2 arranged at the upper end of the connecting plate 7-1 and a fixing ring 7-3 arranged at the upper end of the supporting rod 7-2, and the sputum aspirator tube through groove 7-3a is arranged on the fixing ring 7-3, which can play a role of combing and supporting the sputum aspirator tube and avoid the displacement of the sputum aspirator tube.
The outer side of the connecting block 7-1 is also provided with a hook 8 which can be used for hanging articles or sucking a sputum tube.
In order to facilitate the pushing of the storage cart, a pushing part 9 is arranged at the front end of the storage table top 3, the pushing part 9 comprises two support rods 9-1 which are oppositely arranged and a push rod 9-2 which is connected with the two support rods 9-1, two anti-skid sheaths 9-3 are arranged on the push rod 9-2, and the protective sheaths 9-3 can be made of silica gel or rubber.
The above examples are only for illustrating the technical conception and the features of the present invention, and the purpose thereof is to enable one skilled in the art to understand the contents of the present invention and to implement the present invention, which should not be construed as limiting the scope of the present invention. All equivalent changes and modifications made according to the spirit of the present invention should be covered by the protection scope of the present invention.
