The utility model discloses a pet air purifier, set up to open-ended shell body including the top, the bonding is fixed with a circular mounting panel down on the inside lateral wall of shell body, and the top periphery bonding of circular mounting panel down is fixed with the interior casing of a ring shaped structure, and the top and the bottom of interior casing all set up to the opening, and the top bonding of interior casing be fixed with one with the inside lateral wall bonding fixed circular top cap of shell body, a first circular installation through-hole has been seted up at the top of circular top cap, be equipped with a top on the inside lateral wall of a circular installation through-hole and set up to open-ended cylindrical installation cup. The utility model discloses can effectively get rid of the peculiar smell of pet and the excrement and urine stink of pet, still have the function of disinfecting simultaneously concurrently.
Description
Technical Field
The utility model relates to an air purifier technical field especially relates to a pet air purifier.
Background
Most modern people, especially young people, are fed cats, dogs or other pets. When the pet is fed, a special pet resting living area is arranged, and the pet resting living area is generally in a net-shaped, rail-shaped or box-shaped structure. Because the pet can not guarantee the sanitary problem, can lead to the pet rest area to have the peculiar smell for a long time, if not handle in time, then can spread whole house, also can exert an influence to the health problem of pet self, therefore we have provided a pet air purifier.
SUMMERY OF THE UTILITY MODEL
The utility model aims at solving the defects existing in the prior art and providing a pet air purifier.
In order to achieve the above purpose, the utility model adopts the following technical scheme:
a pet air purifier comprises an outer shell with an open top, a circular lower mounting plate is fixedly bonded on the inner side wall of the outer shell, an inner shell with a circular ring structure is fixedly bonded on the periphery of the top of the circular lower mounting plate, the top and the bottom of the inner shell are both provided with openings, a circular top cover fixedly bonded with the inner side wall of the outer shell is fixedly bonded on the top of the inner shell, a first circular mounting through hole is formed in the top of the circular top cover, a cylindrical mounting cup body with an open top is arranged on the inner side wall of the first circular mounting through hole, the bottom of the cylindrical mounting cup body is fixedly bonded on the top of the circular lower mounting plate, an air inlet cover is fixedly bonded on the periphery of the top of the cylindrical mounting cup body, and a filter screen with a circular structure is fixedly bonded on the top of, the utility model discloses a pet house, including the filter screen, the filter screen is equipped with the fan installation cover with cylindrical installation cup lateral wall fixed mounting's fan installation cover, the top fixed mounting of fan installation cover has fan motor, and installs a fan blade that is located fan installation cover inside on fan motor's the output shaft, the fixed cover in left side bottom of cylindrical installation cup is equipped with a defeated wind pipeline that is linked together with cylindrical installation cup is inside, and the fixed and intercommunication of one end that cylindrical installation cup was kept away from to defeated wind pipeline has an anion generator's air inlet end, and anion generator fixed mounting is at the top of circular lower mounting panel, and anion generator's air-out end extends to the below of circular lower mounting panel, the inductor embedded groove has been seted up at the right side top of shell body, and the inside fixed embedding of inductor embedded groove is equipped with an ultrasonic sensor who is used for responding to pet dwell time, and ultrasonic sensor electric connection.
Preferably, the left side of the bottom of the outer shell is provided with an air outlet channel with a circular arc structure.
Preferably, the fan mounting cover is a metal cover body with ventilation holes.
Preferably, a plurality of nano graphene sheets are arranged on the fan blade and the filter screen at equal intervals.
Preferably, a discharge needle is installed inside the anion generator, a boosting module electrically connected with the discharge needle is further installed inside the anion generator, and the anion generator is electrically connected with the control circuit board through the boosting module and controlled by the control circuit board.
Preferably, the outer side of the outer shell is further fixedly bonded with an infrared temperature tester for testing the temperature of the pet, and the infrared temperature tester is electrically connected with the control circuit board.
The utility model discloses can effectively get rid of the peculiar smell of pet and the excrement and urine stink of pet, still have the function of disinfecting simultaneously concurrently.
Drawings

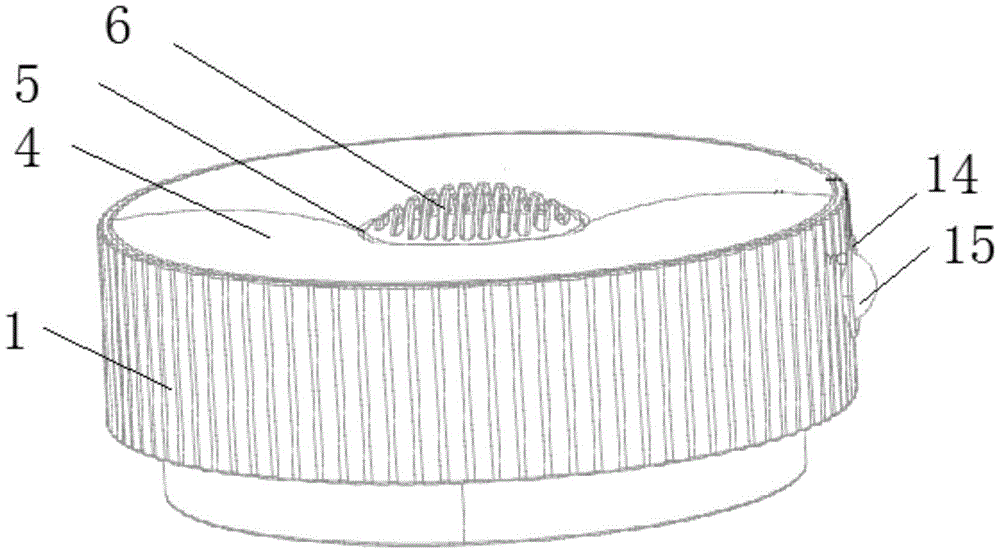

Fig. 1 is a schematic view of a front perspective three-dimensional structure of a pet air purifier provided by the present invention;
fig. 2 is a schematic view of a bottom perspective structure of the pet air purifier provided by the present invention;
FIG. 3 is a schematic view of the structure of FIG. 1 showing the installation of the circular lower mounting plate, the inner housing, the circular top cover and the air inlet cover;
FIG. 4 is a schematic view of the partially cut-away structure of FIG. 3;
fig. 5 is a schematic sectional view of the cylindrical mounting cup of fig. 4.
In the figure: the air conditioner comprises an outer shell 1, a circular lower mounting plate 2, an inner shell 3, a circular top cover 4, a cylindrical mounting cup 5, an air inlet cover 6, a filter screen 7, a fan mounting cover 8, a fan motor 9, fan blades 10, an air delivery pipeline 11, a negative ion generator 12, an air outlet channel 13, an inductor embedding groove 14 and an ultrasonic inductor 15.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.
Referring to fig. 1-5, a pet air purifier comprises an outer casing 1 with an open top, an air outlet channel 13 with a circular arc structure is arranged on the left side of the bottom of the outer casing 1, a circular lower mounting plate 2 is fixedly bonded on the inner side wall of the outer casing 1, an inner casing 3 with a circular ring structure is fixedly bonded on the periphery of the top of the circular lower mounting plate 2, the top and the bottom of the inner casing 3 are both arranged as openings, a circular top cover 4 fixedly bonded with the inner side wall of the outer casing 1 is bonded on the top of the inner casing 3, a first circular mounting through hole is arranged on the top of the circular top cover 4, a cylindrical mounting cup 5 with an open top is arranged on the inner side wall of the first circular mounting through hole, the bottom of the cylindrical mounting cup 5 is fixedly bonded on the top of the circular lower mounting plate 2, an air inlet cover 6 is fixedly bonded on, a filter screen 7 with a circular structure is fixedly bonded at the top of the side wall of the cylindrical installation cup body 5, a fan installation cover 8 fixedly installed with the side wall of the cylindrical installation cup body 5 is arranged below the filter screen 7, the fan installation cover 8 is a metal cover body with a ventilation hole, a fan motor 9 is fixedly installed at the top of the fan installation cover 8, a fan blade 10 positioned in the fan installation cover 8 is installed on an output shaft of the fan motor 9, a plurality of nano graphene sheets are arranged on the fan blade 10 and the filter screen 7 at equal intervals, an air conveying pipeline 11 communicated with the inside of the cylindrical installation cup body 5 is fixedly sleeved at the bottom of the left side of the cylindrical installation cup body 5, one end of the air conveying pipeline 11 far away from the cylindrical installation cup body 5 is fixedly communicated with an air inlet end of a negative ion generator 12, and the negative ion generator 12 is fixedly installed at the top of the, the air outlet end of the anion generator 12 extends to the lower part of the circular lower mounting plate 2, the right top of the outer shell 1 is provided with an inductor embedded groove 14, the inside of the inductor embedded groove 14 is fixedly embedded with an ultrasonic inductor 15 for sensing the residence time of the pet, the ultrasonic inductor 15 is electrically connected with a control circuit board which is fixedly bonded at the bottom of the circular lower mounting plate 2, the outer side of the outer shell 1 is also fixedly bonded with an infrared temperature tester for testing the temperature of the pet, the infrared temperature tester is electrically connected with the control circuit board, the inside of the anion generator 12 is provided with a discharge needle, the anion generator 12 is also internally provided with a boosting module which is electrically connected with the discharge needle, the anion generator 12 is electrically connected with the control circuit board through the boosting module and is controlled by the control circuit board, the utility model can effectively remove the peculiar smell of the pet and the excrement odor of the pet, meanwhile, the utility model also has the function of sterilization.
In the utility model, when the ultrasonic sensor 15 senses the stay of the object, firstly, the infrared temperature tester judges the animal according to the temperature of the object, and simultaneously the ultrasonic sensor 15 senses the stay time of the object to exceed the set time, then the ultrasonic sensor 15 controls the fan motor 9 and the anion generator 12 to start through the control circuit board, the fan motor 9 drives the fan blade 10 to rotate in the fan mounting cover 8, the outside air can be filtered through the filter screen 7, meanwhile, the nano graphene sheets on the filter screen 7 preliminarily sterilize the outside air, when the air filtered by the filter screen 7 passes through the fan blade 10, the fan blade 10 in the rotating state secondarily sterilizes the air by using the nano graphene sheets outside the fan blade, and then the air enters the anion generator 12 through the air duct 11, control circuit board controls the discharge needle through the module that steps up this moment, the needle end of discharge needle utilizes direct current high pressure to produce high corona, the oxygen molecule in a large amount of electrons and the air of high-speed release reacts, realize air-purifying's effect, the air after anion generator 12 handles enters into the below of circular lower mounting panel 2, finally discharges by air-out passageway 13, can effectively get rid of the peculiar smell of pet and the excrement and urine stink of pet by last, still have the bactericidal function simultaneously concurrently.
In the description of the present application, it should be further noted that, unless otherwise explicitly stated or limited, the terms "disposed," "mounted," "connected," and "connected" are to be construed broadly and may include, for example, a fixed connection, a detachable connection, an integral connection, a mechanical connection, an electrical connection, a direct connection, a connection through an intermediate medium, and a connection between two elements. The specific meaning of the above terms in the present application can be understood by those of ordinary skill in the art according to specific circumstances.
The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.
Claims (6)
1. A pet air purifier comprises an outer shell (1) with an open top, and is characterized in that a circular lower mounting plate (2) is fixedly bonded on the inner side wall of the outer shell (1), an inner shell (3) with a circular ring structure is fixedly bonded on the periphery of the top of the circular lower mounting plate (2), the top and the bottom of the inner shell (3) are both arranged to be open, a circular top cover (4) fixedly bonded with the inner side wall of the outer shell (1) is fixedly bonded on the top of the inner shell (3), a first circular mounting through hole is formed in the top of the circular top cover (4), a cylindrical mounting cup body (5) with an open top is arranged on the inner side wall of the first circular mounting through hole, the bottom of the cylindrical mounting cup body (5) is fixedly bonded on the top of the circular lower mounting plate (2), an air inlet cover (6) is fixedly bonded on the periphery of the top of the cylindrical mounting cup body, and the top of the side wall of the cylindrical installation cup body (5) is fixedly bonded with a filter screen (7) with a circular structure, a fan installation cover (8) fixedly installed with the side wall of the cylindrical installation cup body (5) is arranged below the filter screen (7), a fan motor (9) is fixedly installed at the top of the fan installation cover (8), a fan blade (10) positioned in the fan installation cover (8) is installed on an output shaft of the fan motor (9), an air conveying pipeline (11) communicated with the inside of the cylindrical installation cup body (5) is fixedly sleeved at the bottom of the left side of the cylindrical installation cup body (5), one end of the air conveying pipeline (11) far away from the cylindrical installation cup body (5) is fixedly communicated with an air inlet end of an anion generator (12), and the anion generator (12) is fixedly installed at the top of the circular lower installation plate (2), the air outlet end of the anion generator (12) extends to the lower part of the circular lower mounting plate (2), the right side top of the outer shell (1) is provided with an inductor embedded groove (14), the inside of the inductor embedded groove (14) is fixedly embedded with an ultrasonic inductor (15) used for inducing the residence time of a pet, and the ultrasonic inductor (15) is electrically connected with a control circuit board which is bonded and fixed at the bottom of the circular lower mounting plate (2).
2. The pet air purifier as claimed in claim 1, wherein the left side of the bottom of the outer casing (1) is provided with an air outlet channel (13) with a circular arc structure.
3. The pet air purifier as claimed in claim 1, wherein the fan mounting cover (8) is a metal cover with ventilation holes.
4. The pet air purifier as claimed in claim 1, wherein the fan blades (10) and the filter screen (7) are provided with a plurality of nano graphene sheets at equal intervals.
5. The pet air purifier as claimed in claim 1, wherein a discharge needle is installed inside the negative ion generator (12), and a boost module electrically connected to the discharge needle is further installed inside the negative ion generator (12), and the negative ion generator (12) is electrically connected to the control circuit board through the boost module and controlled by the control circuit board.
6. The pet air purifier as claimed in claim 1, wherein an infrared temperature tester for testing the temperature of the pet is further fixedly bonded to the outer side of the outer casing (1), and the infrared temperature tester is electrically connected with the control circuit board.
