CN213175317U - Household self-cleaning energy-saving window

Info

Publication number: CN213175317U
Application number: CN202021600255.9U
Authority: CN
Inventors: 梁爽; 刘智鑫; 甘旭; 纪良博; 张焱
Original assignee: Yingkou Institute of Technology
Current assignee: Yingkou Institute of Technology
Priority date: 2020-08-05
Filing date: 2020-08-05
Publication date: 2021-05-11
Anticipated expiration: 2030-08-05

Abstract

The utility model discloses a domestic self-cleaning formula energy-conserving window belongs to building window technical field, including fixed frame and glass frame, the inboard center department in the upper and lower both ends of fixed frame all rotates through antifriction bearing and is connected with the pivot, the equal fixedly connected with disc of two relative one ends of pivot, and the inboard sliding connection of one side of disc and fixed frame, the rectangle spout has all been seted up at the upper and lower both ends of glass frame, equal sliding connection has the rectangle sliding sleeve in two rectangle spouts, sliding connection has the rectangle pole in the rectangle sliding sleeve, the both ends of rectangle pole respectively with the both sides fixed connection that the rectangle spout is relative, one side of rectangle sliding sleeve and the center department fixed connection of glass frame. The utility model discloses, can realize window furthest's ventilation and daylighting to the glass window can freely be adjusted to outdoor or indoor, and the user of being convenient for cleans glass window, and the user can not be injured because of colliding the window corner in addition during normal use.

Description

Household self-cleaning energy-saving window

Technical Field

The utility model relates to a building window technical field especially relates to a domestic self-cleaning formula energy-conserving window.

Background

The window is an important device for improving the internal ventilation effect and the lighting effect of the building, has extremely wide requirements in various buildings, is one of indispensable components of the building, and achieves the purposes of energy conservation and consumption reduction in order to improve the internal lighting and ventilation effects of the building.

At present, a rotating window for on the building can only be along axial rotation, and it is outdoor that half glass window is in half indoor after opening, and the user touches easily when indoor walking and is located indoor glass window corner, takes place the accident of damaging easily to when cleaning glass window, need stretch out the window with arm and health outside, the cleaning process is then very dangerous.

SUMMERY OF THE UTILITY MODEL

The utility model aims at solving among the prior art rotatory window and opening back glass window half and be in indoor half and be in outdoors, the user touches easily when indoor walking and is located indoor glass window corner, takes place the accident of damaging easily to also be difficult for carrying out clear problem to glass window, and the energy-conserving window of domestic self-cleaning formula that provides.

In order to achieve the above purpose, the utility model adopts the following technical scheme:

a household self-cleaning energy-saving window comprises a fixed frame and a glass frame, wherein the centers of the inner sides of the upper and lower ends of the fixed frame are respectively connected with a rotating shaft in a rotating manner through a rolling bearing, the two opposite ends of the rotating shaft are respectively fixedly connected with a disc, one side of the disc is in sliding connection with the inner side of the fixed frame, the upper and lower ends of the glass frame are respectively provided with a rectangular sliding chute, a rectangular sliding sleeve is respectively connected in the two rectangular sliding chutes in a sliding manner, a rectangular rod is connected in the rectangular sliding sleeve in a sliding manner, the two opposite sides of the rectangular rod are respectively fixedly connected with the two opposite sides of the rectangular sliding chute, one side of the rectangular sliding sleeve is fixedly connected with the center of the glass frame, the left and right sides of the glass frame are respectively connected with a scraping plate in a sliding manner, the opposite sides, the inner side of the lower end of the fixing frame is provided with a cylindrical groove, and a positioning mechanism is connected in the cylindrical groove.

Preferably, the positioning mechanism comprises a positioning rod which is sleeved in the cylindrical groove in a sliding manner, one side, opposite to the inner wall of the lower end of the fixing frame, of the disc is provided with a plurality of positioning grooves, one end of the positioning rod extends into one of the positioning grooves and is provided with an annular chamfer, the other end of the positioning rod is fixedly connected with a spring, one end, far away from the positioning rod, of the spring is fixedly connected with one side of the cylindrical groove, a strip-shaped through hole is formed in the center of the lower side of the front end of the fixing frame, a brake rod is connected in the strip-shaped through hole in a sliding manner, and one end of the brake.

Preferably, the right edge of the glass frame is fixedly connected with a pull rod, the edges of the front end and the rear end of the glass frame are provided with clamping grooves, the inner side of the fixing frame is fixedly connected with a rubber frame, and the upper end and the lower end of the rubber frame are provided with notches matched with the discs.

Preferably, an elastic rod is fixedly connected to a side wall of one of the scrapers, and two rubber suction cups are fixedly connected to a rod wall of the elastic rod.

Compared with the prior art, the utility model provides a domestic self-cleaning formula energy-conserving window possesses following beneficial effect:

1. this energy-conserving window of domestic self-cleaning formula, fixed frame through being equipped with, install fixed frame in the window of reserving on the building, when needing to open the window, hand pulling brake lever makes locating lever extrusion spring, make the locating lever and the constant head tank separation on the disc when the spring atress contracts, and then can make the locating lever relieve the location to the disc, then make the glass frame drive the rectangle pole with hand pulling pull lever and make the rectangle sliding sleeve atress, the rectangle sliding sleeve atress drives the disc and makes the pivot rotatory around antifriction bearing, and then can make the glass frame rotatory to with fixed frame vertically angle, realize that the furthest of window opens, be favorable to indoor ventilation and daylighting.

2. This energy-conserving window of domestic self-cleaning formula, scraper blade through being equipped with, it slides in the rectangle sliding sleeve to promote the glass frame drive rectangle pole with the hand, the glass frame slides in two scraper blades during the slip, and then make the glass of installation on the glass frame can rub each other with the scraper blade, can both play clear effect to the glass on the window when opening the window, and the moving distance of glass frame can be restricted to the rectangle pole, make the glass window can freely move to outdoor and indoor, the user of being convenient for cleans the glass on the window, and the glass window then can move to outdoor during normal use, and use elastic rod and the rubber suction cup on the scraper blade to adsorb glass window and carry on spacingly, prevent glass window free slip, the user has been avoided touching the window corner emergence injury accident when indoor walking.

The part that does not relate to among the device all is the same with prior art or can adopt prior art to realize, the utility model discloses, can realize window furthest's ventilation and daylighting to the glass window can freely adjust to outdoor or indoor, and the user of being convenient for cleans the glass window, and the user can not be injured because of colliding the window corner in addition during normal use.

Drawings

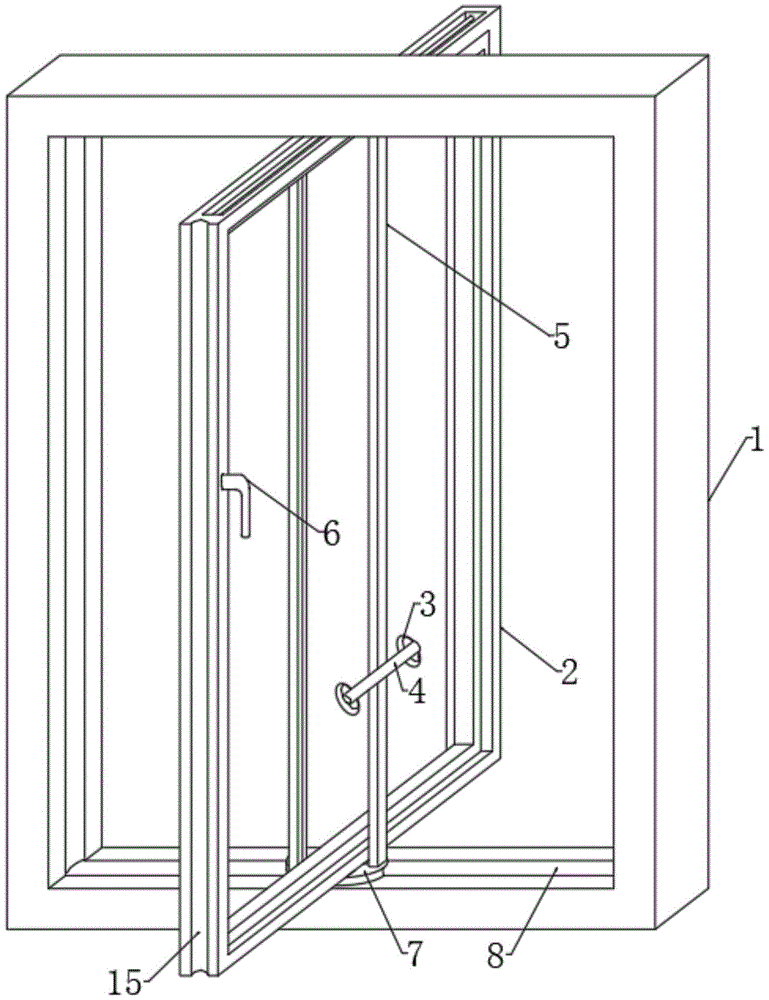

Fig. 1 is a schematic structural view of a household self-cleaning energy-saving window provided by the utility model;

FIG. 2 is a schematic structural view of a fixed frame, a disc and a scraper in the household self-cleaning energy-saving window provided by the utility model;

FIG. 3 is a schematic diagram of a right-view structure of a fixed frame glass frame in a household self-cleaning energy-saving window provided by the utility model;

FIG. 4 is a schematic top view of a disc in a household self-cleaning energy-saving window according to the present invention;

fig. 5 is an enlarged view of a structure at a in fig. 3.

In the figure: the device comprises a fixed frame 1, a glass frame 2, a rubber sucker 3, an elastic rod 4, a scraping plate 5, a pull rod 6, a circular disc 7, a rubber frame 8, a rectangular sliding sleeve 9, a rectangular rod 10, a positioning groove 11, a brake rod 12, a positioning rod 13, a spring 14, a clamping groove 15 and a rectangular sliding groove 16.

Detailed Description

The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments.

In the description of the present invention, it is to be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", "outer", and the like indicate orientations or positional relationships based on the orientations or positional relationships shown in the drawings, and are only for convenience of description and simplicity of description, and do not indicate or imply that the device or element being referred to must have a particular orientation, be constructed and operated in a particular orientation, and therefore, should not be construed as limiting the present invention.

Referring to fig. 1-5, a household self-cleaning energy-saving window comprises a fixed frame 1 and a glass frame 2, the centers of the inner sides of the upper and lower ends of the fixed frame 1 are rotatably connected with rotating shafts through rolling bearings, the opposite ends of the two rotating shafts are fixedly connected with a disc 7, one side of the disc 7 is slidably connected with the inner side of the fixed frame 1, the upper and lower ends of the glass frame 2 are respectively provided with a rectangular sliding groove 16, two rectangular sliding grooves 16 are respectively slidably connected with a rectangular sliding sleeve 9, a rectangular rod 10 is slidably connected in the rectangular sliding sleeve 9, the two ends of the rectangular rod 10 are respectively fixedly connected with the two opposite sides of the rectangular sliding groove 16, one side of the rectangular sliding sleeve 9 is fixedly connected with the center of the glass frame 2, the left and right sides of the glass frame 2 are respectively slidably connected with scraping plates 5, the opposite sides of the two scraping plates 5 are respectively fixedly connected with rubber sheets, the self-cleaning function is realized, the upper end and the lower end of the scraper 5 are respectively and fixedly connected with one side of the fixed frame 1 opposite to the two discs 7, lateral wall fixed connection elastic rod 4 of one of them scraper blade 5, two rubber suction cups of fixedly connected with 3 on the pole wall of elastic rod 4, rubber suction cup 3 can attract spacingly with 4 cooperation glass of elastic rod to the installation on glass frame 2, avoid glass frame 2 to freely slide in fixed frame 1 when opening, the right side edge fixedly connected with pull rod 6 of glass frame 2, draw-in groove 15 has all been seted up to both ends edge around glass frame 2, the inboard fixedly connected with rubber frame 8 of fixed frame 1, the upper and lower both ends of rubber frame 8 all have been seted up with disc 7 matched with breach, rubber frame 8 can increase the leakproofness between fixed frame 1 and the glass frame 2, the cylinder groove has been seted up to the lower extreme inboard of fixed frame 1, the cylinder inslot is connected with positioning mechanism.

Positioning mechanism cup joints the locating lever 13 at the cylinder inslot including sliding, a plurality of constant head tanks 11 have been seted up with the relative one side of fixed frame 1 lower extreme inner wall to one of them disc 7, the one end of locating lever 13 extends to in one of them constant head tank 11 and has seted up the annular chamfer, the other end fixedly connected with spring 14 of locating lever 13, spring 14 keeps away from one end of locating lever 13 and one side fixed connection in cylinder groove, the bar through-hole has been seted up to the front end downside center department of fixed frame 1, sliding connection has brake lever 12 in the bar through-hole, the one end of brake lever 12 pass the bar through-hole and with the pole wall fixed.

In the utility model, the fixing frame 1 is arranged in a window reserved on a building, when the window needs to be opened, the brake lever 12 is pulled by hand to enable the positioning rod 13 to extrude the spring 14, when the spring 14 is stressed and contracted, the positioning rod 13 is separated from the positioning groove 11 on the disc 7, and then the positioning rod 13 can be released from positioning the disc 7, then the pull rod 6 is pulled by hand to enable the glass frame 2 to drive the rectangular rod 10 to enable the rectangular sliding sleeve 9 to be stressed, the rectangular sliding sleeve 9 is stressed to drive the disc 7 to enable the rotating shaft to rotate around the rolling bearing, and further the glass frame 2 can be rotated to an angle vertical to the fixing frame 1, thereby realizing the maximum opening of the window, being beneficial to indoor ventilation and lighting, pushing the glass frame 2 by hand to drive the rectangular rod 10 to slide in the rectangular sliding sleeve 9, the glass frame 2 slides in the two scraping plates 5 during sliding, and further enabling the, can both play clear effect to the glass on the window when opening the window, and rectangular pole 10 can restrict the displacement of glass frame 2, make the glass window can freely remove to outdoor and indoor, the user of being convenient for cleans the glass on the window, and glass window 2 then can remove to outdoor during normal use, and use elastic rod 4 and the 3 absorption glass of rubber suction cup on the scraper blade 5 to carry on spacingly to glass window 2, prevent glass window 2 free slip, the accident of damaging takes place for the window corner has been touched when having avoided the user to walk indoor.

The above, only be the concrete implementation of the preferred embodiment of the present invention, but the protection scope of the present invention is not limited thereto, and any person skilled in the art is in the technical scope of the present invention, according to the technical solution of the present invention and the utility model, the concept of which is equivalent to replace or change, should be covered within the protection scope of the present invention.

Claims

1. The household self-cleaning energy-saving window comprises a fixed frame (1) and a glass frame (2), and is characterized in that the centers of the inner sides of the upper end and the lower end of the fixed frame (1) are rotatably connected with a rotating shaft through rolling bearings, the two ends, opposite to the rotating shaft, of the rotating shaft are fixedly connected with a disc (7), one side of the disc (7) is in sliding connection with the inner side of the fixed frame (1), the upper end and the lower end of the glass frame (2) are provided with rectangular sliding grooves (16), the two ends of the rectangular sliding grooves (16) are respectively in sliding connection with a rectangular sliding sleeve (9), the rectangular sliding sleeves (9) are in sliding connection with rectangular rods (10), the two ends of each rectangular rod (10) are respectively in fixed connection with the two sides, opposite to the rectangular sliding grooves (16), one side of each rectangular sliding sleeve (9) is fixedly connected with the center of the glass frame (2), and the left, two equal fixedly connected with sheet rubber in the relative one side of scraper blade (5), the upper and lower both ends of scraper blade (5) respectively with fixed frame (1) on the relative one side fixed connection of two discs (7), the cylinder groove has been seted up to the lower extreme inboard of fixed frame (1), the cylinder inslot is connected with positioning mechanism.

2. A household self-cleaning energy-saving window as recited in claim 1, wherein the positioning mechanism comprises a positioning rod (13) slidably sleeved in the cylindrical groove, one side of one of the discs (7) opposite to the inner wall of the lower end of the fixed frame (1) is provided with a plurality of positioning grooves (11), one end of the positioning rod (13) extends into one of the positioning grooves (11) and is provided with an annular chamfer, the other end of the positioning rod (13) is fixedly connected with a spring (14), one end of the spring (14) far away from the positioning rod (13) is fixedly connected with one side of the cylindrical groove, a strip-shaped through hole is arranged at the center of the lower side of the front end of the fixed frame (1), a brake rod (12) is connected in the strip-shaped through hole in a sliding way, one end of the brake rod (12) penetrates through the strip-shaped through hole and is fixedly connected with the rod wall of the positioning rod (13).

3. The household self-cleaning energy-saving window as claimed in claim 1, wherein a pull rod (6) is fixedly connected to the right edge of the glass frame (2), clamping grooves (15) are formed in the edges of the front end and the rear end of the glass frame (2), a rubber frame (8) is fixedly connected to the inner side of the fixing frame (1), and notches matched with the discs (7) are formed in the upper end and the lower end of the rubber frame (8).

4. A household self-cleaning energy-saving window as claimed in claim 1, wherein an elastic rod (4) is fixedly connected to the side wall of one of the scrapers (5), and two rubber suction cups (3) are fixedly connected to the rod wall of the elastic rod (4).
