Abstract
The utility model discloses an assembled steel construction building externally-hung wallboard that stability is strong relates to building technical field. This assembled steel construction building externally-hanging wallboard that stability is strong includes first fixed strip and second fixed strip, the inside inserted bar that pegs graft of first fixed strip and second fixed strip, the inserted bar is pegged graft with first fixed strip grafting one end and fixture block joint, the fixture block cup joints inside the fixture block movable sleeve. This assembled steel construction building externally-hanging wallboard that stability is strong, use through the cooperation of two inside fixture blocks of inserted bar fixing device and can fix the position of inserted bar, the inserted bar drops the device and reduces the device's stability when preventing whole device slope or taking place to vibrate, thereby can ensure the device's stability, when needing to dismantle the inserted bar, also only need earlier with the inserted bar to the inside promotion of inserted bar fixing device extract again can, make the device can stable control inserted bar position also can not hinder the user and dismantle the inserted bar.
Description
Technical Field
The utility model relates to a building technical field specifically is a strong assembled steel construction building externally-hanging wallboard of stability.
Background
The upper surface of the assembled steel structure building external wall panel on the existing market is provided with a lapping concave part; the corresponding assembled steel structure building external wall boards are close to the lower surface of the other side to form a lap joint convex part, when the assembled steel structure building external wall boards are installed, the two adjacent assembled steel structure building external wall boards are connected with the corresponding lap joint convex parts in a matched mode through the lap joint concave parts, and then the two assembled external walls are fixed on a steel structure through bolts.
The utility model discloses an assembled steel construction building externally-hanging wallboard is disclosed in the patent of grant notice No. CN 209523380U, this assembled steel construction building externally-hanging wallboard, cooperation through steel construction and coupling assembling, can realize quick and fixed stable purpose, when the installation, fix the bottom plate, then inside the through-hole of stand is pegged graft to the first spacing post at bottom plate top, then inside the first fixed slot is pegged graft to the connecting plate, and use through the cooperation of draw-in groove and card strip, interconnect about making a plurality of connecting plates, through mutually supporting of fixture block and recess, interconnect about can making a plurality of connecting plates, then the inside of through-hole is pegged graft to two spacing posts of second of roof bottom, realize the closure at top, make whole structure very stable. However, in the assembly type steel structure building external wall panel, the inserted link between the first fixing strip and the second fixing strip is not provided with a fixing device, so that the inserted link is easily separated from the device when the whole device is inclined at a certain angle or vibrates, thereby reducing the stability of the whole device.
SUMMERY OF THE UTILITY MODEL
Technical problem to be solved
Not enough to prior art, the utility model provides a strong assembled steel construction building externally-hanging wallboard of stability has solved the problem of proposing in the above-mentioned background art.
(II) technical scheme
In order to achieve the above purpose, the utility model discloses a following technical scheme realizes: an assembly type steel structure building external wallboard with strong stability comprises a first fixing strip and a second fixing strip, wherein an inserting rod is inserted into the first fixing strip and the second fixing strip, the inserting rod is connected with one end of the first fixing strip in a clamping manner, a clamping block is sleeved inside a clamping block movable sleeve, the clamping block movable sleeve is fixedly connected with a first piston, the first piston is movably connected with a second piston through a hydraulic bin, the outer wall of the hydraulic bin is fixedly connected with the inner wall of an inserting rod fixing device, the top of the inserting rod fixing device is fixedly connected with the first fixing strip, the bottom of the second piston is fixedly connected with a transmission bracket, the bottom of the clamping block movable sleeve is fixedly connected with a positioning block, the positioning block is movably connected with a positioning device, the top of the positioning device is fixedly connected with the hydraulic bin, the top of the transmission bracket is provided with a push rod, and the top end of the push rod is fixedly connected with a transmission plate, the top of the transmission plate is arranged at the bottom of the inserted bar, the bottom of the transmission plate is fixedly connected with a spring, and the bottom of the spring is fixedly connected with the bottom of the inner wall of the inserted bar fixing device.
Preferably, one side, far away from the inserted bar, of the fixture block is fixedly connected with one end of a second spring, and the other end of the second spring is fixedly connected with the inner wall of the movable sleeve of the fixture block.
Preferably, the bottom of the inner wall of the positioning device is fixedly connected with a third spring, the top end of the third spring is fixedly connected with a positioning rod, the positioning rod is movably connected with a button through a lever, and the lever is rotatably connected with the inner wall of the positioning device.
Preferably, two limiting plates are arranged on two sides of the transmission support, and the bottoms of the limiting plates are fixedly connected with the bottom of the inner wall of the inserted bar fixing device.
Preferably, the transmission plate is sleeved inside the limiting sleeve, and the bottom of the limiting sleeve is fixedly connected with the inner wall of the inserted rod fixing device.
Preferably, the number of the clamping blocks is two, and the two clamping blocks are symmetrically arranged on two sides of the inserted rod.
(III) advantageous effects
The utility model provides a strong assembled steel construction building externally hung wallboard of stability. The method has the following beneficial effects:
(1) this assembled steel construction building externally-hanging wallboard that stability is strong, can fix the position of inserted bar through two inside fixture block cooperations of inserted bar fixing device, the inserted bar drops the device and reduces the device's stability when preventing whole device slope or taking place to vibrate, thereby can ensure the device's stability, when needing to dismantle the inserted bar, also only need earlier with the inserted bar to the inside promotion of inserted bar fixing device extract again can, make the device can stable control inserted bar position also can not hinder the user and dismantle the inserted bar.
(2) This assembled steel construction building externally-hanging wallboard that stability is strong, two limiting plate cooperations are used and can be carried on spacingly to the removal of transmission support, prevent that the direction of motion of transmission support from taking place the skew, and the stop collar can carry on spacingly to the removal of inserted bar and driving plate, ensures that the inserted bar can normally install and dismantle.
Drawings

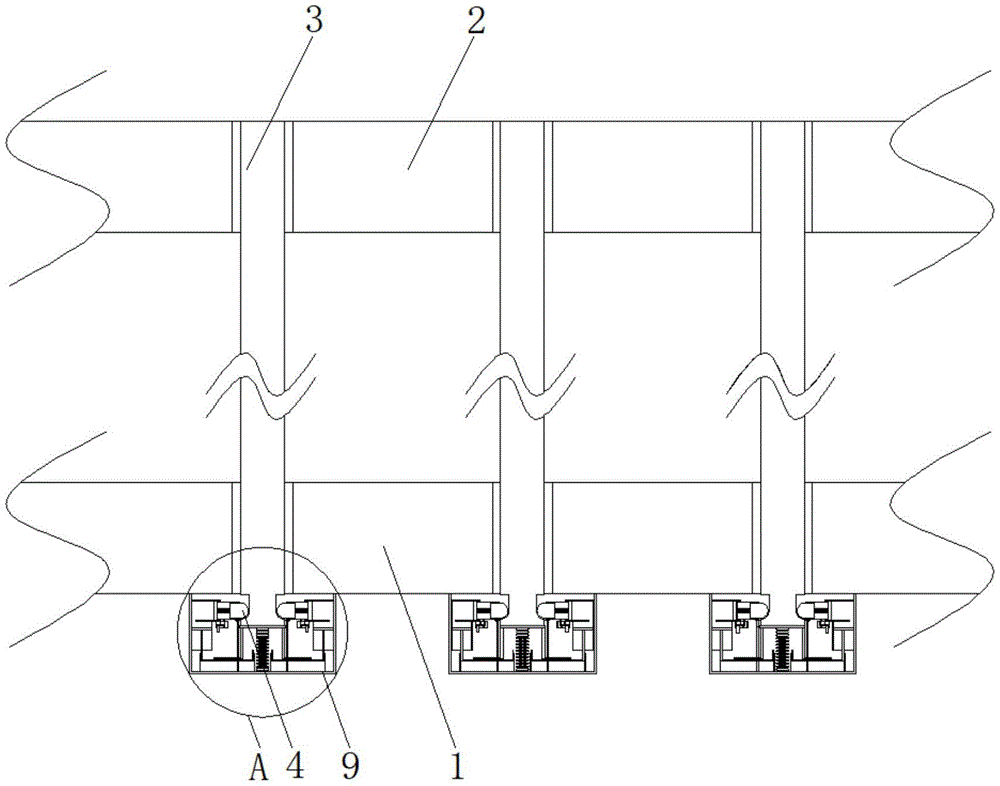

Fig. 1 is a top cross-sectional view of a first positioning bar and a second positioning bar of the present invention;
FIG. 2 is an enlarged schematic view of part A of the present invention;
FIG. 3 is an enlarged schematic view of part B of the present invention;
FIG. 4 is a front view of the main body of the present invention;
fig. 5 is a side view of the main body of the present invention.
In the figure: the device comprises a first fixing strip 1, a second fixing strip 2, an inserting rod 3, a clamping block 4, a clamping block movable sleeve 5, a positioning block 51, a second spring 52, a first piston 6, a hydraulic chamber 7, a second piston 8, an inserting rod fixing device 9, a transmission bracket 10, a push rod 11, a transmission plate 12, a first spring 13, a positioning device 14, a third spring 141, a positioning rod 142, a lever 143, a button 144, a limiting plate 15, a limiting sleeve 16, a stand column 17 and a fourth spring 18.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-5, the present invention provides a technical solution: an assembly type steel structure building external wall panel with strong stability comprises a first fixing strip 1 and a second fixing strip 2, an inserting rod 3 is inserted into the first fixing strip 1 and the second fixing strip 2, one end of the inserting rod 3, which is inserted into the first fixing strip 1, is clamped with a clamping block 4, the number of the clamping blocks 4 is two, the two clamping blocks 4 are symmetrically arranged at two sides of the inserting rod 3, the clamping blocks 4 are sleeved in a clamping block movable sleeve 5, one side of the clamping block 4, which is far away from the inserting rod 3, is fixedly connected with one end of a second spring 52, the other end of the second spring 52 is fixedly connected with the inner wall of the clamping block movable sleeve 5, the clamping block movable sleeve 5 is fixedly connected with a first piston 6, the first piston 6 is movably connected with a second piston 8 through a hydraulic chamber 7, the outer wall of the hydraulic chamber 7 is fixedly connected with the inner wall of an inserting rod fixing device 9, the top of the inserting rod fixing device 9 is fixedly connected with the first fixing strip 1, the bottom of the fixture block movable sleeve 5 is fixedly connected with a positioning block 51, the positioning block 51 is movably connected with a positioning device 14, the bottom of the inner wall of the positioning device 14 is fixedly connected with a third spring 141, the top end of the third spring 141 is fixedly connected with a positioning rod 142, the positioning rod 142 is movably connected with a button 144 through a lever 143, the lever 143 is rotatably connected with the inner wall of the positioning device 14, the top of the positioning device 14 is fixedly connected with a hydraulic chamber 7, the top of a transmission bracket 10 is provided with a push rod 11, two sides of the transmission bracket 10 are provided with two limiting plates 15, the bottoms of the limiting plates 15 are fixedly connected with the bottom of the inner wall of an inserted rod fixing device 9, the two limiting plates 15 are matched for use to limit the movement of the transmission bracket 10 and prevent the movement direction of the transmission bracket 10 from deviating, the top end of the push rod 11 is fixedly connected with a, the driving plate 12 is sleeved inside the limiting sleeve 16, the bottom of the limiting sleeve 16 is fixedly connected with the inner wall of the inserted bar fixing device 9, the limiting sleeve 16 can limit the movement of the inserted bar 3 and the driving plate 12, the inserted bar 3 can be normally installed and detached, and the bottom end of the first spring 13 is fixedly connected with the bottom of the inner wall of the inserted bar fixing device 9.
In this assembled steel construction building externally-hanging wallboard that stability is strong, can fix the position of inserted bar 3 through the inside two fixture blocks 4 cooperation use of inserted bar fixing device 14, inserted bar 3 drops the device and reduces the device's stability when preventing whole device slope or from taking place to vibrate, thereby can ensure the device's stability, when needing to dismantle inserted bar 3, also only need earlier inserted bar 3 to the inside promotion of inserted bar fixing device 14 extract again can, make the device can stable control inserted bar 3 position also can not hinder the user to dismantle inserted bar 3.
When the device works (or is used), the front surface and the back surface of an upright column in the device are respectively clamped with a first fixing strip 1 and a second fixing strip 2, an inserting rod 3 is inserted into the first fixing strip 1 and the second fixing strip 2, one end of the inserting rod 3 connected with the first fixing strip 1 is fixed in an inserting rod fixing device 9, under the action of two clamping blocks 4, the inserting rod 3 can be well fixed in the inserting rod fixing device 9 without moving, when a user needs to detach the inserting rod 3, the inserting rod 3 is firstly pushed downwards, the inserting rod 3 pushes a spring 13 downwards through a transmission plate 12, the transmission plate 12 enables a transmission bracket 10 to move downwards through a push rod, the top end of the transmission bracket 10 drives a second piston 8 to move downwards, under the action of a hydraulic cabin 7, the first piston 6 drives a clamping block movable sleeve 5 to move towards the direction far away from the inserting rod 3, when a positioning block 51 moves to a positioning rod 142, the positioning block 51 is clamped with the positioning rod 142, the fixture block 4 is just separated from the inserting rod 3 at the moment, and then the inserting rod 3 is directly pulled out upwards, in the process that the inserting rod 3 moves upwards, the transmission plate 12 rises under the action of the first spring 13 and can stay between the two fixture blocks 4 to prevent the fixture blocks 4 from resetting, in the process that the transmission plate 12 rises, as the push rod 11 is not contacted with the transmission bracket 10 and the positioning device 14 fixes the positions of the fixture block movable sleeves 5, the transmission bracket 10 and the second piston 8 cannot rise, in the process that the push rod 11 pushes the button 144 to move, the button 144 rises and enables the positioning rod 142 to fall through the lever 143, after the positioning rod 142 is separated from the positioning block 51, the transmission bracket 10 pushes the second piston 8 to reset upwards under the action of the fourth spring 18, and under the action of the hydraulic chamber 7, the two first pistons 6 drive the two movable fixture blocks 5 to move towards each other, so that the two latch blocks 4 will abut against the side surfaces of the driving plate 12 and the push rod 11.
When the inserting rod 3 is installed, the inserting rod 3 is directly inserted into the first fixing strip 1 and the second fixing strip 2, one end of the inserting rod 3 is inserted into the inserting rod fixing device 9, when the inserting rod 3 pushes the driving plate 12 to descend until the side surfaces of the driving plate 12 and the push rod 11 are not contacted with the clamping block 4, the clamping block 4 can be automatically clamped with the inserting rod 3 under the action of the second spring 52 and the fourth spring 18, and therefore the inserting rod 3 is fixed.
Although embodiments of the present invention have been shown and described, it will be appreciated by those skilled in the art that changes, modifications, substitutions and alterations can be made in these embodiments without departing from the principles and spirit of the invention, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a strong assembled steel construction building externally hung wallboard of stability, includes first fixed strip (1) and second fixed strip (2), first fixed strip (1) and second fixed strip (2) inside grafting have inserted bar (3), its characterized in that: the inserting rod (3) is connected with one end of the first fixing strip (1) in an inserting mode and is clamped with the clamping block (4), the clamping block (4) is sleeved inside the clamping block movable sleeve (5), the clamping block movable sleeve (5) is fixedly connected with the first piston (6), the first piston (6) is movably connected with the second piston (8) through the hydraulic bin (7), the outer wall of the hydraulic bin (7) is fixedly connected with the inner wall of the inserting rod fixing device (9), the top of the inserting rod fixing device (9) is fixedly connected with the first fixing strip (1), the bottom of the second piston (8) is fixedly connected with the transmission support (10), the bottom of the clamping block movable sleeve (5) is fixedly connected with the positioning block (51), the positioning block (51) is movably connected with the positioning device (14), the top of the positioning device (14) is fixedly connected with the hydraulic bin (7), and the top of the transmission support (10) is provided with the push rod (11), push rod (11) top and driving plate (12) fixed connection, driving plate (12) top sets up in inserted bar (3) bottom, driving plate (12) bottom fixedly connected with spring (13), spring (13) bottom and inserted bar fixing device (9) inner wall bottom fixed connection.
2. The strong stability assembly steel structural building cladding panel of claim 1, wherein: one side, far away from the inserted bar (3), of the fixture block (4) is fixedly connected with one end of a second spring (52), and the other end of the second spring (52) is fixedly connected with the inner wall of the fixture block movable sleeve (5).
3. The strong stability assembly steel structural building cladding panel of claim 1, wherein: the bottom of the inner wall of the positioning device (14) is fixedly connected with a third spring (141), the top end of the third spring (141) is fixedly connected with a positioning rod (142), the positioning rod (142) is movably connected with a button (144) through a lever (143), and the lever (143) is rotatably connected with the inner wall of the positioning device (14).
4. The strong stability assembly steel structural building cladding panel of claim 1, wherein: two limiting plates (15) are arranged on two sides of the transmission support (10), and the bottoms of the limiting plates (15) are fixedly connected with the bottom of the inner wall of the inserted bar fixing device (9).
5. The strong stability assembly steel structural building cladding panel of claim 1, wherein: the transmission plate (12) is sleeved inside the limiting sleeve (16), and the bottom of the limiting sleeve (16) is fixedly connected with the inner wall of the inserted rod fixing device (9).
6. The strong stability assembly steel structural building cladding panel of claim 1, wherein: the number of the clamping blocks (4) is two, and the two clamping blocks (4) are symmetrically arranged on two sides of the inserted rod (3).
